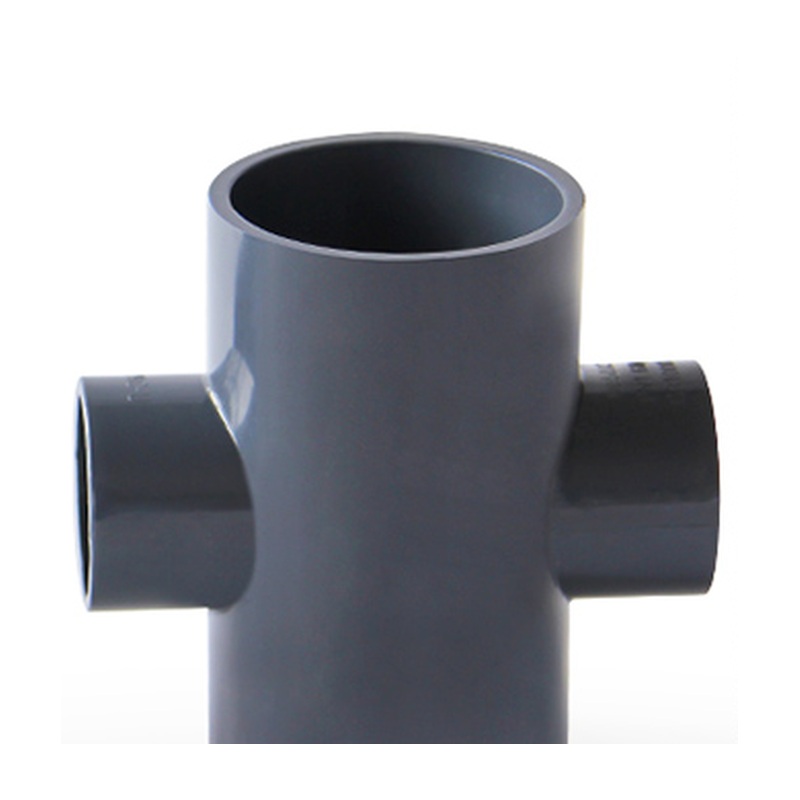

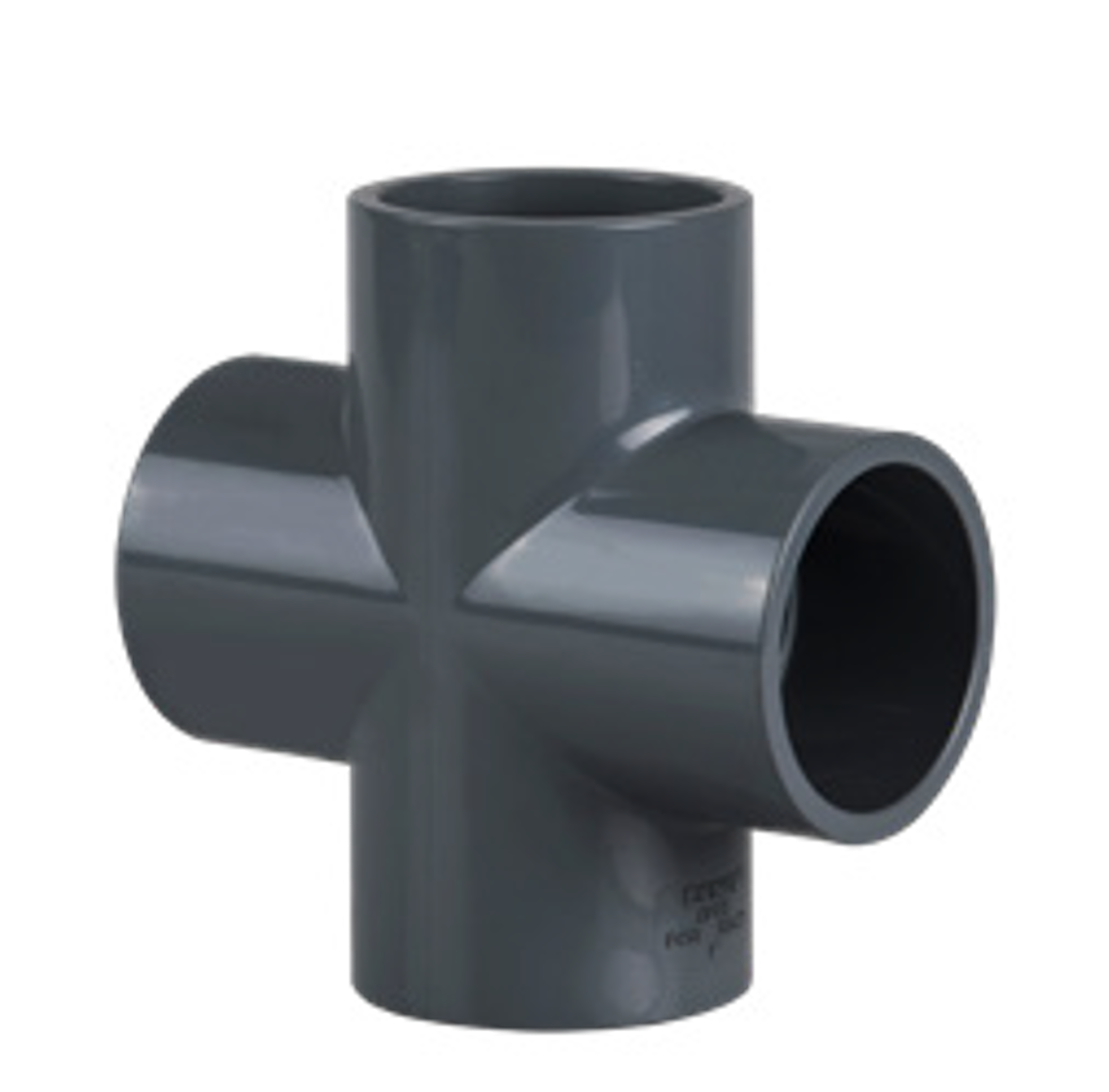

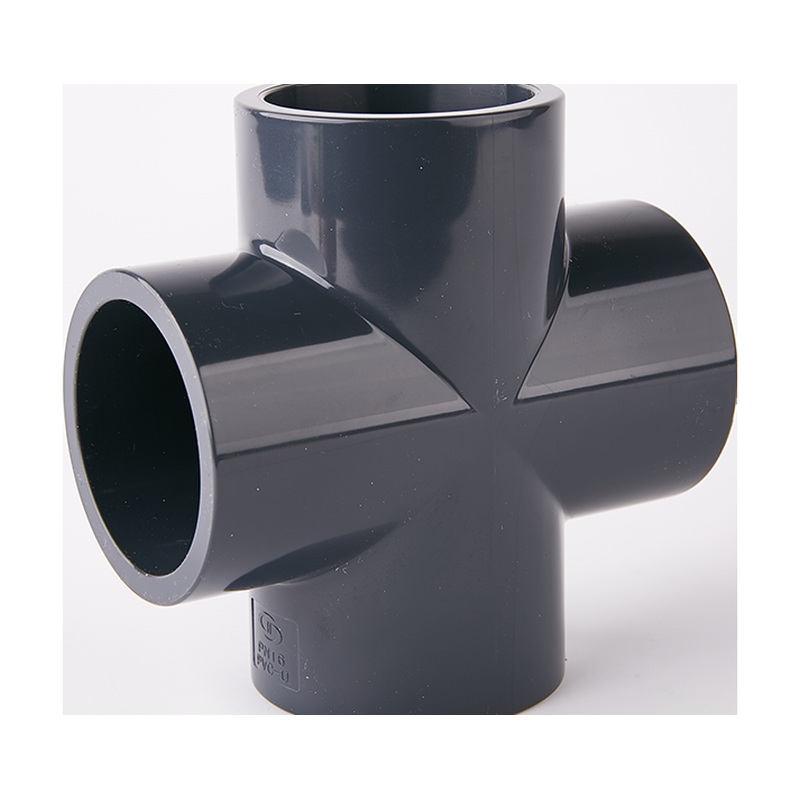

UPVC Cross

A solvent-cement socket cross fitting for splitting flow into four directions.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: UPVC Fittings

UPVC Fittings

Product Overview

UPVC cross fitting for solvent cement socket four-way pipe connections. Manufactured from virgin PVC-U compound per GB/T 10002.2 and ISO 1452, this UPVC cross intersects two lines and divides flow into four directions in one compact molded body. Available in DN 15 - 200 mm with PN6 - PN16 ratings.

Quick Information

Type: Cross
Material: PVC-U / PVC-C
Size: DN 15 - 200 mm
Pressure Rating: PN6 - PN16
Connection: Solvent Cement Socket
Standard: GB/T 10002.2 / ISO 1452
Stock: In stock

Specification Table

Size DN	Dimensions (mm)						Nominal Pressure PN(kg/cm²)
	D0	D1	D2	d	T	L
15	26.30	20.30	19.95	18.00	16.20	55.40	S5(PN20)
20	31.80	25.30	24.95	21.00	18.70	65.40	S5(PN20)
25	39.90	32.30	31.90	28.00	22.20	79.40	S5(PN20)
32	49.50	40.35	39.90	36.00	26.20	95.40	S5(PN20)
40	61.50	50.35	49.90	46.00	31.20	115.40	S5(PN20)
50	77.40	63.40	62.90	59.00	37.70	141.00	S5(PN20)
65	91.20	75.40	74.90	70.90	43.70	165.00	S6.3(PN16)
80	107.60	90.50	89.90	85.90	51.20	194.50	S6.3(PN16)
100	127.00	110.60	109.90	103.90	61.20	234.50	S6.3(PN16)
De125	144.30	125.70	124.90	118.90	68.70	263.80	S6.3(PN16)
125	161.60	140.75	139.90	133.90	76.20	295.00	S6.3(PN16)
150	185.30	160.80	159.90	153.90	86.20	336.00	S6.3(PN16)
De200	230.00	201.00	199.90	193.90	106.20	414.00	S6.3(PN16)
200	259.40	226.20	224.90	216.90	119.10	465.00	S6.3(PN16)
De250	287.90	251.30	249.90	241.40	131.65	515.50	S6.3(PN16)
250	314.80	281.20	280.10	276.00	147.00	582.00	S8(PN16)
300	354.00	316.70	314.90	307.00	164.30	643.00	S8(PN16)

Key Features

Equal Four-Way Flow: The UPVC cross intersects two same-size lines, splitting or combining flow on all four outlets.
One-Piece Molded Body: The UPVC cross has no seams, so the intersection resists full line pressure from any direction.
Solvent Cement Joint: Each UPVC cross has precision-molded sockets that bond permanently to PVC-U pipe with standard solvent cement.
Chemical Resistance: The UPVC cross withstands acids, alkalis and industrial chemicals without corrosion.
PN6 - PN16 Rated: The UPVC cross matches common PVC-U pipe pressure classes from DN 15 to 200 mm.
Long Service Life: Non-rusting, non-scaling UPVC cross material delivers decades of reliable intersection service.

Production

Raw Material

Each UPVC cross is injection molded from virgin PVC-U compound with precision tooling per GB/T 10002.2 and ISO 1452.

Molding Process

The UPVC cross is injection molded with multi-axis cores that guarantee identical bore diameter and square alignment on all four outlets.

Quality Control

Every UPVC cross is dimensionally inspected for socket depth, OD and outlet squareness to guarantee exact compatibility with standard PVC-U pipes.

Applications

Industrial piping grids use the UPVC cross where two distribution lines cross and interconnect.
Irrigation block layouts rely on the UPVC cross to divide flow equally into four directions.
Chemical process plants install the UPVC cross for compact four-way junctions.
Building services choose the UPVC cross for equal-size four-way connections in utility runs.
