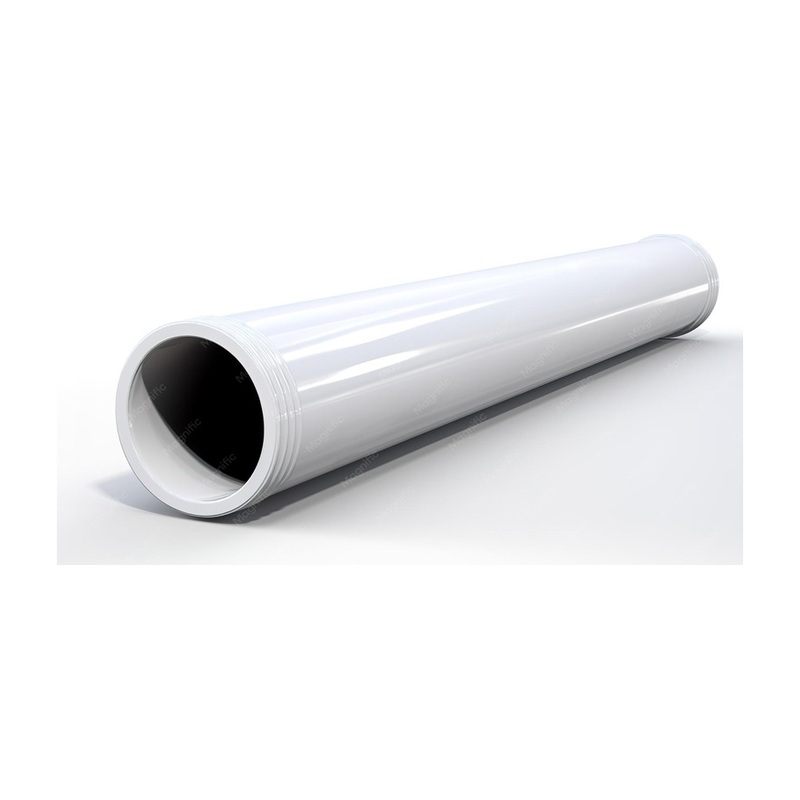

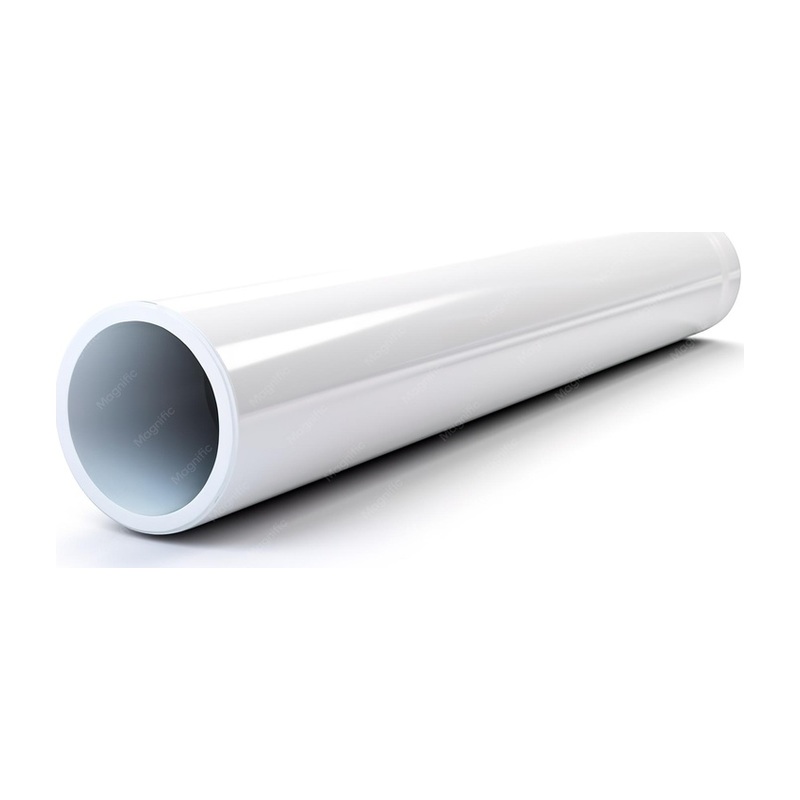

PVC Standard Solid Wall Pipe

PVC Standard Solid Wall Pipe DN 20 – 315 mm, PN 10, PN 12.5, PN 16, UPVC, to GB/T 10002.1, ISO 1452, for water supply and drainage networks.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: PVC Pipes

PVC Pipes

Product Overview

DN 20–315mm, PN 10/12.5/16, white/blue/gray color options. Virgin UPVC material, GB/T 10002.1 / ISO 1452 standard. Ideal for drinking water, irrigation, and industrial supply.

Extruded from lead-free virgin UPVC in white, blue and gray color-coded ranges, this PVC solid wall pipe series covers PN10/PN12.5/PN16 in DN20-315 with fast solvent-cement jointing and a 50-year design life - one pipe family for potable water networks, irrigation and industrial supply.

Quick Information

Diameter Range: DN 20 - 315 mm
Pressure Rating: PN 10, PN 12.5, PN 16
Material: Virgin UPVC (Lead-Free)
Color Options: White (Potable Water), Blue (Irrigation), Gray (Industrial)
Applicable Standards: GB/T 10002.1, ISO 1452
Length: 4 m (DN 20-75), 6 m (DN 90-315)
Stock Availability: In stock

Specification Table

GB/T 10002.1-2006

— wall thickness by pressure class

De (mm)	Wall Thickness PN10 (mm)	Wall Thickness PN12.5 (mm)	Wall Thickness PN16 (mm)
20	—	—	2.0
25	—	2.0	2.3
32	2.0	2.4	2.9
40	2.4	3.0	3.7
50	2.4	3.0	3.7
63	3.0	3.8	4.7
75	3.6	4.5	5.6
90	4.3	5.4	6.7
110	4.2	5.3	6.6
125	4.8	6.0	7.4
140	5.4	6.7	8.3
160	6.2	7.7	9.5
180	6.9	8.6	10.7
200	7.7	9.6	11.9
225	8.6	10.8	13.4
250	9.6	11.9	14.8
280	10.7	13.4	16.6
315	12.1	15.0	18.7

Key Features

3 Standard Colors In Stock: Color-coded PVC solid wall pipe options for fast system identification - White for drinking water, Blue for irrigation, Gray for industrial.
Non-Toxic & Safe: Produced from lead-free virgin UPVC, this solid wall PVC pipe is safe for potable water and agricultural use.
Smooth Inner Wall: The PVC solid wall pipe bore has an extremely low friction coefficient that reduces pumping energy and increases flow capacity.
Corrosion & Chemical Resistant: PVC solid wall pipe will not rust, scale, or degrade when exposed to soil chemicals, fertilizers, or acidic water.
Solvent Cement Jointing: Simple, fast, and leak-proof connections using standard UPVC adhesive on every solid wall PVC pipe.
Complete Range in One Order: DN20-315 across PN10/PN12.5/PN16 with 4m and 6m lengths; mixed sizes, colors and pressure classes of PVC solid wall pipe can share one container for whole-project delivery.

Production

Manufacturing Process

PVC solid wall pipe is manufactured via high-speed twin-screw extrusion with precise vacuum calibration and online laser diameter monitoring. Each pipe is inkjet-coded with batch number and production date for complete traceability.

Quality Control & Testing

Each production lot of PVC solid wall pipe is verified before release: hydrostatic pressure testing at 1.5× rated pressure per ISO 1167, falling-weight impact testing, Vicat softening temperature check, and 100% dimensional inspection of outside diameter and wall thickness. Test records are filed by inkjet batch code and available to buyers on request.

Raw Material

Only lead-free virgin UPVC compound is used for PVC solid wall pipe - no regrind or recycled resin - giving a design service life of 50 years at rated temperature and pressure. UV-stabilized compound is available for pipes stored or installed outdoors.

Applications

Sprinkler and drip irrigation mainlines & branch pipes - blue PN10 PVC solid wall pipe lengths feeding drip blocks and center pivots, where the smooth bore protects emitter flow rates against pressure loss.
Rural and municipal drinking water supply networks - white PN10 solid wall PVC pipe running from borehole header tanks through village distribution, with color coding that keeps potable lines unmistakable on site.
Greenhouse, orchard and landscaping water systems - light 4m PVC solid wall pipe lengths in DN20-75 for fast above-ground and buried installation around planting.
Industrial process water and drainage - gray PN16 PVC solid wall pipe sections for packing-plant and utility loops; on many projects all three systems are covered by this one pipe series and one jointing method.
