Product Overview

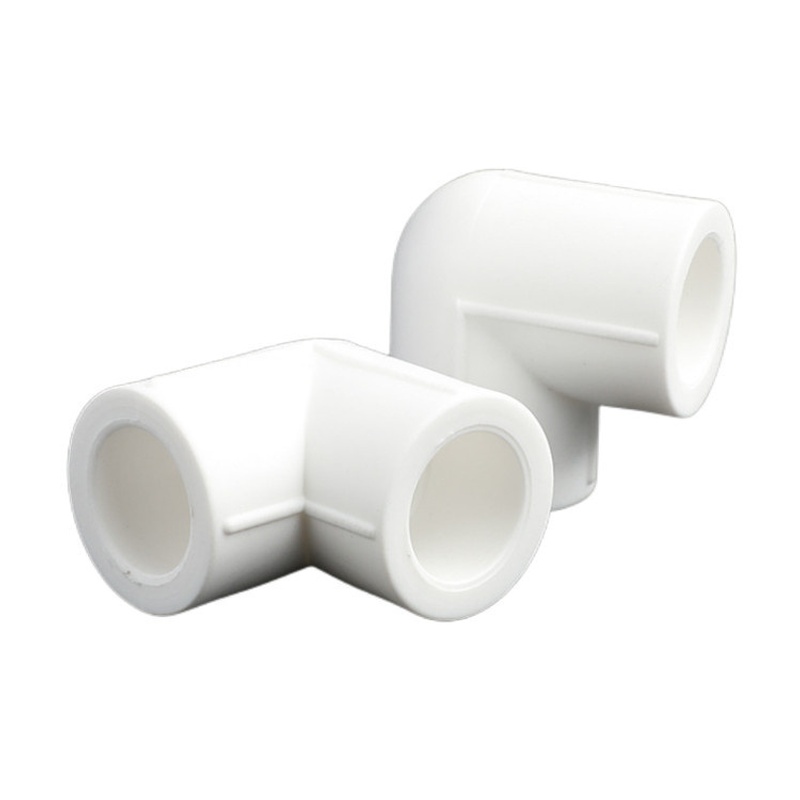

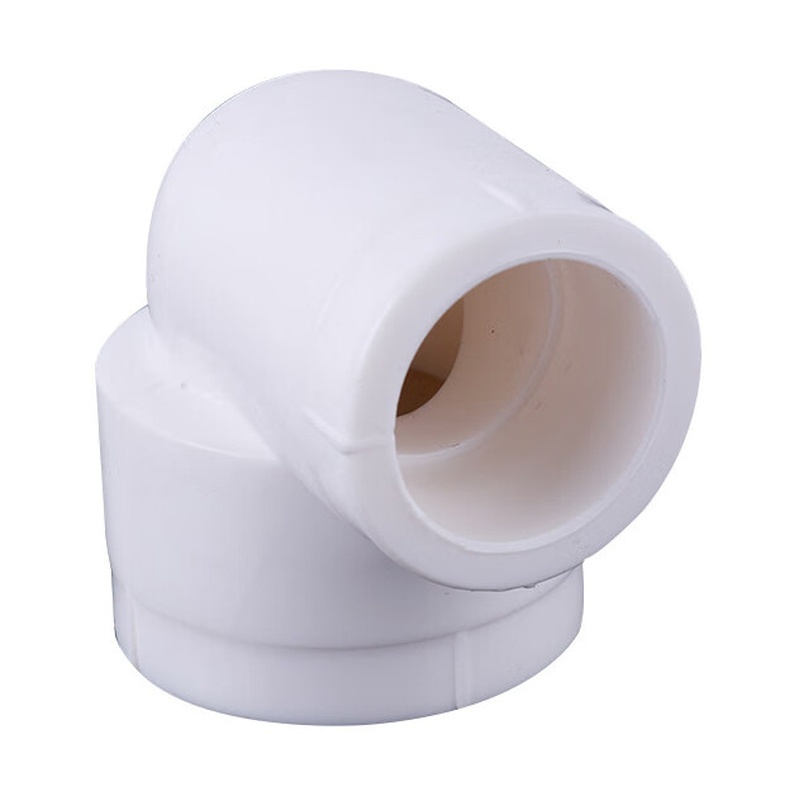

PPR 90 degree elbow is the standard direction changing fitting in heat fused PPR plumbing systems. Molded from virgin PP-R random copolymer with precision socket ends, the PPR 90 degree elbow fuses directly onto PPR pipe creating a monolithic joint that never leaks. Available from DN 20 mm to DN 110 mm, the PPR 90 degree elbow is used wherever a 90 degree turn is required in cold water, hot water or heating PPR lines.
Quick Information
- Material: Virgin PP-R
- Fitting Type: 90 Degree Elbow
- Size Range: DN 20 - DN 110 mm
- Connection: Heat Fusion (both ends)
- Rated Pressure: PN 1.25 to PN 2.5 MPa
- Standards: GB/T 18742, ISO 15874
Specification Table
| Size Code | DN (mm) | SDR | Connection |
|---|---|---|---|
| L20 | 20 | S5 | Heat Fusion |
| L25 | 25 | S5 | Heat Fusion |
| L32 | 32 | S5 | Heat Fusion |
| L40 | 40 | S5 | Heat Fusion |
| L50 | 50 | S5 | Heat Fusion |
| L63 | 63 | S5 | Heat Fusion |
| L75 | 75 | S5 | Heat Fusion |
| L90 | 90 | S5 | Heat Fusion |
| L110 | 110 | S5 | Heat Fusion |
