Product Overview

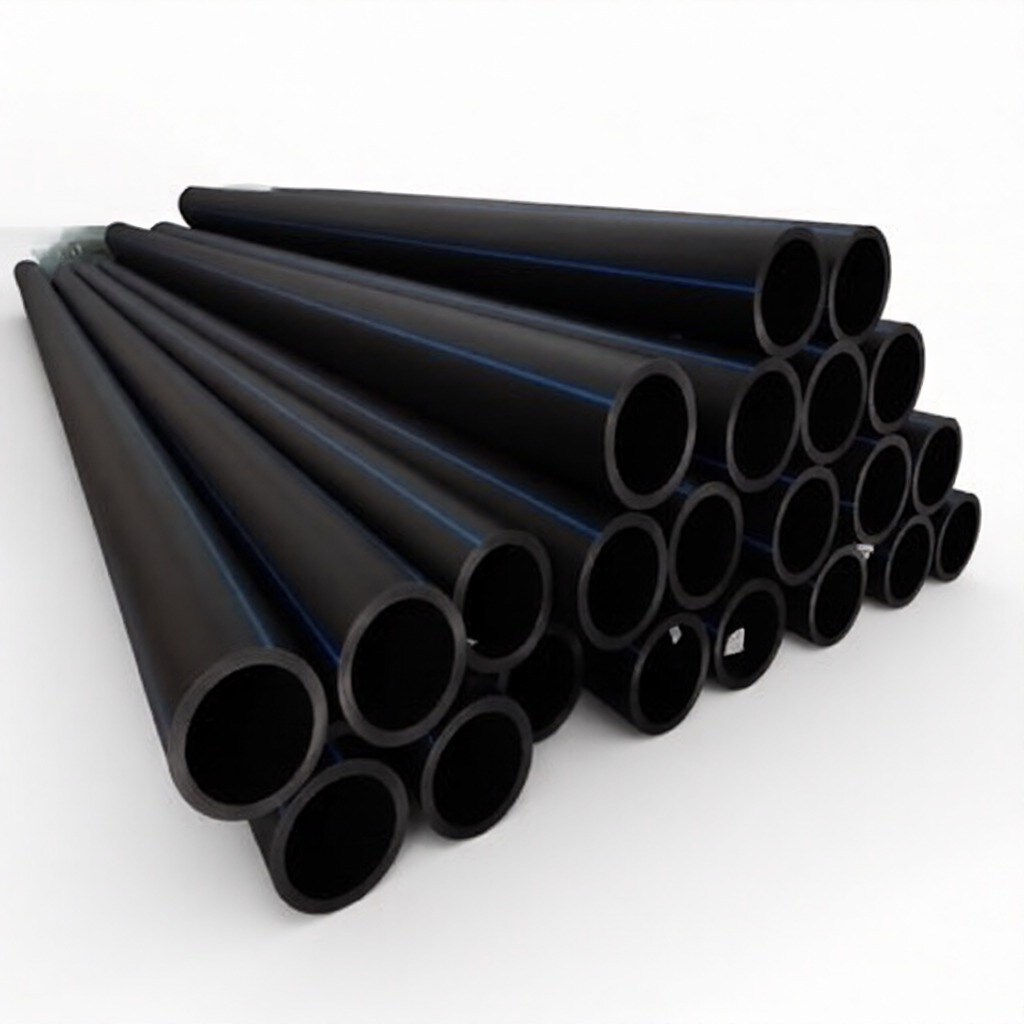

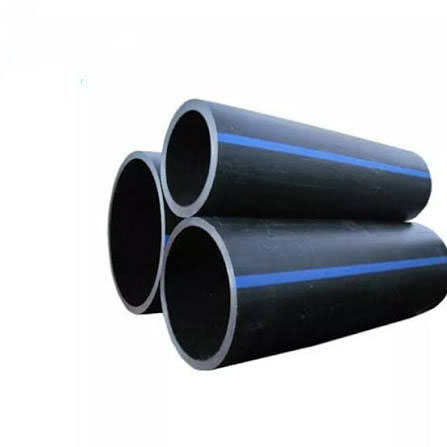

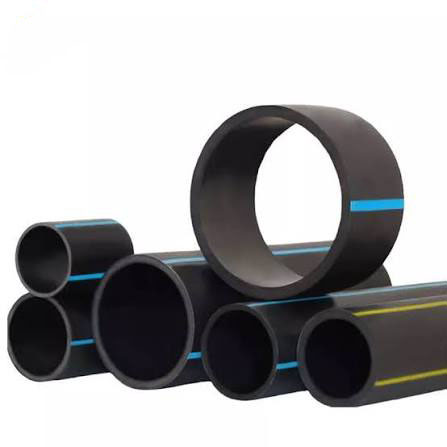

HDPE industrial pipe manufactured from PE100 for chemical, mining and general industrial applications. Excellent chemical resistance and high mechanical strength ensure reliable service in demanding environments. From chemical process lines to mining slurry transport, this HDPE industrial pipe replaces steel and lined pipe with a single corrosion-free PE100 solution rated PN6 to PN16.
Quick Information
- Type: Industrial Pipe
- Material: HDPE PE100
- Application: Chemical, mining, industry
- Chemical Resistance: Excellent
- Pressure Rating: PN6 – PN16
- Size: DN20 – DN600
- Stock: Made to order
Specification Table
| DN (mm) | OD (mm) | SDR11 (PN16) Wall (mm) | SDR17 (PN10) Wall (mm) | SDR21 (PN8) Wall (mm) |
|---|---|---|---|---|
| 20 | 20 | 2.0 | 1.2 | – |
| 50 | 50 | 4.6 | 3.0 | 2.4 |
| 63 | 63 | 5.8 | 3.8 | 3.0 |
| 90 | 90 | 8.2 | 5.4 | 4.3 |
| 110 | 110 | 10.0 | 6.6 | 5.3 |
| 160 | 160 | 14.6 | 9.5 | 7.7 |
| 200 | 200 | 18.2 | 11.9 | 9.6 |
| 315 | 315 | 28.6 | 18.7 | 15.0 |
| 400 | 400 | 36.3 | 23.7 | 19.1 |
| 500 | 500 | 45.4 | 29.7 | 23.9 |
| 600 | 600 | 54.5 | 35.7 | 28.6 |
