Product Overview

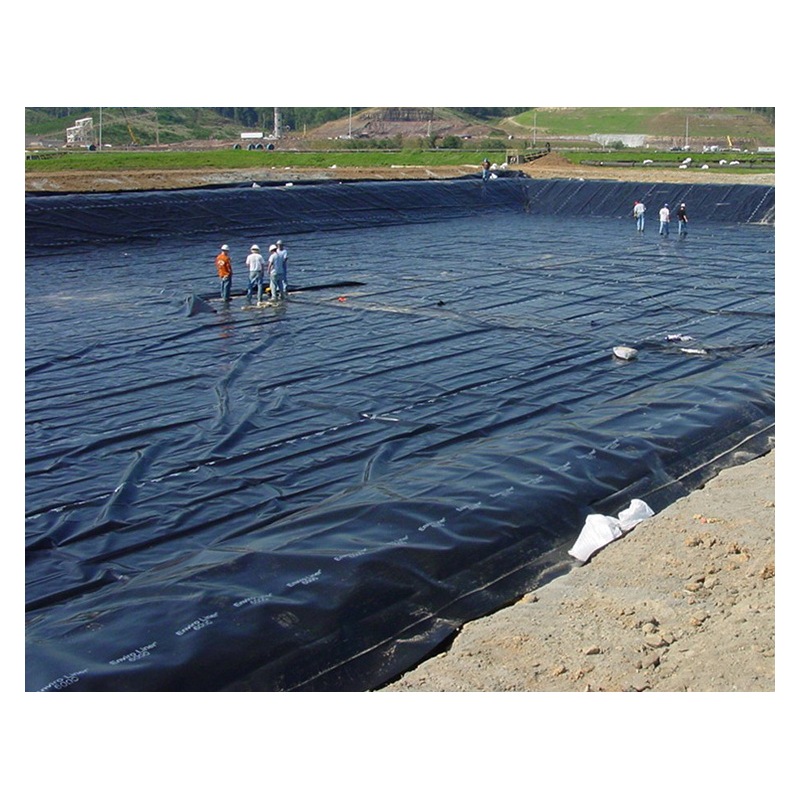

The HDPE geomembrane from Bingo Pipeline is a black high-density polyethylene liner made from virgin resin with 2.0 - 3.0% carbon black for UV stability. Its density of 0.940 g/cm³ and 500-hour stress cracking resistance make the HDPE geomembrane suitable for long-term containment of water, leachate and waste.

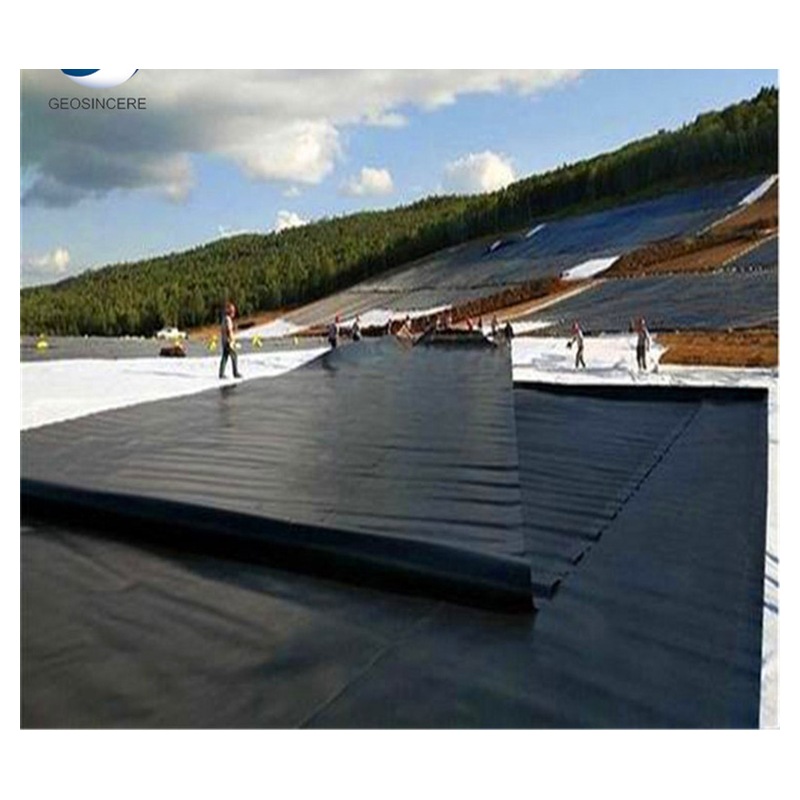

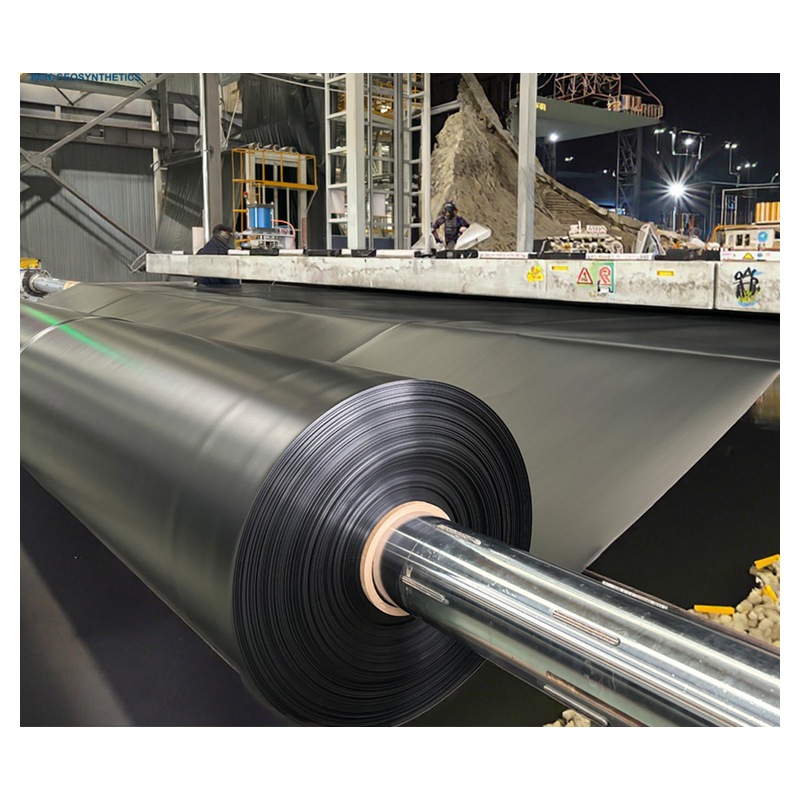

Available from 0.5 mm to 2.0 mm in smooth or textured finish, the HDPE geomembrane is supplied in rolls up to 6 m wide and 200 m long to minimise field seams. Typical tensile yield strength ranges from 15 kN/m at 1.0 mm to 29 kN/m at 2.0 mm.
Quick Information
- Material: virgin HDPE resin, black, 2.0 - 3.0% carbon black
- Thickness: 0.5 / 0.75 / 1.0 / 1.5 / 2.0 mm
- Density: 0.940 g/cm³
- Tensile yield strength: 15 - 29 kN/m (ASTM D6693)
- Yield elongation: 12 %
- Break elongation: ≥700 %
- Tear resistance: 125 - 249 N (ASTM D1004)
- Max continuous service temperature: 60 °C
- Roll width: 1 - 6 m
Specification Table
| Property | 1.0 mm | 1.5 mm | 2.0 mm |
|---|---|---|---|
| Density (g/cm³) | 0.940 | 0.940 | 0.940 |
| Tensile yield strength (kN/m, ASTM D6693) | 15 | 22 | 29 |
| Yield elongation (%) | 12 | 12 | 12 |
| Break elongation (%) | ≥700 | ≥700 | ≥700 |
| Tear resistance (N, ASTM D1004) | 125 | 187 | 249 |
| Asperity height, textured (mil) | 16 | 16 | 16 |
| Carbon black content (%) | 2.0 - 3.0 | 2.0 - 3.0 | 2.0 - 3.0 |
| Carbon black dispersion (ASTM D5596) | Cat 1 or 2 | Cat 1 or 2 | Cat 1 or 2 |
| Stress cracking resistance (h) | 500 | 500 | 500 |
| Max continuous service temperature | 60 °C | 60 °C | 60 °C |
| Roll width / length | 1 - 6 m wide, 50 - 200 m per roll | ||
