HDPE Fish Cage Bracket

HDPE Fish Cage Bracket, PE100 HDPE, to ISO 4427 PE100, for aquaculture cage systems.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: Fish Farming

Fish Farming

Product Overview

The HDPE Fish Cage Bracket is the injection-moulded connection between the floating pipe frame and the standing pipe of an HDPE floating fish cage. Unlike steel brackets that corrode in seawater, the HDPE Fish Cage Bracket is injection-moulded from PE100 HDPE for 15+ year service life with zero maintenance, keeping the standing pipes of the fish farming cage rigid against wave loading.

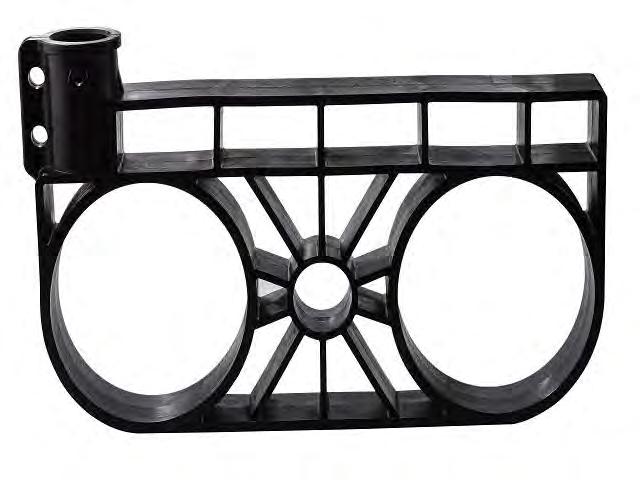

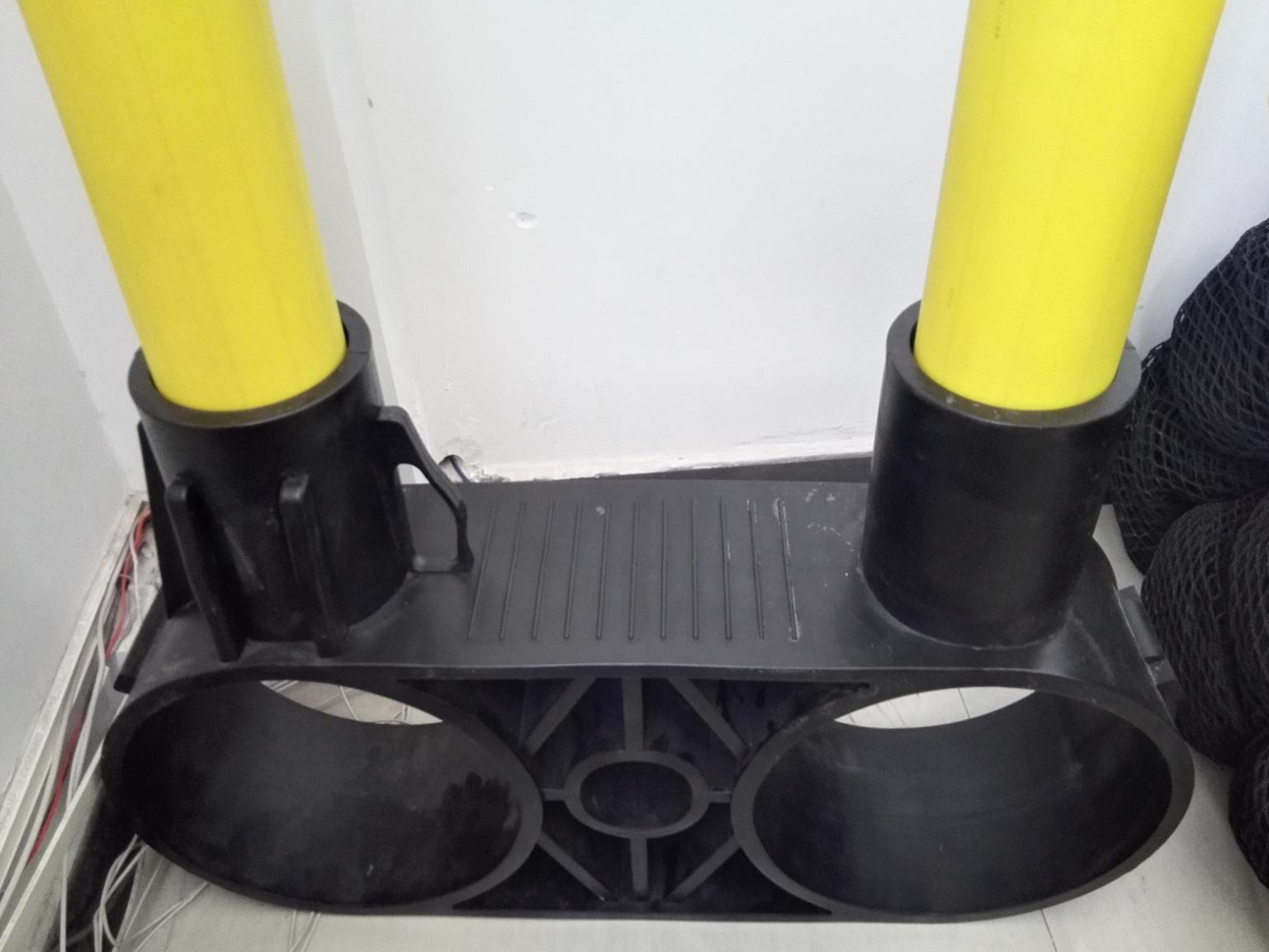

Two standard types are produced: the Single Bracket for standard 250 mm floating pipe and 110 mm standing pipe, and the Double Bracket for reinforced 400 mm floating pipe and 125 mm standing pipe on large 30-40 m cages. Brackets are pre-drilled for pin fasteners on both axes, allowing quick on-site assembly without welding - a single crew can outfit a complete fish cage frame with hand tools alone.

Quick Information

Product Name: HDPE Fish Cage Bracket
Material: Injection-moulded PE100 HDPE
Types: Single Bracket / Double Bracket
Floating Pipe Compatible: 250 mm (Single) / 400 mm (Double)
Standing Pipe Compatible: 110 mm (Single) / 125 mm (Double)
Standard: ISO 4427 PE100
Service Life: 15+ years in seawater

Specification Table

Bracket specifications matched to each fish cage size. All brackets are HDPE injection-moulded, PE100 material, to ISO 4427. Pin holes are pre-drilled for 20 mm Pin (dowel).

Bracket Type	Description	Cage Size	Qty per Cage
Single Bracket (250 mm)	HDPE Injection moulded, 250 mm single bracket	8 m, 10 m, 12 m, 15 m	15-24 ea
Single Bracket (280 mm)	HDPE Injection moulded, 280 mm single bracket	18 m, 20 m	29-32 ea
Single Bracket (355 mm)	HDPE Injection moulded, 355 mm single bracket	25 m, 30 m Standard	40-48 ea
Single Bracket (400 mm)	HDPE Injection moulded, 400 mm single bracket	30 m Reinforced, 40 m Reinforced	48-63 ea
Single Bracket (400 mm Heavy)	HDPE Injection moulded, 400 mm heavy-duty	40 m Super Reinforced	63 ea
Double Bracket	HDPE Injection moulded, double bracket	10 m x 10 m Square Cage frame	24 ea

Note: Bracket quantity varies with cage diameter and standing pipe count. Larger diameters and reinforced fish cage configurations use proportionally more brackets - quantities for custom sizes are calculated at project design stage.

Key Features

PE100 injection-moulded body: Uniform wall thickness with no weld line, giving the HDPE Fish Cage Bracket consistent impact strength and zero corrosion in seawater for 15+ years of fish farming service.
Pre-drilled pin holes: Both the floating pipe axis and the standing pipe axis are pre-drilled for 20 mm pin fasteners, so no on-site drilling is needed and every bracket of the fish cage lines up identically.
Two types for every cage size: Single Bracket for 250-400 mm floating pipe on circular cages, Double Bracket for square cage frames - one bracket family covers the whole HDPE floating fish cage range.
UV-stabilized above water: Carbon black PE100 compound prevents UV degradation, since brackets sit at the waterline where sun exposure and wave splash are harshest.
Interchangeable pin system: Standard pin hole spacing allows mixed Single/Double use on project sites, and replacement brackets can be swapped with the same pins and stoppers.
Sized to the cage kit: The bracket sizes above are the same ones supplied with our 8-40 m fish cage kits, so spare and extension brackets always match the existing frame.

Production

Raw Material

Every HDPE Fish Cage Bracket is moulded from virgin PE100 HDPE injection compound with carbon black. The material is tested for melt flow rate and tensile strength before moulding, so each production batch keeps the same stiffness and impact resistance in seawater service.

Molding Process

Brackets are injection-moulded in family moulds for both Single and Double types. After cooling, pin holes are CNC-drilled to precise tolerance so the pin fit stays consistent across production runs - important when a fish farm orders replacement brackets years after the original cage was built.

Quality Control

Each bracket is dimension-checked against drawings, pin hole tolerance is verified, and PE100 material certification is provided per shipment. Moulding records are kept for traceability, so every bracket can be traced back to its material lot and production batch.

Applications

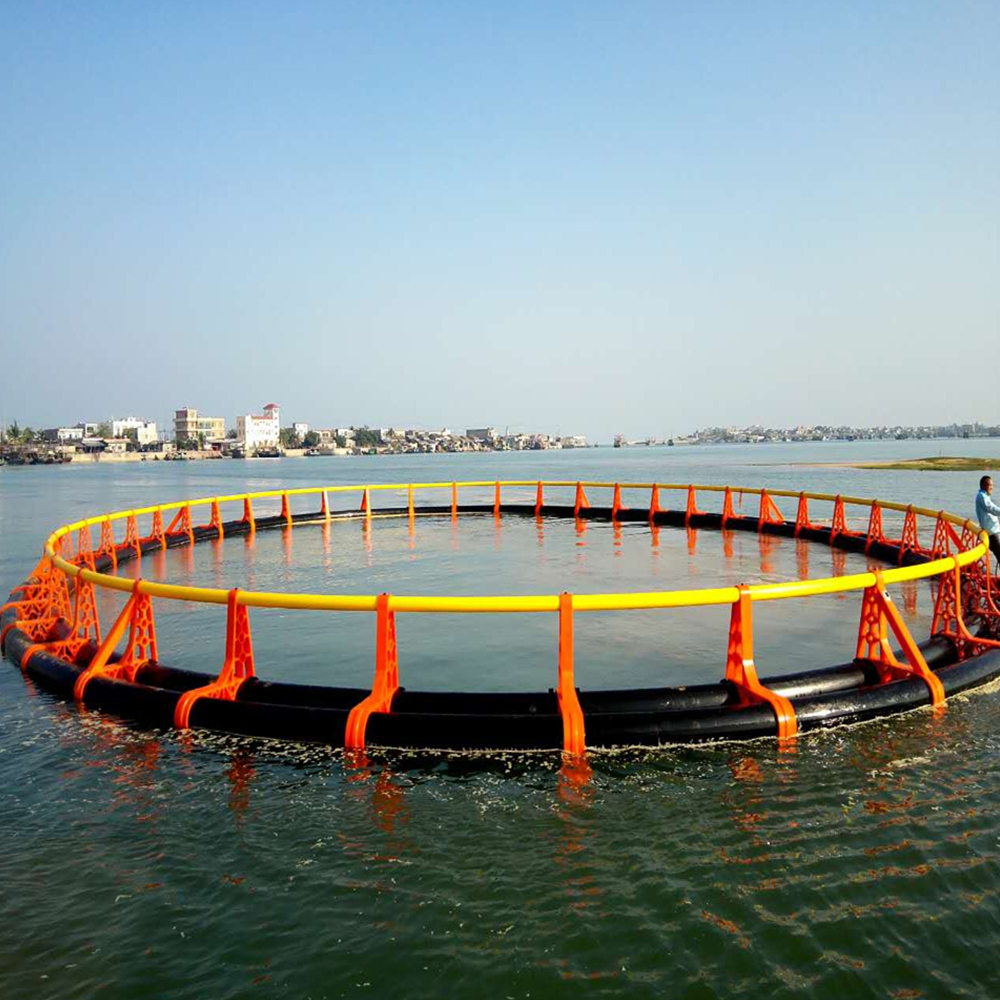

Floating fish cage frames: Primary connection between the floating pipe ring and the vertical standing pipes of circular cages.
Square cage frames: Double Bracket joints for 10 m x 10 m united square fish farming frames.

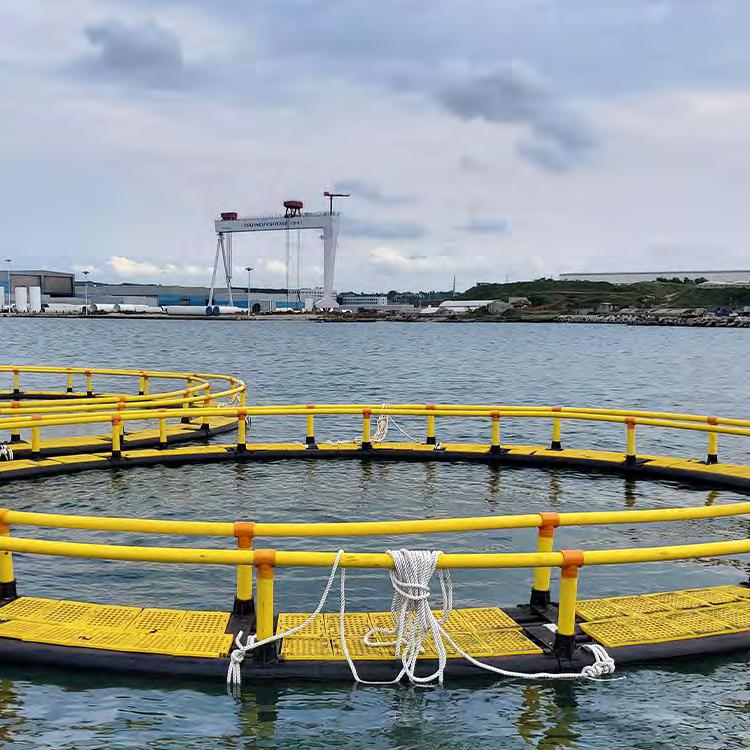

Walkway support: Secondary bracket mounting for walkway panels and operator access paths on the cage.
Mooring point attachment: Bracket reinforcement at high-load mooring connections on exposed sites.
Feeding platform structures: Support joints for feed barge walkways and platform connections serving cage groups.
