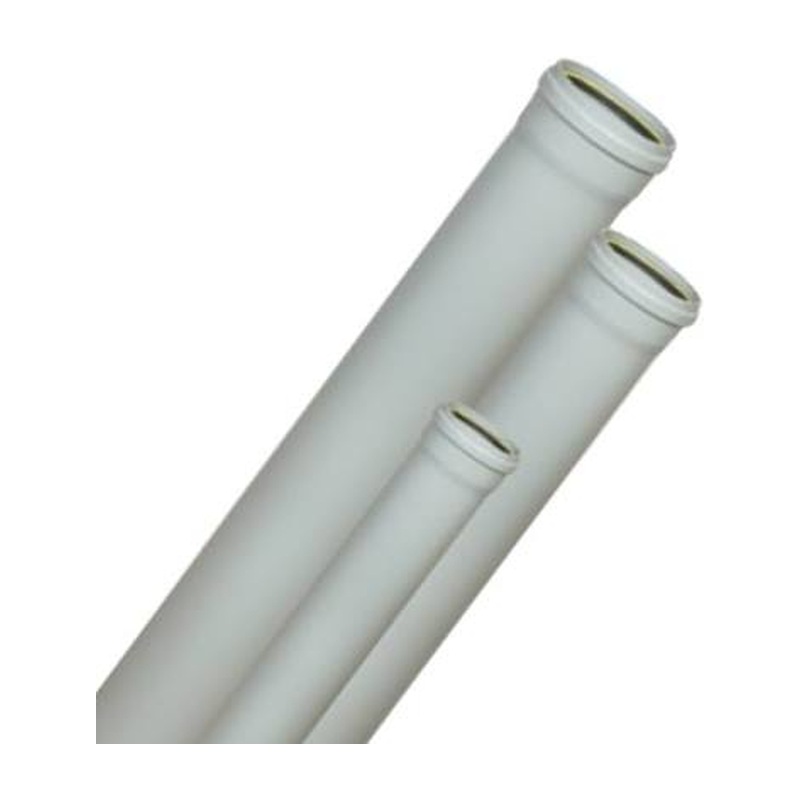

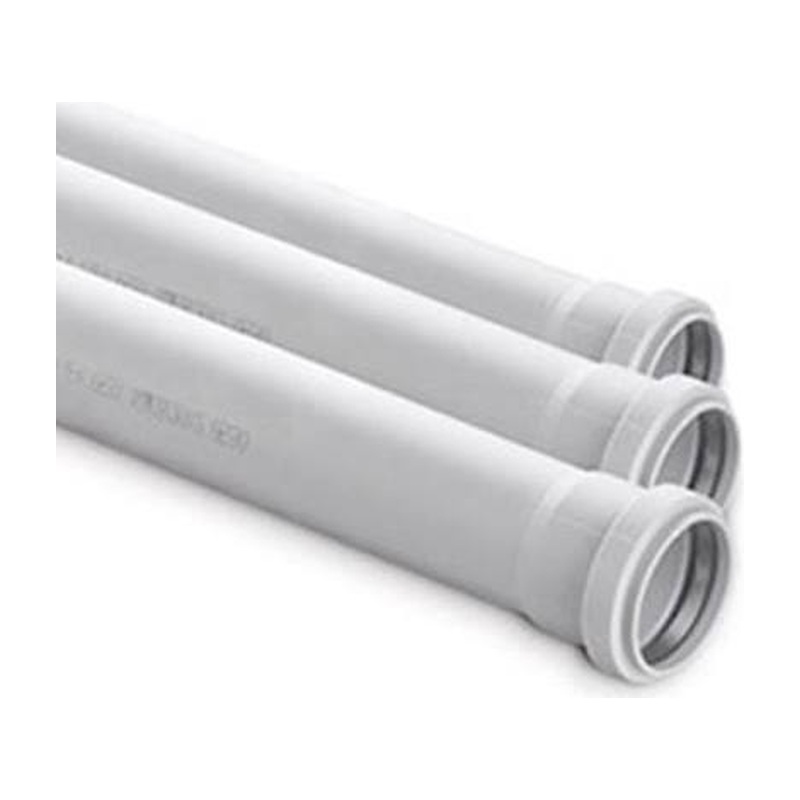

PVC Rubber Ring Socket Pipe

PVC Rubber Ring Socket Pipe DN 110 – 400 mm, PN 10, PN 12.5, PN 16, UPVC + EPDM Rubber Ring, for water supply and drainage networks.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: PVC Pipes

PVC Pipes

Product Overview

DN 110–400mm, PN10/12.5/16, gray/white color. Rubber ring socket joint with EPDM seal. Conforms to GB/T 10002.1. Ideal for municipal water supply and buried large-diameter pipelines.

With a pre-installed EPDM sealing ring in every bell socket, this PVC rubber ring pipe pushes together in seconds without solvent cement or threading, absorbing ground settlement and thermal contraction across DN110-400 buried mains while retaining the full PN10/12.5/16 pressure rating of solid-wall UPVC.

Quick Information

Diameter Range: DN 110 - 400 mm
Pressure Rating: PN 10, PN 12.5, PN 16
Material: Virgin UPVC + EPDM Rubber Ring
Color Options: Gray, White

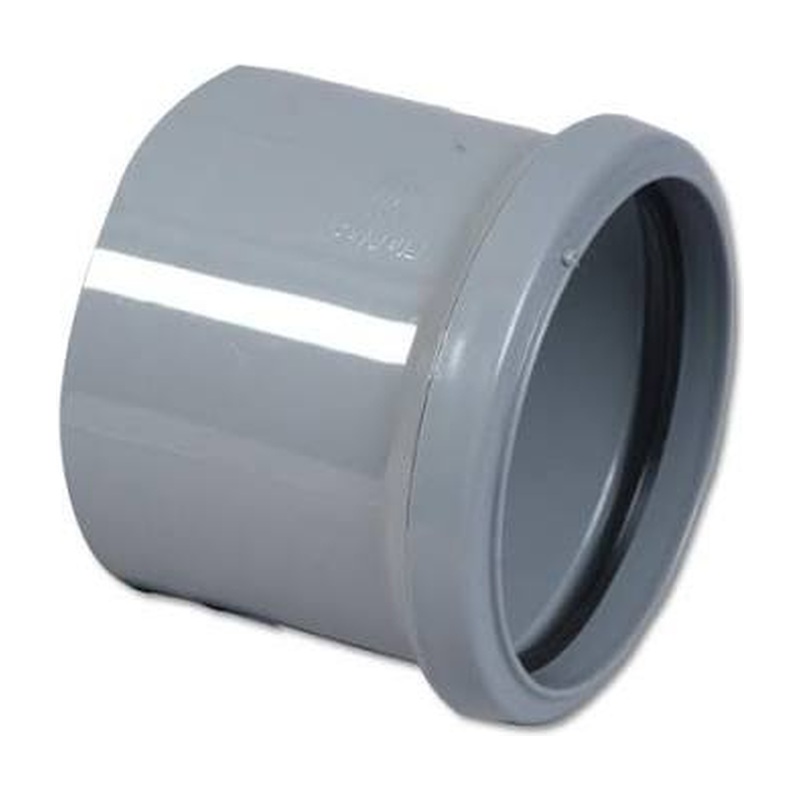

Joint Type: Rubber Ring Bell & Spigot (Push-Fit)
Applicable Standards: GB/T 10002.1, ISO 1452
Length: 6 m
Stock Availability: In stock

Specification Table

GB/T 10002.1-2006

— rubber ring joint pipe, wall thickness by pressure class

De (mm)	Wall Thickness PN10 (mm)	Wall Thickness PN12.5 (mm)	Wall Thickness PN16 (mm)
110	4.2	5.3	6.6
160	6.2	7.7	9.5
200	7.7	9.6	11.9
250	9.6	11.9	14.8
315	12.1	15.0	18.7
400	15.3	19.1	23.7

Key Features

Push-Fit Rubber Ring Joint: Pre-lubricated EPDM bell on every PVC rubber ring pipe slides onto the spigot by hand, cutting jointing time by roughly 50% compared with solvent cement.
Ground Settlement Resistant: The EPDM-ring bell on this rubber ring PVC pipe flexes slightly, absorbing differential settlement and thermal contraction without opening a leak path.
Large-Diameter Buried Mains: DN110-400 sizes of PVC rubber ring pipe cover municipal water transmission where solvent cement would be slow and impractical on long buried runs.
Full Pressure Rating Retained: The rubber ring PVC pipe joint holds PN10/PN12.5/PN16 working pressure, the same as solvent-cement joints of equivalent size.
EPDM Long-Life Seal: The EPDM sealing ring inside every PVC rubber ring pipe resists aging, ozone and water-treatment chemicals for a 50-year service life.
Retestable & Repairable: Each PVC rubber ring pipe joint can be disassembled for repositioning and resealed with a replacement ring, a flexibility solvent joints do not offer.

Production

Manufacturing Process

Every PVC rubber ring pipe is extruded on twin-screw lines and the bell socket is thermoformed in-line; the spigot end is chamfered and marked with the insertion depth line so crews push home to the correct position every time.

Quality Control & Testing

Assembled PVC rubber ring pipe joints undergo internal-pressure leak testing per ISO 1167, EPDM rings are checked for hardness and compression set per ISO 4671, and 100% of bell sockets are gauged for diameter and groove depth before the rubber ring is fitted.

Raw Material

The pipe wall is extruded from lead-free virgin UPVC and the seal from long-life EPDM rubber, making every rubber ring PVC pipe a fully non-toxic, non-rusting, 50-year-design-life product for potable water mains.

Applications

Municipal buried water supply mains and distribution lines - long 6m PN10 PVC rubber ring pipe runs under roads where the push-fit joint absorbs minor settlement without leaking.
Large-diameter rural and irrigation transmission lines - DN250-400 rubber ring PVC pipe laid fast across fields without solvent cement setup time or weather delay.
Industrial process water and cooling-water buried supply - EPDM-sealed PVC rubber ring pipe joints that handle thermal cycling and plant ground movement while staying pressure-tight.
Trench repair, pipe relocation and emergency bypass lines - reusable PVC rubber ring pipe lengths that can be un-jointed and re-laid without cutting, ideal for temporary or adjustable installations.
