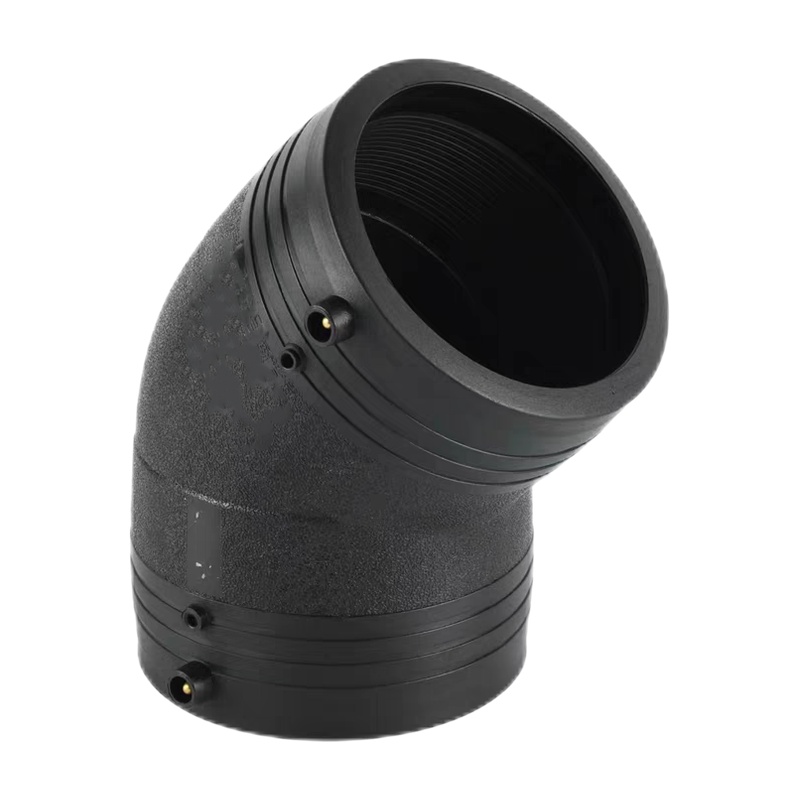

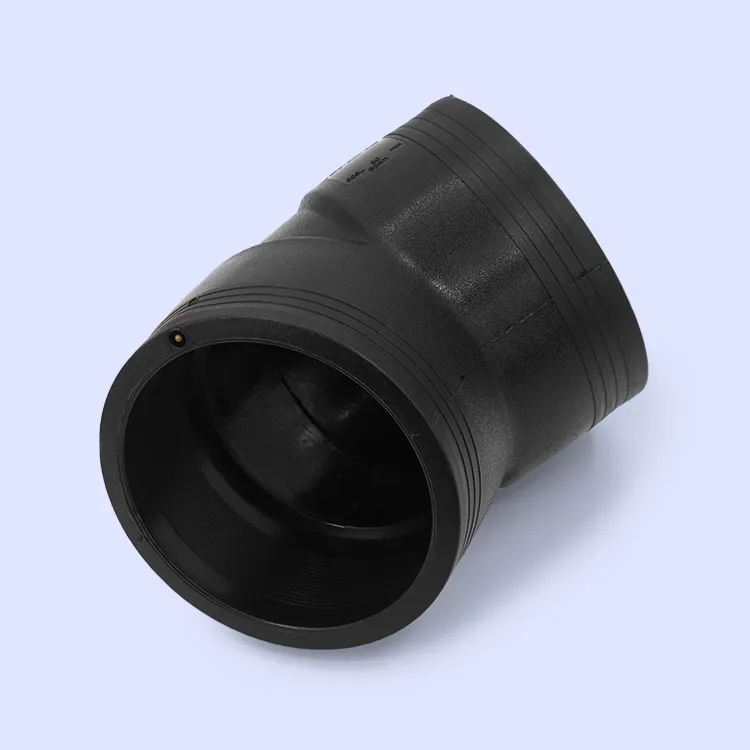

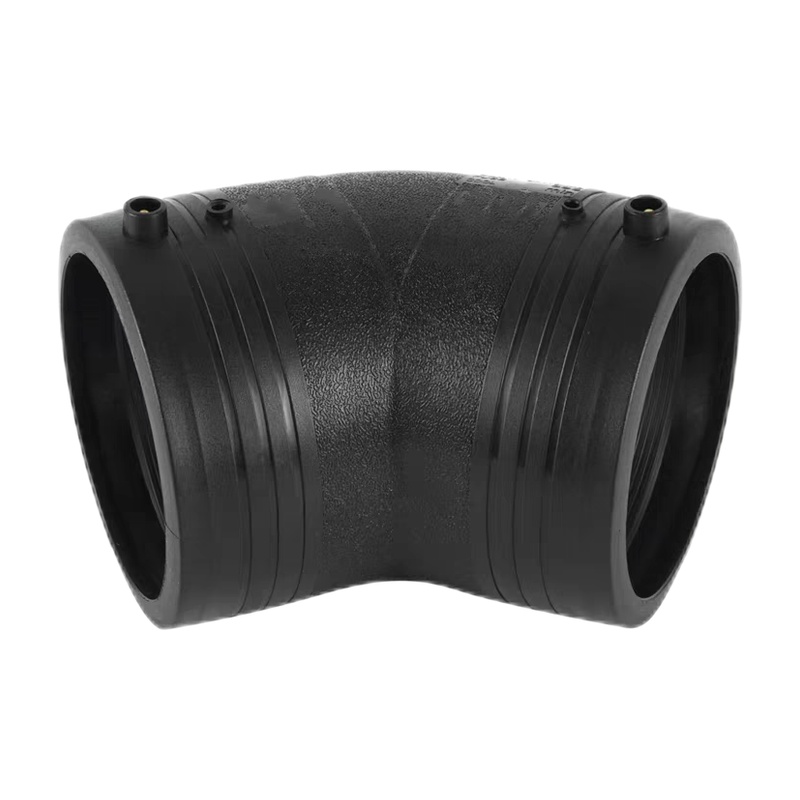

HDPE Electro Fusion 45° Elbow

HDPE Electro Fusion 45° Elbow, PN10 / PN16, PE100, to ISO 4427 / EN 12201, for PE water and gas networks.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: HDPE Electro Fusion Fittings

HDPE Electro Fusion Fittings

Product Overview

The HDPE electro fusion 45° elbow offsets a PE100 water main by 45 degrees through two electro fusion sockets. Gentler than a right angle fitting, the 45° bend keeps flow resistance low at the turn while still redirecting the pipe run around obstacles or aligning with a sloped main. The heating coils are moulded into both socket walls and energized by a standard electro fusion control unit, so the offset becomes a monolithic PE100 junction. Available from DN 50 to DN 315 mm with PN10 to PN16 ratings, the HDPE electro fusion 45° elbow is the standard choice for buried potable water networks where a low resistance change of direction is required.

Quick Information

Material: PE100 (HDPE)
Joint: Electro fusion
Angle: 45 degree
Pressure rating: PN10 / PN16
Standard: ISO 4427 / EN 12201
Colour: Black

Specification Table

Specification Φdn	L	A	Φd	PN16	PN10	PN20	PN25

50*45°	136	54	4.7/4.0	√
63*45°	155	54	4.7/4.0	√
75*45°	167	60	4.7/4.0	√
90*45°	182	68	4.7/4.0	√
110*45°	215	74	4.7/4.0	√
125*45°	236	80	4.7/4.0	√
140*45°	257	75	4.7/4.0	√
160*45°	280	95	4.7/4.0	√
200*45°	335	105	4.7/4.0	√
225*45°	380	110	4.7/4.0	√
250*45°	404	125	4.7/4.0	√
280*45°	440	125	4.7/4.0	√
315*45°	480	135	4.7/4.0	√
355*45°	530	140	4.7/4.0	√
400*45°	580	145	4.7/4.0	√
450*45°	640	156	4.7/4.0	√
500*45°	670	151	4.7/4.0	√
560*45°	780	165	4.7/4.0	√
630*45°	830	185	4.7/4.0	√


315*45 degree elbow	480	135	4.7/4.0		√
355*45 degree elbow	530	140	4.7/4.0		√
400*45 degree elbow	580	145	4.7/4.0		√
500*45 degree elbow	670	150	4.7/4.0		√
630*45 degree elbow	825	185	4.7/4.0		√
710*45 degree elbow	900	211	4.7/4.0		√
800*45 degree elbow	1010	225	4.7/4.0		√



50*45°	138	54.8	4.7/4.0			√
63*45°	167	55	4.7/4.0			√
75*45°	192	60	4.7/4.0			√
90*45°	218	68.4	4.7/4.0			√
110*45°	138	75.2	4.7/4.0			√
160*45°	300	95	4.7/4.0			√
200*45°	350	100	4.7/4.0			√
250*45°	415	125	4.7/4.0			√
315*45°	500	136	4.7/4.0			√



160*45 degree	305	97	4.7/4.0				√

Key Features

Low Flow Resistance: The 45° bend angle produces less head loss than a 90° fitting, so the HDPE electro fusion elbow keeps water velocity high and pumping cost down at the turn.
One Piece Moulded Body: The 45° elbow is injection moulded as a single body, so there is no welded seam at the bend and the offset carries full pipe pressure.
True 45° Geometry: The bend angle is held to 45° during moulding, so the HDPE electro fusion elbow aligns the offset pipe run without springback or stress on the fused joints.
No Metal Insert: The electro fusion 45° elbow keeps polyethylene in the water path, so there is no corrosion or galvanic risk at the offset.
Full PE100 Flexibility: After fusion the line stays flexible, so the buried HDPE main can absorb ground settlement at the offset without prying the fused sockets apart.
Maintenance Free: The fused joints are permanent, so the HDPE electro fusion 45° elbow needs no bolts or gaskets to inspect at the bend.

Production

Raw Material

The HDPE electro fusion 45° elbow is moulded from virgin PE100 compound rated MRS 10.0 per ISO 4427-3, with the resin lot recorded for full traceability from pellet to fitting.

Molding Process

Each electro fusion 45° elbow is injection moulded in one shot with both resistance coils pre positioned in the 45° socket walls; the bend radius and socket bores are held to ISO 4427-3 dimensions.

Quality Control

Every batch of HDPE electro fusion 45° elbows is gauged for socket diameter, ovality, coil resistance and bend angle, then sample welded and pressure tested to 1.5 times rated pressure before release; each fitting carries a batch code traceable to the raw resin lot.

Applications

Obstacle offset runs in buried potable water mains use the HDPE electro fusion 45° elbow to shift the pipe run around existing utilities without a sharp right angle that would raise head loss.
Sloped drainage connections install the electro fusion 45° elbow where a gravity line meets the horizontal main, because the gentle bend keeps flow smooth and avoids sediment settling.
Angled branch takeoffs use the HDPE electro fusion 45° elbow in place of a wye, because the fused socket gives a leak tight junction without a mechanical saddle.
Water treatment plant pipe galleries route the electro fusion 45° elbow at every gentle change of direction, where the low resistance bend keeps the system efficient under pressure cycling.
