Product Overview

The HDPE Floating Fish Cage is a complete turnkey floating aquaculture cage system manufactured from PE100 HDPE and marine-grade netting for commercial fish farming. Unlike galvanized steel cages that corrode after a few years, every HDPE Floating Fish Cage uses virgin PE100 compound with carbon black for UV stability and slow crack growth resistance, giving the cage frame a 15-20 year service life in seawater or freshwater.

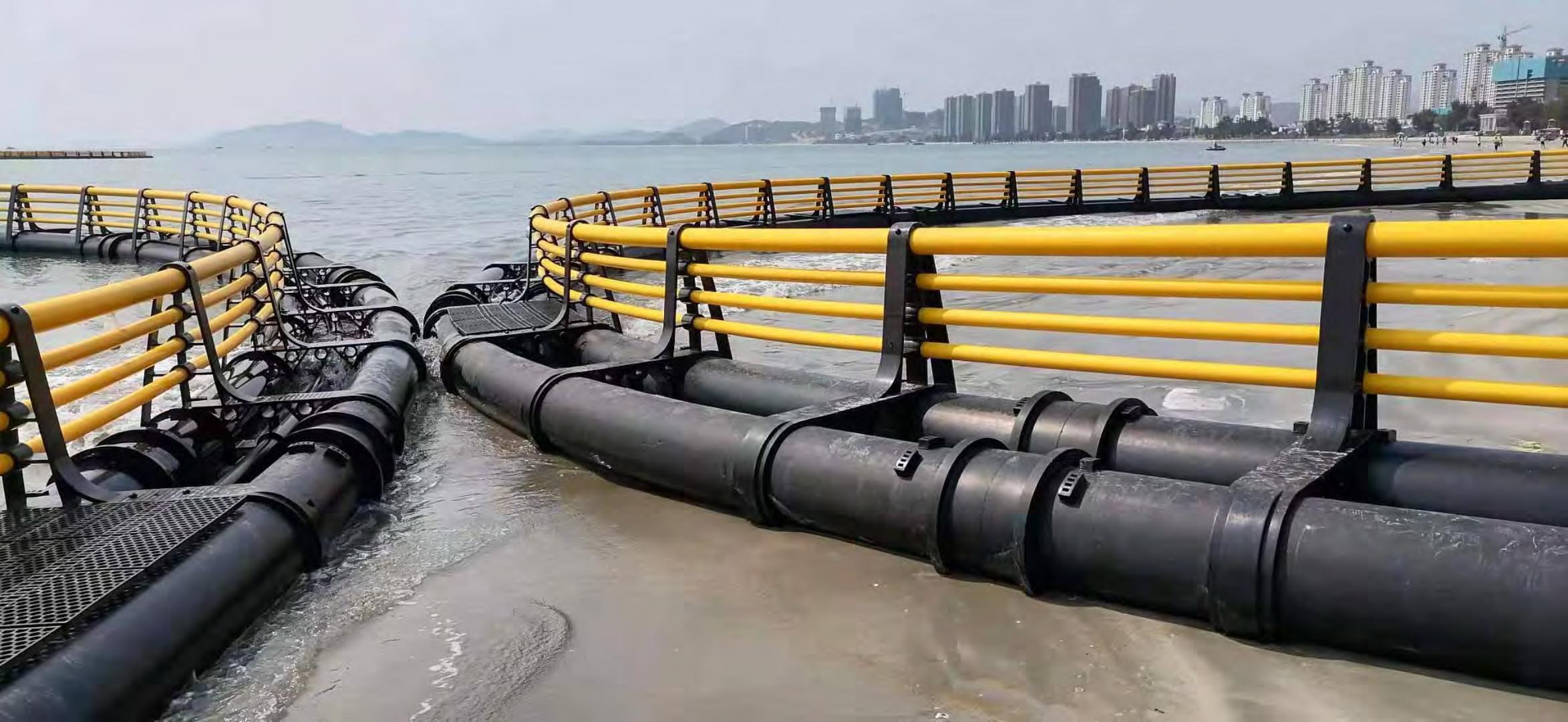

Each HDPE Floating Fish Cage is supplied as a complete kit - floating pipe frame, handrail pipe, standing pipe, walkway panel, injection-moulded brackets, tees, pins, stoppers and mooring system - ready for assembly on site. Standard sizes range from 8 m to 40 m diameter in circular or square geometry, with custom diameters and depths produced to project specification. The netting is PE knotless or PE knotted depending on the species and current conditions.

Quick Information

Product Name: HDPE Floating Fish Cage
Material: PE100 HDPE frame, marine-grade PE netting

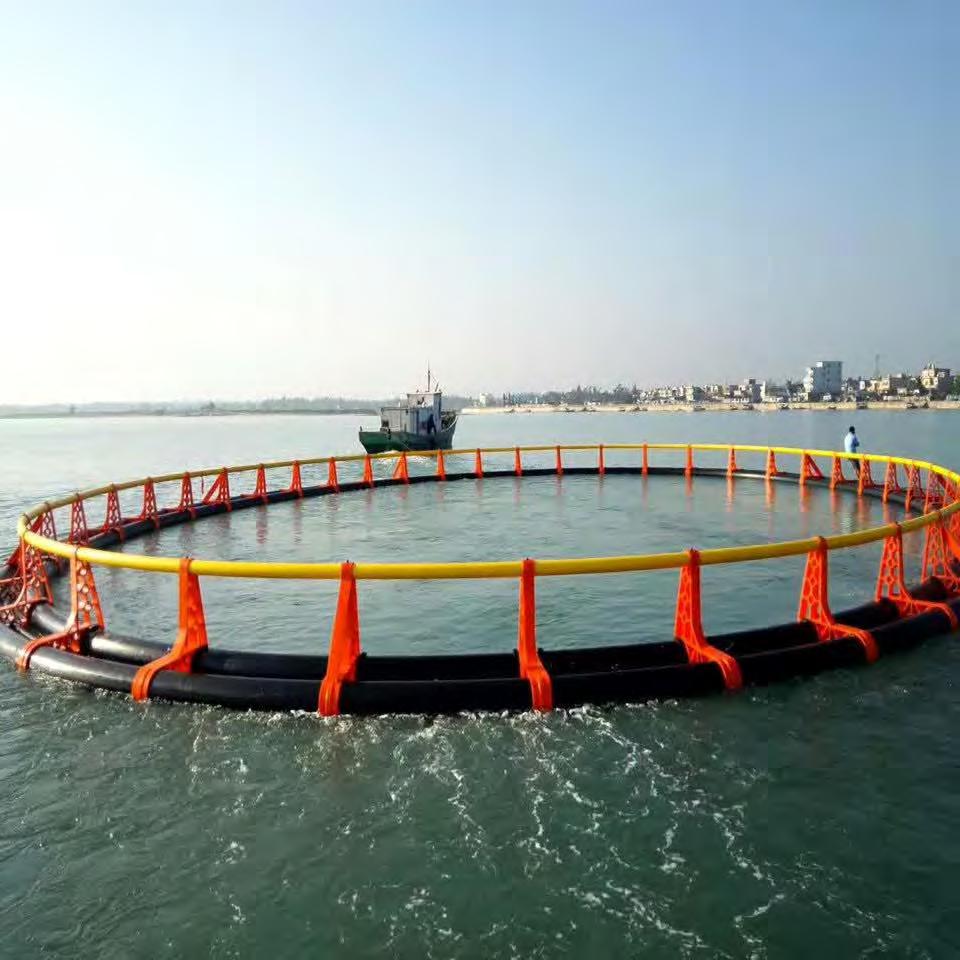

Cage Shape: Circular / Square (customizable)
Diameter Range: 8 m - 40 m (custom sizes available)
Water Depth: 10 m standard, custom depths available
Standard: ISO 4427 (HDPE frame), ISO 18065 (netting)
Service Life: 15-20 years
Mooring: Customized to wind, waves, currents and water depth

Specification Table

Component specifications for each HDPE Floating Fish Cage size. Floating Pipe, Handrail Pipe, Standing Pipe and Walkway Pipe are PE100 HDPE to ISO 4427. Brackets, Tees, Pins and Stoppers are injection-moulded PE100.

Cage Diameter	Floating Pipe	Handrail Pipe	Standing Pipe	Bracket	Walkway Panel	Tee	Pin	Stopper
8 m Circular	200 mm x 9.6 mm SDR21	90 mm x 6.7 mm SDR13.6	110 mm x 8.1 mm SDR13.6	250 mm Single	515 x 515 mm	110 mm	Pin (dowel)	Stopper
10 m Circular	250 mm x 14.8 mm SDR17	110 mm x 10 mm SDR11	125 mm x 9.2 mm SDR13.6	250 mm Single	515 x 515 mm	127 x 125 mm	Pin (dowel)	Stopper
12 m Circular	250 mm x 14.8 mm SDR17	110 mm x 10 mm SDR11	125 mm x 9.2 mm SDR13.6	250 mm Single	515 x 515 mm	127 x 125 mm	Pin (dowel)	Stopper
15 m Circular	250 mm x 14.8 mm SDR17	110 mm x 10 mm SDR11	125 mm x 9.2 mm SDR13.6	250 mm Single	515 x 515 mm	127 x 125 mm	Pin (dowel)	Stopper
18 m Circular	280 mm x 16.5 mm SDR17	110 mm x 10 mm SDR11	125 mm x 9.2 mm SDR13.6	280 mm Single	515 x 515 mm	127 x 125 mm	Pin (dowel)	Stopper
20 m Circular	280 mm x 16.5 mm SDR17	110 mm x 10 mm SDR11	125 mm x 9.2 mm SDR13.6	280 mm Single	515 x 515 mm	127 x 125 mm	Pin (dowel)	Stopper
25 m Circular	355 mm x 18.7 mm SDR17	110 mm x 10 mm SDR11	125 mm x 9.2 mm SDR13.6	355 mm Single	515 x 515 mm	127 x 125 mm	Pin (dowel)	Stopper
30 m Circular	355 mm x 18.7 mm SDR17	110 mm x 10 mm SDR11	125 mm x 9.2 mm SDR13.6	355 mm Single	515 x 515 mm	127 x 125 mm	Pin (dowel)	Stopper
30 m Reinforced	400 mm x 23.7 mm SDR17	125 mm x 11.4 mm SDR11	-	400 mm Injection	500 x 800 mm	-	Pin (dowel)	Stopper
40 m Reinforced	400 mm x 23.7 mm SDR17	125 mm x 11.4 mm SDR11	-	400 mm Injection	500 x 800 mm	-	Pin (dowel)	Stopper
40 m Super Reinforced	400 mm x 23.7 mm SDR17	125 mm x 11.4 mm SDR11	-	400 mm Heavy	500 x 800 mm	-	Pin (dowel)	Stopper

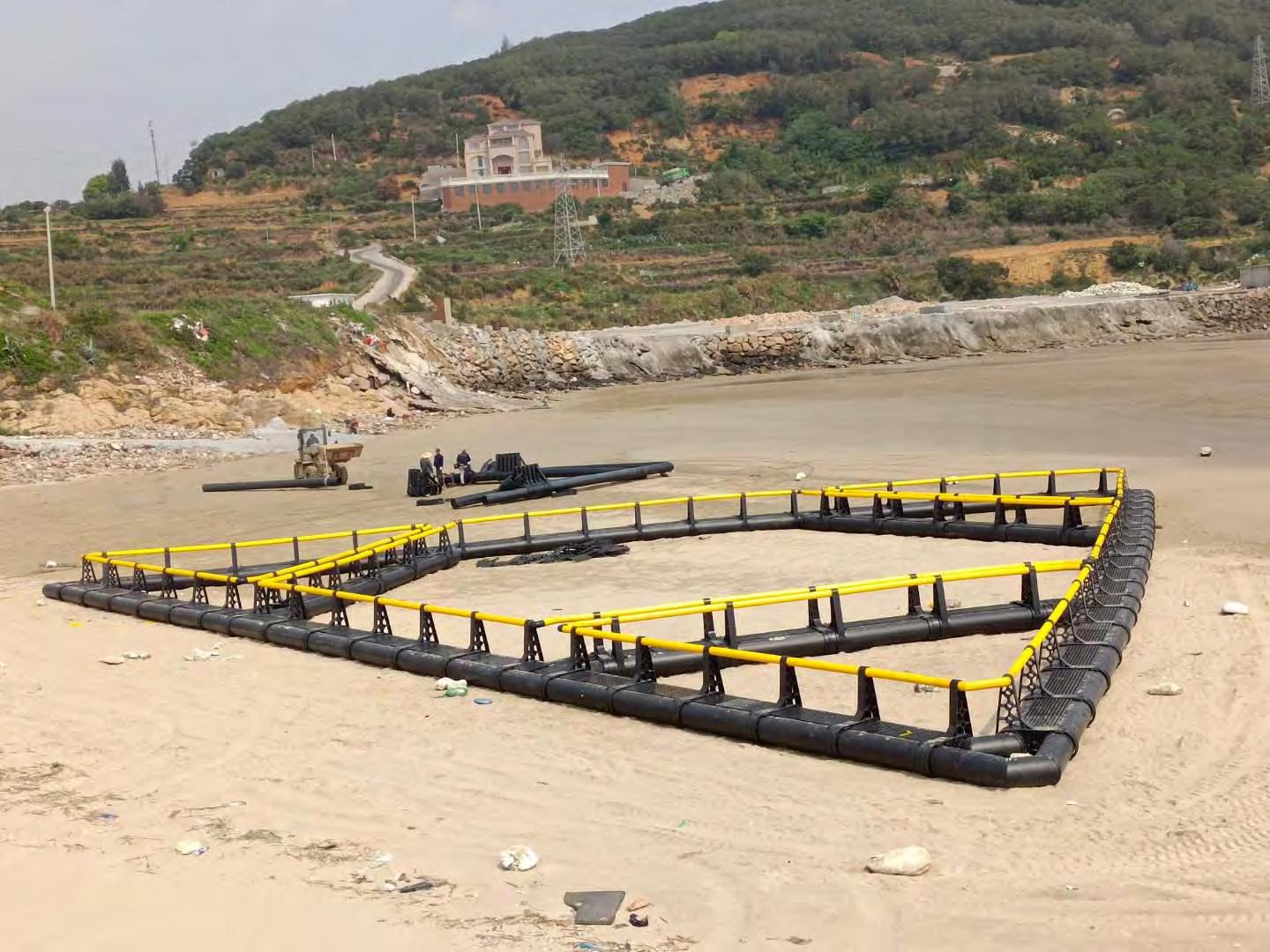

Note: Walkway Pipe for 8-25 m cages is 40 mm x 3.7 mm; 30 m Reinforced uses 50 mm x 4.6 mm; 40 m Reinforced/Super Reinforced uses 63 mm x 5.8 mm. Square cages also available (10 m x 10 m x 4 united frame).

Key Features

15-20 year service life: The PE100 HDPE frame with carbon black UV protection never rusts and never needs a maintenance coating, so the HDPE Floating Fish Cage keeps its structural strength through 15-20 years of seawater or freshwater fish farming.
Customized size and shape: Circular, square or combined configurations with diameters from 8 m to 40 m and water depths to 20 m - each HDPE Floating Fish Cage is engineered around the species, site currents and stocking plan of the farm.
Complete turnkey kit: Frame pipe, netting, walkway panels, brackets, tees, pins, stoppers and the mooring system come from one supplier, so every component of the fish cage is dimension-matched and the farm receives one shipment instead of ten.
Marine-grade netting: PE knotless net for high-water-speed offshore sites and PE knotted net for calmer coastal waters - both UV-stabilized and rot-resistant, with mesh size selected for the species being farmed.
ISO 4427 compliant frame pipe: Every floating, handrail and standing pipe is SDR-rated PE100 hydrostatically tested for seawater service, so the cage frame behaves predictably under wave loading.
Tool-free pin-lock assembly: Pre-drilled brackets and tees with pin-and-stopper fasteners let an assembly crew build the HDPE Floating Fish Cage on shore or on the water without welding equipment at the cage site.
Reinforced options for open sea: 30 m and 40 m Reinforced and Super Reinforced versions use heavier floating pipe and heavy-duty brackets for fully exposed offshore fish farming sites.

Production

Raw Material

Frame pipe is extruded from virgin PE100 HDPE compound with 2-3% carbon black masterbatch for UV protection, tested to ISO 4427 before extrusion. Brackets, tees, pins and stoppers are injection-moulded from PE100 for consistent wall thickness and impact resistance, so every HDPE Floating Fish Cage component shares the same material pedigree as the connected pipe.

Molding Process

The HDPE Floating Fish Cage frame is assembled from butt-fusion welded pipe sections on shore before launch, or section-welded on the water for large diameters. Brackets, tees and connection points are pre-fitted on shore for fast on-site assembly, and all fusion welds follow ISO 21307 procedure so the welded frame performs as one continuous structure.

Quality Control

Every pipe length is hydrostatically tested at 1.5 times rated pressure before leaving the factory. Injection-moulded components are dimension-checked against drawings, pin hole tolerances are verified for consistent pin fit, and netting is tested for mesh size and breaking strength - giving the finished fish cage a documented quality trail from raw material to shipment.

Applications

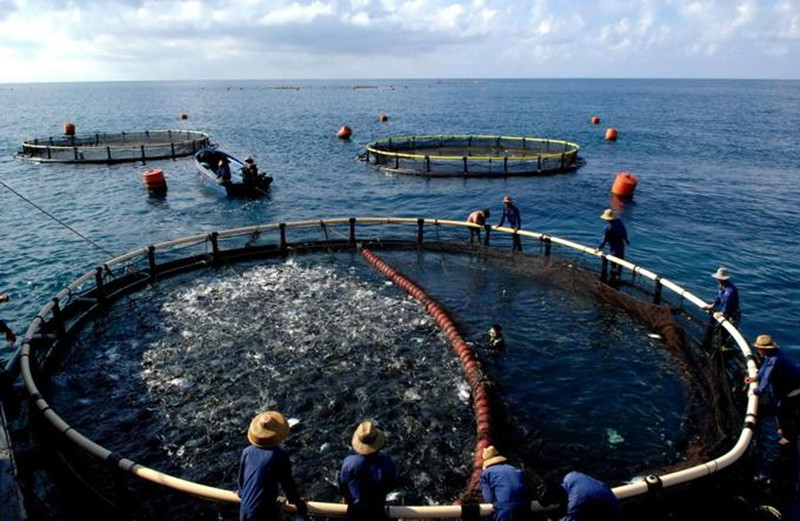

Marine aquaculture: Salmon, sea bass, tuna and other marine species in offshore or near-shore net pen fish farming.
Freshwater aquaculture: Tilapia, catfish and carp cage culture in lakes, reservoirs and slow-moving rivers.
RAS systems: Floating cage component for recirculating aquaculture system ponds and conditioning tanks.
Shellfish culture: Modified HDPE Floating Fish Cage configurations for oyster, mussel and scallop grow-out.
Research and nursery stations: Small 8 m nursery cages for fry rearing, breeding trials and aquaculture research stations.
