Product Overview

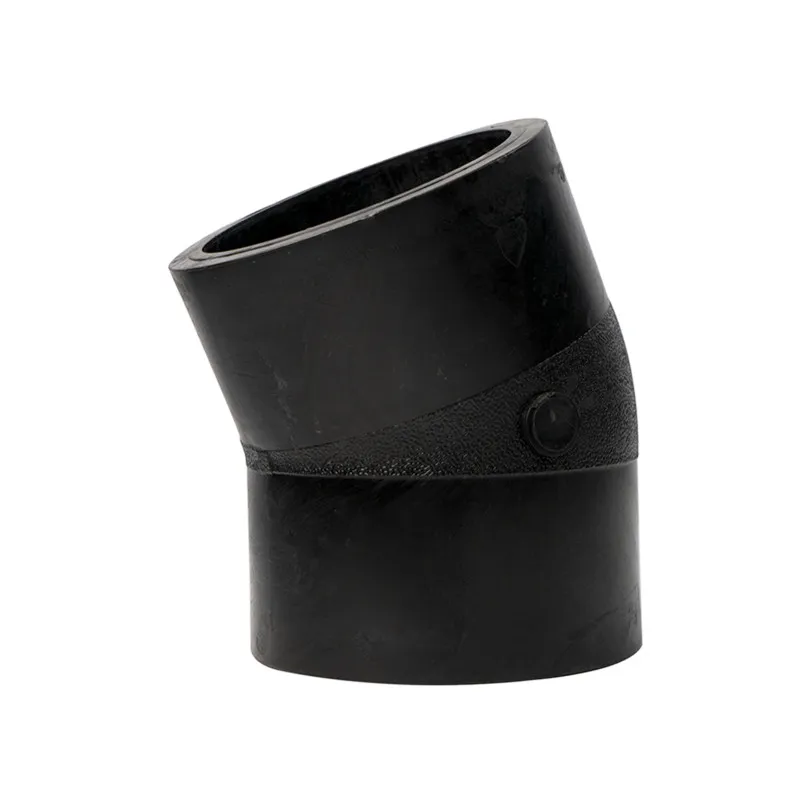

HDPE 22.5° butt fusion elbow manufactured from PE100 for water supply. Precision-molded for reliable, leak-free fusion-welded connections.
Quick Information
- Type: 22.5° Elbow
- Material: HDPE PE100
- Size: OD 110 - 630 mm
- Pressure: PN16 / PN12.5 / PN10
- Standard: ISO 4427 / EN 12201
- Stock: In stock
Specification Table
| D (mm) | I (mm) | H (mm) |
|---|---|---|
| 63 | 64 | 168 |
| 75 | 63 | 180 |
| 90 | 63 | 190 |
| 110 | 63 | 196 |
| 125 | 66 | 215 |
| 140 | 74 | 242 |
| 160 | 79 | 260 |
| 180 | 79 | 295 |
| 200 | 80 | 300 |
| 225 | 108 | 360 |
| 250 | 100 | 365 |
| 280 | 108 | 400 |
| 315 | 100 | 405 |
| 355 | 100 | 430 |
| 400 | 101 | 472 |
| 450 | 125 | 552 |
| 500 | 125 | 593 |
| 560 | 125 | 635 |
| 630 | 125 | 695 |
| 710 | 170 | 830 |
| 800 | 170 | 900 |
