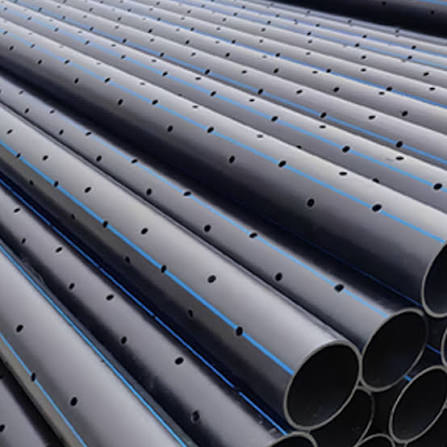

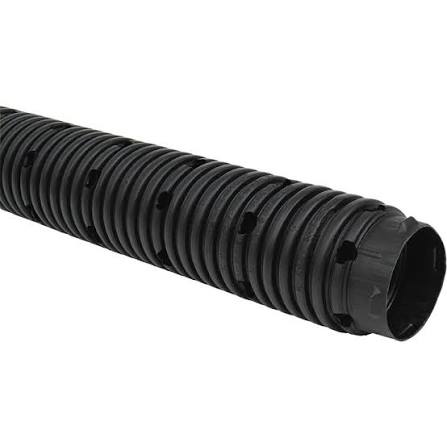

HDPE Perforated Pipe

HDPE Perforated Pipe, Φ 5 – 20 mm (Customizable) DN 50 – 400 mm, HDPE PE100, to ISO 8772, GB/T 13663.2, for HDPE and PVC piping projects.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: HDPE Pipes

HDPE Pipes

Product Overview

DN 50–400mm, SDR 11/17, black color. CNC-drilled HDPE perforated pipe for subsurface drainage, leachate collection, and waterlogging control. Conforms to ISO 8772 and GB/T 13663.2. The precision-drilled holes of this HDPE perforated pipe allow groundwater to enter while the PE100 wall resists soil loads, making it the standard choice for farmland, landfill and highway subsoil drainage.

Quick Information

Diameter Range: DN 50 – 400 mm
Material: HDPE PE100 (Virgin Grade)
Hole Diameter: Φ 5 – 20 mm (Customizable)
Hole Pattern: Single/Double row, staggered (per CAD)
Applicable Standards: ISO 8772, GB/T 13663.2
Color: Black (with stripes on request)
Length: 6 m / 12 m
Stock Availability: In stock (Standard sizes)

Specification Table

DN (mm)	OD (mm)	Wall SDR11 (mm)	Wall SDR17 (mm)	Std Hole Φ (mm)
50	50	4.6	3.0	5
75	75	6.8	4.5	5
110	110	10.0	6.6	8
160	160	14.6	9.5	10
200	200	18.2	11.9	12
250	250	22.7	14.8	12
315	315	28.6	18.7	15
400	400	36.3	23.7	20

Key Features

CNC Precision Drilling: Fully automated rotary drilling produces burr-free holes in the HDPE perforated pipe that resist clogging from soil and debris.
Fully Customizable: Hole diameter, spacing and pattern of the HDPE perforated pipe are manufactured exactly to engineering CAD drawings.
High Ring Stiffness: PE100 material with SDR11/SDR17 walls keeps the HDPE perforated pipe round under backfill loads.
Chemical & Corrosion Resistant: The HDPE perforated pipe withstands soil acidity, fertilizers and aggressive groundwater for decades.
Easy Jointing: Butt fusion or electrofusion welding creates leak-free, root-resistant HDPE perforated pipe runs.
DN 50 – 400 Range: The HDPE perforated pipe covers field laterals through large leachate collection mains.

Production

Raw Material

The HDPE perforated pipe is extruded from virgin PE100 black compound compliant with ISO 8772 and GB/T 13663.2.

Drilling Process

PE100 pipe is first extruded on twin-screw lines, then processed through automated CNC rotary drilling stations that cut holes to the specified diameter and pattern.

Quality Control

Every HDPE perforated pipe is dimensionally inspected, hole-cleaned and checked for burr-free edges before packing.

Applications

Subsurface drainage for farmland and rice paddies uses the HDPE perforated pipe to relieve waterlogging.
Leachate collection systems for landfills and mining sites install the HDPE perforated pipe for controlled liquid capture.
Highway, railway and airport subgrade drainage rely on the HDPE perforated pipe for stable foundation drainage.
Golf course and sports field water collection systems choose the HDPE perforated pipe for uniform subsurface drainage.
