Product Overview

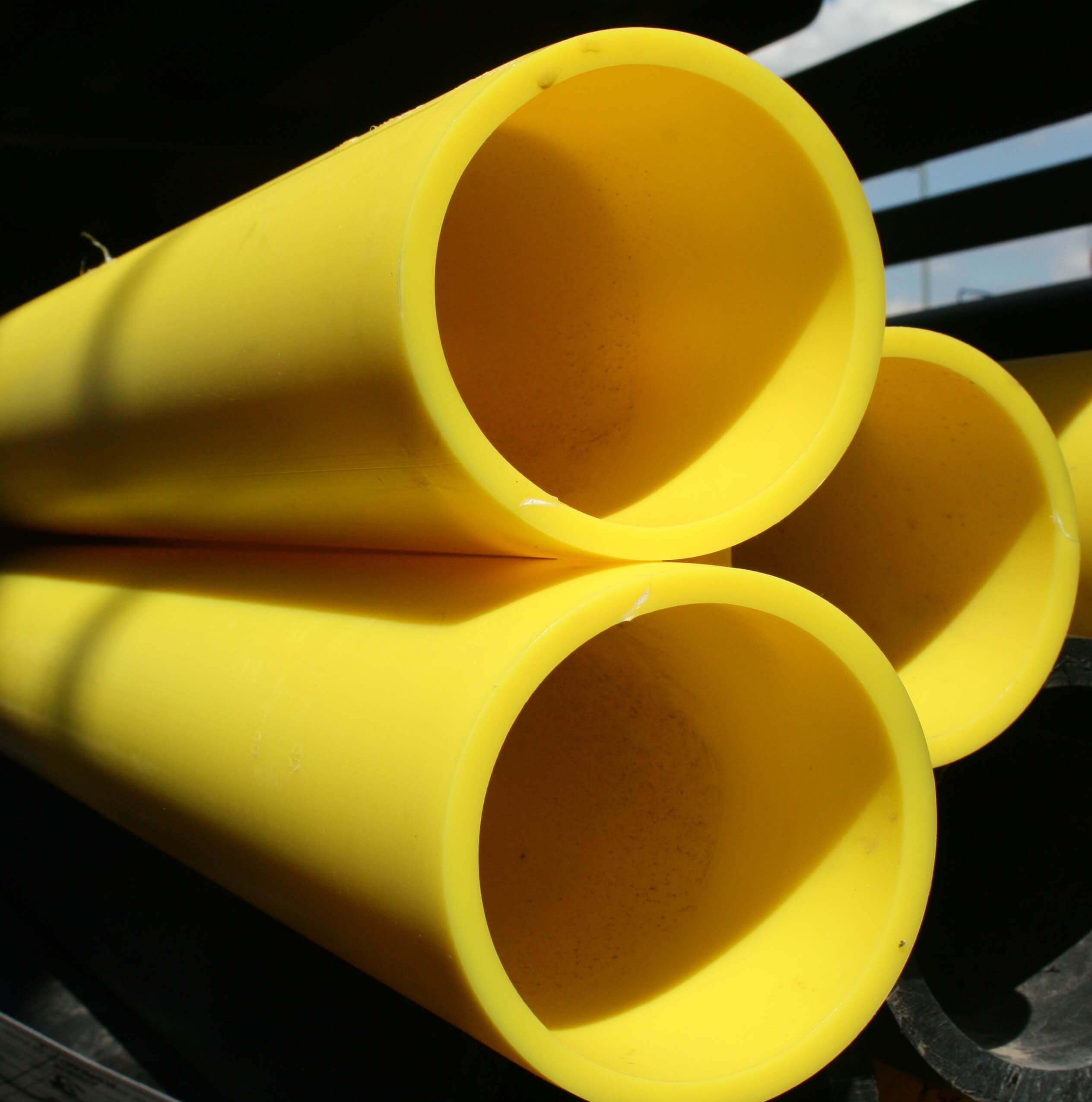

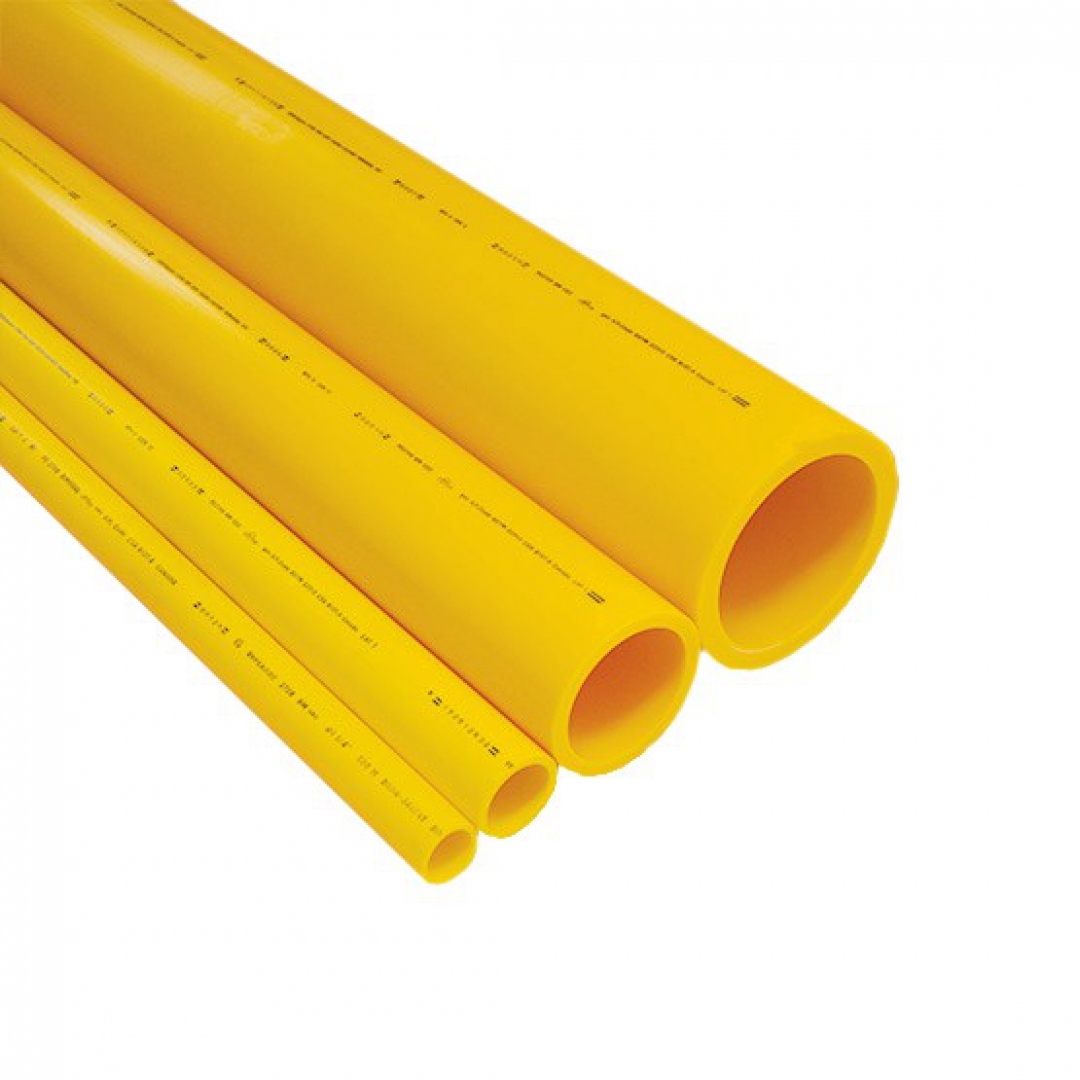

Yellow HDPE gas pipe manufactured from PE100 for natural gas distribution. Certified to ISO 4437 and EN 1555, providing safe, leak-free and long-lasting performance for gas supply networks. As a dedicated HDPE gas pipe, it is extruded in yellow or black-with-yellow-stripes and rated PN4 to PN10, giving gas utilities a corrosion-free alternative to steel that eliminates cathodic protection and joint-leak risk.
Quick Information
- Type: Gas Pipe
- Material: HDPE PE100
- Color: Yellow / Black with yellow stripes
- Standard: ISO 4437 / EN 1555
- Pressure Rating: PN4 – PN10
- Size: DN20 – DN630
- Stock: Made to order
Specification Table
| DN (mm) | OD (mm) | SDR11 Wall (mm) | SDR17.6 Wall (mm) | MOP (bar) |
|---|---|---|---|---|
| 20 | 20 | 2.3 | – | 10 |
| 25 | 25 | 2.3 | – | 10 |
| 32 | 32 | 3.0 | – | 10 |
| 50 | 50 | 4.6 | 2.9 | 10 / 6 |
| 63 | 63 | 5.8 | 3.9 | 10 / 4 |
| 90 | 90 | 8.2 | 5.2 | 10 / 6 |
| 110 | 110 | 10.0 | 6.3 | 10 / 6 |
| 160 | 160 | 14.6 | 9.1 | 10 / 6 |
| 200 | 200 | 18.2 | 11.4 | 10 / 6 |
| 315 | 315 | 28.6 | 17.9 | 10 / 6 |
| 400 | 400 | 36.3 | 22.7 | 10 / 6 |
| 630 | 630 | 57.2 | 35.8 | 10 / 6 |
