HDPE Custom High Pressure Elbow

HDPE Custom High Pressure Elbow OD63 mm – OD800 mm, PN10 / PN12.5 / PN16 / PN20 / PN25, to ISO 4427 / EN 12201 / DIN 16963, for customised HDPE pipe systems.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: Customized Fittings

Customized Fittings

Product Overview

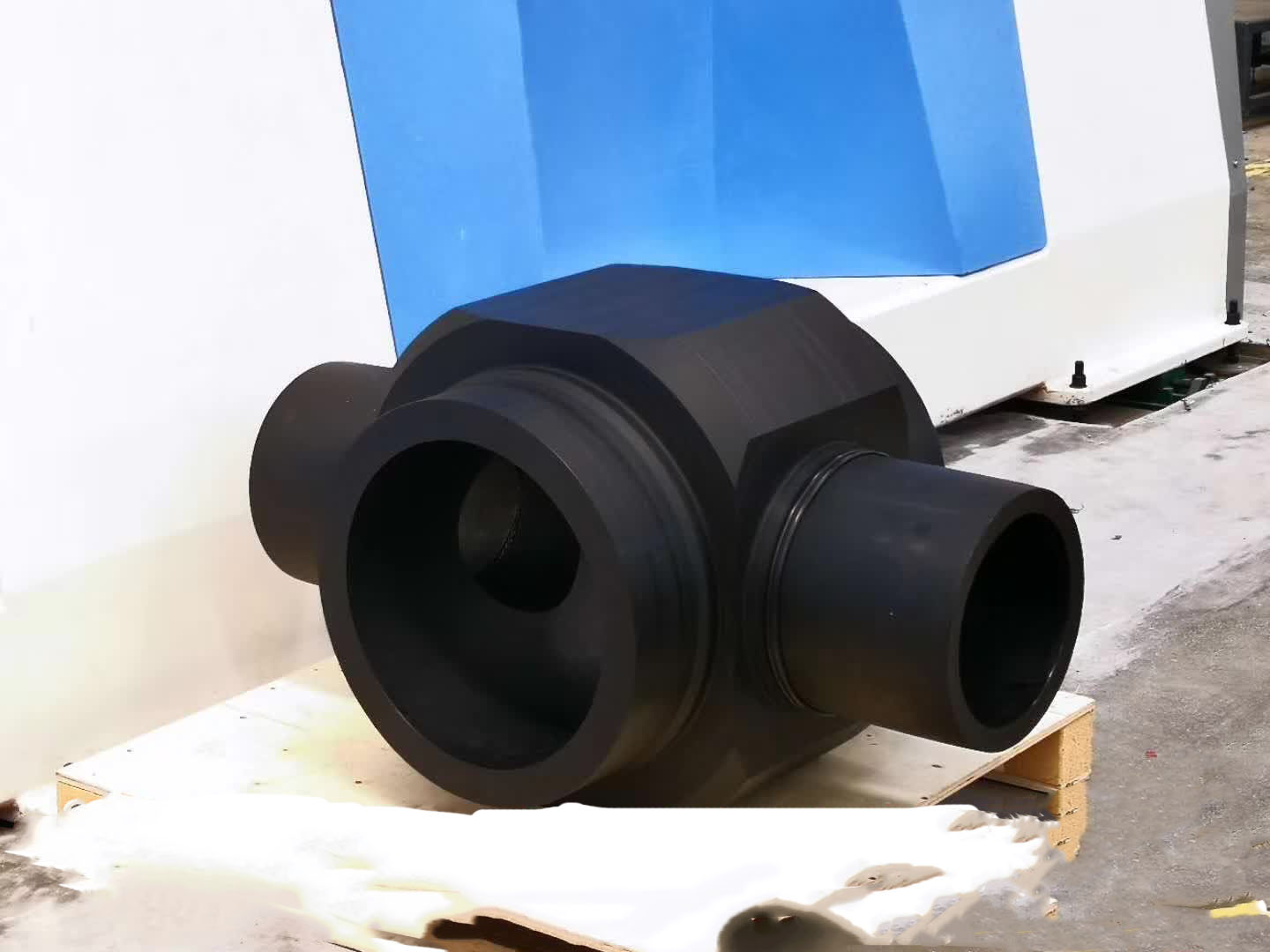

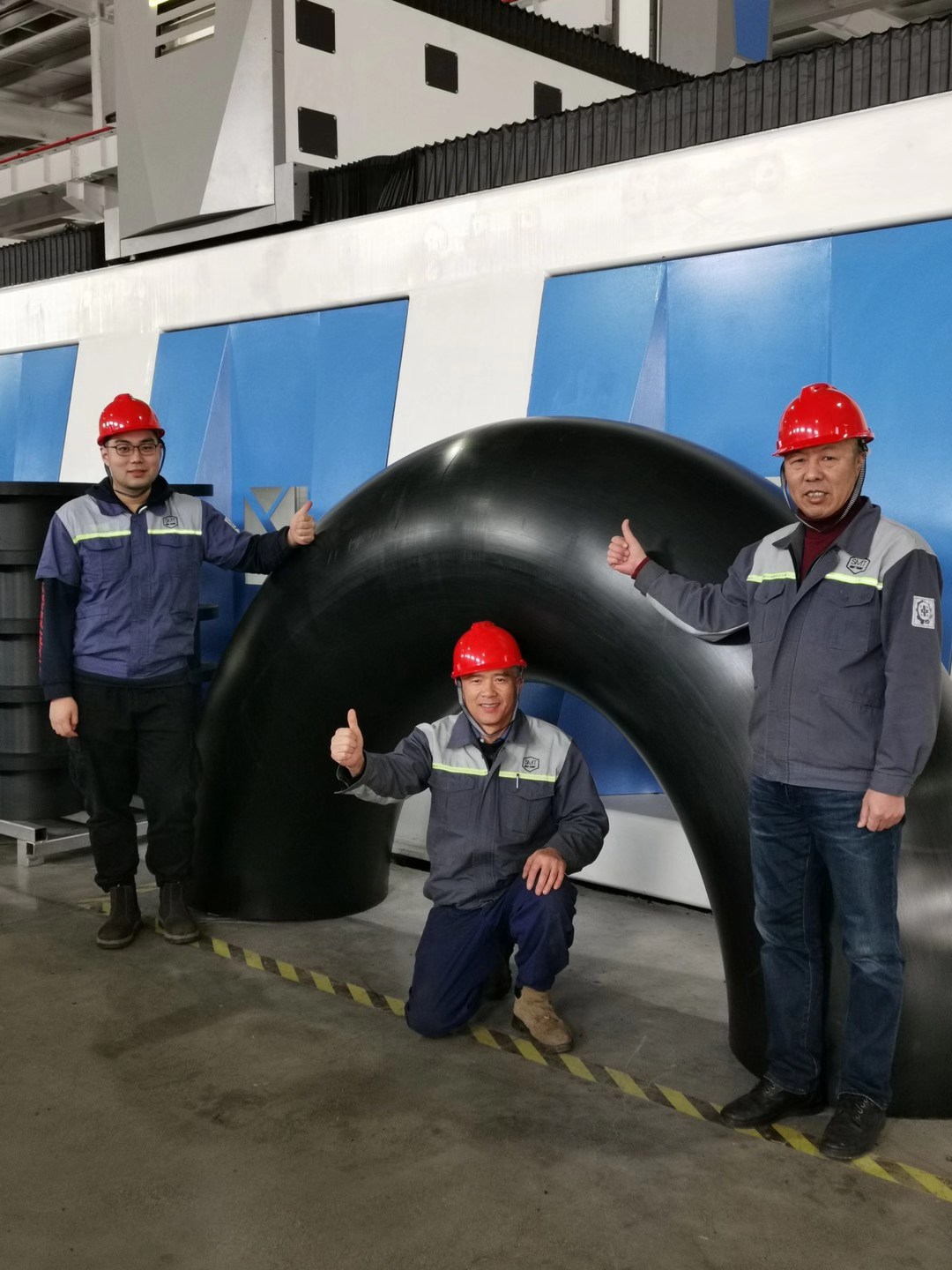

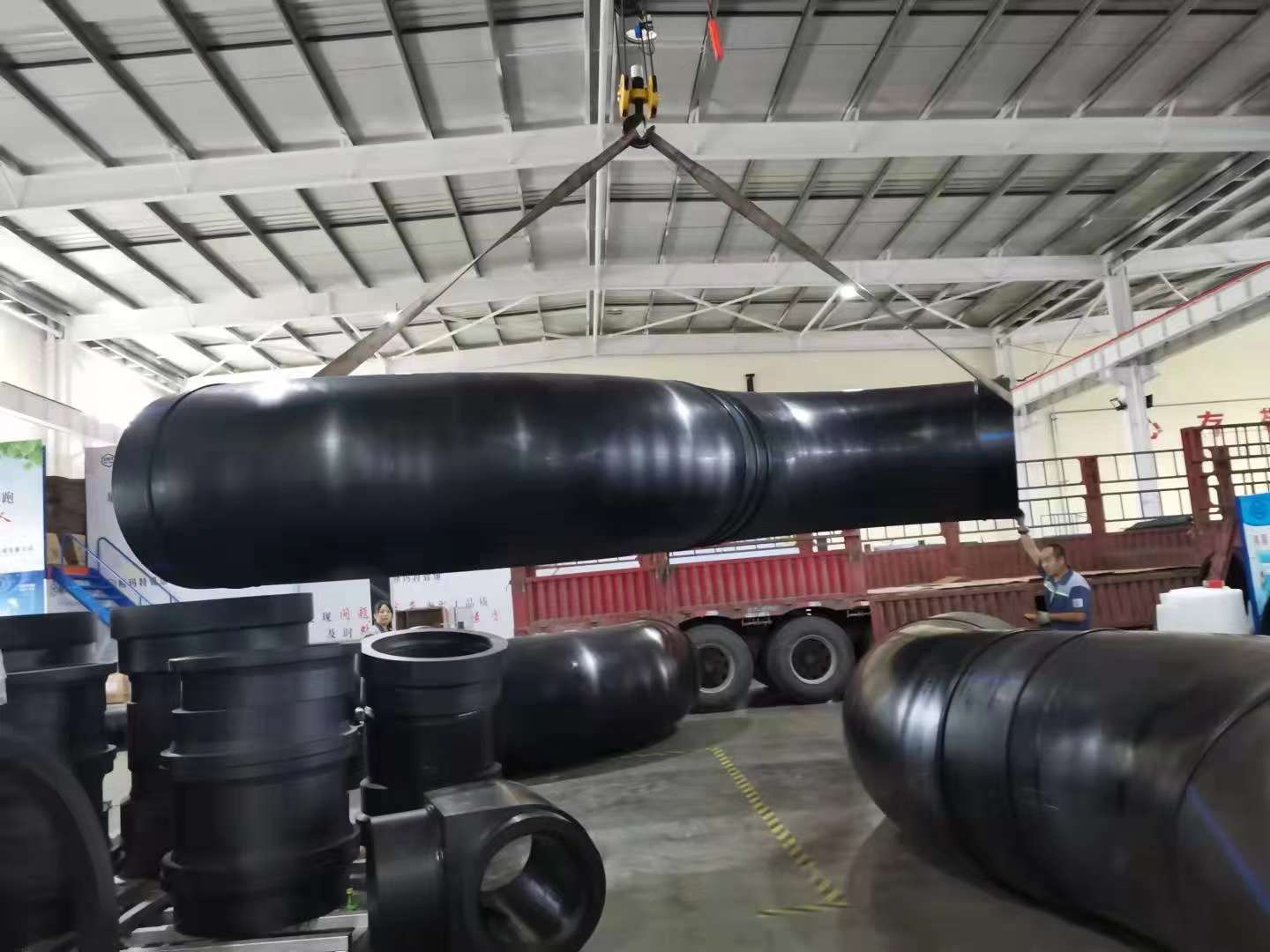

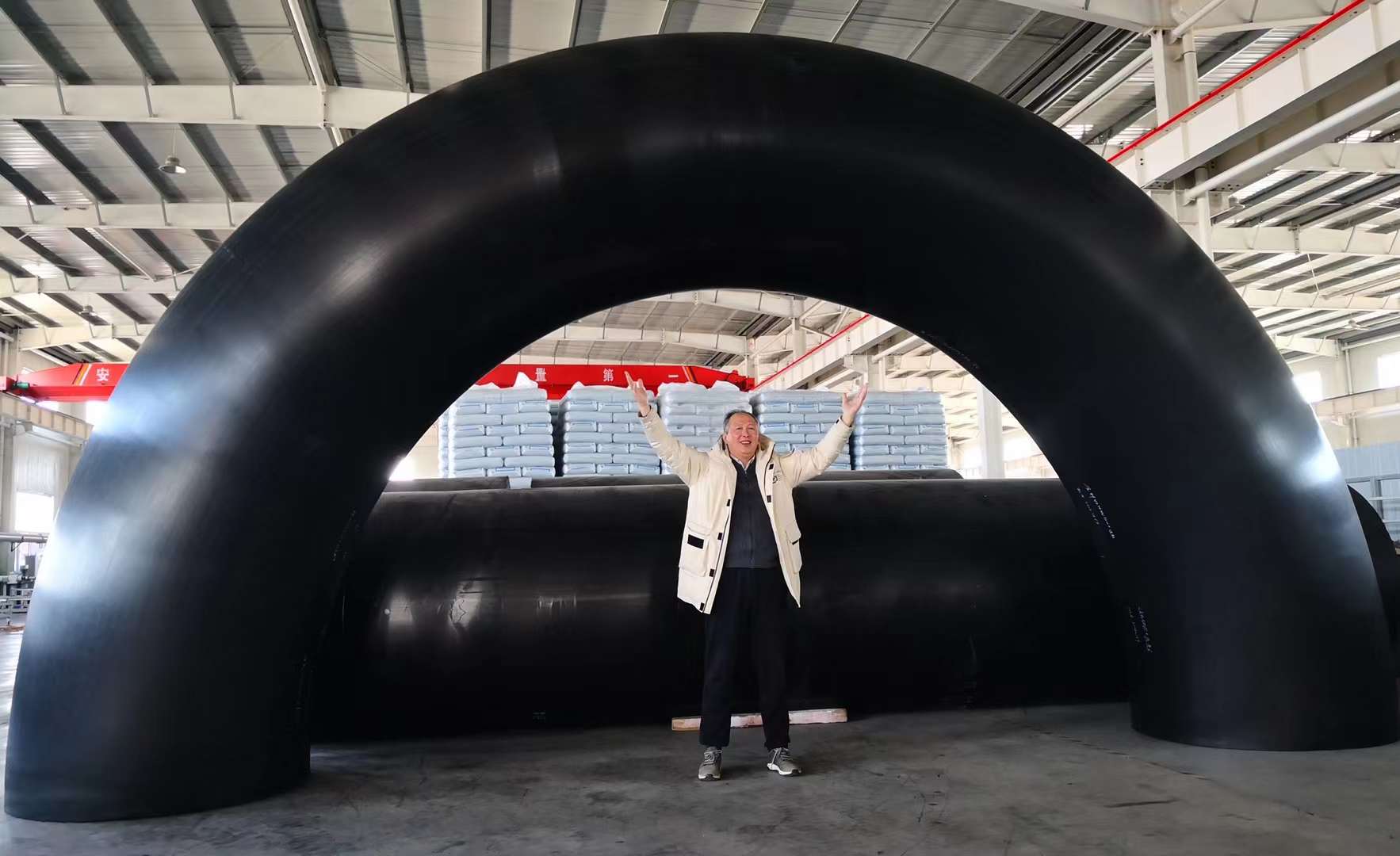

The HDPE Custom High Pressure Elbow is a butt-fusion direction change fitting built from thick-wall PE100 stock, used to turn a high pressure HDPE line through 90 degrees or 45 degrees without the weight and corrosion of a steel bend. Every HDPE Custom High Pressure Elbow from Bingo Pipeline is produced to the ISO 4427 / EN 12201 and DIN 16963 dimensional system, so it welds straight onto standard HDPE pipe with a matching pressure class.

Because these elbows are made without mould-size limits, the HDPE Custom High Pressure Elbow covers a very wide range: standard butt fusion sizes run from OD63 mm up to OD800 mm, and pressure classes above PN16 - up to PN20 and PN25 for heavy-wall service - are machined to order on a CNC lathe. The thick wall of the HDPE Custom High Pressure Elbow makes it the preferred direction change on water transmission mains, dredging and slurry lines and high pressure fire water networks.

Quick Information

Product Name: HDPE Custom High Pressure Elbow
Material: PE100 HDPE, thick-wall butt fusion
Angles: 90 degree and 45 degree (30 / 22.5 degree on request)
Standard Size: OD63 mm - OD800 mm
High Pressure Series: up to PN20 / PN25 (CNC machined to order)
Pressure Rating: PN10 / PN12.5 / PN16 / PN20 / PN25
Standard: ISO 4427 / EN 12201 / DIN 16963
Connection: Butt fusion to HDPE pipe

Specification Table

Butt fusion 90 degree and 45 degree elbow, standard range OD63-800 mm. Dimensions in millimetre.

D (mm)	90° I (mm)	90° H (mm)	45° I (mm)	45° H (mm)
63	65	128	64	168
75	65	140	63	180
90	65	155	63	190
110	65	175	63	196
125	70	195	66	215
140	75	215	74	242
160	75	240	79	260
180	85	275	79	295
200	100	305	80	300
225	108	340	108	360
250	108	365	100	365
280	112	400	108	400
315	112	430	100	405
355	100	460	100	430
400	100	510	101	472
450	150	610	125	552
500	150	660	125	593
560	155	720	125	635
630	158	800	125	695
710	170	900	170	830
800	170	990	170	900

Note: PN10, PN12.5 and PN16 pressure rates are available over the standard range. Higher pressure classes (PN20 / PN25) and non-standard angles - 30 degree, 22.5 degree or a special degree - are machined to your drawing on request.

Key Features

Thick-wall PE100 body: Each HDPE Custom High Pressure Elbow is made from heavy-wall PE100 stock, giving the wall thickness needed for high pressure water, fire and slurry service.
High pressure capability: Standard elbows cover PN10-PN16, and the HDPE Custom High Pressure Elbow is machined to order up to PN20 / PN25 - pressure classes that are difficult to source in moulded fittings.
Wide size range: Direction changes from OD63 mm through OD800 mm with 90 degree and 45 degree angles.
Custom angles: 30 degree, 22.5 degree and other non-traditional degree elbows are manufactured to meet a specific pipe routing.
Corrosion and abrasion resistance: The HDPE Custom High Pressure Elbow resists corrosion and abrasion far better than steel, and needs no protective coating.
Standards compliance: Produced in line with ISO 4427, EN 12201 and the DIN 16963 fitting dimensions.

Production

Raw Material

Every HDPE Custom High Pressure Elbow starts from virgin PE100 grade HDPE compound. Using virgin PE100 stock - instead of regrind - keeps the mechanical strength and slow crack growth resistance of the HDPE Custom High Pressure Elbow consistent with the connected pipe.

Molding Process

The thicker-wall elbow is formed and its fusion ends are accurately machined to the required wall and diameter; the very heavy high pressure grades are CNC lathe machined from solid stock, a technology derived from the United States. This gives the HDPE Custom High Pressure Elbow a dense, one-piece body with no weak point at the bend, and the ends are ready for standard butt fusion.

Quality Control

Each elbow is checked for outside diameter, wall thickness, angle and centre height before dispatch. Dimensional performance follows ISO 4427 requirements, and dimensional records are kept for traceability.

Applications

High-pressure water supply: Water transmission mains use the HDPE Custom High Pressure Elbow to turn at rising main bends where moulded elbows cannot reach the pressure class.
Dredging pipelines: Cutter-suction dredger discharge lines use the thick-wall elbow on abrasive water, sand and silt duty.
Mining slurry systems: Slurry and tailings lines benefit from the abrasion-resistant PE100 body at every direction change.
Fire protection pipelines: High pressure fire water networks use the machined elbow as a reliable replacement for steel bends.
Industrial and chemical plants: Corrosion-resistant PE100 body handles process water and a wide range of chemicals where steel would corrode.
