HDPE Butt Fusion 90° Elbow for Water

HDPE 90° butt fusion elbow manufactured from PE100 for water supply. Precision-molded for reliable, leak-free fusion-welded connections.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: HDPE Butt Fusion Fittings

HDPE Butt Fusion Fittings

Product Overview

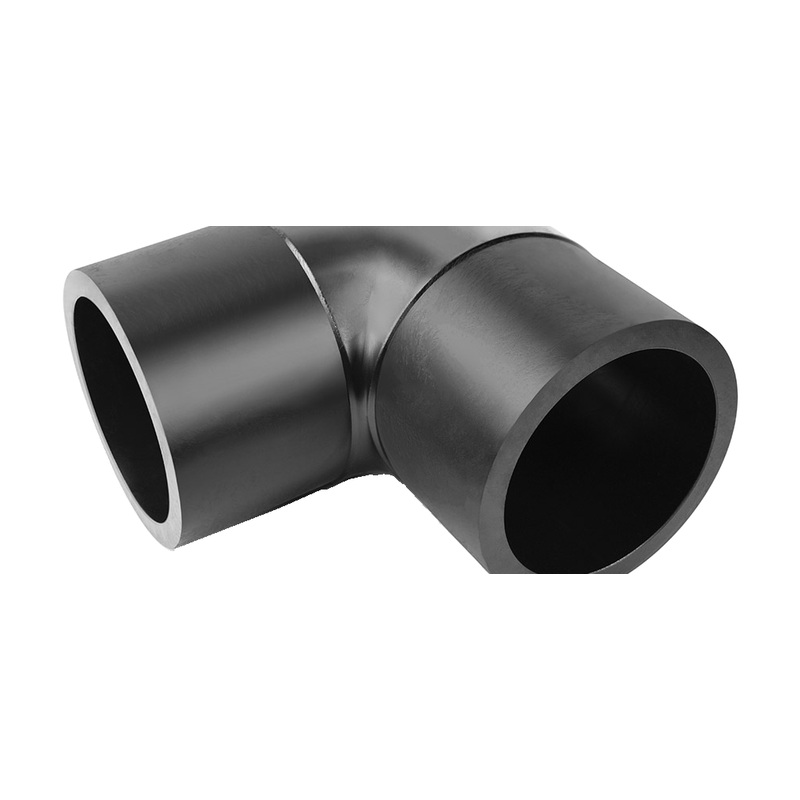

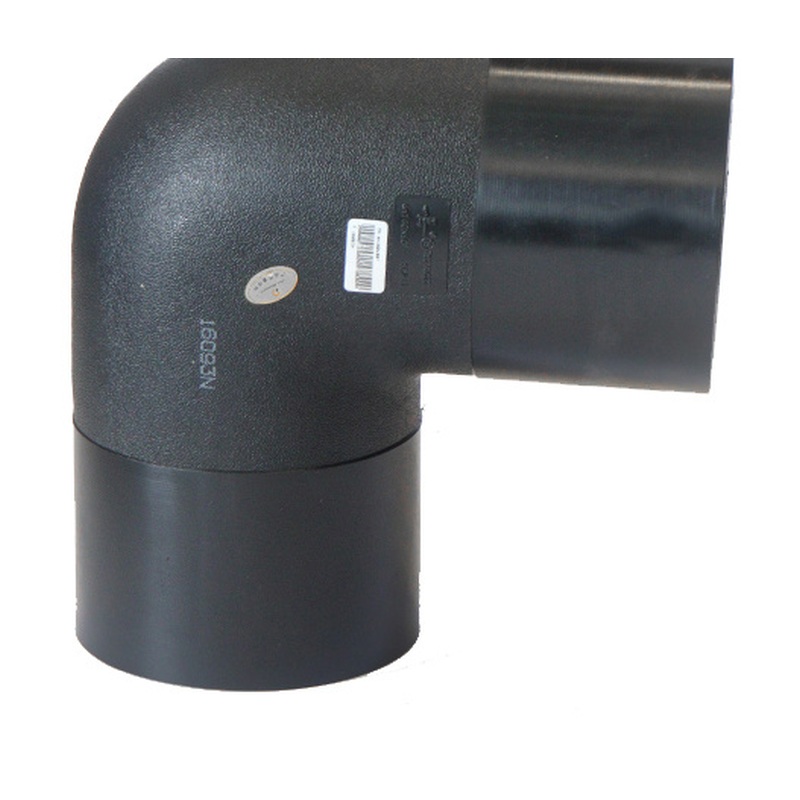

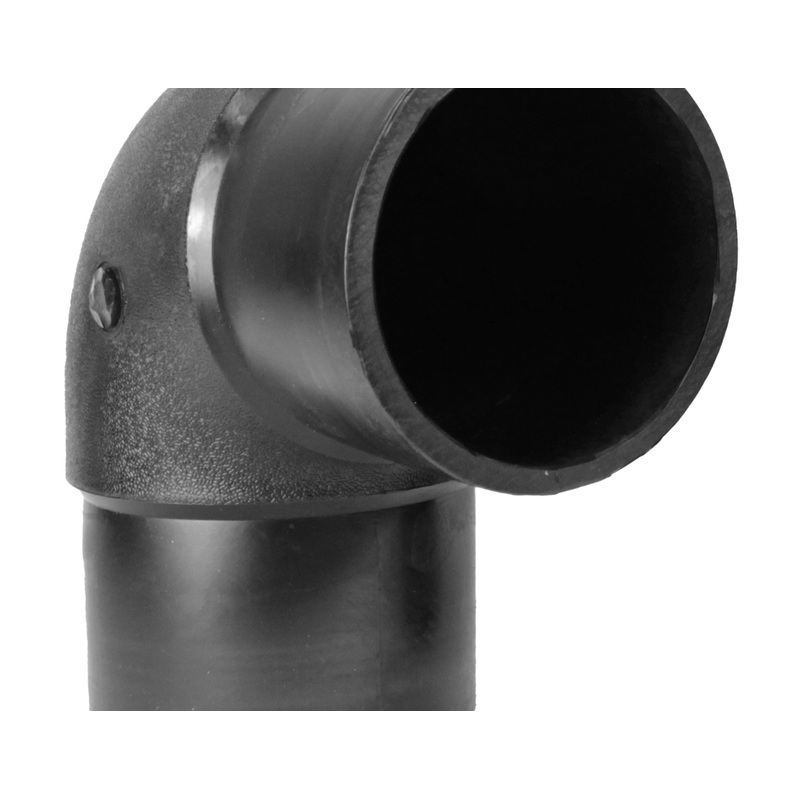

HDPE 90° butt fusion elbow manufactured from PE100 for water supply. Precision-molded for reliable, leak-free fusion-welded connections. This HDPE butt fusion 90° elbow turns the line a full right angle in one compact fitting, making it the most widely used directional fitting in buried PE100 networks. The HDPE butt fusion 90° elbow covers OD 63 - 630 mm in PN10 - PN16 ratings.

Quick Information

Type: 90° Elbow
Material: HDPE PE100
Size: OD 63 - 630 mm
Pressure: PN16 / PN12.5 / PN10
Standard: ISO 4427 / EN 12201
Stock: In stock

Specification Table

SPECIFICATION dn	Size (mm)		Thickness
	L	H	SDR17	SDR13.6	SDR11
L50X90°	115	55	✓		✓
L63X90°	132	63	✓		✓
L75X90°	160	70	✓		✓
L90X90°	180	79	✓		✓
L110X90°	220	82	✓		✓
L125X90°	225	87	✓		✓
L140X90°	240	92	✓		✓
L160X90°	270	98	✓		✓
L180X90°	298	105	✓		✓
L200X90°	325	112	✓		✓
L225X90°	365	120	✓		✓
L250X90°	394	129	✓		✓
L280X90°	435	139	✓		✓
L315X90°	480	150	✓		✓
L355X90°	540	164	✓		✓
L400X90°	600	179	✓		✓
L450X90°	605	150	✓		✓
L500X90°	660	150	✓		✓
L560X90°	720	155	✓		✓
L630X90°	790	155	✓		✓
L710X90°	915	180	✓		✓
L800X90°	1005	180	✓		✓

Key Features

Right-Angle Turn: The HDPE butt fusion 90° elbow changes direction a full 90 degrees in one compact molded fitting.
Reinforced Bend Zone: Extra wall material at the outer arc gives the HDPE butt fusion 90° elbow full pressure capacity through the bend.
PE100 High-Strength Material: Every HDPE butt fusion 90° elbow is molded from virgin PE100 compound rated for a 50-year design life.
Full-Strength Fusion Joint: Both ends of the HDPE butt fusion 90° elbow weld with standard butt fusion machines for a leak-free monolithic corner.
Rated PN10 - PN16: The HDPE butt fusion 90° elbow matches common PE100 pipe classes from OD 63 to 630 mm.
Corrosion-Free Service: The HDPE butt fusion 90° elbow never rusts or scales, keeping the bend at full bore capacity for decades.

Production

Raw Material

The HDPE butt fusion 90° elbow is produced from certified PE100 black compound with uniform carbon black dispersion, meeting ISO 4427 and EN 12201.

Molding Process

Injection molding forms the HDPE butt fusion 90° elbow with curved cores that guarantee a true 90-degree arc and uniform wall thickness through the bend.

Quality Control

Every HDPE butt fusion 90° elbow batch is gauged for end diameter, bend angle and ovality, then sampled for hydrostatic strength per ISO 1167.

Applications

Direction changes at road crossings use the HDPE butt fusion 90° elbow to turn the line within tight corridors.
Riser connections at building entries rely on the HDPE butt fusion 90° elbow for the buried-to-vertical transition.
Valve chamber piping installs the HDPE butt fusion 90° elbow to route lines within compact chambers.
Network grid layouts choose the HDPE butt fusion 90° elbow for block-corner turns in municipal grids.
