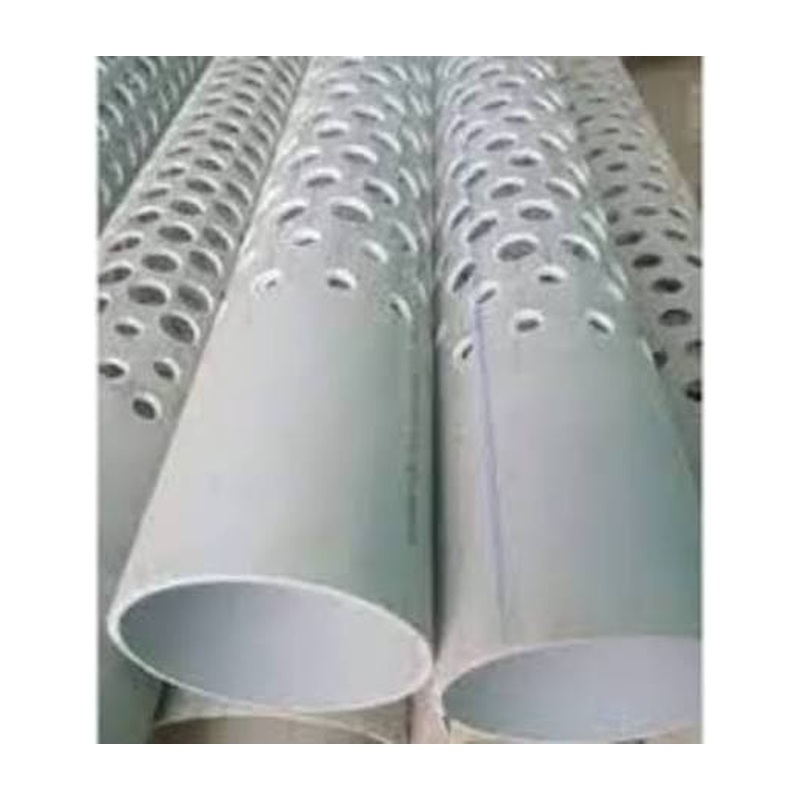

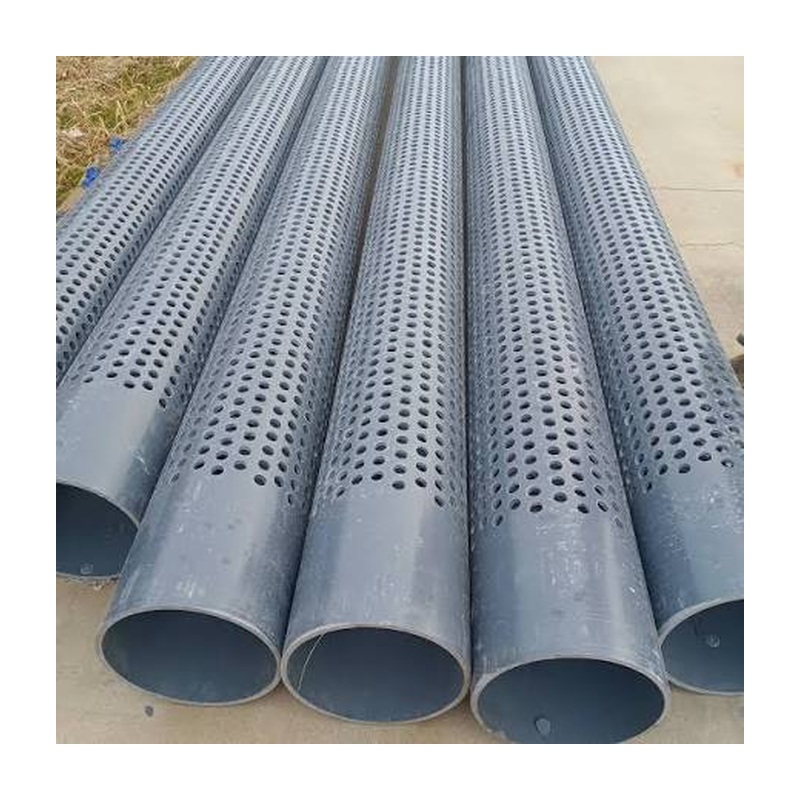

PVC Perforated Pipe

PVC Perforated Pipe, Φ 5 – 16 mm (customizable) DN 50 – 200 mm, UPVC, to GB/T 10002.1, ISO 1452, for water supply and drainage networks.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: PVC Pipes

PVC Pipes

Product Overview

DN 50–200mm, customizable hole patterns (Φ5–16mm). CNC-drilled for precision. Used in subsurface drainage, leachate collection, and waterlogging prevention.

Each length is CNC rotary-drilled to order with Φ5-16mm holes in single, double or staggered rows, so this perforated PVC pipe collects or disperses water exactly where the drainage design calls for it, in soils and aggregates where a plain pipe would leave water stranded.

Quick Information

Diameter Range: DN 50 – 200 mm
Hole Diameter: Φ 5 – 16 mm (customizable)

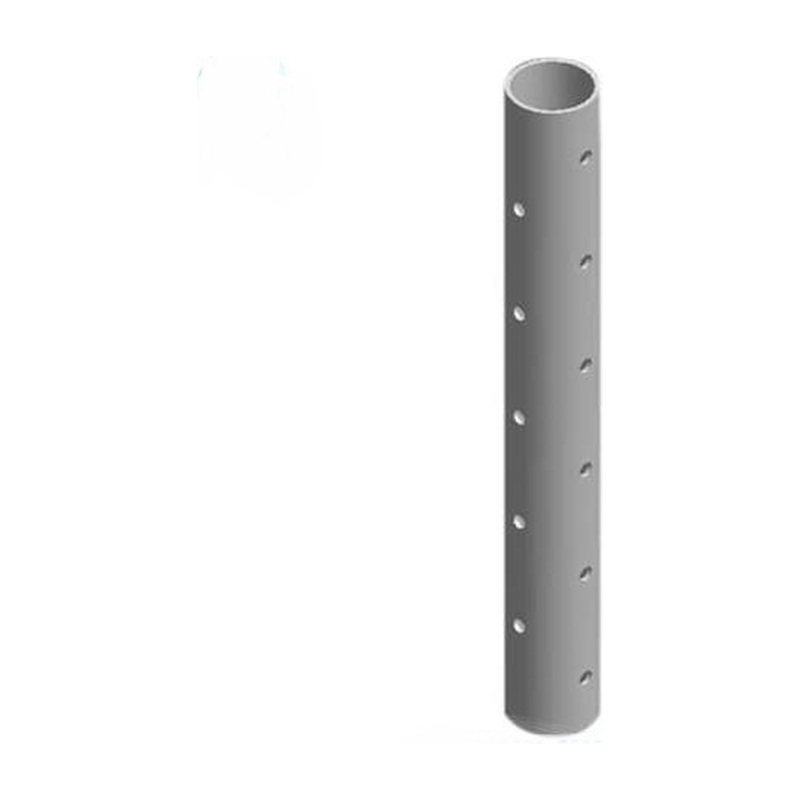

Hole Pattern: Single row, double row, staggered
Material: Virgin UPVC
Color: White, Gray
Applicable Standards: GB/T 10002.1, ISO 1452
Length: 4 m / 6 m
Stock Availability: Made to order

Specification Table

DN (mm)	Hole Diameter (mm)	Rows	Pattern
50	Φ5 – 8	1 – 2	Single / Double
75	Φ5 – 10	1 – 2	Single / Double
110	Φ5 – 12	1 – 3	Single / Double / Staggered
160	Φ8 – 16	2 – 3	Double / Staggered
200	Φ8 – 16	2 – 4	Double / Staggered

Key Features

CNC Precision Drilling: Every perforated PVC pipe is CNC-rotary-drilled to the exact hole diameter, spacing and row count specified in the drainage design.
Custom Hole Patterns: Single, double or staggered rows with Φ5-16mm holes, so each perforated PVC pipe matches the inflow rate the engineer calculates.
Corrosion-Proof UPVC: The non-metallic, non-rusting bore of this perforated PVC pipe handles aggressive groundwater, fertilizers and landfill leachate without degradation.
Smooth Un-Perforated Sectors: Selected sectors of every perforated PVC pipe can be left solid to carry water past a zone instead of collecting it, by design.
Solvent Cement Jointing: Standard UPVC adhesive connects perforated PVC pipe sections into long manifold or collector lines without special fittings.
Lightweight & Easy to Cut: Light 4m and 6m perforated PVC pipe lengths are cut with a fine-tooth saw and laid in a filter gravel envelope by hand, without lifting equipment.

Production

Manufacturing Process

Each perforated PVC pipe is first extruded as standard solid-wall UPVC pipe, then transferred to a CNC rotary drilling station that indexes the pipe and drills Φ5-16mm holes to the CAD pattern drawn by the drainage engineer, with no hole bleed or wall cracks.

Quality Control & Testing

Hole position, diameter and row count on every perforated PVC pipe are verified against the approved CAD drawing; drilled pipe lots also pass the standard UPVC hydrostatic, Vicat and dimensional checks so the perforations do not weaken the pipe below its rated class.

Raw Material

Lead-free virgin UPVC compound is used for every perforated PVC pipe; the non-porous, chemically resistant bore keeps perforations and inner wall clear of biological slime and mineral scale in long-term drainage service.

Applications

Subsurface drainage and waterlogging prevention systems - perforated PVC pipe collector lines laid in filter gravel under fields, roads and gardens to lower the groundwater table without open ditches.
Landfill leachate collection and seepage drains - chemically resistant perforated PVC pipe networks under landfill cells where steel or concrete would corrode and crack.
Retaining wall, embankment and tunnel drainage - short perforated PVC pipe fingers behind retaining walls and tunnel lining that intercept seepage and discharge it before hydrostatic pressure builds.
Sports field, golf course and landscape underdrains - custom Φ5-8mm perforated PVC pipe grids in single or double rows, fine-tuned to the soil infiltration rate and rainfall design of each site.
