Product Overview

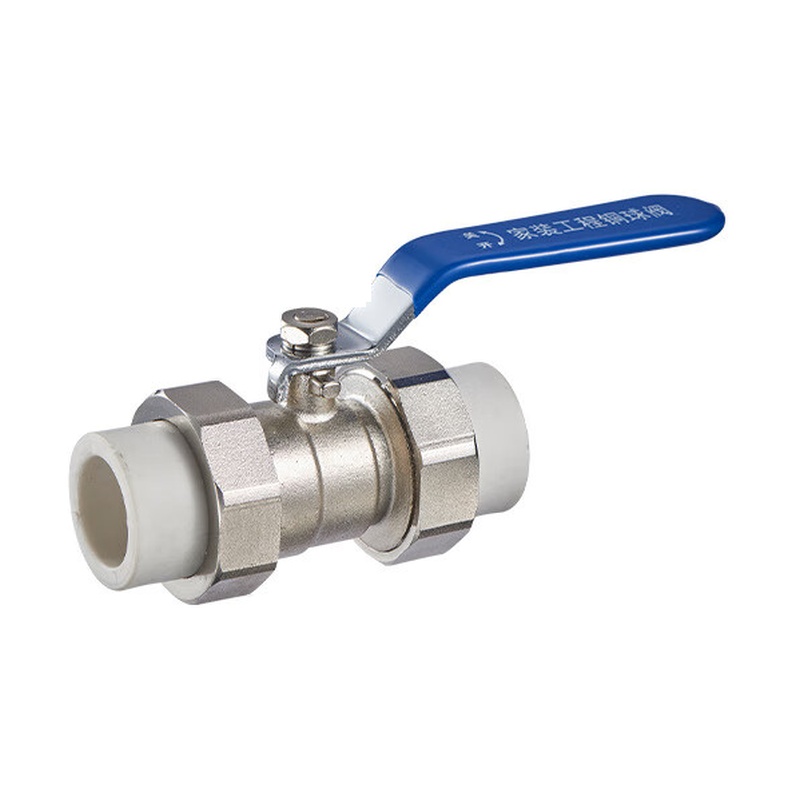

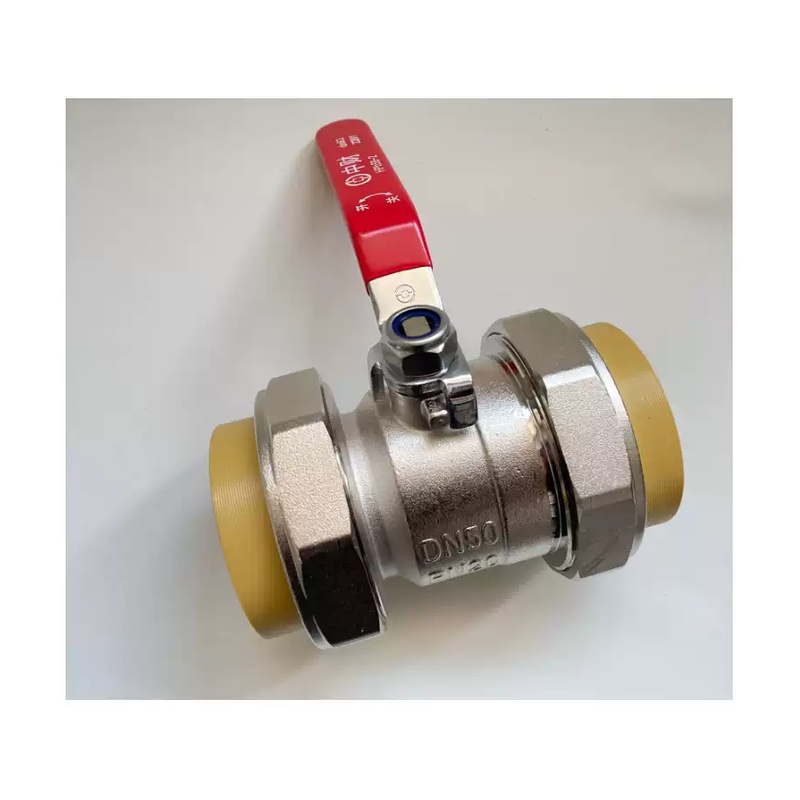

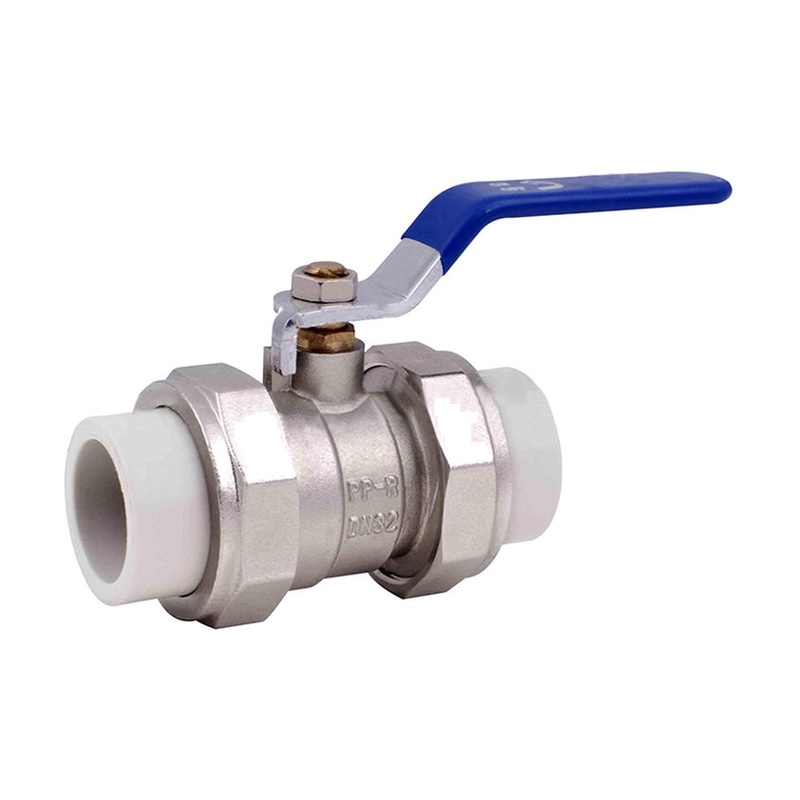

PPR all copper ball valve provides reliable quarter turn shutoff in heat fused PPR plumbing systems. Both ends of the PPR ball valve are standard PPR sockets for direct heat fusion into the pipeline, while the ball, stem and internal components are chrome plated brass for long term reliable operation. Rated PN 2.5 MPa, the PPR ball valve is stocked from DN 20 mm to DN 63 mm.
Quick Information
- Type: Heat Fusion End Ball Valve
- Size Range: DN 20 - DN 63 mm
- Rated Pressure: PN 2.5 MPa
- Ball Material: Chrome Plated Brass
- Seal: PTFE / EPDM
- Connection: Heat Fusion both ends
- Standards: GB/T 18742, ISO 15874
Specification Table
| DN (mm) | Rated Pressure | Connection | Operation |
|---|---|---|---|
| DN 20 | PN 2.5 MPa | Heat Fusion | Quarter Turn |
| DN 25 | PN 2.5 MPa | Heat Fusion | Quarter Turn |
| DN 32 | PN 2.5 MPa | Heat Fusion | Quarter Turn |
| DN 40 | PN 2.5 MPa | Heat Fusion | Quarter Turn |
| DN 50 | PN 2.5 MPa | Heat Fusion | Quarter Turn |
| DN 63 | PN 2.5 MPa | Heat Fusion | Quarter Turn |
