Drip Tape with Flat Emitters

PE drip tape with flat patch emitters for water-saving agriculture, 16-20 mm, 0.2-0.4 mm wall, 1.38-3.0 L/h flow, 500-2000 m per roll.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: Irrigation Fittings

Irrigation Fittings

Product Overview

drip irrigation tape engineered for water-saving agricultural irrigation, manufactured from polyethylene with precision flat emitters embedded in the tape wall. The drip irrigation tape delivers water directly to the crop root zone, significantly reducing evaporation loss and improving water use efficiency in greenhouse, orchard and field irrigation systems.

Quick Information

Diameter: 16mm, 20mm
Wall Thickness: 0.2 / 0.3 / 0.4 mm (patch type)
Emitter Spacing: 100 – 1000 mm
Flow Rate: 1.38 – 3.0 L/h
Operating Pressure: 0.05 – 0.2 MPa

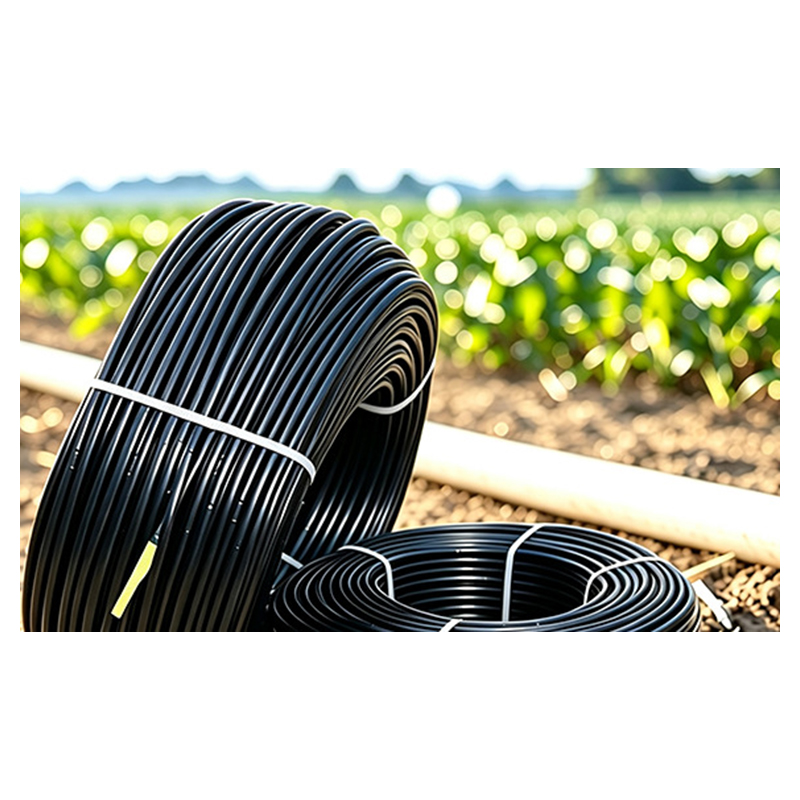

Packing: 500 – 2000 m/roll
Stock Availability: In stock

Specification Table

Item	Spec
Type	Drip tape with flat (patch) emitters
Diameter	16 / 20 mm
Wall Thickness	0.2 / 0.3 / 0.4 mm
Emitter Spacing	100 - 1000 mm
Flow Rate	1.38 - 3.0 L/h
Working Pressure	0.05 - 0.2 MPa
Packing	500 - 2000 m/roll

Key Features

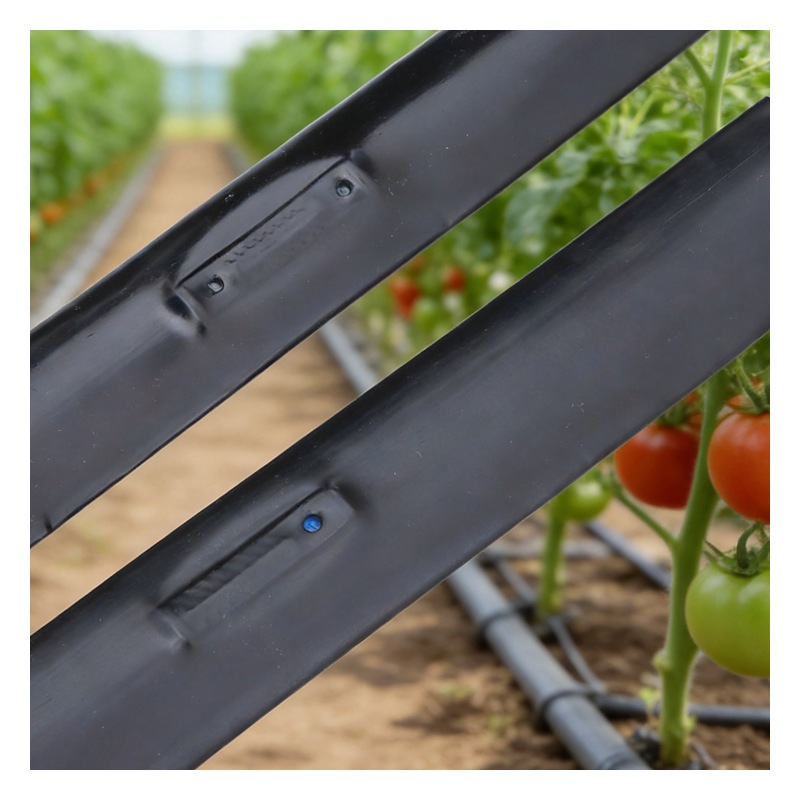

Flat Emitter Design: Precision flat emitters embedded in the drip irrigation tape wall deliver water uniformly to each plant, reducing water waste and supporting consistent crop growth.
Anti-Clogging Labyrinth Channel: The maze flow channel inside each emitter of the drip irrigation tape minimizes blockage risk from sediments, ensuring long-term stable operation.
UV-Resistant PE Body: The drip irrigation tape is produced from UV-resistant and anti-abrasion polyethylene, extending service life in outdoor field conditions.
Low-Pressure Operation: Working at 0.05 – 0.2 MPa, the drip irrigation tape saves energy and is compatible with gravity-fed tank systems.
Accurate Emitter Spacing: Emitter spacing from 100 to 300 mm can be customized, allowing the drip irrigation tape to match row crop spacing and soil infiltration rates.

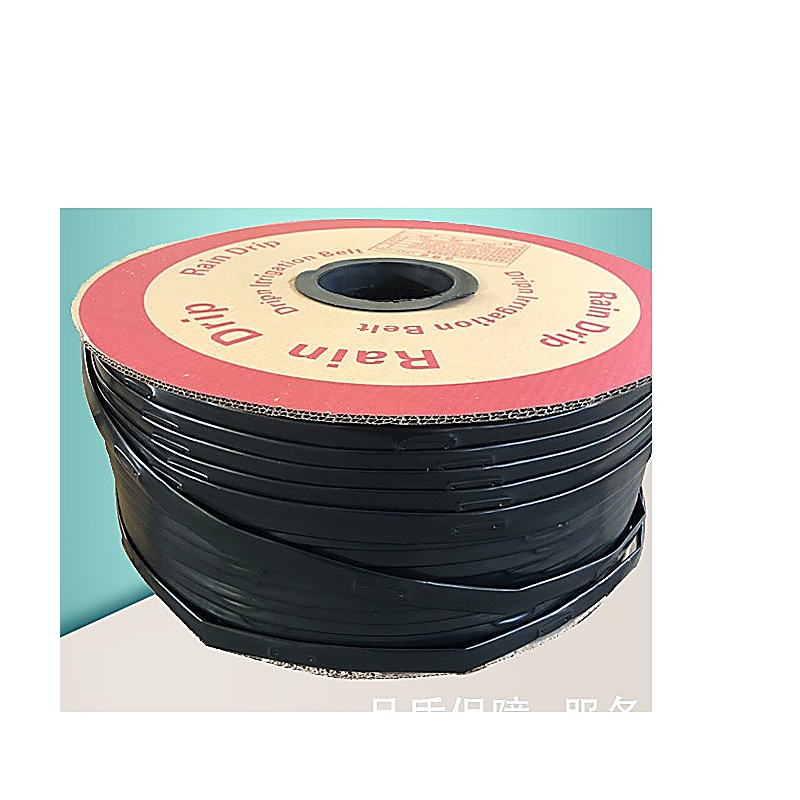

Long Roll Packing: Supplied in 500 – 2000 m rolls, the drip irrigation tape is easy to transport, lay out and replace in large-area irrigation projects.

Production

Raw Material

The drip irrigation tape is extruded from polyethylene resin compliant with ISO 9261 standards, with UV stabilizers and anti-oxidant masterbatch added for long-term outdoor durability.

Molding Process

The drip irrigation tape is produced by precision extrusion with in-line flat emitter embedding technology. Critical process parameters include wall thickness consistency, emitter spacing accuracy and flow rate uniformity; each emitter is automatically inserted and welded into the tape wall under controlled temperature and tension.

Quality Control

Each roll of drip irrigation tape is tested for emitter flow rate uniformity, burst pressure resistance and wall thickness measurement before packing. Records are retained for traceability and third-party inspection.

Applications

Greenhouse Vegetable Irrigation: The drip irrigation tape feeds each plant row with precise water and fertilizer, improving yield and saving labor in greenhouse cultivation.
Orchard Drip Systems: Laid along tree rows, the drip irrigation tape delivers water directly to the root ball, reducing evaporation and weed growth in orchards.
Row Crop Field Irrigation: Suitable for cotton, corn and sugarcane fields, the drip irrigation tape supports high-density planting with uniform water distribution.
Landscape and Garden Watering: The drip irrigation tape can be laid on the surface or buried shallow, ideal for urban landscaping and residential garden watering networks.
Gravity-Fed and Low-Pressure Systems: Compatible with tanks and gravity supply, the drip irrigation tape works efficiently at 0.05 – 0.2 MPa without booster pumps.
