Product Overview

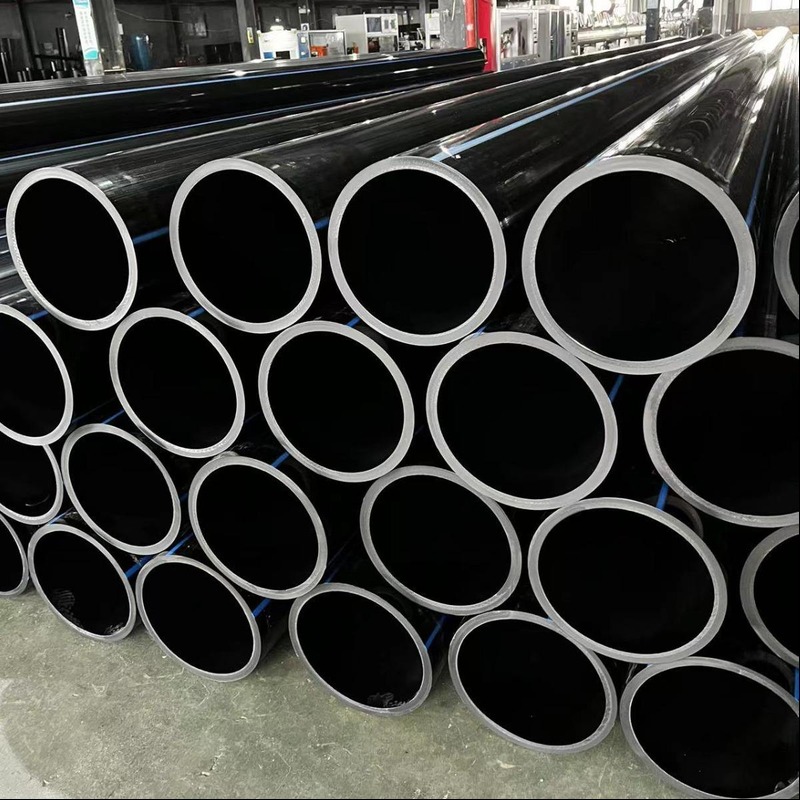

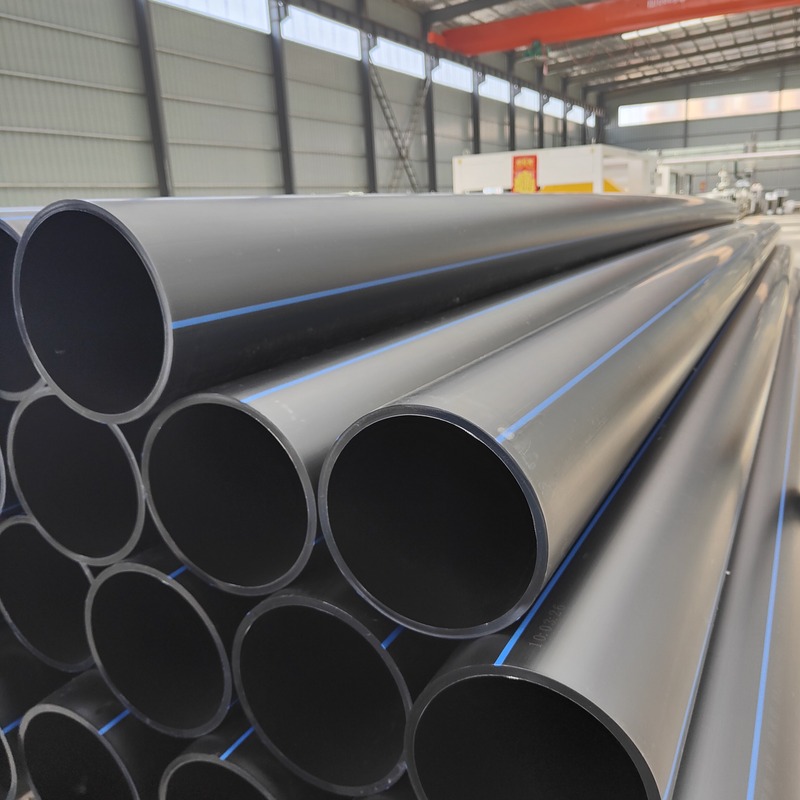

Large diameter HDPE pipe manufactured from PE100 for trunk water mains and industrial applications. High flow capacity and low friction loss make it an economical choice for major transmission lines. Spanning DN315 to DN2000, this HDPE large diameter pipe replaces steel and concrete mains with a single lightweight, corrosion-free PE100 line that ships in long lengths to minimize field joints.
Quick Information
- Type: Large Diameter Pipe
- Material: HDPE PE100
- Standard: ISO 4427
- Application: Water trunk mains, industry
- Pressure Rating: PN6 – PN16
- Size: DN315 – DN2000
- Stock: Made to order
Specification Table
| DN (mm) | OD (mm) | SDR11 (PN16) Wall (mm) | SDR17 (PN10) Wall (mm) | SDR21 (PN8) Wall (mm) |
|---|---|---|---|---|
| 315 | 315 | 28.6 | 18.7 | 15.0 |
| 400 | 400 | 36.3 | 23.7 | 19.1 |
| 450 | 450 | 40.9 | 26.7 | 21.5 |
| 500 | 500 | 45.4 | 29.7 | 23.9 |
| 630 | 630 | 57.2 | 37.4 | 30.0 |
| 710 | 710 | 64.5 | 42.1 | 33.8 |
| 800 | 800 | 72.6 | 47.4 | 38.1 |
| 1000 | 1000 | 90.9 | 59.3 | 47.7 |
| 1200 | 1200 | 109.1 | 71.4 | 57.2 |
