Product Overview

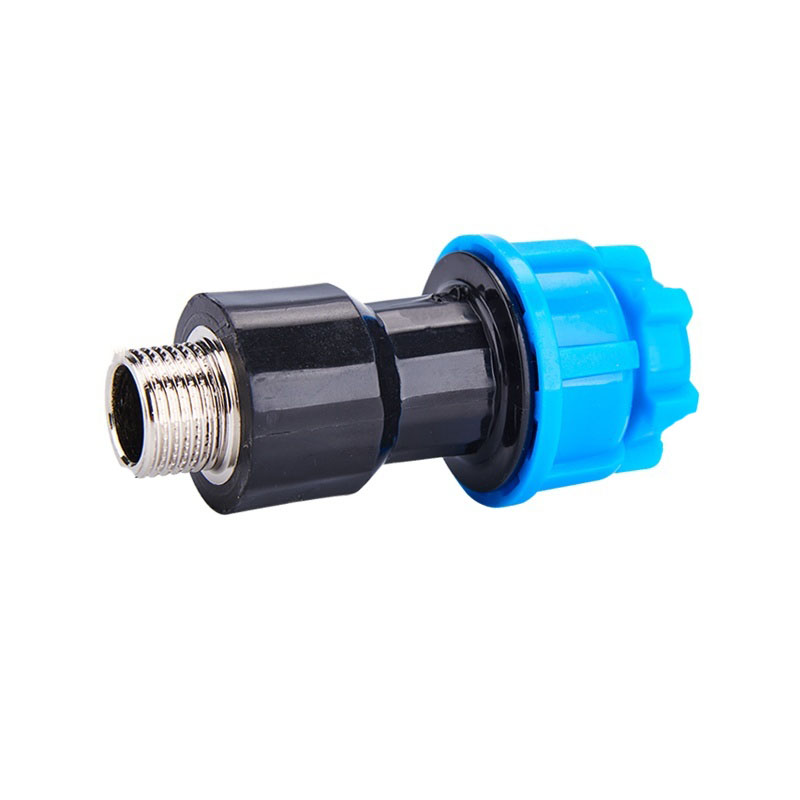

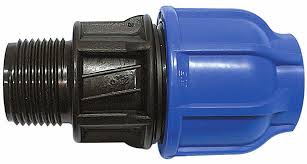

PP compression male coupling for threaded connections. DN 20-63mm.
Quick Information
- Type: Male Thread Coupling
- Material: PP
- Size: DN 20 - 63 mm
- Thread: 1/2" - 4" BSP
- Pressure Rating: 16 Bar
- Stock: In stock
Specification Table
| Size | Weight (g) | Qty/Carton |
|---|---|---|
| 20 x 1/2" | 47 | 420 |
| 20 x 3/4" | 48 | 420 |
| 20 x 1" | 52 | 390 |
| 25 x 1/2" | 64 | 240 |
| 25 x 3/4" | 66 | 240 |
| 25 x 1" | 69 | 240 |
| 32 x 1/2" | 94 | 180 |
| 32 x 3/4" | 96 | 160 |
| 32 x 1" | 105 | 160 |
| 32 x 1-1/4" | 107 | 140 |
| 40 x 1" | 172 | 90 |
| 40 x 1-1/4" | 173 | 90 |
| 40 x 1-1/2" | 188 | 90 |
| 50 x 1-1/4" | 283 | 60 |
| 50 x 1-1/2" | 283 | 60 |
| 50 x 2" | 284 | 52 |
| 63 x 1-1/4" | 485 | 32 |
| 63 x 1-1/2" | 486 | 32 |
| 63 x 2" | 489 | 32 |
| 63 x 2-1/2" | 492 | 28 |
| 75 x 2" | 568 | 24 |
| 75 x 2-1/2" | 584 | 24 |
| 75 x 3" | 605 | 240 |
| 90 x 2-1/2" | 789 | 12 |
| 90 x 3" | 805 | 12 |
| 90 x 4" | 810 | 12 |
| 110 x 3" | 1369 | 8 |
| 110 x 4" | 1385 | 8 |
