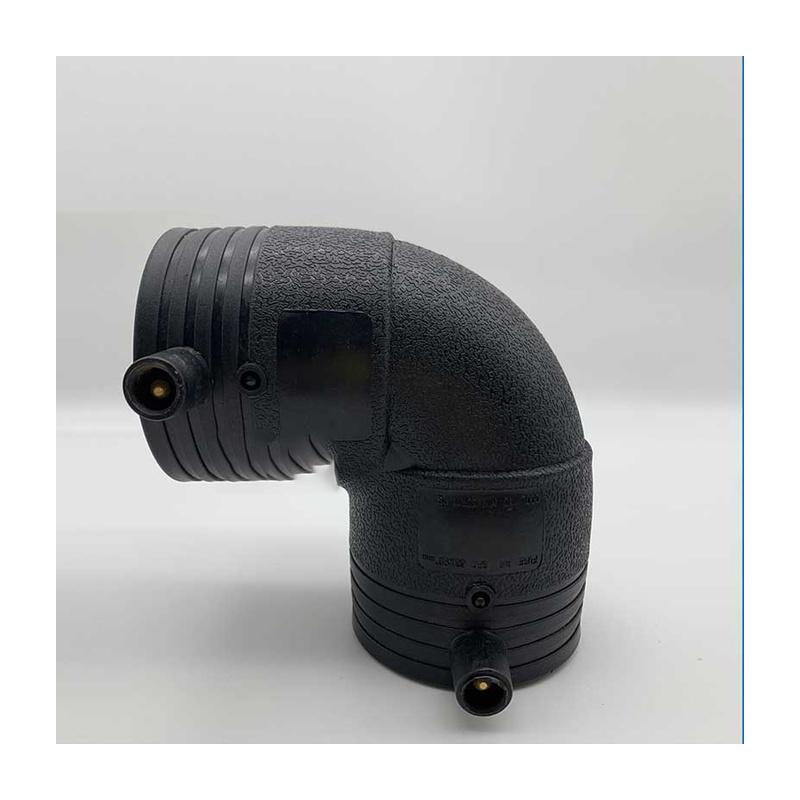

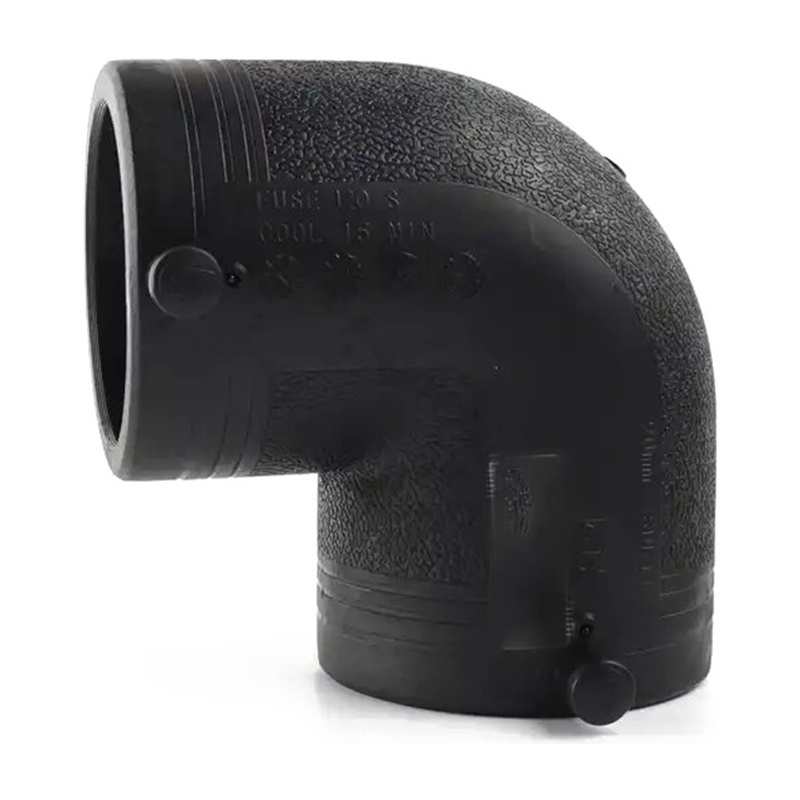

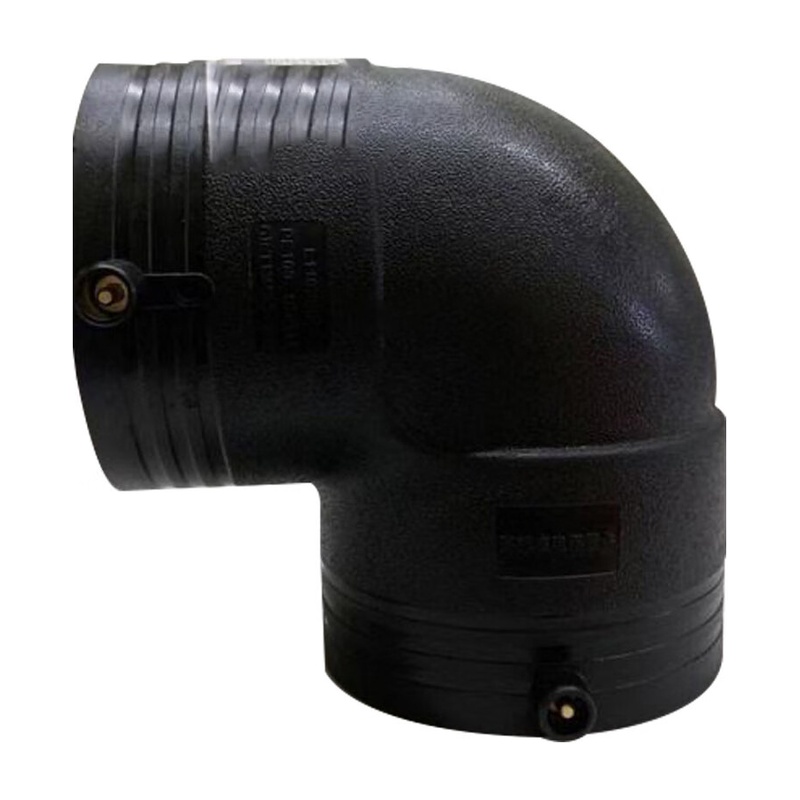

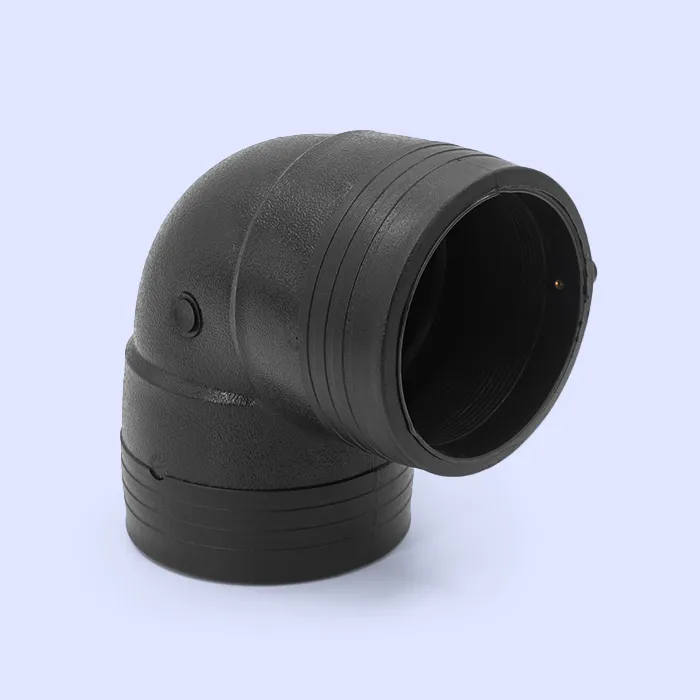

HDPE Electro Fusion 90° Elbow

HDPE Electro Fusion 90° Elbow, PN10 / PN16, PE100, to ISO 4427 / EN 12201, for PE water and gas networks.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: HDPE Electro Fusion Fittings

HDPE Electro Fusion Fittings

Product Overview

The HDPE electro fusion 90° elbow turns a PE100 water main through a right angle using two electro fusion sockets. The heating coils are moulded into both socket walls and energized by a standard electro fusion control unit, so the corner becomes a monolithic PE100 junction with the same pressure rating as the pipe on either side. Available from DN 50 to DN 315 mm with PN10 to PN16 ratings, the HDPE electro fusion 90° elbow is the standard choice for buried potable water networks where a maintenance free change of direction is required.

Quick Information

Material: PE100 (HDPE)
Joint: Electro fusion
Angle: 90 degree
Pressure rating: PN10 / PN16
Standard: ISO 4427 / EN 12201
Colour: Black

Specification Table

规格 Φdn	L	一个	Φd	PN16	PN10	PN20	PN25
25*90°	82	45	4.7/4.0	√
32*90°	87	44	4.7/4.0	√
40*90°	90	45	4.7/4.0	√
50*90°	115	54	4.7/4.0	√
69*90°	130	54	4.7/4.0	√
75*90°	145	60	4.7/4.0	√
90*90°	164	68	4.7/4.0	√
110*90°	198	74	4.7/4.0	√
125*90°	220	80	4.7/4.0	√
140*90°	239	75	4.7/4.0	√
160*90°	254	95	4.7/4.0	√
200*90°	320	105	4.7/4.0	√
225*90°	360	110	4.7/4.0	√
250*90°	400	125	4.7/4.0	√
280*90°	430	130	4.7/4.0	√
315*90°	480	135	4.7/4.0	√
315*90°（短）	445	109	4.7/4.0	√
355*90°	520	140	4.7/4.0	√
400*90°	580	145	4.7/4.0	√
450*90°	640	154	4.7/4.0	√
500*90°	690	151	4.7/4.0	√
560*90°	755	165	4.7/4.0	√
630*90°	860	185	4.7/4.0	√



315°弯头	460	135	4.7/4.0		√
355°弯头	540	140	4.7/4.0		√
400°弯头	570	145	4.7/4.0		√
500°弯头	685	150	4.7/4.0		√
630°弯头	850	185	4.7/4.0		√
710°弯头	960	211	4.7/4.0		√
800°弯头	1070	225	4.7/4.0		√
900°弯头	1185	257	4.7/4.0		√
1000°弯头	1350	288	4.7/4.0		√



50*90°	115	55.6	4.7/4.0			√
63*90°	131	55	4.7/4.0			√
75*90°	147	60	4.7/4.0			√
90*90°	213	70	4.7/4.0			√
110*90°	200	75	4.7/4.0			√
160*90°	270	95	4.7/4.0			√
200*90°	332	100	4.7/4.0			√
250*90°	410	126	4.7/4.0			√
315*90°	485	138	4.7/4.0			√



110°	215	86	4.7/4.0				√
160°	272	99	4.7/4.0				√
200°	303	88	4.7/4.0				√

Key Features

One Piece Moulded Corner: The 90° elbow is injection moulded as a single body, so there is no welded seam at the bend and the corner carries full pipe pressure.
True Right Angle: The bend angle is held to 90° during moulding, so the HDPE electro fusion elbow aligns the pipe run without springback or stress on the fused joints.
Electro Fusion Sockets: Both ends of the elbow use fused joints, so the connection to the pipe is permanent and leak tight at the corner.
No Metal Insert: The electro fusion 90° elbow keeps polyethylene in the water path, so there is no corrosion or galvanic risk at the corner.
Full PE100 Flexibility: After fusion the line stays flexible, so the buried HDPE main can absorb ground settlement at the corner without prying the fused sockets apart.
Maintenance Free: The fused joints are permanent, so the HDPE electro fusion 90° elbow needs no bolts or gaskets to inspect at the bend.

Production

Raw Material

The HDPE electro fusion 90° elbow is moulded from virgin PE100 compound rated MRS 10.0 per ISO 4427-3, with the resin lot recorded for full traceability from pellet to fitting.

Molding Process

Each electro fusion 90° elbow is injection moulded in one shot with both resistance coils pre positioned in the 90° socket walls; the bend radius and socket bores are held to ISO 4427-3 dimensions.

Quality Control

Every batch of HDPE electro fusion 90° elbows is gauged for socket diameter, ovality, coil resistance and bend angle, then sample welded and pressure tested to 1.5 times rated pressure before release; each fitting carries a batch code traceable to the raw resin lot.

Applications

Street intersection corners in buried potable water mains use the HDPE electro fusion 90° elbow to turn the trunk line without a mechanical joint.
Obstacle avoidance routes the HDPE electro fusion 90° elbow around existing utilities, because the moulded corner keeps the PE100 line continuous.
Pump room riser entries install the electro fusion 90° elbow where the buried HDPE main turns upward, so the vertical riser meets the pump without a bolted joint.
Water treatment plant pipe galleries use the HDPE electro fusion 90° elbow at every gallery turn, where the fused sockets keep the corner leak tight under pressure cycling.
