UPVC 45° Elbow

A 45° solvent-cement socket elbow for smooth low-angle directional changes in industrial piping systems.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: UPVC Fittings

UPVC Fittings

Product Overview

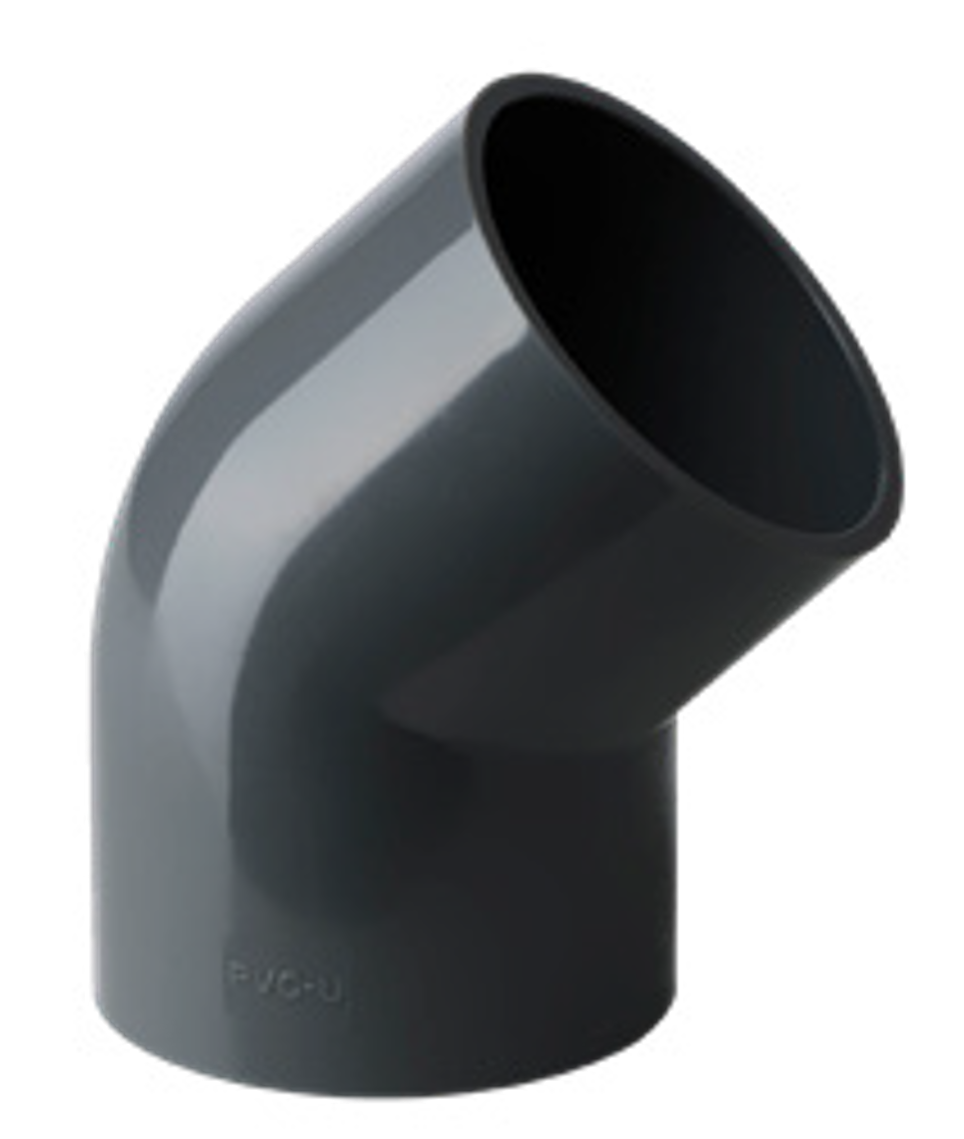

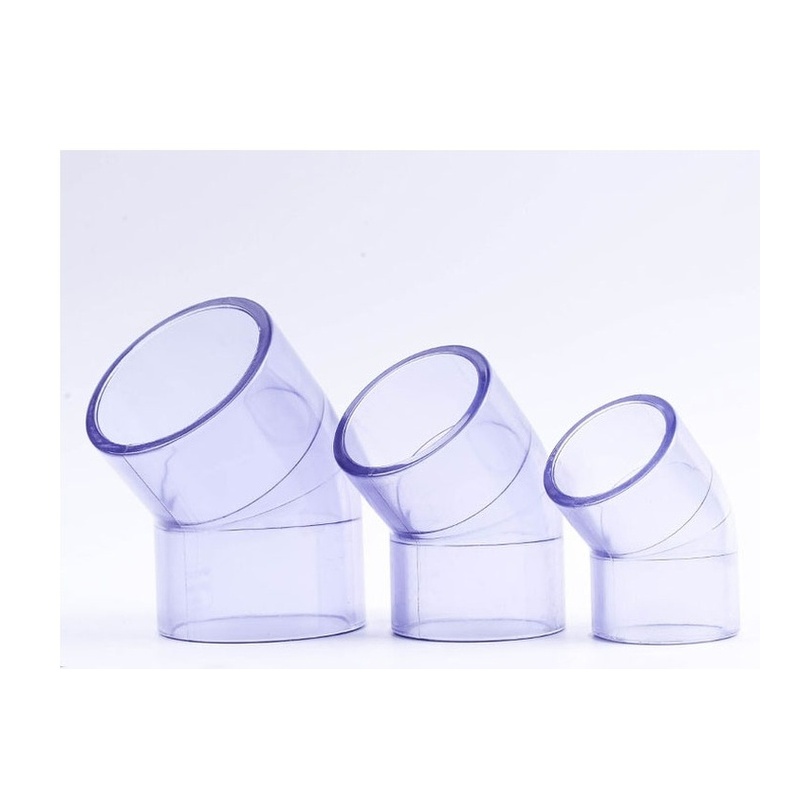

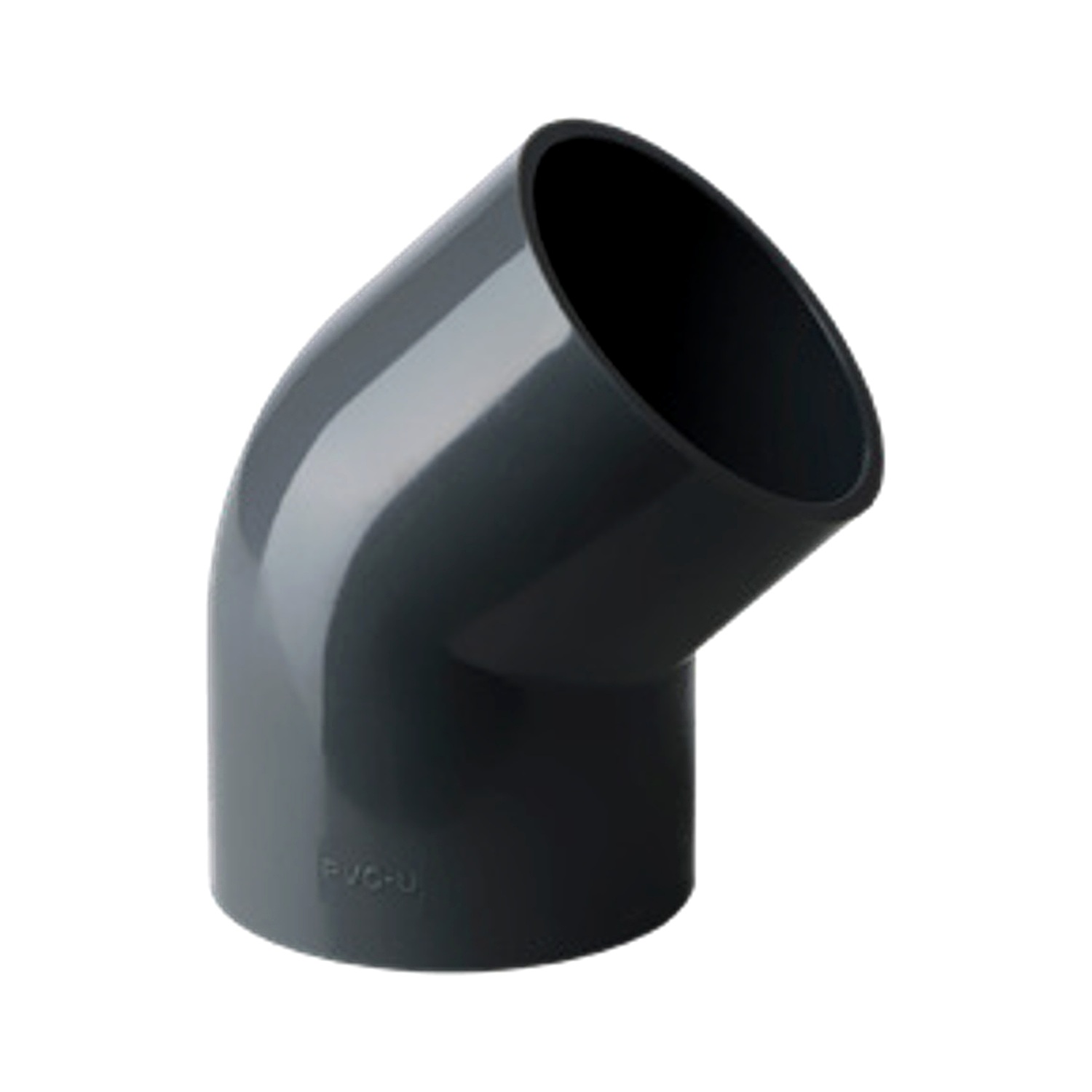

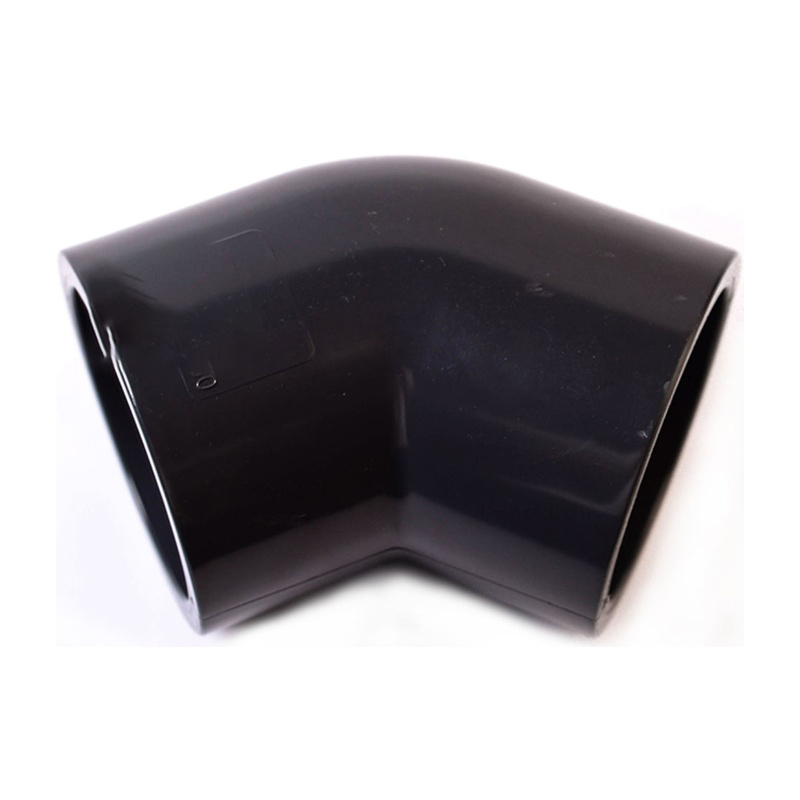

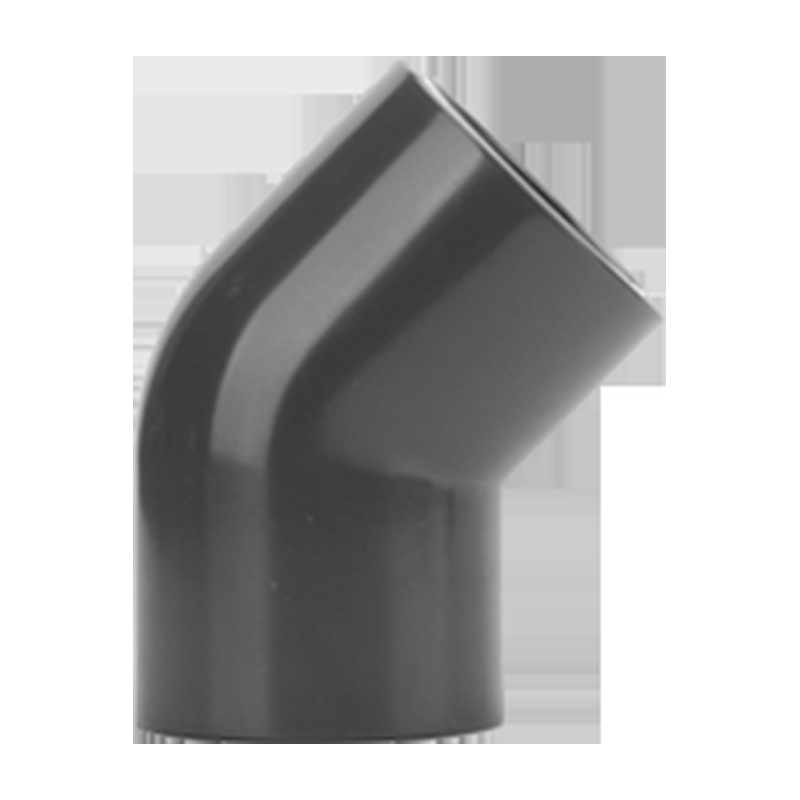

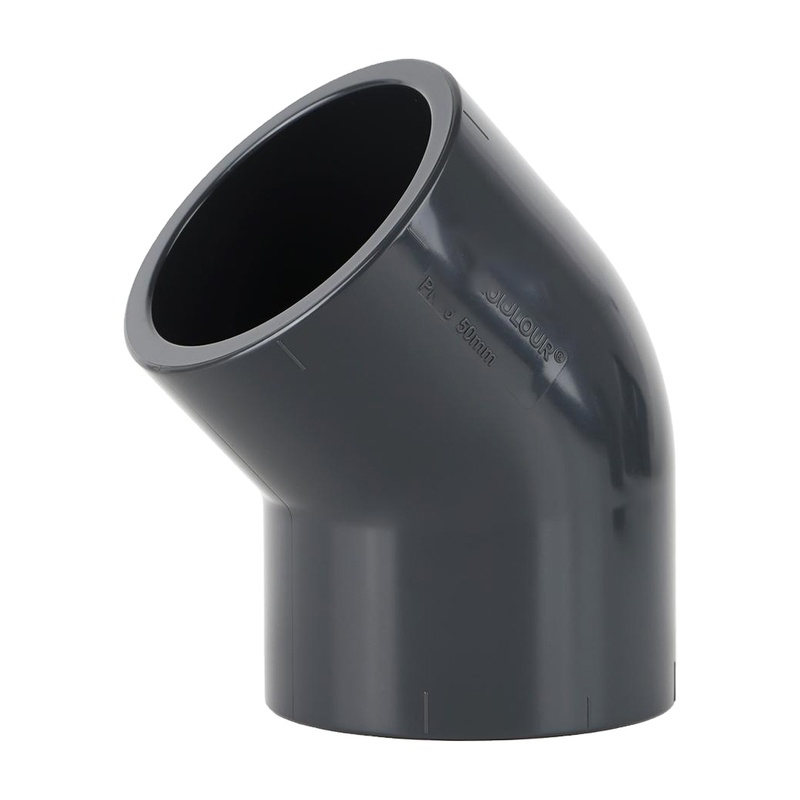

UPVC 45° elbow for solvent cement socket connection in industrial piping systems. Manufactured from virgin PVC-U compound per GB/T 10002.2 and ISO 1452, this UPVC 45° elbow provides a smooth low-angle direction change with minimal head loss. Available in DN 15 - 315 mm with PN6 - PN16 pressure ratings, the UPVC 45° elbow is the standard choice for offset routing in chemical and water distribution lines.

Quick Information

Type: 45° Elbow
Material: PVC-U / PVC-C
Size: DN 15 - 315 mm
Pressure Rating: PN6 - PN16
Connection: Solvent Cement Socket
Standard: GB/T 10002.2 / ISO 1452
Stock: In stock

Specification Table

Size DN	Dimensions (mm)							Nominal Pressure PN(kg/cm²)
	D0	d1	d2	d	T	H	L
15	26.30	20.30	19.95	18.00	16.20	22.10	46.90	S5(PN20)
20	31.80	25.30	24.95	23.00	18.70	25.70	54.90	S5(PN20)
25	38.60	32.30	31.90	30.00	22.20	30.60	66.20	S5(PN20)
32	49.70	40.40	39.90	38.00	26.20	36.30	79.30	S5(PN20)
40	61.90	50.40	49.90	48.00	31.20	43.30	95.70	S5(PN20)
50	77.50	63.40	62.90	61.00	37.70	52.50	116.90	S5(PN20)
65	91.20	75.40	74.90	70.90	43.70	64.60	142.50	S6.3(PN16)
80	107.60	90.50	89.90	85.90	51.20	75.60	166.90	S6.3(PN16)
100	127.00	110.60	109.90	103.90	61.20	89.20	197.60	S6.3(PN16)
De125	144.30	125.70	124.90	118.90	68.70	100.70	222.90	S6.3(PN16)
125	161.60	140.80	139.90	133.90	76.20	112.40	248.90	S6.3(PN16)
150	184.60	160.80	159.90	153.90	86.20	126.90	281.90	S6.3(PN16)
De180	202.60	180.90	179.90	178.50	97.00	137.90	307.00	S6.3(PN16)
De200	230.50	201.00	199.90	193.50	106.20	157.10	349.50	S6.3(PN16)
200	259.40	226.20	224.90	216.90	119.10	175.70	391.50	S6.3(PN16)
De250	287.90	251.30	249.90	241.90	131.65	193.30	432.20	S8(PN16)
250	314.80	281.50	279.90	278.00	147.00	209.60	469.10	S8(PN16)
300	358.20	316.70	314.90	306.90	164.30	242.80	541.20	S8(PN16)
350	394.11	356.80	355.00	331.50	184.00	270.94	602.20	S8(PN16)
400	450.00	402.00	400.00	369.80	363.80	306.81	662.20	S8(PN16)
500	540.50	503.00	500.00	469.00	256.00	377.00	834.00	PN6
600	668.50	633.00	630.00	591.80	321.00	471.00	1040.00	PN6

Key Features

Smooth 45° Direction Change: The UPVC 45° elbow turns the line gradually, cutting head loss to roughly half that of a 90° bend.
Solvent Cement Joint: Each UPVC 45° elbow has precision-molded sockets that bond to PVC-U pipe with standard solvent cement for a permanent, leak-free joint.
Chemical Resistance: The UPVC 45° elbow withstands acids, alkalis and industrial chemicals without corrosion or degradation.
Lightweight Installation: Far lighter than metal fittings, the UPVC 45° elbow reduces handling and installation cost.
PN6 - PN16 Rated: The UPVC 45° elbow matches common PVC-U pipe pressure classes from DN 15 to 315 mm.
Long Service Life: Non-rusting, non-scaling UPVC 45° elbow material delivers decades of reliable service in buried and exposed lines.

Production

Raw Material

Each UPVC 45° elbow is injection molded from virgin PVC-U compound with precision tooling per GB/T 10002.2 and ISO 1452.

Molding Process

The UPVC 45° elbow is injection molded with curved cores that hold the 45-degree angle within 0.5 degrees and keep wall thickness uniform through the bend.

Quality Control

Every UPVC 45° elbow is dimensionally inspected for socket depth, OD and angle accuracy to guarantee exact compatibility with standard PVC-U pipes.

Applications

Industrial chemical piping uses the UPVC 45° elbow for smooth offset routing around equipment.
Water supply and drainage systems install the UPVC 45° elbow for low-loss direction changes.
Irrigation and agricultural pipelines rely on the UPVC 45° elbow for gentle turns in field laterals.
Building and plumbing services choose the UPVC 45° elbow for compact angled runs behind walls.
