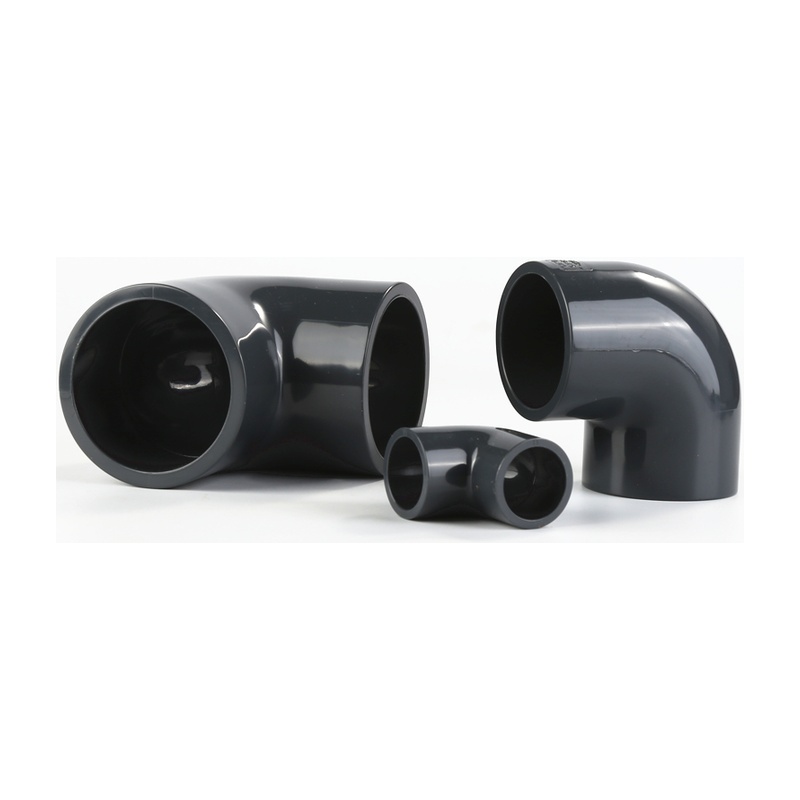

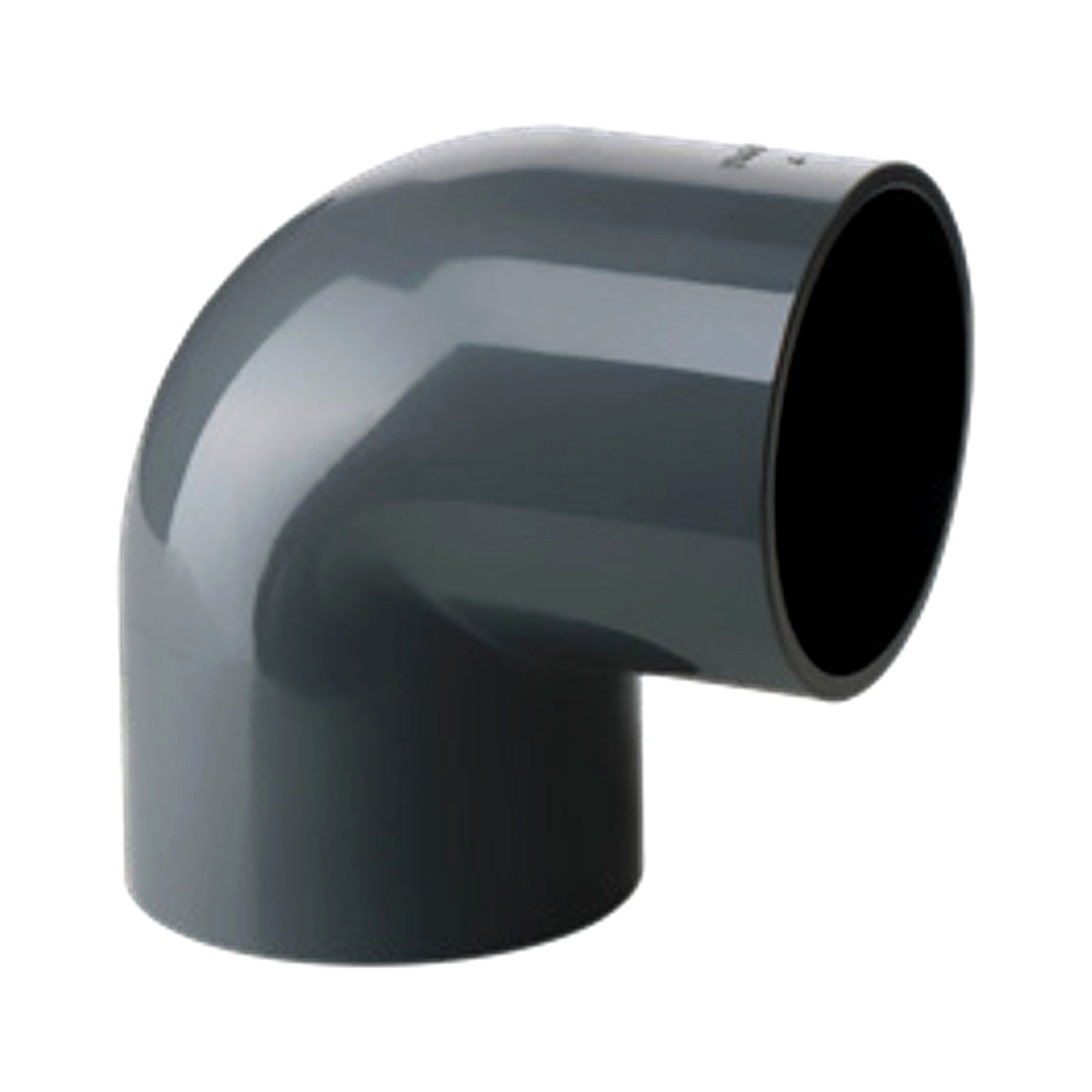

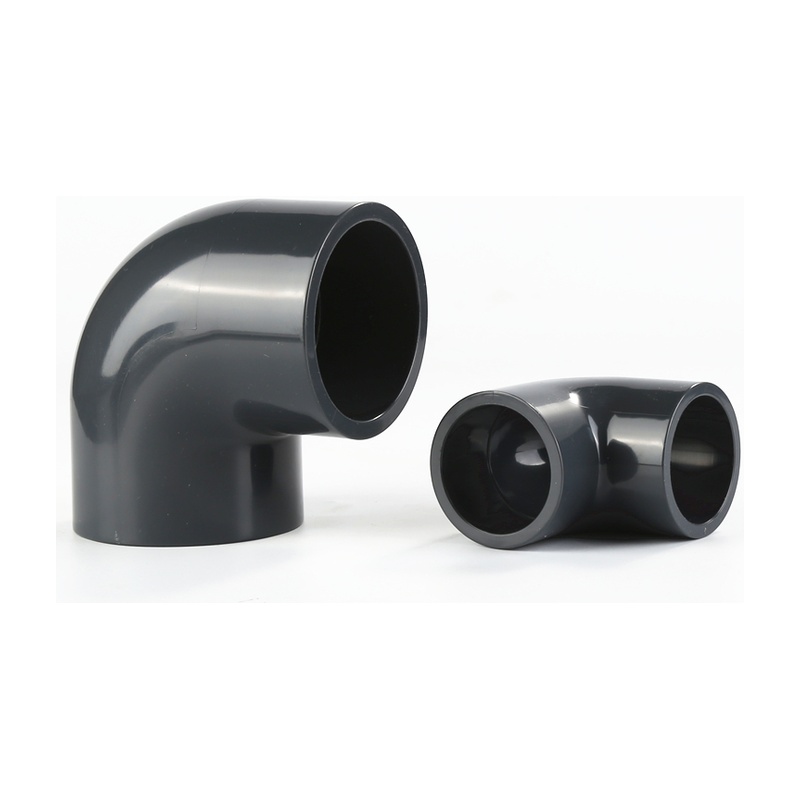

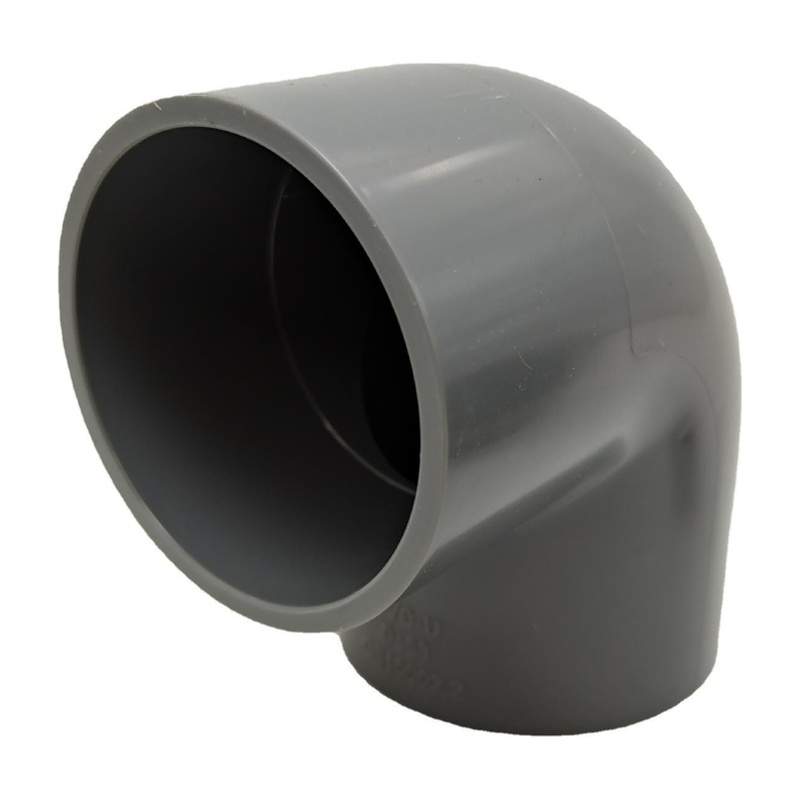

UPVC 90° Elbow

A 90° solvent-cement socket elbow for right-angle directional changes in industrial piping systems.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Categories: PVC Fittings, UPVC Fittings

Product Overview

UPVC 90° elbow for solvent cement socket connection in industrial piping systems. Manufactured from virgin PVC-U compound per GB/T 10002.2 and ISO 1452, this UPVC 90° elbow turns the line a full right angle in one compact fitting. Available in DN 15 - 315 mm with PN6 - PN16 ratings, the UPVC 90° elbow is the most widely used directional fitting in PVC-U industrial networks.

Quick Information

Type: 90° Elbow
Material: PVC-U / PVC-C
Size: DN 15 - 315 mm
Pressure Rating: PN6 - PN16
Connection: Solvent Cement Socket
Standard: GB/T 10002.2 / ISO 1452
Stock: In stock

Specification Table

Size DN	Dimensions (mm)							Nominal Pressure PN(kg/cm²)
	D0	d1	d2	d	T	L	H
15	26.30	20.30	19.95	18.00	16.20	27.70	40.80	S5(PN20)
20	31.80	25.30	24.95	23.00	18.70	32.70	48.60	S5(PN20)
25	39.90	32.30	31.90	30.00	22.20	39.70	59.60	S5(PN20)
32	49.70	40.40	39.90	38.00	26.20	47.70	72.50	S5(PN20)
40	61.90	50.40	49.90	48.00	31.20	57.70	88.70	S5(PN20)
50	77.90	63.40	62.90	61.00	37.70	70.70	109.70	S5(PN20)
65	91.00	75.40	74.90	70.90	43.70	82.50	128.00	S6.3(PN16)
80	107.40	90.50	89.90	85.90	51.20	97.50	151.20	S6.3(PN16)
100	127.00	110.60	109.90	103.90	61.20	117.50	181.10	S6.3(PN16)
De125	144.30	125.70	124.90	118.90	68.70	132.50	204.70	S6.3(PN16)
125	162.30	140.80	139.90	133.90	76.20	148.00	229.10	S6.3(PN16)
150	184.60	160.80	159.90	153.50	86.20	168.50	260.80	S6.3(PN16)
De180	202.60	180.90	179.90	178.50	97.00	190.00	291.30	S6.3(PN16)
De200	230.50	201.00	199.90	193.50	106.20	208.00	323.30	S6.3(PN16)
200	259.40	226.20	224.90	216.90	119.10	233.60	363.20	S6.3(PN16)
De250	287.90	251.30	249.90	241.90	131.65	258.50	402.50	S8(PN16)
250	314.80	281.50	279.90	278.00	147.00	291.00	448.40	S8(PN16)
300	358.20	316.70	314.90	306.90	164.30	323.00	502.10	S8(PN16)
350	394.00	356.80	355.00	331.50	184.00	375.75	576.00	S8(PN16)
400	450.00	402.00	400.00	363.80	204.20	413.50	657.50	S8(PN16)
500	540.50	503.00	500.00	469.00	256.00	515.00	784.75	PN6
600	668.50	633.00	630.00	591.80	321.00	645.00	978.75	PN6

Key Features

Right-Angle Turn: The UPVC 90° elbow changes direction a full 90 degrees in one compact molded fitting.
Solvent Cement Joint: Each UPVC 90° elbow has precision-molded sockets that bond to PVC-U pipe with standard solvent cement for a permanent, leak-free joint.
Chemical Resistance: The UPVC 90° elbow withstands acids, alkalis and industrial chemicals without corrosion.
Lightweight Installation: Far lighter than metal fittings, the UPVC 90° elbow reduces handling and installation cost.
PN6 - PN16 Rated: The UPVC 90° elbow matches common PVC-U pipe pressure classes from DN 15 to 315 mm.
Long Service Life: Non-rusting, non-scaling UPVC 90° elbow material delivers decades of reliable service.

Production

Raw Material

Each UPVC 90° elbow is injection molded from virgin PVC-U compound with precision tooling per GB/T 10002.2 and ISO 1452.

Molding Process

The UPVC 90° elbow is injection molded with curved cores that guarantee a true 90-degree arc and uniform wall thickness through the bend.

Quality Control

Every UPVC 90° elbow is dimensionally inspected for socket depth, OD and angle accuracy to guarantee exact compatibility with standard PVC-U pipes.

Applications

Industrial chemical piping uses the UPVC 90° elbow for right-angle turns at equipment connections.
Water supply and drainage systems install the UPVC 90° elbow for direction changes in risers and branches.
Irrigation and agricultural pipelines rely on the UPVC 90° elbow for corner turns in field layouts.
Building and plumbing services choose the UPVC 90° elbow for compact 90-degree routing.
