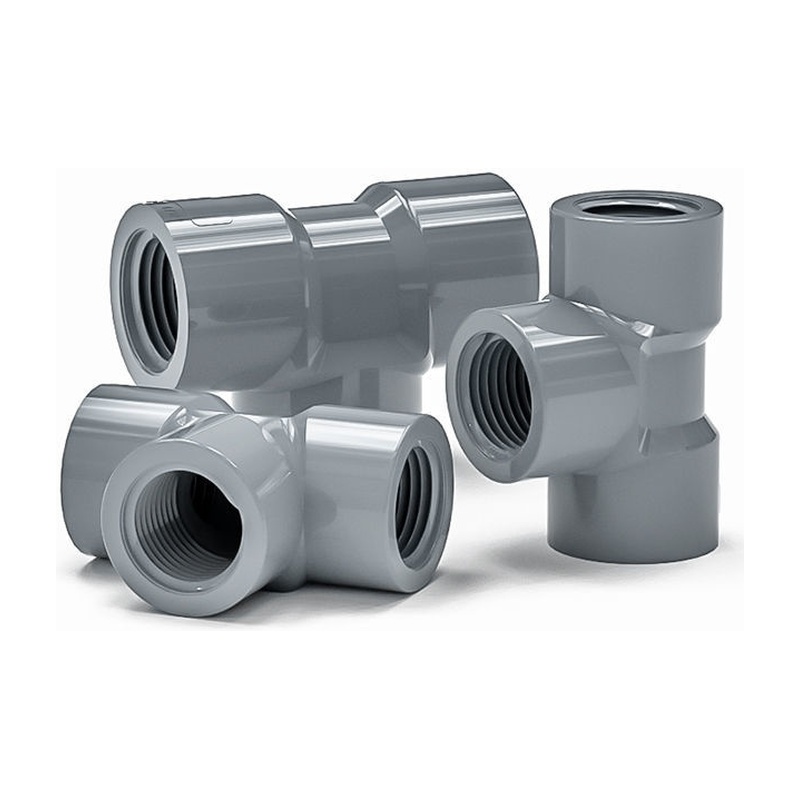

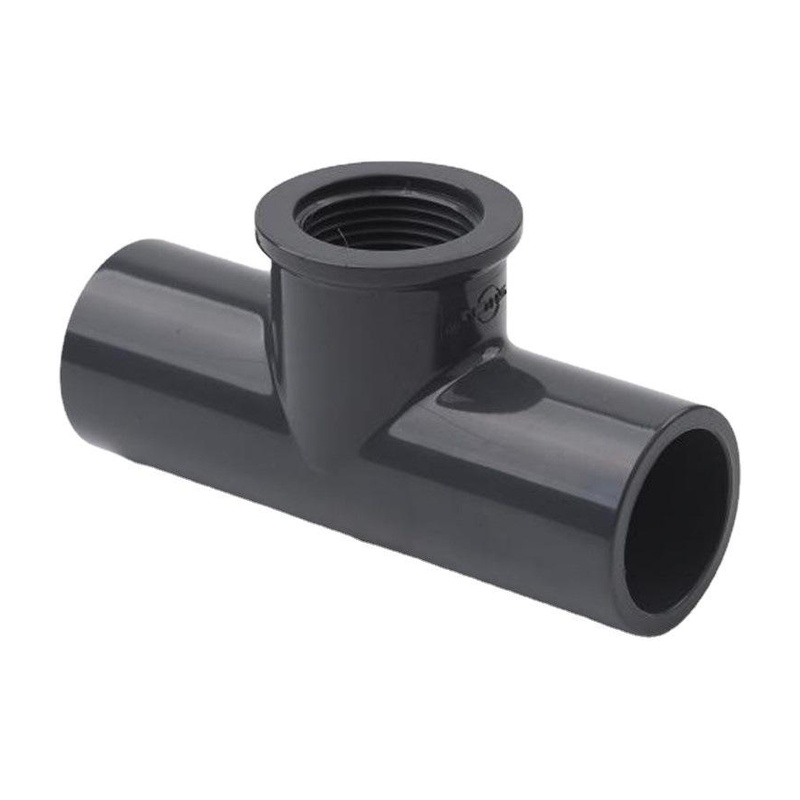

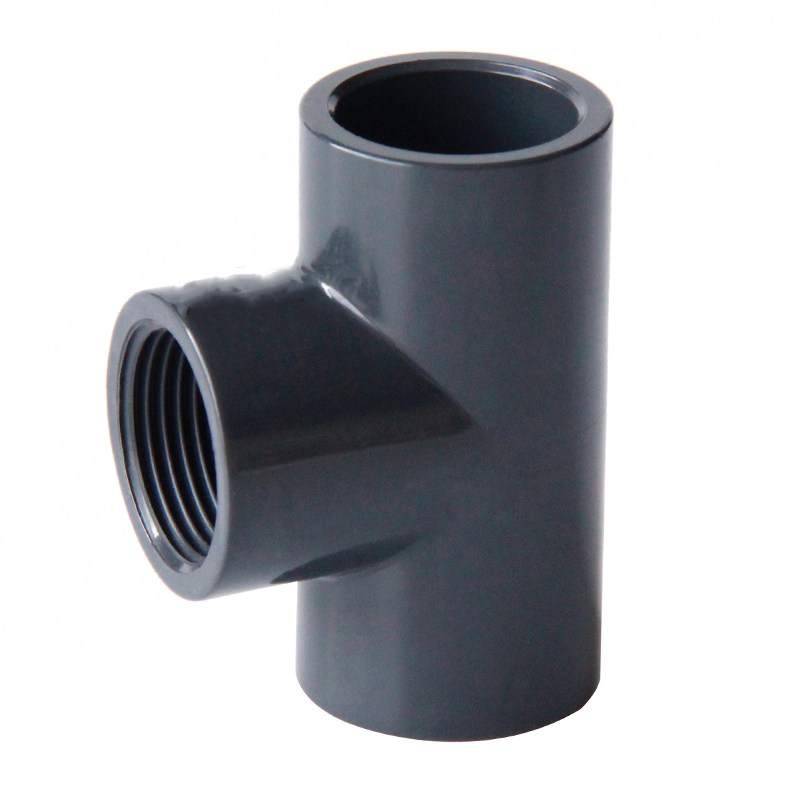

UPVC Female Threaded Tee

A tee with brass female threaded ends for transition between PVC-U/C piping and threaded metal fittings.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Categories: PVC Fittings, UPVC Fittings

Product Overview

UPVC female threaded tee for three-way transition between PVC-U piping and or metal male-threaded fittings. Manufactured from virgin PVC-U compound with per GB/T 10002.2 and ISO 1452, this UPVC female threaded tee provides a three-way junction with a threaded branch outlet. Available in 1/2" - 4" with PN10 - PN16 ratings.

Quick Information

Type: Female Threaded Tee
Material: PVC-U / PVC-C + Insert
Size: 1/2" - 4"
Pressure Rating: PN10 - PN16
Connection: Threaded (BSP)
Standard: GB/T 10002.2 / ISO 1452
Stock: In stock

Specification Table

Size	Bore Diameter	Spigot Thickness	Outside Diameter	Bottom Inner Diameter	Limit Position Inner Diameter	Socket Depth	Transverse Width	Longitudinal Height	PT(Threads/inch)
20mm	20.3	3.6	27	20.1	17	16	40	56	14
25mm	25.3	4.0	33	25.1	23	19	49.5	66	14
32mm	32.3	4.6	41	32.1	29	22	61	81	11
40mm	40.3	5.0	50	40.1	37	26	73.5	96	11
50mm	50.3	5.4	61	50.1	47	32	88	118	11
63mm	63.3	6.7	76.5	63.1	60	38	107.5	143	11

Key Features

Threaded Branch: The UPVC female threaded tee provides a three-way junction with a durable threaded branch outlet.
One-Piece Molded Body: The UPVC female threaded tee body is molded around the in one cycle for a strong, permanent bond.
Chemical Resistance: The PVC-U body of the UPVC female threaded tee withstands acids, alkalis and industrial chemicals.
Reinforced Thread Zone: The of the UPVC female threaded tee gives full PN10 - PN16 pressure capacity at the thread.
Lightweight Installation: Far lighter than all-metal tees, the UPVC female threaded tee reduces handling cost.
Long Service Life: Non-rusting PVC-U body and corrosion-resistant deliver decades of reliable branch service.

Production

Raw Material

Each UPVC female threaded tee is injection molded from virgin PVC-U compound around a machined threaded insert, per GB/T 10002.2 and ISO 1452.

Molding Process

The is placed in the mold and the PVC-U body is injection molded around it, bonding the materials into a single UPVC female threaded tee.

Quality Control

Every UPVC female threaded tee is checked with thread gauges and pressure-tested to guarantee leak-free performance at all three outlets.

Applications

Industrial chemical piping uses the UPVC female threaded tee for three-way junctions at threaded equipment.
Valve branch connections rely on the UPVC female threaded tee for corrosion-free threaded take-offs.
Irrigation systems install the UPVC female threaded tee to branch threaded risers off main lines.
Building services choose the UPVC female threaded tee where PVC-U lines branch to metal plumbing.
