HDPE Electro Fusion Double Sealing 45° Elbow

HDPE Electro Fusion Double Sealing 45° Elbow, PN10 / PN16, PE100, to ISO 4427 / EN 12201, for PE water and gas networks.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: HDPE Electro Fusion Fittings

HDPE Electro Fusion Fittings

Product Overview

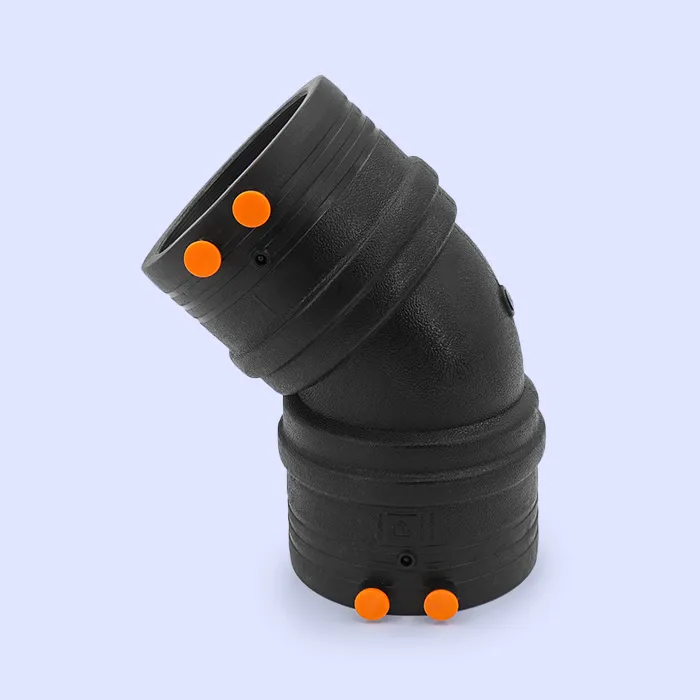

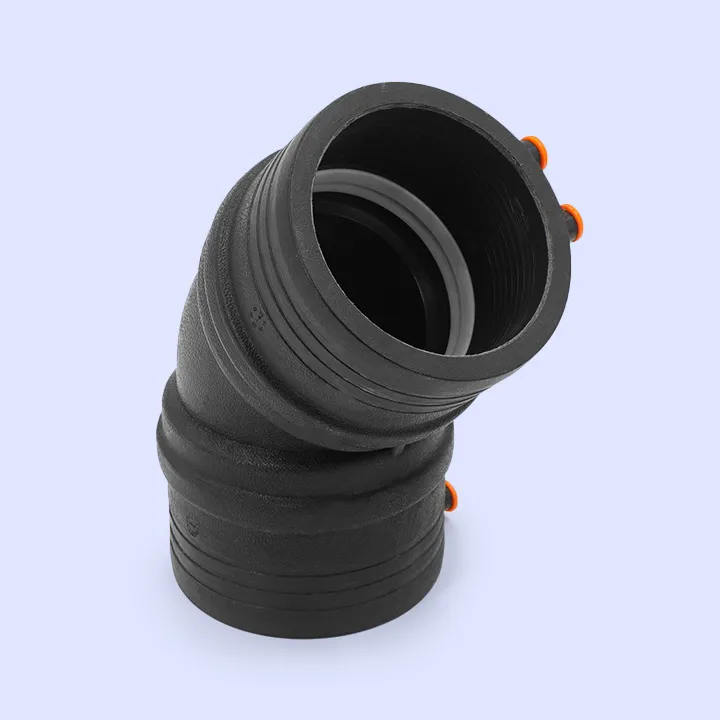

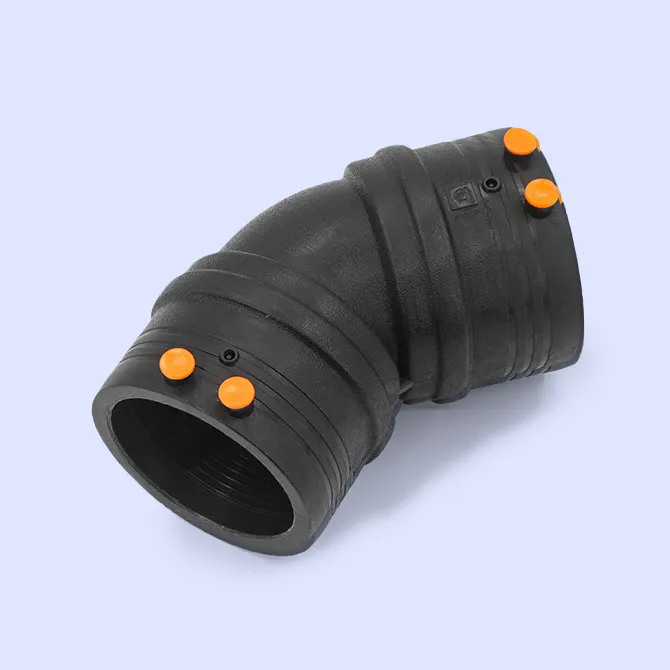

The HDPE electro fusion double sealing 45° elbow offsets a PE100 water main by 45 degrees through two electro fusion sockets with a dual sealing design. Gentler than a right angle fitting, the 45° bend keeps flow resistance low at the turn while still redirecting the pipe run around obstacles or aligning with a sloped main. The heating coils are moulded into both socket walls and energized by a standard electro fusion control unit, so the offset becomes a monolithic PE100 junction with the same pressure rating as the pipe on either side. Available from DN 50 to DN 315 mm with PN10 to PN16 ratings, the HDPE electro fusion 45° elbow is the standard choice for buried potable water networks where a low resistance change of direction is required.

Quick Information

Material: PE100 (HDPE)
Joint: Electro fusion, double sealing
Angle: 45 degree
Pressure rating: PN10 / PN16
Standard: ISO 4427 / EN 12201
Colour: Black

Specification Table

SDR11
SPECIFICATION	SIZE (mm)
	D	L1	L2	L
L50X45°	62	105	67.5	135
L63X45°	77	120	77.5	155
L75X45°	90	130	85	170
L90X45°	107	140	92.5	185
L110X45°	135	155	105	210
L125X45°	150	170	117.5	235
L140X45°	165	200	100	260
L160X45°	190	200	135	270
L200X45°	237	240	162.5	325
L225X45°	267	250	177.5	355
L250X45°	297	270	190	380
L315X45°	373	325	235	470
L355X45°	422	350	175	500
L450X45°	530	450	225	630
L500X45°	590	450	225	660
L630X45°	741	600	410	820

Key Features

Dual Sealing Sockets: Both ends of the HDPE electro fusion 45° elbow use a double seal design in the socket, so even if one seal is scratched during assembly the joint stays leak tight under pressure.
Low Flow Resistance: The 45° bend angle produces less head loss than a 90° fitting, so the HDPE electro fusion elbow keeps water velocity high and pumping cost down at the turn.
One Piece Moulded Body: The 45° elbow is injection moulded as a single body, so there is no welded seam at the bend and the offset carries full pipe pressure without a weak point.
True 45° Geometry: The bend angle is held to 45° during moulding, so the HDPE electro fusion elbow aligns the offset pipe run without springback or stress that would load the fused joints.
No Metal Insert: The electro fusion 45° elbow keeps polyethylene in the water path, so there is no corrosion or galvanic risk at the offset where flow direction changes.
Maintenance Free: The fused joints are permanent, so the HDPE electro fusion 45° elbow needs no bolts or gaskets to inspect at the bend, lowering lifetime operating cost.

Production

Raw Material

The HDPE electro fusion 45° elbow is moulded from virgin PE100 compound rated MRS 10.0 per ISO 4427-3, with the resin lot recorded for full traceability from pellet to fitting.

Molding Process

Each electro fusion 45° elbow is injection moulded in one shot with both resistance coils pre positioned in the 45° socket walls; the bend radius and socket bores are held to ISO 4427-3 dimensions, and the coil terminals are moulded flush so the control unit plug seats without gap.

Quality Control

Every batch of HDPE electro fusion 45° elbows is gauged for socket diameter, ovality, coil resistance and bend angle, then sample welded and pressure tested to 1.5 times rated pressure before release; each fitting carries a batch code traceable to the raw resin lot.

Applications

Obstacle offset runs in buried potable water mains use the HDPE electro fusion 45° elbow to shift the pipe run around existing utilities or foundations without a sharp right angle that would raise head loss.
Sloped drainage connections install the electro fusion 45° elbow where a gravity line meets the horizontal main, because the gentle bend keeps flow smooth and avoids sediment settling at the turn.
Angled branch takeoffs use the HDPE electro fusion 45° elbow in place of a wye, because the double sealed socket gives a leak tight junction without a mechanical saddle or bolted fitting.
Water treatment plant pipe galleries route the electro fusion 45° elbow at every gentle change of direction, where the low resistance bend and double sealed sockets keep the system efficient under pressure cycling.
