PVC Drainage & Sewage Pipe

PVC Drainage & Sewage Pipe DN 50 – 400 mm, UPVC, to BS EN 1401, GB/T 5836.1, for drainage and sewage systems.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: PVC Pipes

PVC Pipes

Product Overview

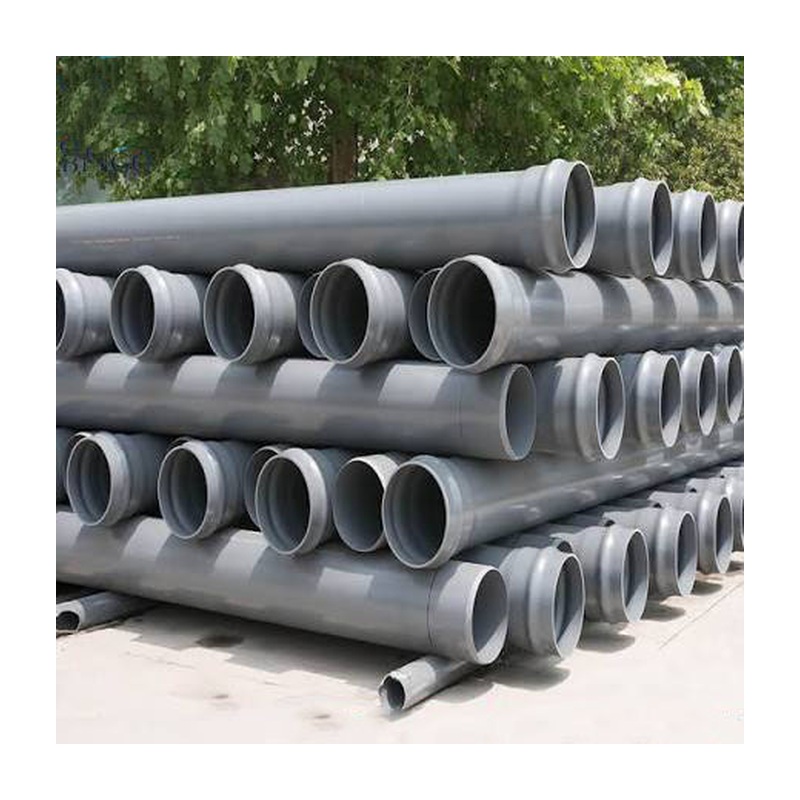

DN 50–400mm, SN4/SN8, white/gray color. Non-pressure UPVC drainage and sewage pipe for underground gravity systems. Conforms to BS EN 1401 and GB/T 5836.1.

Built for gravity flow rather than pressure, this PVC drainage pipe series combines crush-resistant ring stiffness with a self-cleaning smooth bore, so buried building and municipal drains keep their gradient and full flow capacity without the weight of cast iron or concrete.

Quick Information

Diameter Range: DN 50 – 400 mm
Ring Stiffness: SN4, SN8
Material: Virgin UPVC
Color Options: White, Gray
Applicable Standards: BS EN 1401, GB/T 5836.1
Joint Type: Solvent Cement Socket (Gasket on request)
Length: 4 m / 6 m
Stock Availability: In stock

Specification Table

DN (mm)	OD (mm)	Wall Thickness SN4 (mm)	Wall Thickness SN8 (mm)
50	50	2.0	3.0
75	75	2.3	3.0
110	110	3.2	3.2
160	160	4.0	4.7
200	200	4.9	5.9
250	250	6.2	7.3
315	315	7.7	9.2
400	400	9.8	11.7

Key Features

High Ring Stiffness: SN4/SN8 crush resistance on every PVC drainage pipe safely supports backfill loads in underground installations.
Smooth Inner Wall: The PVC sewage pipe bore has extremely low friction and self-cleaning properties that prevent blockages and maintain full flow capacity.
Corrosion & Chemical Resistant: Every PVC drainage pipe is immune to sewage gases, acids, alkalis, and aggressive groundwater.
Lightweight & Easy to Install: This PVC sewage pipe is much lighter than concrete or clay pipe, reducing handling and labor costs.

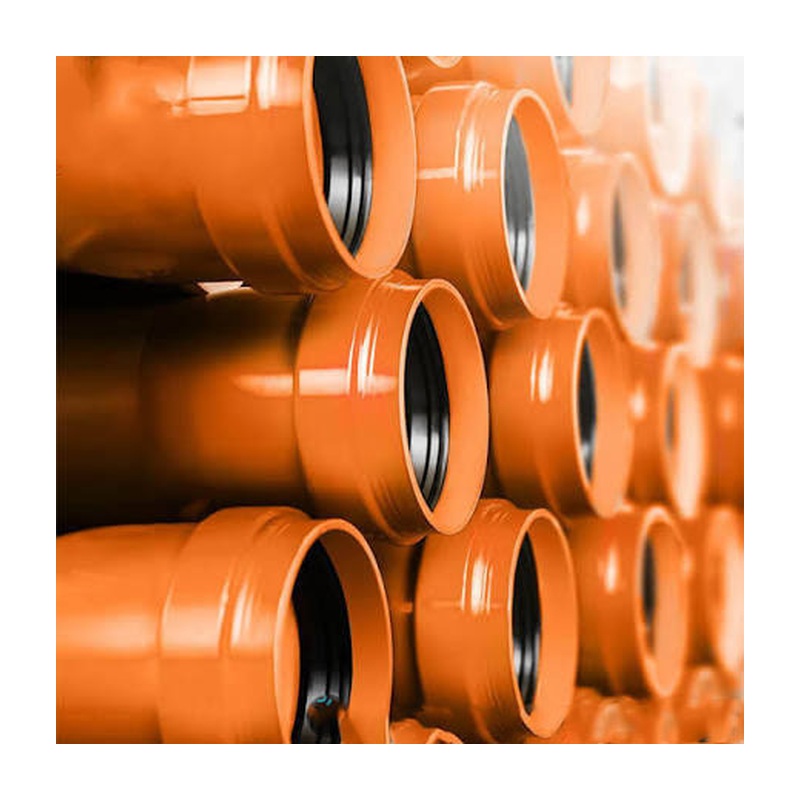

Leak-Proof Joints: Solvent cement sockets on every PVC drainage pipe create permanent watertight connections (rubber gasket sockets available).
Two Stiffness Classes: SN4 for normal cover depths and SN8 for heavy traffic and deep burial on this PVC drainage pipe, selectable size by size from the same DN50-400 range.

Production

Manufacturing Process

The PVC drainage pipe is produced on high-speed single-screw extrusion lines with vacuum calibration for precise wall thickness. Pipe stiffness is verified by ring stiffness testing per EN ISO 9969 before packing.

Quality Control & Testing

Lots of PVC sewage pipe are tested for ring stiffness (SN4/SN8) and ring flexibility per EN ISO 9969, falling-weight impact by the TIR method, longitudinal reversion after oven heating, and socket leak-tightness; white and gray pipes share the same dimensional and mechanical acceptance limits.

Raw Material

Virgin UPVC compound formulated for drainage service is used for every PVC drainage pipe; it resists hydrogen sulfide and sewer gases that attack metal, while the smooth non-porous bore prevents biological slime and scale adhesion over a 50+ year design life.

Applications

Underground gravity sewer and stormwater drainage networks - SN8 DN160-400 PVC drainage pipe mains under roads and housing developments, laid fast in long lightweight lengths with watertight sockets.
Building sanitary drainage and vent systems - white DN50-110 PVC sewage pipe soil, waste and stack pipes inside residential and commercial buildings where quiet, non-rusting drainage is required.
Road, highway and bridge drainage - SN8 PVC drainage pipe side drains and culvert connections carrying abrasive stormwater without the corrosion or breakage seen with metal alternatives.
Industrial effluent and wastewater collection - acid/alkali-resistant gray PVC sewage pipe laterals from plant floors to treatment sumps, chemically compatible with aggressive discharges.
