Product Overview

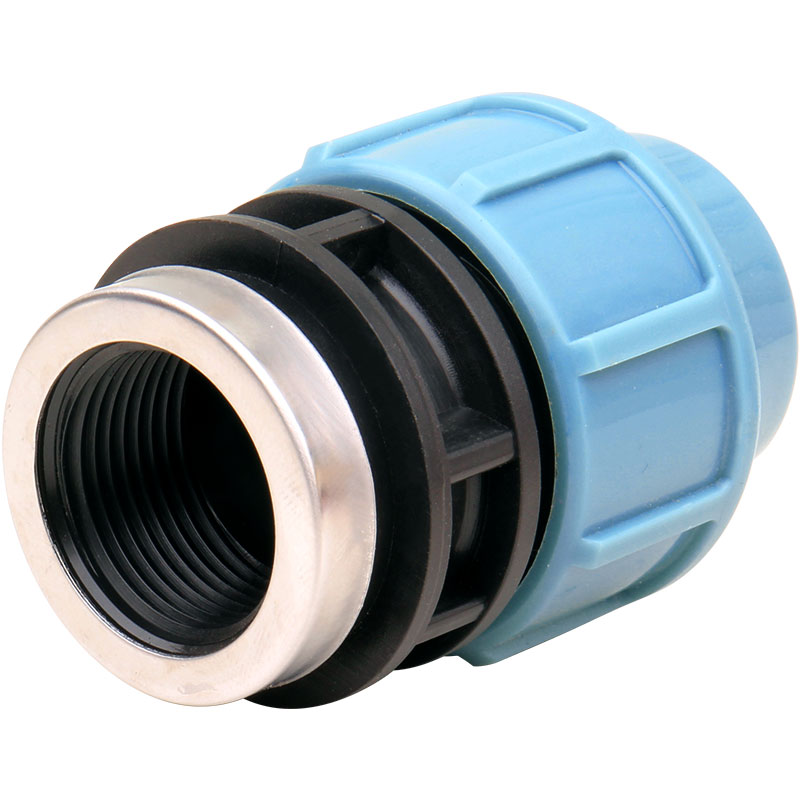

PP compression female coupling for threaded connections. DN 20-63mm.
Quick Information
- Type: Female Thread Coupling
- Material: PP
- Size: DN 20 - 63 mm
- Thread: 1/2" - 2" BSP
- Pressure Rating: 16 Bar
- Stock: In stock
Specification Table
| Size | Weight (g) | Qty/Carton |
|---|---|---|
| 20 x 1/2" | 44 | 420 |
| 20 x 3/4" | 45 | 400 |
| 20 x 1" | 51 | 360 |
| 25 x 1/2" | 66 | 240 |
| 25 x 3/4" | 67 | 240 |
| 25 x 1" | 71 | 220 |
| 32 x 1/2" | 93 | 160 |
| 32 x 3/4" | 94 | 160 |
| 32 x 1" | 98 | 160 |
| 32 x 1-1/4" | 113 | 140 |
| 40 x 1" | 170 | 96 |
| 40 x 1-1/4" | 175 | 90 |
| 40 x 1-1/2" | 187 | 90 |
| 50 x 1-1/4" | 275 | 60 |
| 50 x 1-1/2" | 277 | 60 |
| 50 x 2" | 300 | 52 |
| 63 x 1-1/4" | 477 | 30 |
| 63 x 1-1/2" | 480 | 28 |
| 63 x 2" | 508 | 28 |
| 75 x 2" | 592 | 24 |
| 75 x 2-1/2" | 601 | 24 |
| 75 x 3" | 657 | 24 |
| 90 x 2-1/2" | 810 | 12 |
| 90 x 3" | 852 | 12 |
| 90 x 4" | 915 | - |
| 110 x 3" | 1423 | 8 |
| 110 x 4" | 1424 | 8 |
