HDPE Custom Large Diameter Pipe

HDPE Custom Large Diameter Pipe OD 250 mm – 2000 mm, PN4 – PN16 (SDR33 – SDR11), to ISO 4427, for customised HDPE pipe systems.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: Customized Fittings

Customized Fittings

Product Overview

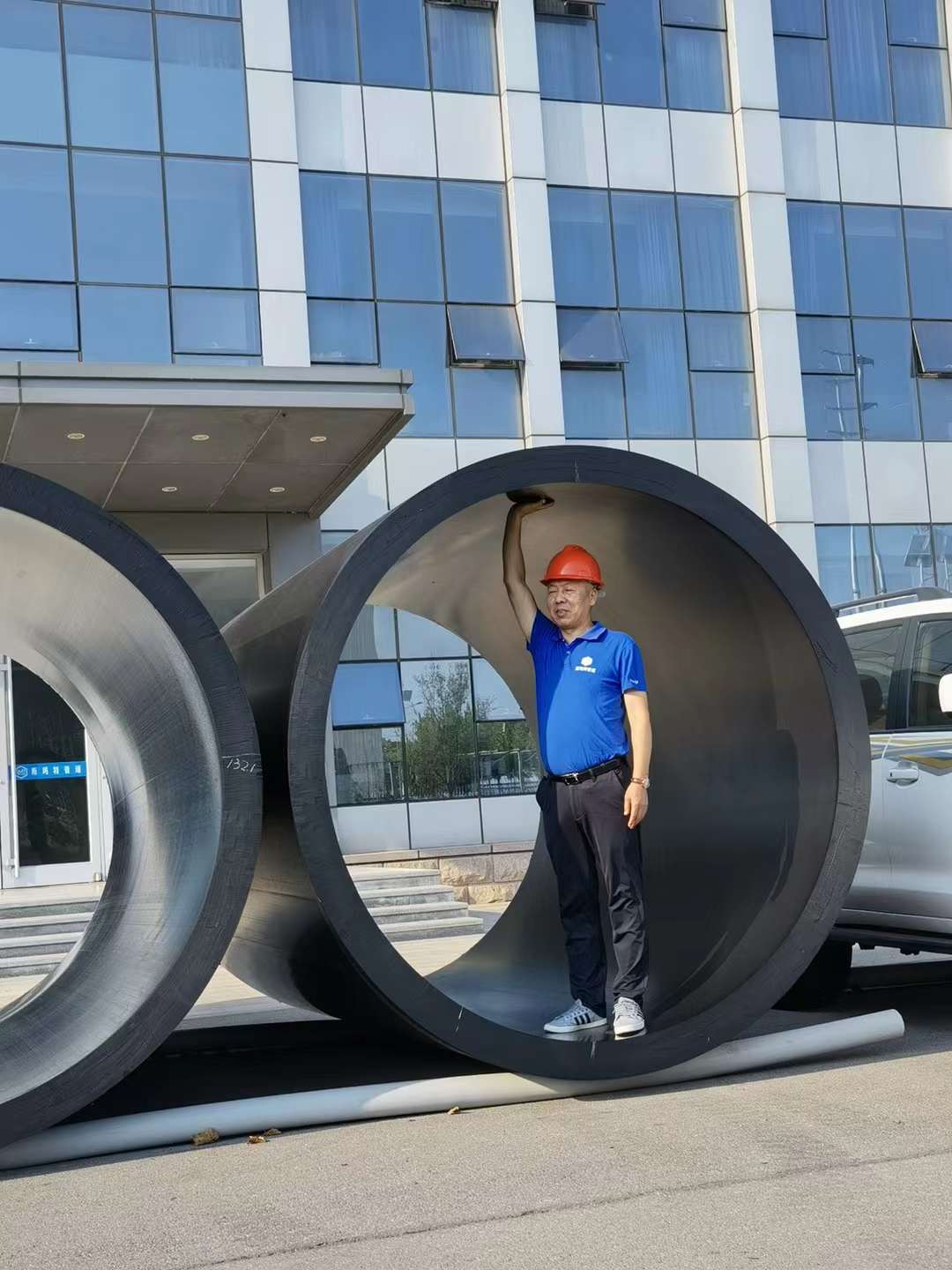

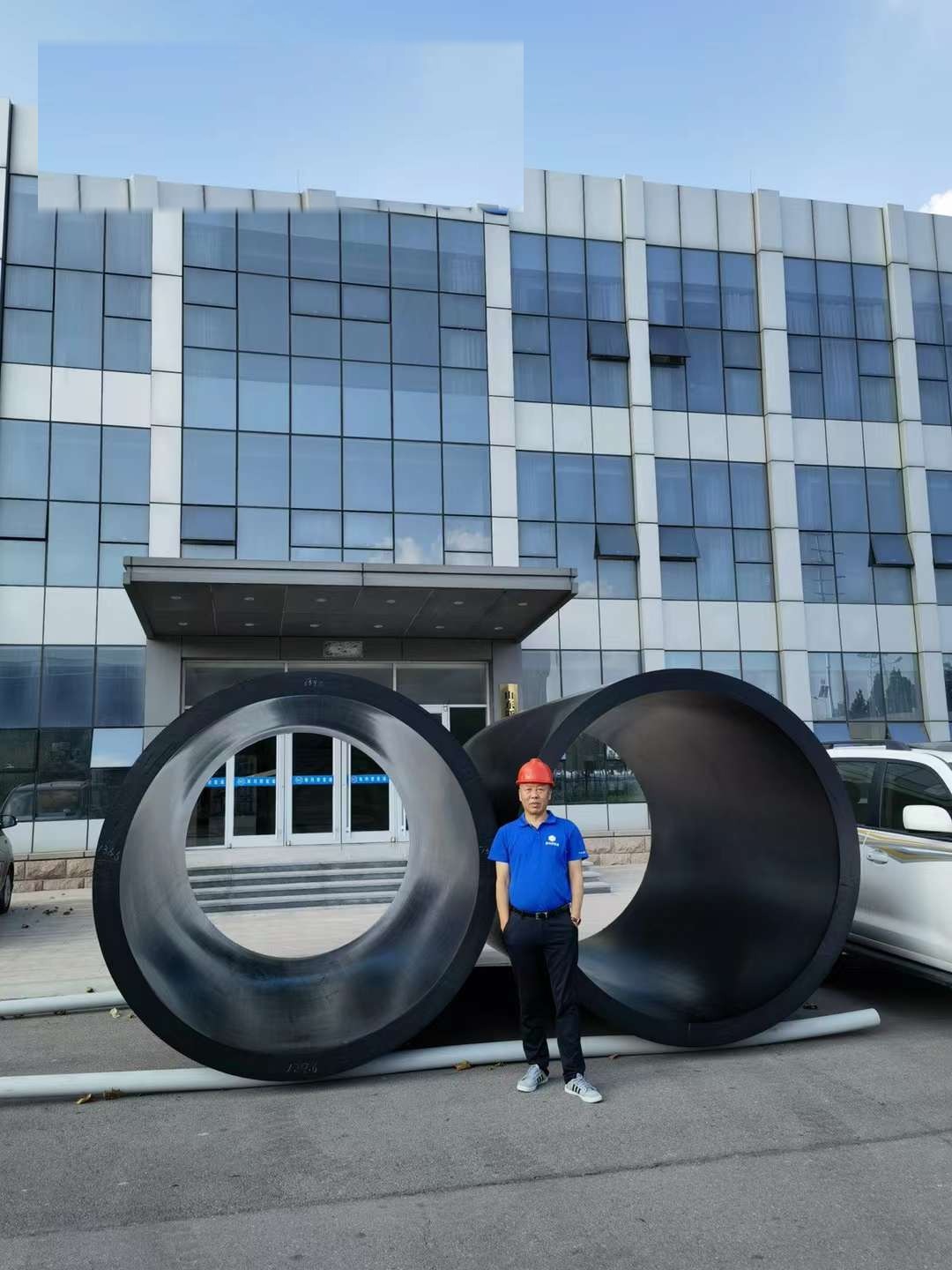

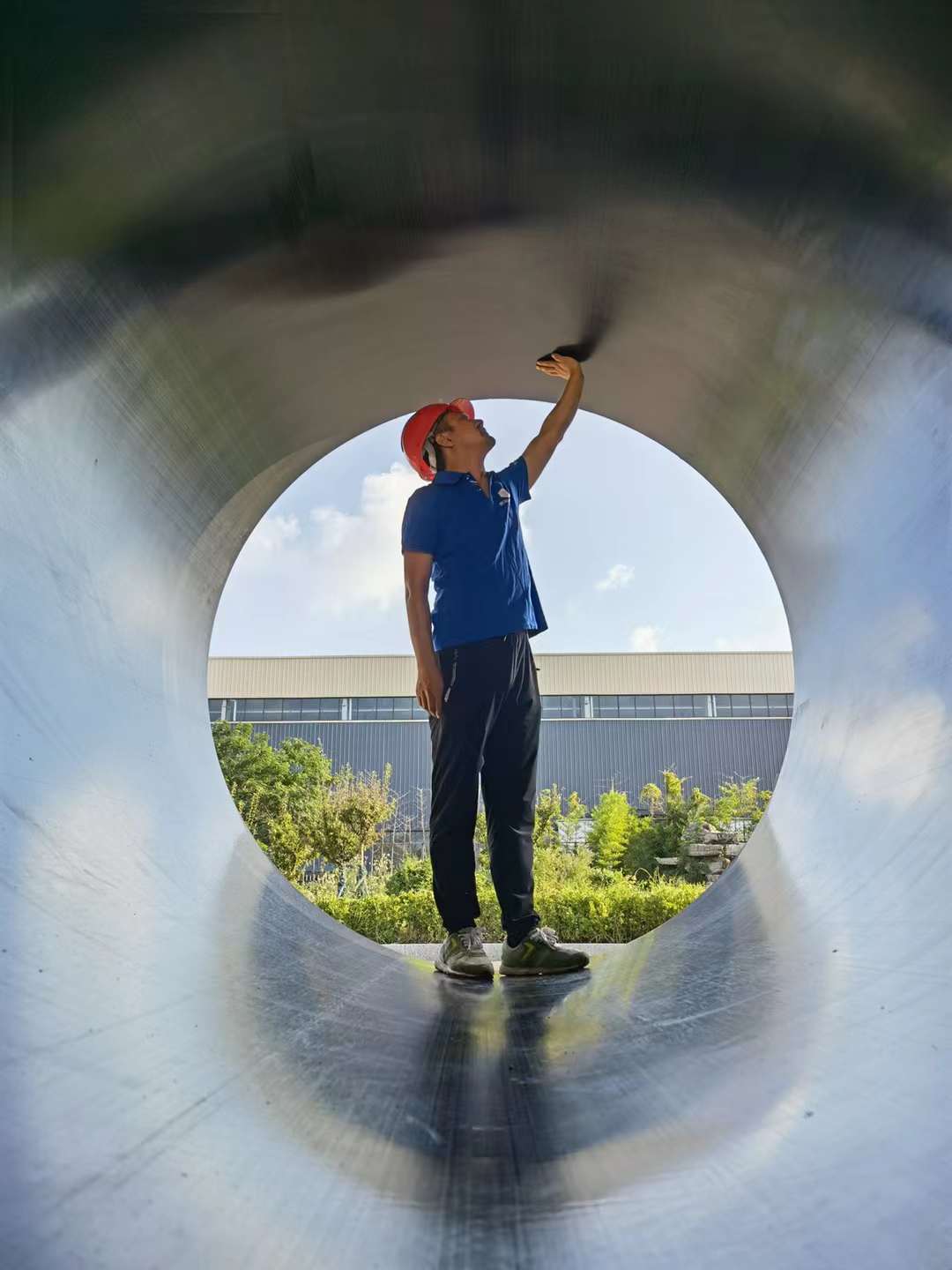

The HDPE Custom Large Diameter Pipe is a solid-wall PE100 high-density polyethylene pipe produced to order for large-diameter water, wastewater, dredging and industrial fluid transport. Where standard catalogue sizes stop, the HDPE Custom Large Diameter Pipe continues: custom diameters, wall thicknesses and overall lengths are extruded and machined to your project specification, with butt-fusion or flanged ends prepared for direct installation.

Every HDPE Custom Large Diameter Pipe from Bingo Pipeline is extruded from virgin PE100 compound with carbon black for UV resistance, giving the pipe the slow crack growth resistance and long-term hydrostatic strength required for 50-year service life in municipal and mining applications. The pipe is supplied in straight lengths or coiled for smaller diameters, with custom-drilled flange stubs, stub ends or spigot ends prepared at the factory. Common diameters range from OD 250 mm up to OD 2000 mm with SDR ratings from SDR11 to SDR33 covering pressure classes from PN4 up to PN16.

Quick Information

Product Name: HDPE Custom Large Diameter Pipe
Material: PE100 HDPE, virgin compound with carbon black
Manufacturing: Extrusion + CNC machining of fusion ends
Diameter Range: OD 250 mm - 2000 mm
Pressure Rating: PN4 - PN16 (SDR33 - SDR11)
Standard: ISO 4427
Connection: Butt fusion / electrofusion / flanged stub end
Service Life: 50 years at rated pressure

Specification Table

OD (mm)	SDR	PN	Wall (mm)	Standard Length (m)
250	11	16	22.7	9
315	11	16	28.6	9
400	11	16	36.4	9
500	11	16	45.5	9
630	11	16	57.3	9
800	13.6	12.5	58.8	6
1000	13.6	12.5	73.5	6
1200	17	10	70.6	6
1600	17	10	94.1	6
2000	21	8	95.2	6

Note: The table lists representative sizes of the HDPE Custom Large Diameter Pipe. Custom diameters, SDR ratings and lengths are produced to order in line with ISO 4427 and project specifications.

Key Features

PE100 virgin compound: Extruded from new PE100 HDPE with carbon black, giving 50-year service life at rated pressure and full UV resistance for above-ground or buried installations.
Custom diameters up to 2000 mm: Where catalogue pipes stop, the HDPE Custom Large Diameter Pipe continues - diameters and wall thicknesses are produced to your project specification.
Multiple pressure classes: SDR11 / SDR13.6 / SDR17 / SDR21 / SDR33 covering PN4 to PN16 for low-pressure irrigation up to high-pressure water mains.
Factory-prepared fusion ends: Butt fusion faces, electrofusion zones or flanged stub ends machined at the factory for direct installation without site preparation.
Corrosion and chemical resistance: PE100 HDPE body handles seawater, sewage, mining slurry and a wide range of chemicals without internal lining or external coating.
Lightweight installation: HDPE weighs approximately one-eighth of steel pipe of the same diameter, reducing crane capacity and transport cost for large-diameter lines.

Production

Raw Material

Every HDPE Custom Large Diameter Pipe starts from virgin PE100 HDPE compound with carbon black masterbatch. The compound is tested for density, melt flow rate, tensile strength and slow crack growth resistance to ISO 4427 requirements before extrusion.

Molding Process

The pipe is extruded through a calibrated die to the specified outside diameter and wall thickness, then passed through vacuum sizing and cooling baths. For custom diameters and thick walls, CNC machining of the fusion faces and stub end seats is performed after extrusion. Each HDPE Custom Large Diameter Pipe is inspected for OD, wall thickness, out-of-roundness and fusion face geometry before dispatch.

Quality Control

Quality control includes hydrostatic pressure testing of raw material samples, dimensional inspection of every pipe length against ISO 4427 tolerances, and recording of fusion face geometry for traceability. Batch numbers and production records are kept for the full service life of the HDPE Custom Large Diameter Pipe.

Applications

Municipal water supply: Large-diameter transmission mains from reservoir to treatment plant and from treatment plant to distribution network.
Sewerage and drainage: Gravity sewer mains and pressure rising mains where corrosion resistance and long lengths reduce joints.
Dredging pipelines: Floating and shore discharge lines for dredged slurry, with abrasion-resistant PE100 body and fusion-welded joints.
Mining slurry systems: Tailings transport pipelines where chemical and abrasion resistance are required over large diameters.
Industrial and power plants: Cooling water, process water and outfall pipelines for power stations, desalination plants and industrial complexes.
