HDPE Butt Fusion P-Trap for Siphonic Drainage

A P-trap manufactured from high-density polyethylene for siphonic drainage systems, designed to block sewer gases and prevent odor.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: HDPE Siphonic Fittings

HDPE Siphonic Fittings

Product Overview

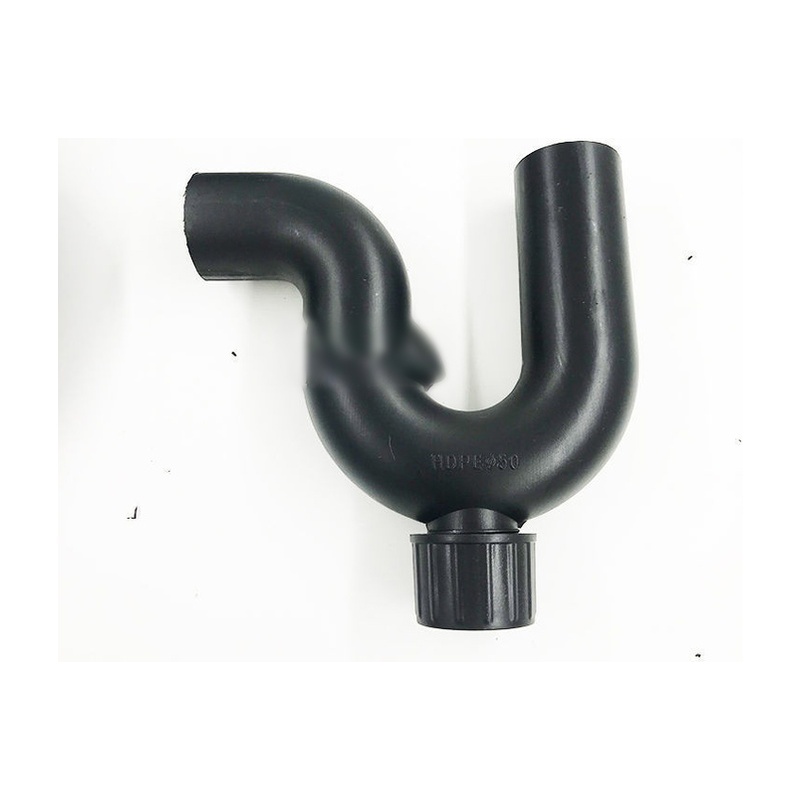

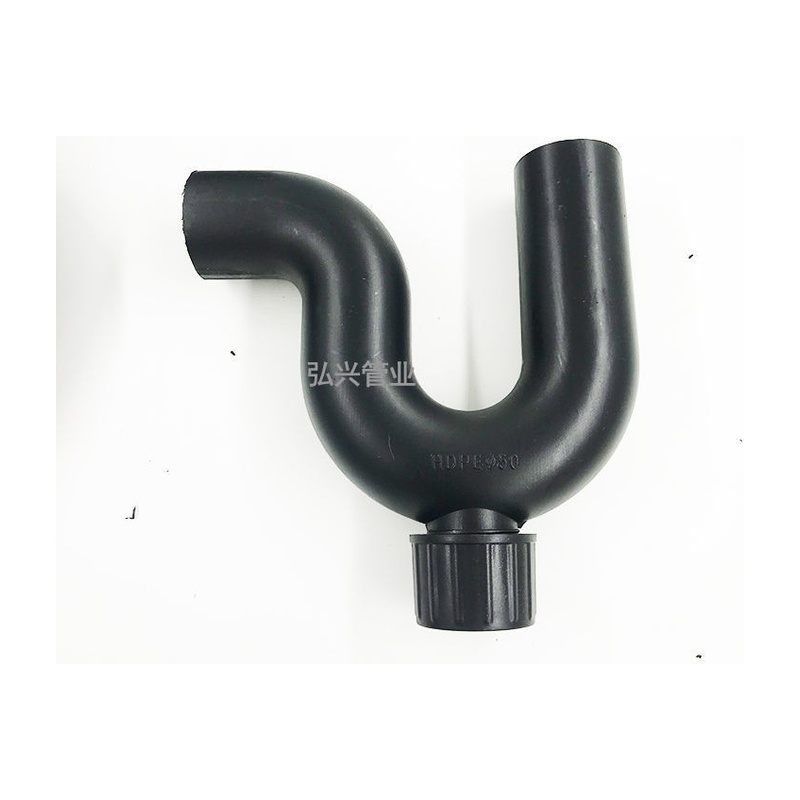

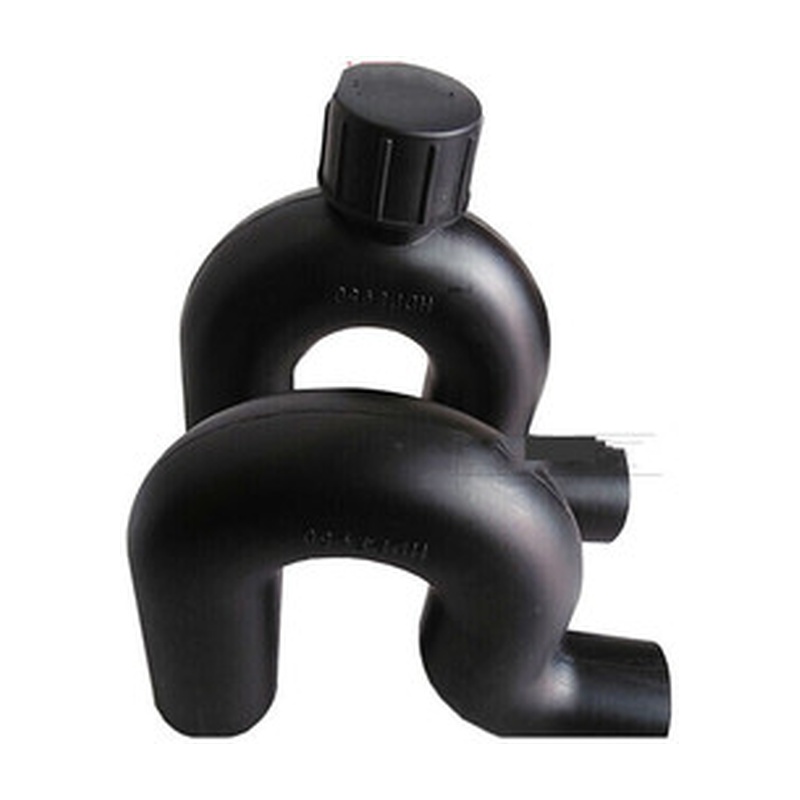

A P-trap manufactured from high-density polyethylene for siphonic drainage systems, designed to block sewer gases and prevent odor. This HDPE P-trap holds a 50 mm water seal in a compact U-body with a horizontal outlet, giving reliable odor protection for floor drains, collectors and stack bases. Built to ISO 8770 and EN 1519-1 for DN 50 to 315 mm drainage systems.

Quick Information

Diameter Range: DN 50 - 315 mm
Applicable Standards: ISO 8770, EN 1519-1
Stock: In stock

Specification Table

	Article	d1/d2	K	k1	k2	k3	k4	e	L
P Trap	P Trap	50.5	110.0					4.0
	P Trap	75.2	128.0	5.0				4.6
	P Trap	110	189.0	5.0				5.6

Key Features

Reliable Water Seal: The HDPE P-trap maintains a deep 50 mm water seal that blocks sewer gas and odors from entering occupied spaces.
Self-Cleaning Flow Path: This siphonic drainage trap has a smooth U-bore that scours itself at every discharge, resisting sediment buildup.
PE100 Material Strength: The HDPE P-trap is molded from PE100 for high impact resistance and decades of buried or exposed service.
Leak-Free Fusion Joints: The trap body of this siphonic drainage trap welds to HDPE pipe by butt or socket fusion, forming a homogeneous watertight unit.
Corrosion and Scale Free: The HDPE P-trap never rusts and tolerates acidic rainwater, grease and cleaning chemicals.
Full Size Range: This siphonic drainage trap covers DN 50 to 315 mm for floor drains, roof outlets and stack bases.

Production

Raw Material

Every HDPE P-trap is molded from certified virgin PE100 resin with carbon black UV stabilizer, batch-tested for melt flow rate and density.

Molding Process

Each siphonic drainage trap is injection molded with precision cores that form the seal weir and U-body in one cycle, holding dimensional tolerance within 0.1 mm.

Quality Control

Batches of HDPE P-traps are sampled for water seal depth verification, hydrostatic pressure testing and fusion joint integrity per ISO 8770 and EN 1519-1.

Applications

Commercial and residential floor drains use the HDPE P-trap for dependable odor control.
Siphonic roof drainage systems rely on this siphonic drainage trap at collector ends and discharge points.
Industrial facilities install the HDPE P-trap on process drains handling corrosive washdown water.
Parking structures choose this siphonic drainage trap for maintenance-free gas sealing.
