PVC Industrial Pipe (PN16)

PVC Industrial Pipe DN 15 – 400 mm, PN 16 (S6.3 Series), UPVC, to GB/T 4219.1-2008, for industrial process piping.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: PVC Pipes

PVC Pipes

Product Overview

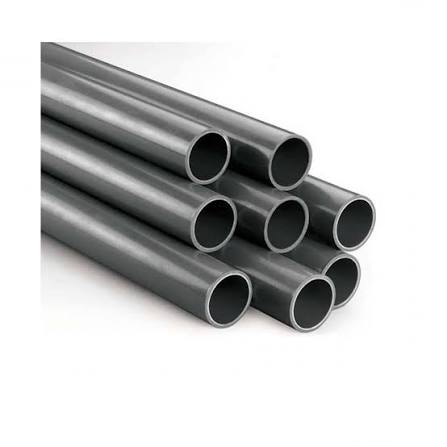

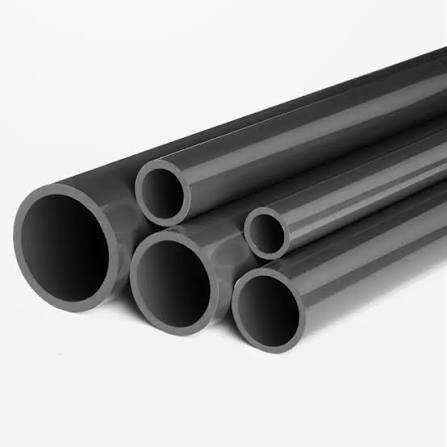

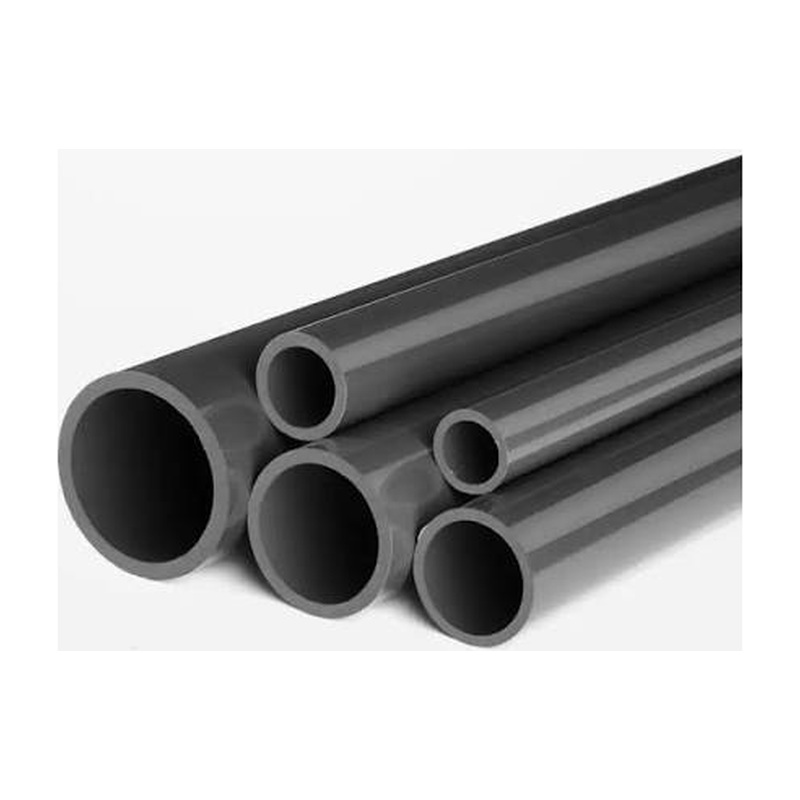

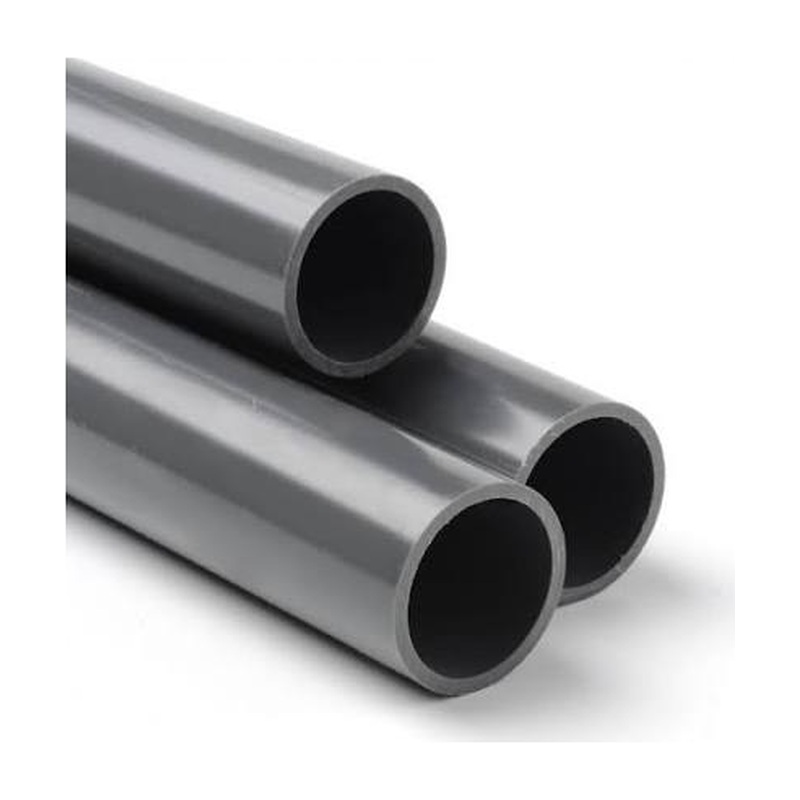

DN 15–400mm, PN 16, blue/gray color. Heavy-wall industrial-grade UPVC pipe for chemical, process, and industrial water systems. Conforms to GB/T 4219.1-2008.

The S6.3 heavy-wall series carries a full PN16 rating across DN15–400 in blue or gray, giving industrial buyers one dimensionally consistent pipe family for process water, chemical dosing and corrosive utility lines where thin-wall plumbing pipe cannot hold the pressure.

Quick Information

Diameter Range: DN 15 - 400 mm
Pressure Rating: PN 16 (S6.3 Series)
Material: Virgin UPVC (Industrial Grade)
Color Options: Grey, Blue (Custom colors on request)
Applicable Standards: GB/T 4219.1-2008
Length: 4 m / 6 m
Stock Availability: In stock

Specification Table

GB/T 4219.1-2008

— S6.3 Series (PN16)

DN (mm)	De (mm)	Wall Thickness (mm)	Working Pressure
15	20	2.3	PN16
20	25	2.8	PN16
25	32	3.6	PN16
32	40	3.0	PN16
40	50	3.7	PN16
50	63	4.7	PN16
65	75	5.6	PN16
80	90	6.7	PN16
100	110	8.1	PN16
125	140	10.3	PN16
150	160	11.8	PN16
200	225	16.6	PN16
250	280	20.6	PN16
300	315	23.2	PN16
350	355	26.1	PN16
400	400	29.4	PN16

Key Features

Full PN16 Rating: Thick S6.3 series walls safely handle continuous 16 bar working pressure for industrial duty.
Excellent Chemical Resistance: Withstands acids, alkalis, salts, and most industrial chemicals without corrosion or scaling.
Blue/Gray Color Coding: Clear visual identification of industrial lines reduces cross-connection risk on site.
Smooth Bore: Low friction inner surface minimizes pressure loss and resists scale build-up over decades of service.
Solvent Cement Jointing: Simple, fast, and leak-proof connections using standard UPVC adhesive.
Widest Industrial Size Span: DN15 instrument branches through DN400 process headers in one S6.3 series, so an entire plant can be piped with matching fittings and pressure class.

Production

Manufacturing Process

Manufactured on high-speed twin-screw extrusion lines with vacuum calibration and online laser diameter monitoring. Each batch is hydrostatically tested to guarantee the full PN 16 pressure rating.

Quality Control & Testing

Every lot is hydrostatically tested at 1.5× rated pressure per ISO 1167; heavy-wall dimensions are 100% checked against S6.3 tolerances, with additional Vicat softening, impact and chemical-resistance spot tests for industrial orders. Mill certificates and batch records are supplied on request.

Raw Material

Industrial-grade virgin UPVC compound selected for broad chemical compatibility and lead-free stabilization; its non-rusting, non-scaling structure is suited to aggressive plant environments and carries a 50-year design life at rated pressure.

Applications

Industrial process water and chemical dosing lines — PN16 headers and metering branches in water-treatment and manufacturing plants, color-coded blue/gray to separate process from utility services.
Electroplating, pickling and wastewater treatment piping — acid- and alkali-resistant runs through plating shops and neutralization units where steel would need repeated replacement.
Cooling water and compressed air systems — smooth-bore PN16 loops feeding chillers, cooling towers and low-pressure air distribution with low friction loss.
Food and beverage plant utility lines — lead-free, scale-free pipework for rinse water, CIP ancillary lines and service fluids around production halls.
