Product Overview

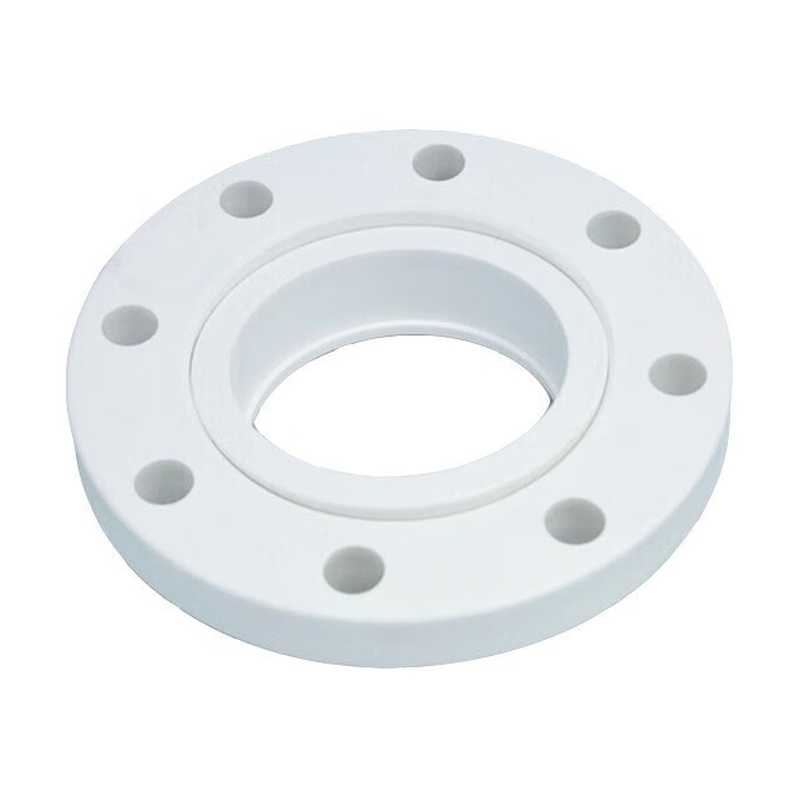

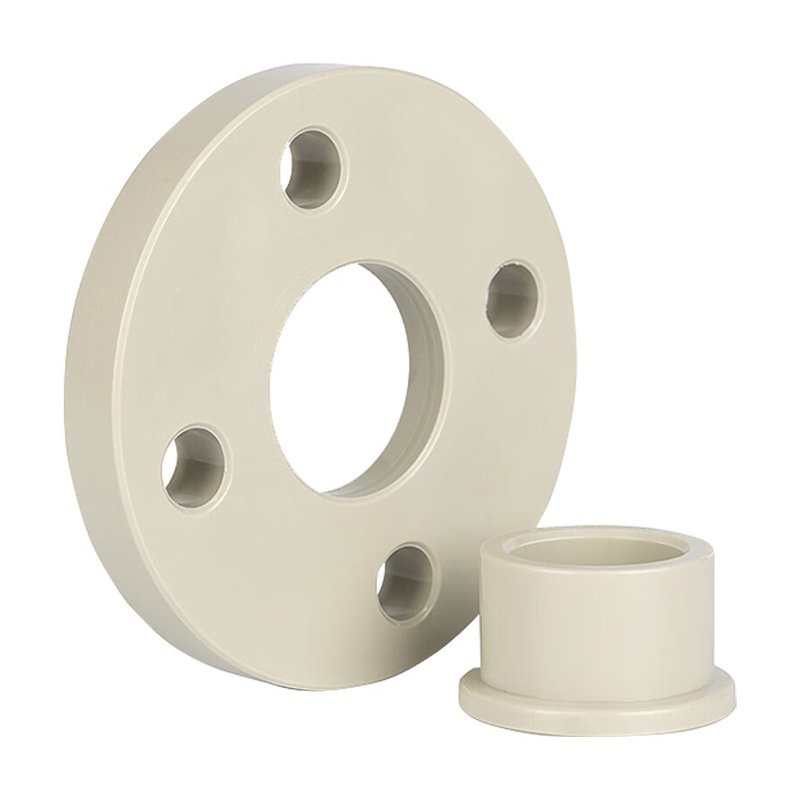

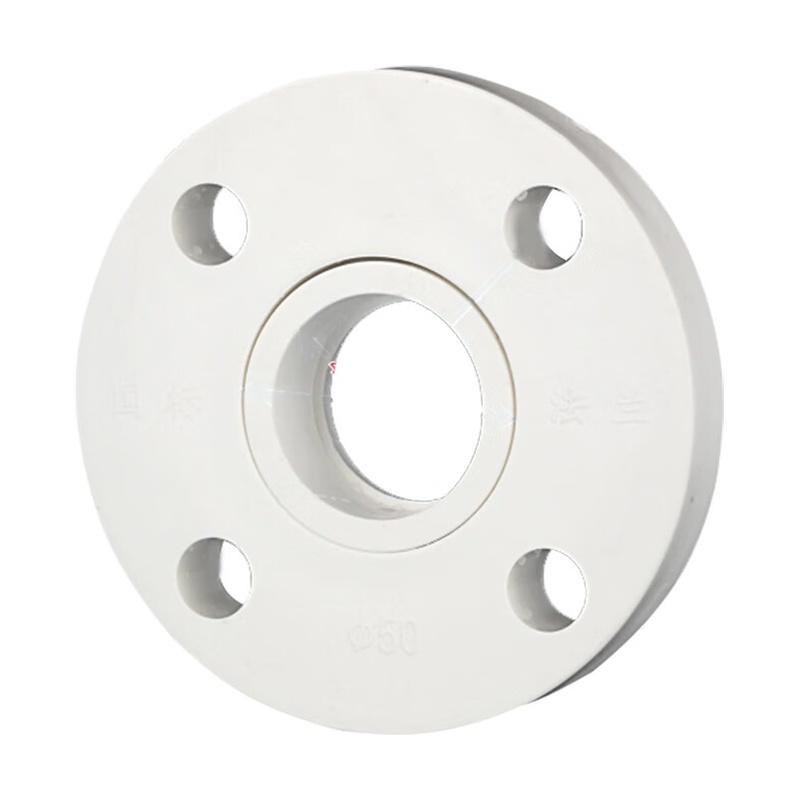

PPR stub end flange adapter connects heat fused PPR pipe systems to flanged equipment such as valves, pumps and vessels. The PPR flange has a PPR socket end for heat fusion to PPR pipe and a flange face with bolt holes for standard bolted connection.
Quick Information
- Material: Virgin PP-R body, Steel or PP backing ring
- Connection: Heat Fusion + Bolted Flange
- Pressure Rating: PN 10 / PN 16
- Size Range: DN 20 - DN 63 mm
- Standards: GB/T 18742
Specification Table
| DN (mm) | Pressure | Bolt Holes | Connection |
|---|---|---|---|
| DN 20 | PN 10 | 4 | Fusion + Bolted |
| DN 25 | PN 10 | 4 | Fusion + Bolted |
| DN 32 | PN 10 | 4 | Fusion + Bolted |
| DN 40 | PN 10 | 4 | Fusion + Bolted |
| DN 50 | PN 16 | 4 | Fusion + Bolted |
| DN 63 | PN 16 | 4 | Fusion + Bolted |
