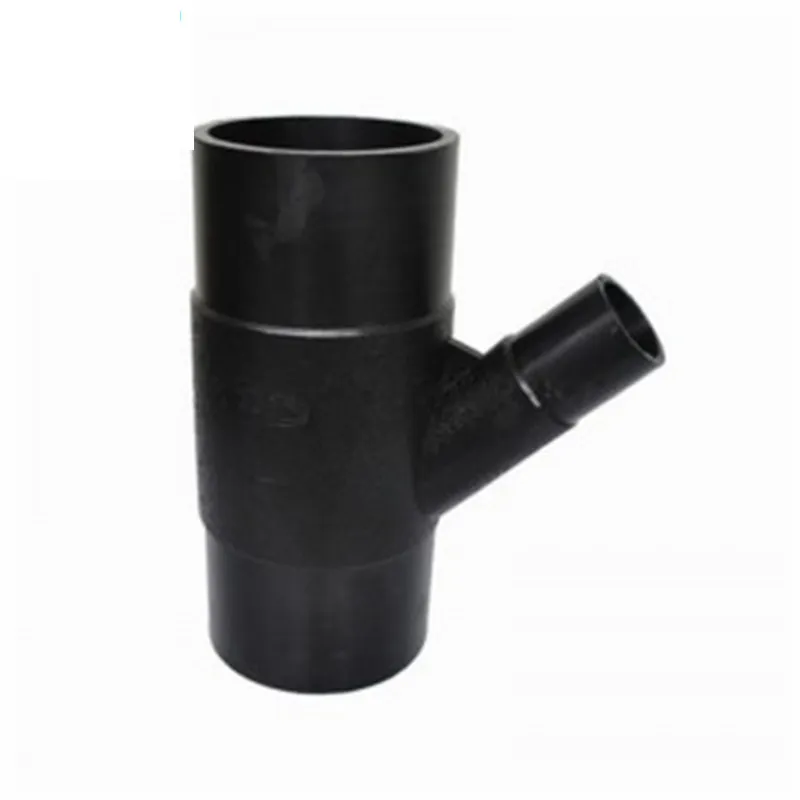

HDPE Butt Fusion Equal Y Tee for Water

HDPE equal Y tee manufactured from PE100 for angled three-way connections at 45°.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: HDPE Butt Fusion Fittings

HDPE Butt Fusion Fittings

Product Overview

HDPE equal Y tee manufactured from PE100 for angled three-way connections at 45°. The angled branch of this HDPE butt fusion Y tee diverts flow smoothly at 45 degrees instead of 90, sharply cutting head loss at take-off points. The HDPE butt fusion Y tee covers OD 63 - 160 mm in PN16 rating per ISO 4427.

Quick Information

Type: Equal Y Tee (45°)
Material: HDPE PE100
Size: OD 63 - 160 mm
Pressure: PN16
Standard: ISO 4427 / EN 12201
Stock: In stock

Specification Table

SPECIFICATION dn
YT63X45°
YT75X45°
YT90X45°
YT110X45°
YT125X45°
YT140X45°
YT160X45°
YT180X45°
YT200X45°
YT225X45°
YT250X45°
YT280X45°
YT315X45°

Key Features

45° Angled Branch: The HDPE butt fusion Y tee diverts flow at 45 degrees, producing far less turbulence and head loss than a 90° branch.
One-Piece Molded Body: The smooth internal Y junction of the HDPE butt fusion Y tee is molded in one cycle with no fabricated seams.
PE100 High-Strength Material: Every HDPE butt fusion Y tee is molded from virgin PE100 compound rated for a 50-year design life.
Leak-Free Fusion: All three ends of the HDPE butt fusion Y tee weld with standard butt fusion machines for a monolithic junction.
PN16 Rated: The HDPE butt fusion Y tee is rated PN16 across OD 63 - 160 mm for distribution and service lines.
Corrosion-Free Service: The HDPE butt fusion Y tee never rusts or scales, keeping the angled branch at full bore for decades.

Production

Raw Material

The HDPE butt fusion Y tee is molded from certified PE100 black compound with uniform carbon black dispersion, compliant with ISO 4427 and EN 12201.

Molding Process

Injection molding forms the HDPE butt fusion Y tee with angled cores that create the 45-degree junction in one cycle, holding branch angle within 0.5 degrees.

Quality Control

Batches of HDPE butt fusion Y tee fittings are gauged for end diameter, branch angle and wall thickness, then sampled for hydrostatic strength per ISO 1167.

Applications

Low-head-loss branch lines use the HDPE butt fusion Y tee where pressure must be preserved at take-offs.
Irrigation manifolds rely on the HDPE butt fusion Y tee for smooth angled feed into laterals.
Pump suction headers install the HDPE butt fusion Y tee to minimize entry turbulence.
Treatment plant piping chooses the HDPE butt fusion Y tee for gradual flow splitting into process lines.
