PVC-U/C Coupler for Industry

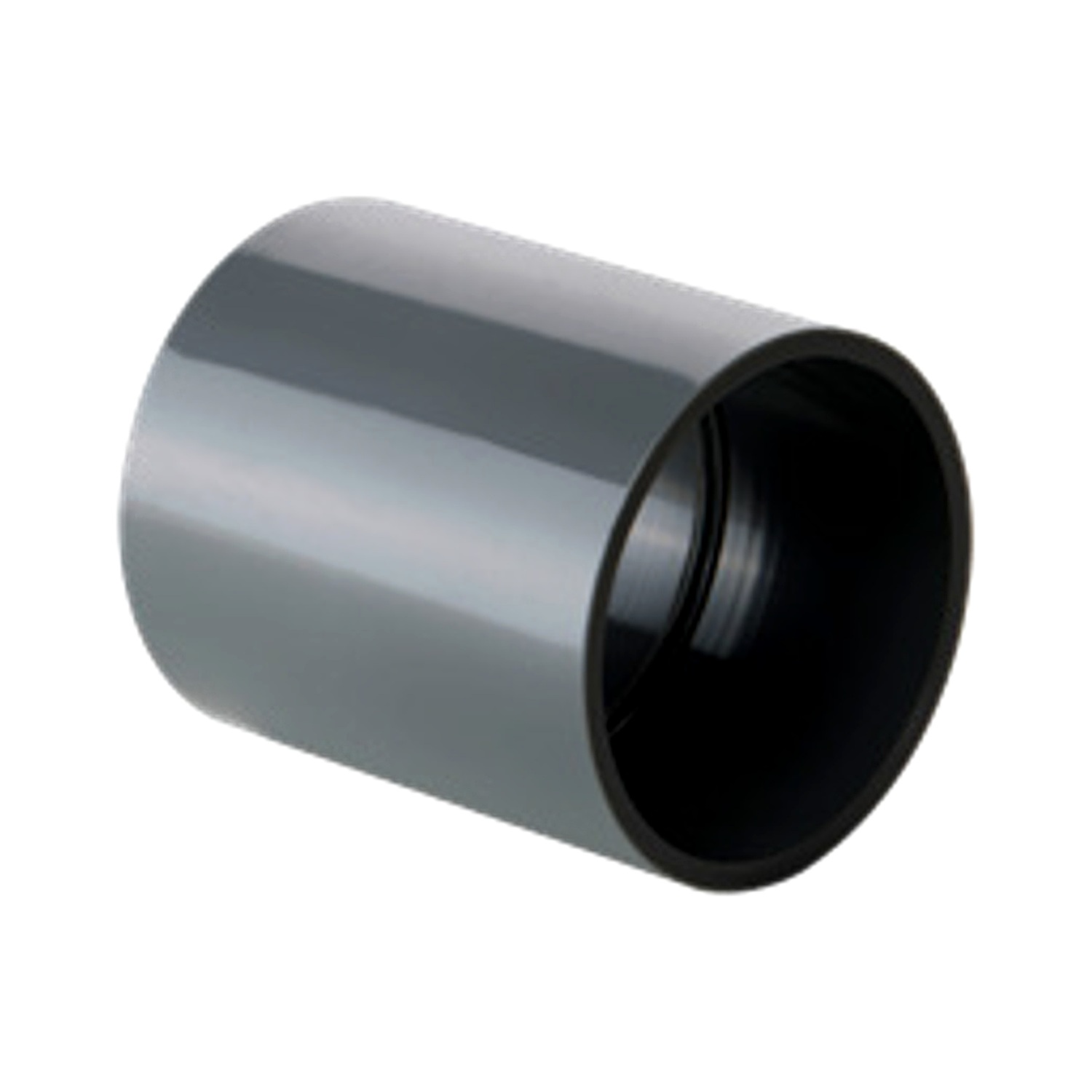

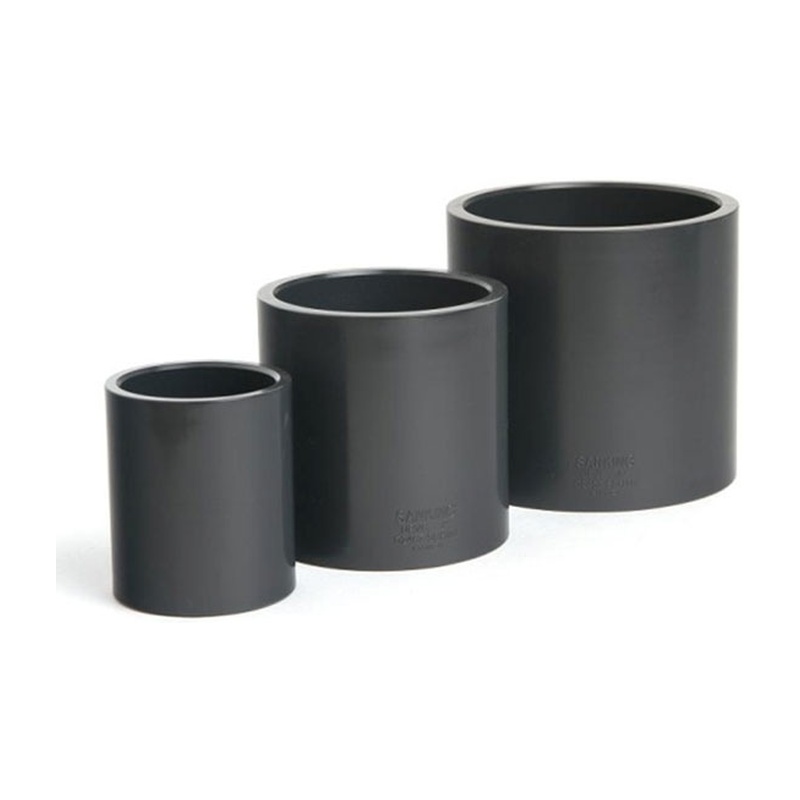

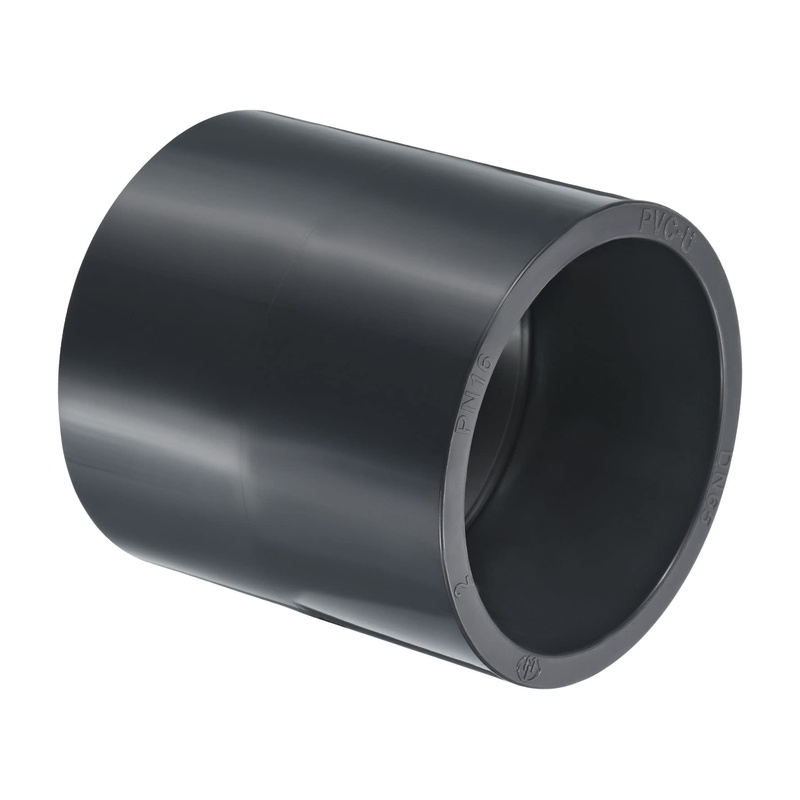

A solvent-cement socket straight coupler for in-line connection of two pipes of the same outer diameter.

Extra Valuable Service
✧High Quality: ISO certificated          ✧Global Transportation Service
✧Free samples& Free Design           ✧Full Satisfaction Guaranted: 5 Yeas

  sales@sdworldlink.com   +8617263526029(WhatsApp)
分类：
✦Specifications of High Density Polyethylene (HDPE) Pipes and Fittings for water ISO4427 Standard
ISO 4427-2: Plastics piping systems. Polyethylene pipes & fittings for water supply – Part 2: Pipes EN 12201-2: Plastics piping systems for water supply – Polyethylene – Part 2: Pipes EN 1555-2: Plastics piping systems for the supply of gaseous fuels – Polyethylene – Part 2: Pipes ISO 4437-2: Plastics piping systems for the supply of gaseous fuels – Polyethylene – Part 2: Pipes
ISO Size and Dimension Data
Henan Bingo Pipeline ISO HDPE Series
Pressure Ratings are calculated using a 1,25 design coefficient (C) for MRS at 20°C as listed in PPI TR-4 for PE 100 materials.  Pressure ratings are based on water applications. Temperature, Chemical, and Environmental use considerations may require use of additional design coefficients.
ISO 4427 Pipe Series S 3.2 S 4 S 5 S 6,3 S 8 S 10 S 12,5 S 16
ASTM F714 DR DR 7.4 DR 9 DR 11 DR 13.6 DR 17 DR 21 DR 26 DR 33
Nominal Pressure PE 100 PN = 25 bar PN = 20 bar PN = 16 bar PN = 12,5 bar PN = 10 bar PN = 8 bar PN = 6 bar PN = 5 bar
Nominal Size DN (mm) Equiv Size (in) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm)
20 0.79 3.0 13.6 2.3 15.12 2.0 15.76 1.5 16.88 1.2 17.51 1.0 17.98 0.6 18.72 0.61 18.72
25 0.98 3.5 17.60 3.0 18.64 2.3 20.12 2.0 20.76 1.5 21.88 1.2 22.48 0.8 23.39 0.76 23.39
32 1.26 4.4 22.70 3.6 24.37 3.0 25.64 2.4 26.91 2.0 27.76 1.5 28.77 1.0 29.94 0.97 29.94
40 1.57 5.5 28.30 4.5 30.46 3.7 32.16 3.0 33.64 2.4 34.91 2.0 35.76 1.2 37.43 1.21 37.43
50 1.97 6.9 35.40 5.6 38.13 4.6 40.25 3.7 42.16 3.0 43.64 2.4 44.91 2.0 45.76 1.52 46.79
63 2.48 8.6 44.80 7.1 47.95 5.8 50.70 4.7 53.04 3.8 54.94 3.0 56.64 2.5 57.70 1.91 58.95
75 2.95 10.3 53.20 8.4 57.19 6.8 60.58 5.6 63.13 4.5 65.46 3.6 67.37 2.9 68.85 2.27 70.18
90 3.54 12.3 63.90 10.1 68.59 8.2 72.62 6.7 75.80 5.4 78.55 4.3 80.88 3.5 82.58 2.73 84.22
110 4.33 15.1 78.00 12.3 83.92 10.0 88.80 8.1 92.83 6.6 96.01 5.3 98.76 4.2 101.10 3.33 102.93
125 4.92 17.1 88.70 14.0 95.32 11.4 100.83 9.2 105.50 7.4 109.31 6.0 112.28 4.8 114.82 3.79 116.97
140 5.51 19.2 99.30 15.7 106.72 12.7 113.08 10.3 118.16 8.3 122.40 6.7 125.80 5.4 128.55 4.24 131.01
160 6.30 21.9 113.60 17.9 122.05 14.6 129.05 11.8 134.98 9.5 139.86 7.7 143.68 6.2 146.86 4.85 149.72
180 7.09 24.6 127.80 20.1 137.39 16.4 145.23 13.3 151.80 10.7 157.32 8.6 161.77 6.9 165.37 5.45 168.44
200 7.87 27.4 141.90 22.4 152.51 18.2 161.42 14.7 168.84 11.9 174.77 9.6 179.65 7.7 183.68 6.06 187.15
225 8.86 30.8 159.70 25.2 171.58 20.5 181.54 16.6 189.81 13.4 196.59 10.8 202.10 8.6 206.77 6.82 210.55
250 9.84 34.2 177.50 27.9 190.85 22.7 201.88 18.4 210.99 14.8 218.62 11.9 224.77 9.6 229.65 7.58 233.94
280 11.02 38.3 198.80 31.3 213.64 25.4 226.15 20.6 236.33 16.6 244.81 13.4 251.59 10.7 257.32 8.48 262.01
315 12.40 43.1 223.60 35.2 240.38 28.6 254.37 23.2 265.82 18.7 275.36 15.0 283.20 12.1 289.35 9.70 294.44
355 13.98 48.5 252.20 39.7 270.84 32.2 286.74 26.1 299.67 21.1 310.27 16.9 319.17 13.6 326.17 10.90 331.89
400 15.75 54.7 284.00 44.7 305.24 36.3 323.04 29.4 337.67 23.7 349.76 19.1 359.51 15.3 367.56 12.30 373.92
450 17.72 61.5 319.60 50.3 343.36 40.9 363.29 33.1 379.83 26.7 393.40 21.5 404.42 17.2 413.54 13.80 420.74
500 19.69 67.6 356.70 55.8 381.70 45.4 403.75 36.8 421.98 29.7 437.04 23.9 449.33 19.1 459.51 15.30 467.56
560 22.05 75.7 399.50 62.5 427.50 50.8 452.30 41.2 472.66 33.2 489.62 26.7 503.40 21.4 514.63 17.20 523.54
630 24.80 85.1 449.60 70.3 480.96 57.2 508.74 46.3 531.84 37.4 550.71 30.0 566.40 24.1 578.91 19.30 589.08
710 27.95 95.9 506.70 79.3 541.88 64.5 573.26 52.2 599.34 42.1 620.75 33.9 638.13 27.2 652.34 21.80 663.78
800 31.50 108.1 583.8 89.3 610.68 72.6 646.09 58.8 675.34 47.4 699.51 38.1 719.23 30.6 735.13 24.50 748.06
900 35.43 126.62 646.76 100.0 700.00 81.7 726.80 66.2 759.66 53.3 787.00 42.9 809.05 34.4 827.07 27.60 841.49
1000 39.37 135.14 729.72 111.12 777.76 90.2 808.78 72.5 846.30 59.3 874.28 47.7 898.88 38.2 919.02 30.60 935.13
1200 47.24 162.16 875.68 133.34 933.32 109.1 981.82 88.2 1013.02 67.9 1056.05 57.2 1078.74 45.9 1102.69 36.70 1122.20
1400 55.12 189.19 1021.62 155.56 1088.88 127.3 1145.46 102.9 1181.85 82.4 1225.31 66.7 1258.60 53.5 1286.58 42.90 1309.05
This product flyer is intended for reference purposes.  It should not be used in place of the advice from a licensed Professional Engineer.  Nominal pressure (PN) is based on C = 1,25 and an operating temperature of 20°C.  Weight is calculated using DN and Minimum wall plus 6% for use in estimating fluid flow. Actual ID will vary. When designing components to fit the pipe ID, refer to pipe dimensions and tolerances in the applicable pipe manufacturing specification.  To obtain pressure in psi, multiply bar by 14.5 (1 bar ≈ 14.5 psi).  Additional information is available at www.bingopipes.com.

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: sales@geosyntheticsupplier.com or Mobile:(WhatsApp): +86 18063297452.

  • Municipal water supply network retrofits
  • Industrial cooling water circulation systems
  • Agricultural irrigation distribution networks
  • Building water supply and drainage systems
  • Directional changes in water treatment plants
  • Branch modifications in underground water networks
  • Corner layouts for fire sprinkler systems
  • Low-pressure piping in desalination projects

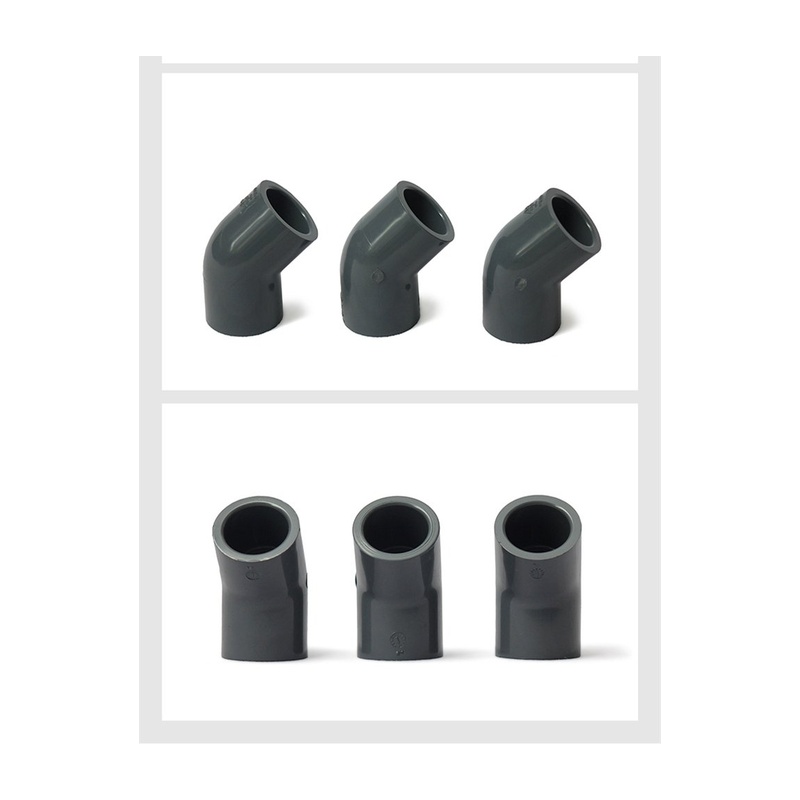

  • 45° angle design optimizes hydrodynamics
  • Socket fusion ensures leak-free permanent joints
  • Resistant to chemical corrosion and UV degradation
  • Smooth interior minimizes flow resistance
  • Diameter Range: DN15 – 400mm
  • Pressure Rating: PN10, PN16
  • Applicable Standards: ISO 1452-3, ASTM D2467
  • Stock Availability: In stock
  • Sample Policy: Free sample available
  • Lead Time: 5–30 days

Key Features

  • Industrial-grade material: PVC-U for low-temperature; PVC-C for high-temperature applications.
  • Straight connection: extends two pipes of the same diameter.
  • Solvent cement joint: dual-end socket cement for reliable sealing.
  • Chemical resistance: suitable for acid, alkali, and salt solution transport.

Manufacturing Process

High-precision injection molding with both sockets formed in one shot. Center stop ring limits pipe insertion depth.

Critical Process Parameters

  • Precise socket ID, ovality, and chamfer machining.
  • Coaxiality control of both sockets.
  • Stop ring positioning accuracy.

Raw Material Characteristics

  • Material: PVC-U or PVC-C
  • PVC-U suitable ≤60°C; PVC-C suitable ≤93°C
  • High mechanical strength and chemical resistance

Typical Applications

  • Straight connections in chemical piping systems.
  • Industrial water treatment pipe connections.
  • Ultra-pure water piping in electroplating and semiconductor industries.

Application Scenarios

  • Straight extension connections in industrial piping systems.
