Product Overview

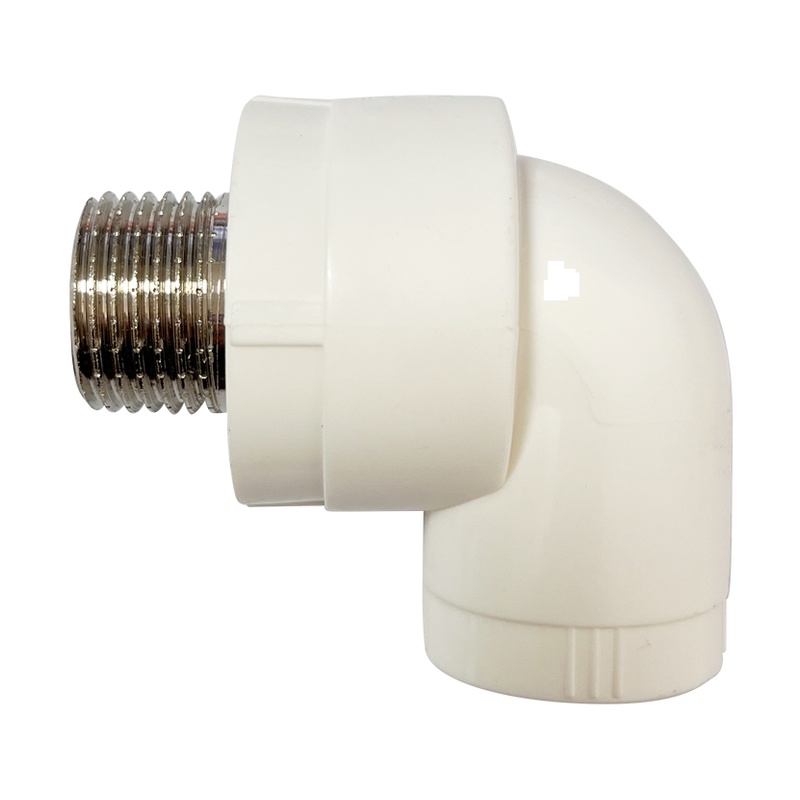

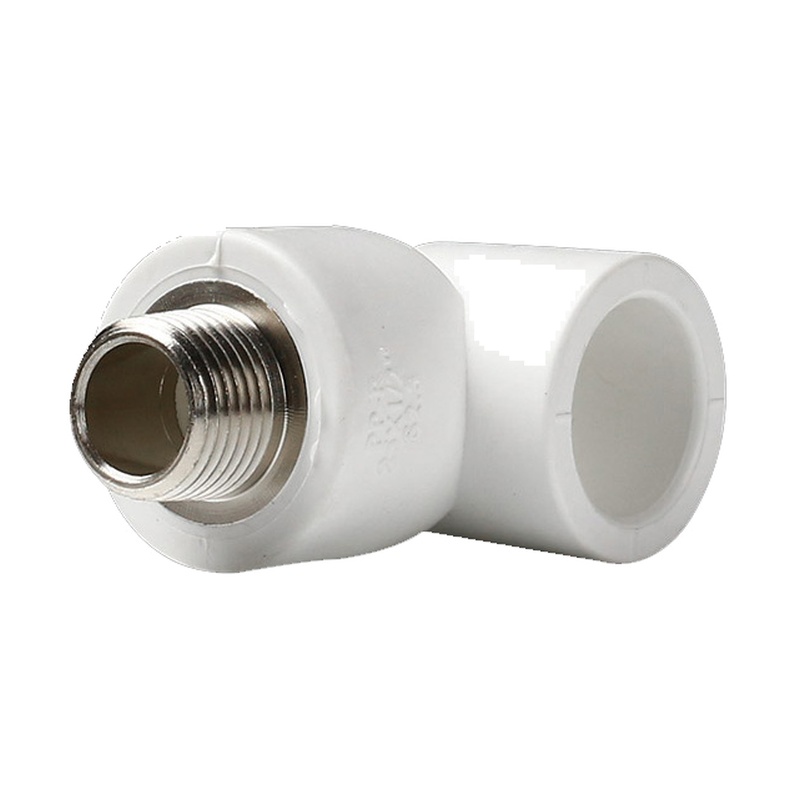

PPR male threaded elbow provides a 90 degree direction change between a heat fused PPR pipe and a male threaded connection, with a precision machined BSP male thread on a brass insert.
Quick Information
- Material: Virgin PP-R body, Brass insert
- Connection: 90° Elbow, Heat Fusion + Male BSP Thread
- Size Range: L20×1/2M to L50×1½M
- Standards: GB/T 18742
Specification Table
| Size Code | PPR DN (mm) | Thread | Connection |
|---|---|---|---|
| L20×1/2M | 20 | 1/2" M BSP | Heat Fusion + Threaded |
| L20×3/4M | 20 | 3/4" M BSP | Heat Fusion + Threaded |
| L25×1/2M | 25 | 1/2" M BSP | Heat Fusion + Threaded |
| L25×3/4M | 25 | 3/4" M BSP | Heat Fusion + Threaded |
| L32×1/2M | 32 | 1/2" M BSP | Heat Fusion + Threaded |
| L32×3/4M | 32 | 3/4" M BSP | Heat Fusion + Threaded |
| L32×1M | 32 | 1" M BSP | Heat Fusion + Threaded |
| L40×1¼M | 40 | 1 1/4" M BSP | Heat Fusion + Threaded |
| L50×1½M | 50 | 1 1/2" M BSP | Heat Fusion + Threaded |
