HDPE Pipe Skin Scraper

HDPE pipe skin scraper for removing the oxide layer before electrofusion or butt fusion, adjustable blade for 20-400 mm pipe outside diameter.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: Welding Machine

Welding Machine

Product Overview

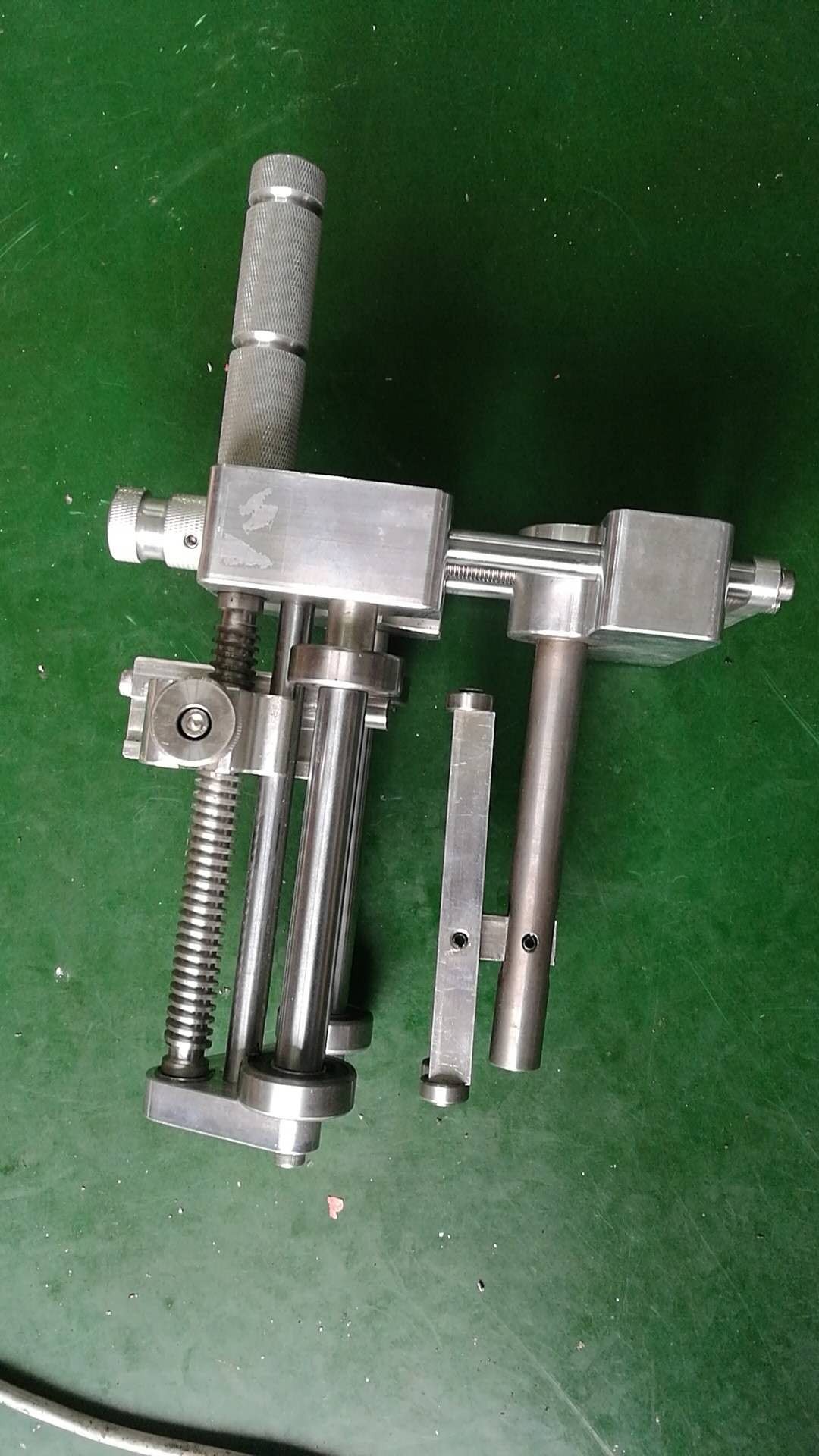

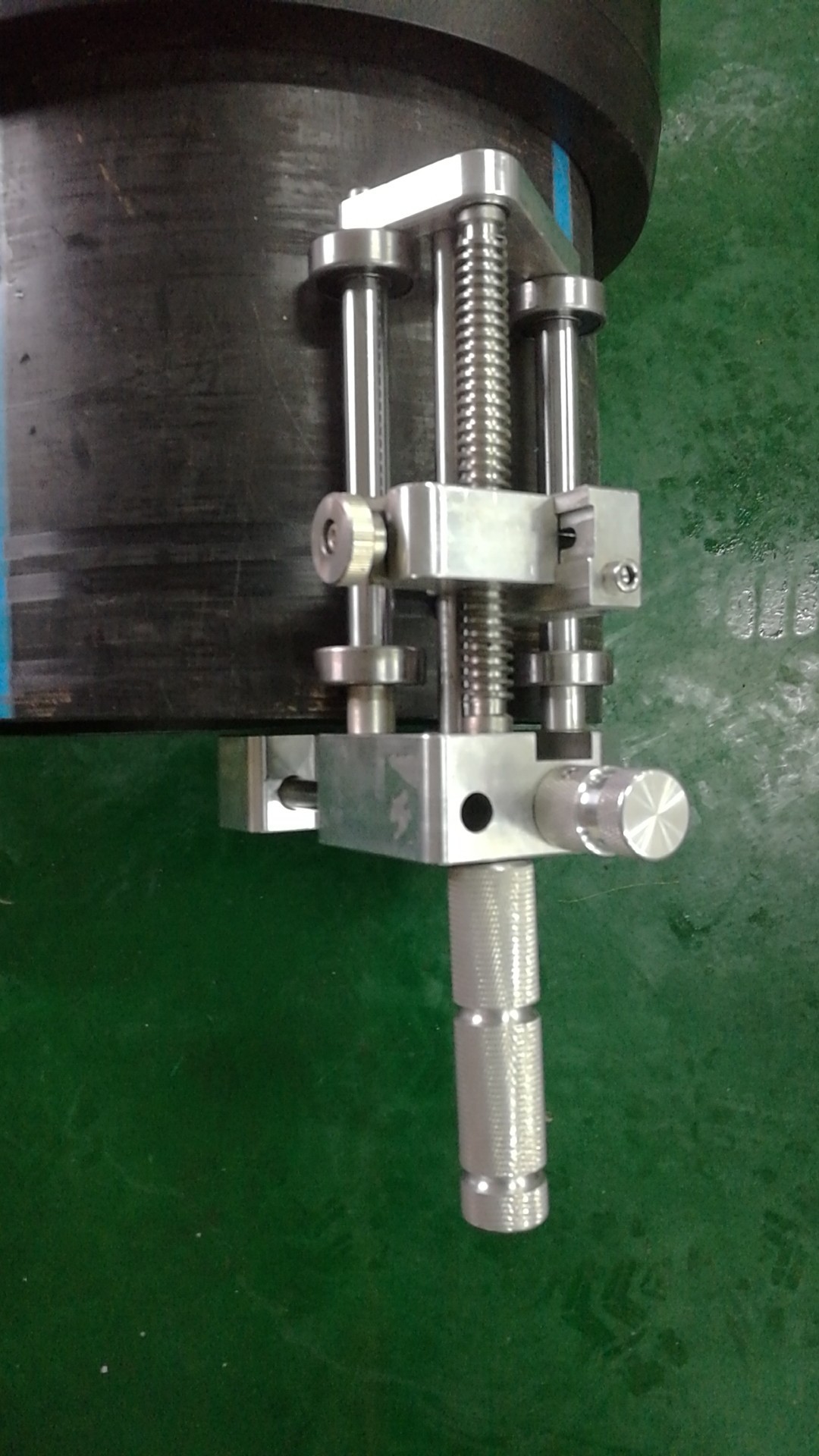

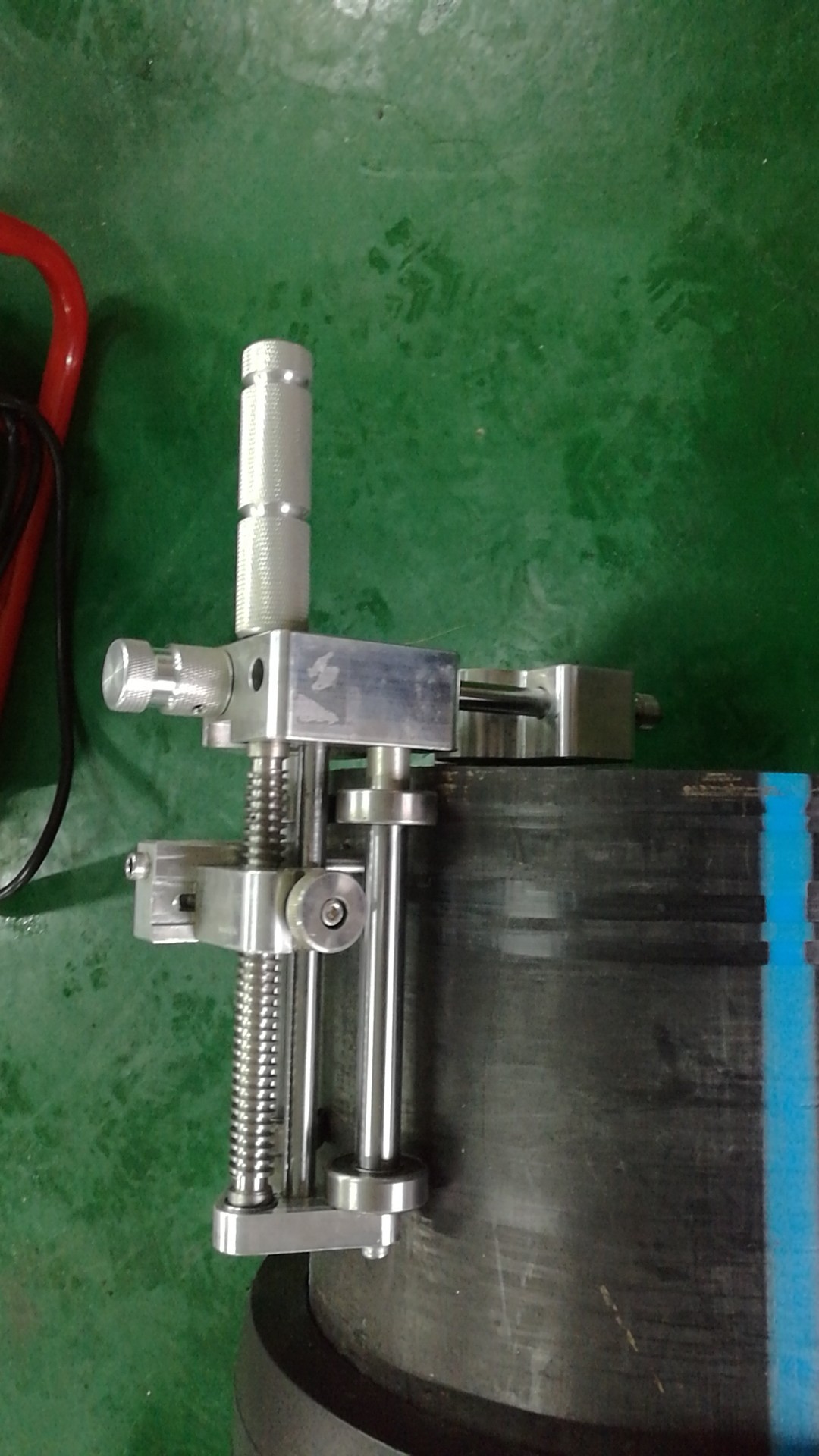

The HDPE Pipe Skin Scraper is a manual pipe surface preparation tool designed to remove the oxidation layer from HDPE and PE pipe surfaces before electrofusion or butt fusion welding. This HDPE Pipe Skin Scraper uses precision blades to scrape a thin layer of material from the pipe exterior, exposing clean, uncontaminated PE material for optimal fusion weld quality.

Essential for electrofusion welding preparation, the HDPE Pipe Skin Scraper ensures that the pipe surface is free from oxidation, dirt, and UV degradation that could compromise fusion joint integrity. Its adjustable blade depth and guide rollers accommodate pipe diameters from 20mm to 160mm.

Quick Information

Pipe Range: 20-160mm
Blade Type: Replaceable High-Speed Steel
Blade Depth: Adjustable 0.1-0.5mm
Body Material: Aluminum Alloy
Guide Type: Roller Guide
Operation: Manual Hand-Operated
Weight: 1.2KG
Application: PE/HDPE Pipe Surface Prep

Specification Table

Pipe Range	20-160mm
Blade Type	Replaceable High-Speed Steel
Blade Depth	Adjustable 0.1-0.5mm
Body Material	Aluminum Alloy
Guide Type	Roller Guide
Operation	Manual Hand-Operated
Weight	1.2KG
Application	PE/HDPE Pipe Surface Prep

Key Features

Essential Fusion Preparation – The HDPE Pipe Skin Scraper removes the oxidation layer that forms on PE pipe surfaces during storage, which is critical for achieving full-strength electrofusion and butt fusion welds.
Adjustable Scraping Depth – Blade depth is adjustable from 0.1mm to 0.5mm, allowing operators to remove just enough material without damaging the pipe wall.
Roller Guide System – Guide rollers keep the scraper aligned and stable around the pipe circumference, ensuring uniform scraping coverage without gouging.
Replaceable Blades – High-speed steel blades can be replaced when dull, maintaining scraping effectiveness without needing to replace the entire tool.
Wide Pipe Compatibility – The HDPE Pipe Skin Scraper adjusts to fit pipe diameters from 20mm to 160mm, covering most common HDPE pipe sizes with one tool.
Lightweight Aluminum Body – At only 1.2kg, the aluminum body provides durability without operator fatigue during extended pipe preparation work.

Production

Raw Material

The HDPE Pipe Skin Scraper body is die-cast from ADC12 aluminum alloy for structural strength and corrosion resistance. The blade is manufactured from W18Cr4V high-speed tool steel, heat-treated to HRC 62-65 for edge retention. Guide rollers use 304 stainless steel bearings.

Molding Process

The aluminum body is pressure die-cast with precise blade slot and roller mount dimensions. After casting, the body undergoes CNC machining on critical alignment surfaces. The blade is precision-ground to a 30° cutting angle and individually hardness-tested before assembly.

Quality Control

Each HDPE Pipe Skin Scraper is tested on PE100 pipe samples to verify uniform material removal around the full pipe circumference. Blade depth adjustment mechanism is tested for secure locking at all settings. Roller rotation smoothness is checked at 360° rotation. Sample scraped pipes are inspected under magnification for complete oxidation layer removal.

Applications

Electrofusion Welding Preparation – The HDPE Pipe Skin Scraper is the essential first step before EF welding, removing oxidation that would otherwise prevent the resistance wire from bonding properly to the pipe surface.
Butt Fusion Surface Prep – For older or stored PE pipes, the scraper removes UV-degraded surface material before butt fusion welding, restoring weldability.
Pipe Repair Operations – Preparing pipe surfaces around damage areas before applying electrofusion repair clamps or saddle fittings.
Quality Assurance – Used in pipeline construction quality programs to ensure consistent surface preparation before welding, supporting weld integrity testing.
Field Installation – Lightweight and manual operation makes the HDPE Pipe Skin Scraper ideal for trench-side pipe preparation where power tools are unavailable.
