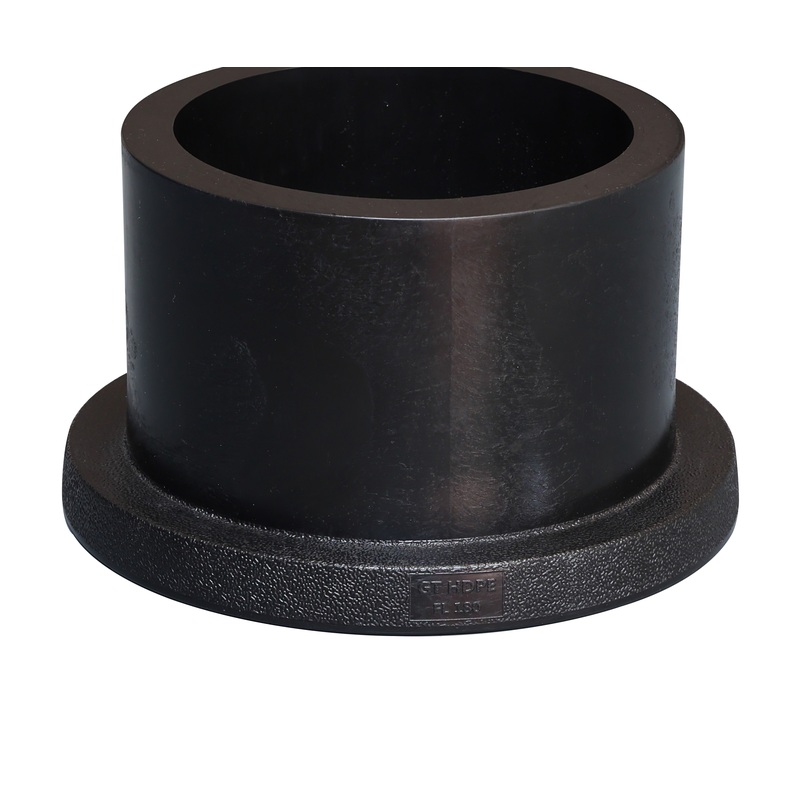

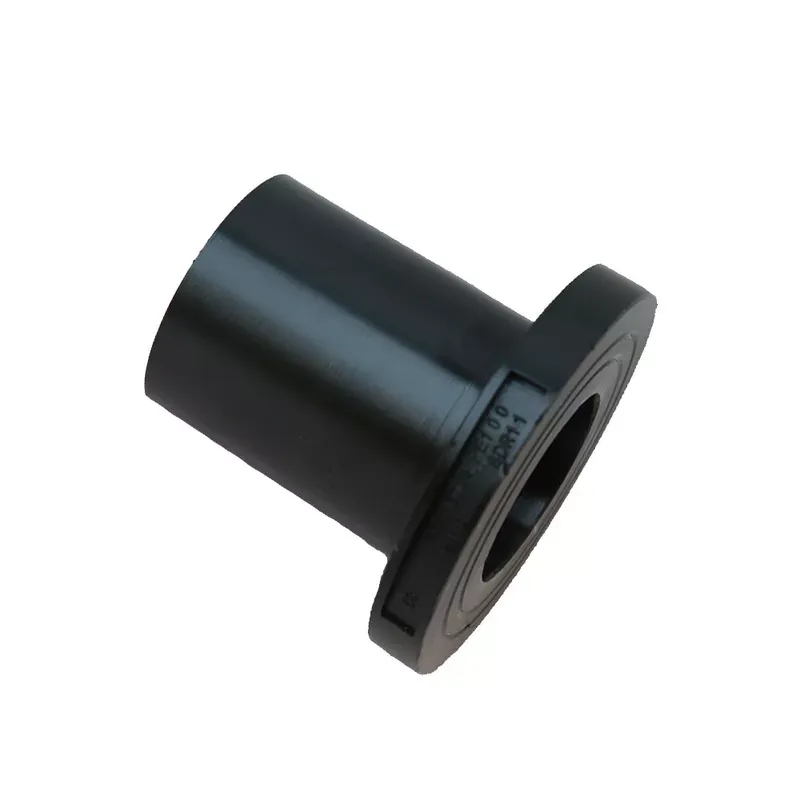

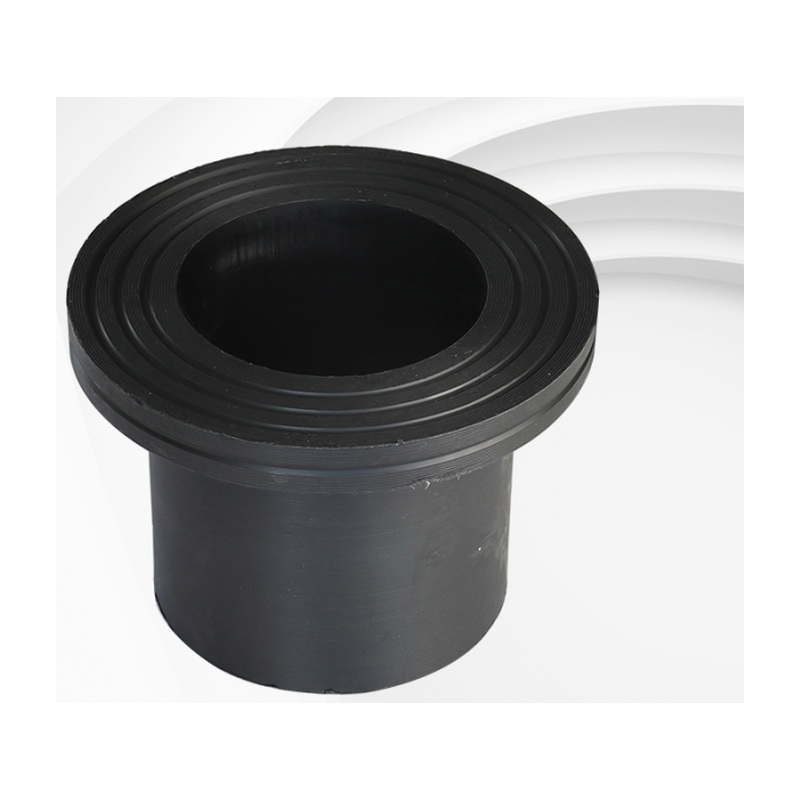

HDPE Butt Fusion Stub End for Water

HDPE socket-type fitting manufactured for water transportation systems, designed for butt fusion connections.

Extra Valuable Service
✧High Quality: ISO certificated          ✧Global Transportation Service
✧Free samples& Free Design           ✧Full Satisfaction Guaranted: 5 Yeas

  sales@sdworldlink.com   +8617263526029(WhatsApp)
分类：
✦Specifications of High Density Polyethylene (HDPE) Pipes and Fittings for water ISO4427 Standard
ISO 4427-2: Plastics piping systems. Polyethylene pipes & fittings for water supply – Part 2: Pipes EN 12201-2: Plastics piping systems for water supply – Polyethylene – Part 2: Pipes EN 1555-2: Plastics piping systems for the supply of gaseous fuels – Polyethylene – Part 2: Pipes ISO 4437-2: Plastics piping systems for the supply of gaseous fuels – Polyethylene – Part 2: Pipes
ISO Size and Dimension Data
Henan Bingo Pipeline ISO HDPE Series
Pressure Ratings are calculated using a 1,25 design coefficient (C) for MRS at 20°C as listed in PPI TR-4 for PE 100 materials.  Pressure ratings are based on water applications. Temperature, Chemical, and Environmental use considerations may require use of additional design coefficients.
ISO 4427 Pipe Series S 3.2 S 4 S 5 S 6,3 S 8 S 10 S 12,5 S 16
ASTM F714 DR DR 7.4 DR 9 DR 11 DR 13.6 DR 17 DR 21 DR 26 DR 33
Nominal Pressure PE 100 PN = 25 bar PN = 20 bar PN = 16 bar PN = 12,5 bar PN = 10 bar PN = 8 bar PN = 6 bar PN = 5 bar
Nominal Size DN (mm) Equiv Size (in) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm) Min Wall (mm) Average ID (mm)
20 0.79 3.0 13.6 2.3 15.12 2.0 15.76 1.5 16.88 1.2 17.51 1.0 17.98 0.6 18.72 0.61 18.72
25 0.98 3.5 17.60 3.0 18.64 2.3 20.12 2.0 20.76 1.5 21.88 1.2 22.48 0.8 23.39 0.76 23.39
32 1.26 4.4 22.70 3.6 24.37 3.0 25.64 2.4 26.91 2.0 27.76 1.5 28.77 1.0 29.94 0.97 29.94
40 1.57 5.5 28.30 4.5 30.46 3.7 32.16 3.0 33.64 2.4 34.91 2.0 35.76 1.2 37.43 1.21 37.43
50 1.97 6.9 35.40 5.6 38.13 4.6 40.25 3.7 42.16 3.0 43.64 2.4 44.91 2.0 45.76 1.52 46.79
63 2.48 8.6 44.80 7.1 47.95 5.8 50.70 4.7 53.04 3.8 54.94 3.0 56.64 2.5 57.70 1.91 58.95
75 2.95 10.3 53.20 8.4 57.19 6.8 60.58 5.6 63.13 4.5 65.46 3.6 67.37 2.9 68.85 2.27 70.18
90 3.54 12.3 63.90 10.1 68.59 8.2 72.62 6.7 75.80 5.4 78.55 4.3 80.88 3.5 82.58 2.73 84.22
110 4.33 15.1 78.00 12.3 83.92 10.0 88.80 8.1 92.83 6.6 96.01 5.3 98.76 4.2 101.10 3.33 102.93
125 4.92 17.1 88.70 14.0 95.32 11.4 100.83 9.2 105.50 7.4 109.31 6.0 112.28 4.8 114.82 3.79 116.97
140 5.51 19.2 99.30 15.7 106.72 12.7 113.08 10.3 118.16 8.3 122.40 6.7 125.80 5.4 128.55 4.24 131.01
160 6.30 21.9 113.60 17.9 122.05 14.6 129.05 11.8 134.98 9.5 139.86 7.7 143.68 6.2 146.86 4.85 149.72
180 7.09 24.6 127.80 20.1 137.39 16.4 145.23 13.3 151.80 10.7 157.32 8.6 161.77 6.9 165.37 5.45 168.44
200 7.87 27.4 141.90 22.4 152.51 18.2 161.42 14.7 168.84 11.9 174.77 9.6 179.65 7.7 183.68 6.06 187.15
225 8.86 30.8 159.70 25.2 171.58 20.5 181.54 16.6 189.81 13.4 196.59 10.8 202.10 8.6 206.77 6.82 210.55
250 9.84 34.2 177.50 27.9 190.85 22.7 201.88 18.4 210.99 14.8 218.62 11.9 224.77 9.6 229.65 7.58 233.94
280 11.02 38.3 198.80 31.3 213.64 25.4 226.15 20.6 236.33 16.6 244.81 13.4 251.59 10.7 257.32 8.48 262.01
315 12.40 43.1 223.60 35.2 240.38 28.6 254.37 23.2 265.82 18.7 275.36 15.0 283.20 12.1 289.35 9.70 294.44
355 13.98 48.5 252.20 39.7 270.84 32.2 286.74 26.1 299.67 21.1 310.27 16.9 319.17 13.6 326.17 10.90 331.89
400 15.75 54.7 284.00 44.7 305.24 36.3 323.04 29.4 337.67 23.7 349.76 19.1 359.51 15.3 367.56 12.30 373.92
450 17.72 61.5 319.60 50.3 343.36 40.9 363.29 33.1 379.83 26.7 393.40 21.5 404.42 17.2 413.54 13.80 420.74
500 19.69 67.6 356.70 55.8 381.70 45.4 403.75 36.8 421.98 29.7 437.04 23.9 449.33 19.1 459.51 15.30 467.56
560 22.05 75.7 399.50 62.5 427.50 50.8 452.30 41.2 472.66 33.2 489.62 26.7 503.40 21.4 514.63 17.20 523.54
630 24.80 85.1 449.60 70.3 480.96 57.2 508.74 46.3 531.84 37.4 550.71 30.0 566.40 24.1 578.91 19.30 589.08
710 27.95 95.9 506.70 79.3 541.88 64.5 573.26 52.2 599.34 42.1 620.75 33.9 638.13 27.2 652.34 21.80 663.78
800 31.50 108.1 583.8 89.3 610.68 72.6 646.09 58.8 675.34 47.4 699.51 38.1 719.23 30.6 735.13 24.50 748.06
900 35.43 126.62 646.76 100.0 700.00 81.7 726.80 66.2 759.66 53.3 787.00 42.9 809.05 34.4 827.07 27.60 841.49
1000 39.37 135.14 729.72 111.12 777.76 90.2 808.78 72.5 846.30 59.3 874.28 47.7 898.88 38.2 919.02 30.60 935.13
1200 47.24 162.16 875.68 133.34 933.32 109.1 981.82 88.2 1013.02 67.9 1056.05 57.2 1078.74 45.9 1102.69 36.70 1122.20
1400 55.12 189.19 1021.62 155.56 1088.88 127.3 1145.46 102.9 1181.85 82.4 1225.31 66.7 1258.60 53.5 1286.58 42.90 1309.05
This product flyer is intended for reference purposes.  It should not be used in place of the advice from a licensed Professional Engineer.  Nominal pressure (PN) is based on C = 1,25 and an operating temperature of 20°C.  Weight is calculated using DN and Minimum wall plus 6% for use in estimating fluid flow. Actual ID will vary. When designing components to fit the pipe ID, refer to pipe dimensions and tolerances in the applicable pipe manufacturing specification.  To obtain pressure in psi, multiply bar by 14.5 (1 bar ≈ 14.5 psi).  Additional information is available at www.bingopipes.com.

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: sales@geosyntheticsupplier.com or Mobile:(WhatsApp): +86 18063297452.

  • Municipal water supply network retrofits
  • Industrial cooling water circulation systems
  • Agricultural irrigation distribution networks
  • Building water supply and drainage systems
  • Directional changes in water treatment plants
  • Branch modifications in underground water networks
  • Corner layouts for fire sprinkler systems
  • Low-pressure piping in desalination projects
  • 45° angle design optimizes hydrodynamics
  • Socket fusion ensures leak-free permanent joints
  • Resistant to chemical corrosion and UV degradation
  • Smooth interior minimizes flow resistance
  • Diameter Range: 20 mm – 1200 mm
  • Pressure Rating: PN6 – PN25
  • Applicable Standards: ISO 4427-3, EN 12201-3, ASTM F714
  • Stock Availability: In stock
  • Sample Policy: Free sample available
  • Lead Time: 5–30 days
SPECIFICATION dn L H D1 D SDR17 SDR13.6 SDR11
FL50 88 76 56 80 √
FL63 90 77 75 102 √ √
FL75 98 84 89 120 √ √
FL90 110 93 104 135 √ √
FL110 120 102 124 155 √ √
FL125 127 107 132 158 √ √
FL140 127 105 154 188 √ √
FL160 135 109 174 212 √ √
FL180 135 105 188 212 √ √
FL200 155 122 235 268 √ √
FL225 145 115 232 268 √ √
FL250 160 128 285 320 √ √
FL280 160 125 290 320 √ √
FL315 175 140 335 370 √ √
FL355 175 140 373 430 √ √
FL400 180 145 427 482 √ √
FL450 208 165 475 585 √ √
FL500 215 168 530 585 √ √
FL560 220 174 582 625 √ √
FL630 230 178 642 685 √ √
FL710 235 178 737 800 √ √
FL800 240 183 840 905 √ √
FL900 245 187 930 1005 √ √
FL1000 250 192 1030 1110 √ √
FL1200 300 230 1230 1300 √ √

Key Features

  • Compliant with ISO 4427 pressure fitting standards
  • Resistant to chemical corrosion and UV degradation
  • Butt fusion interface ensures zero-leak sealing
  • 50+ years designed service life

Typical Applications

  • Municipal potable water distribution systems
  • Industrial cooling water circulation pipelines
  • Agricultural main irrigation networks
  • Wastewater treatment plant transfer lines

Manufacturing Process

Injection molding process

  • Melt temperature control (190-230°C)
  • Optimized mold cooling rate
  • Dimensional tolerance per ISO 11922
  • Weld end flatness <0.1mm

Raw Material Characteristics

  • Density: 0.950-0.965 g/cm³ (ISO 1183)
  • Melt flow index: 0.3-0.5 g/10min (190°C/5kg)
  • Tensile strength: ≥22 MPa (ISO 527)
  • Environmental stress cracking resistance: >500hrs (ASTM D1693)
  • Branch connections in urban water supply networks
  • Low-pressure transfer systems in desalination plants
  • Branch interfaces for fire sprinkler systems
  • Chemical agent transfer in water treatment facilities
