Product Overview

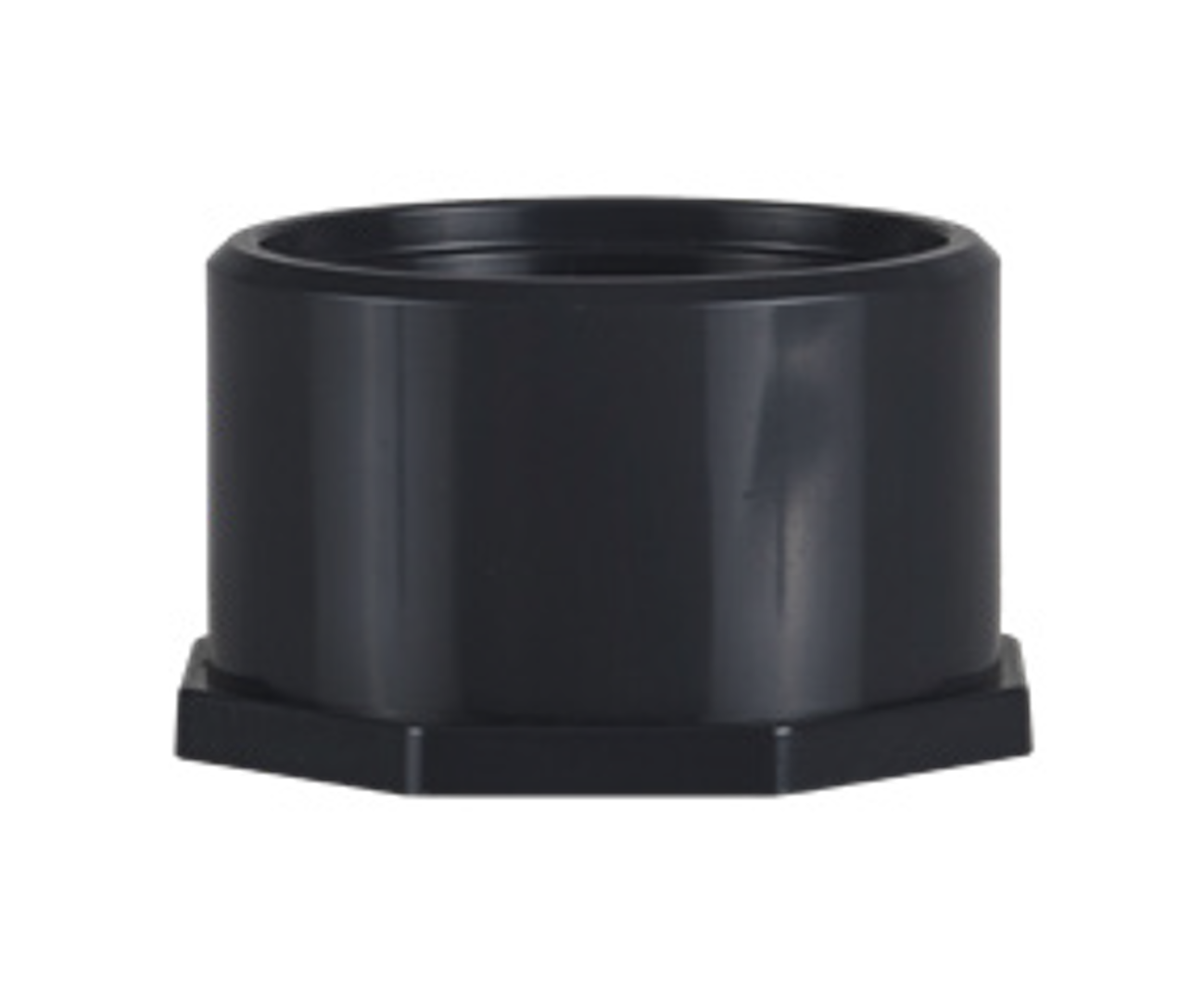

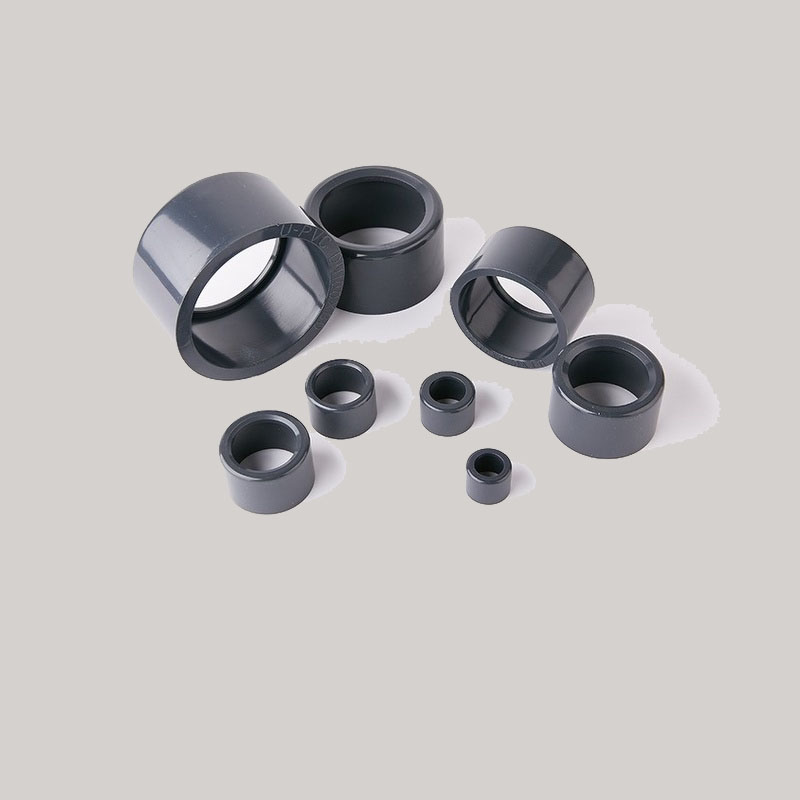

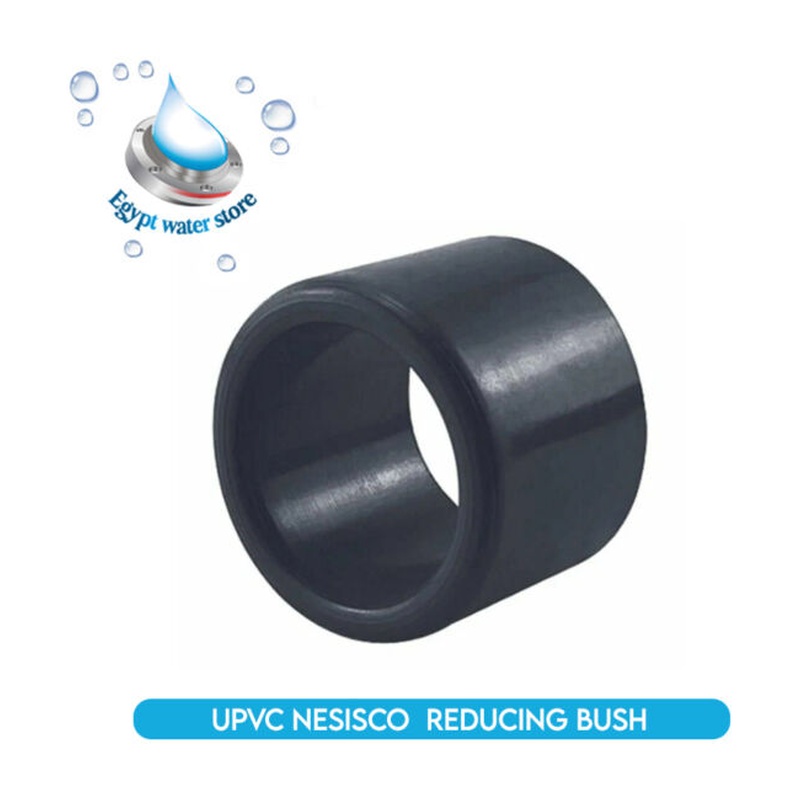

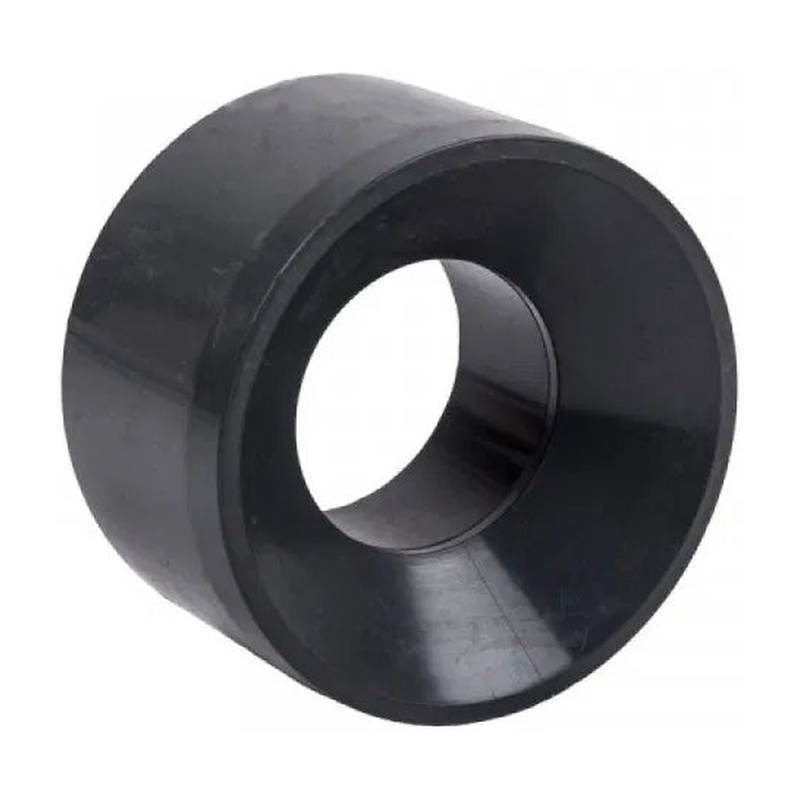

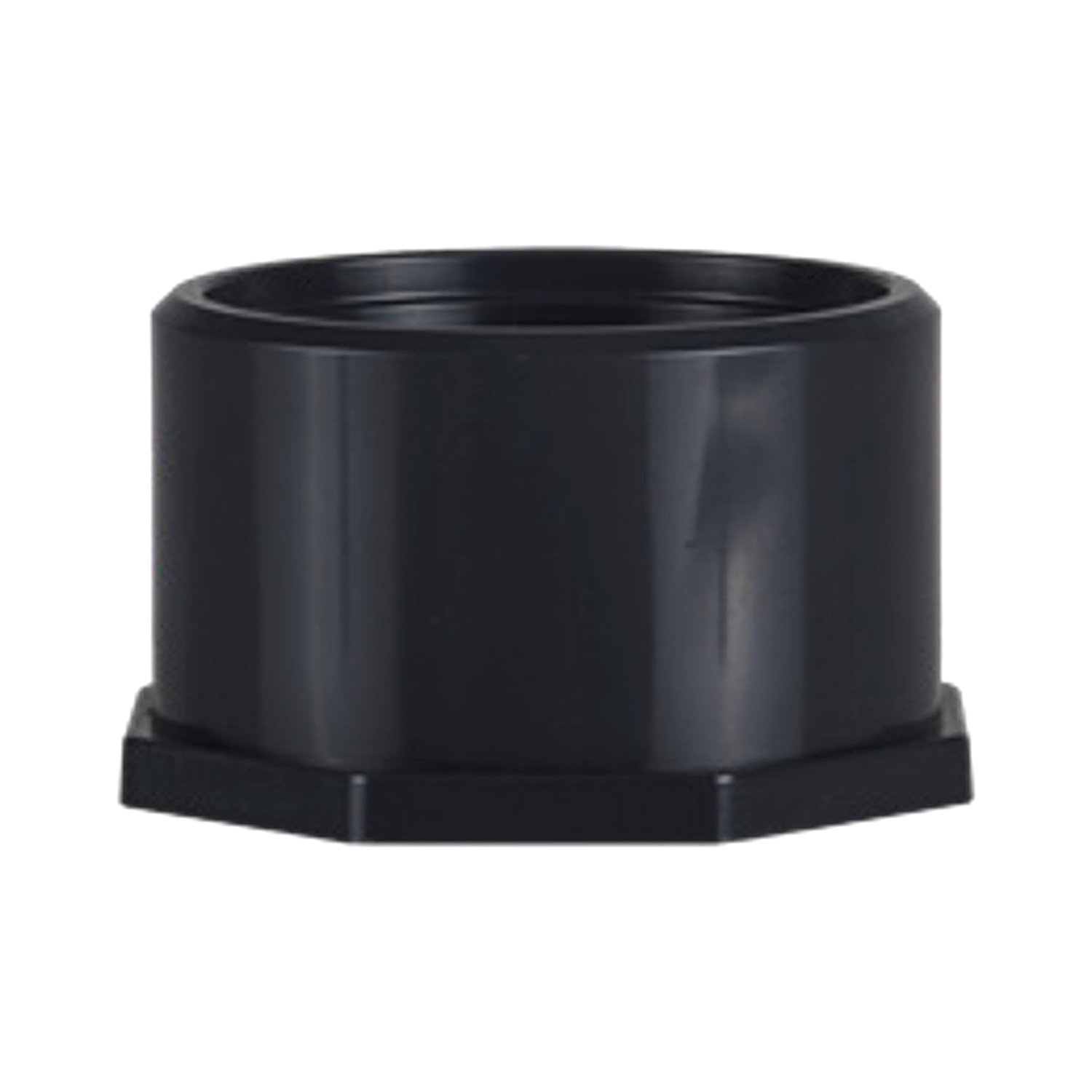

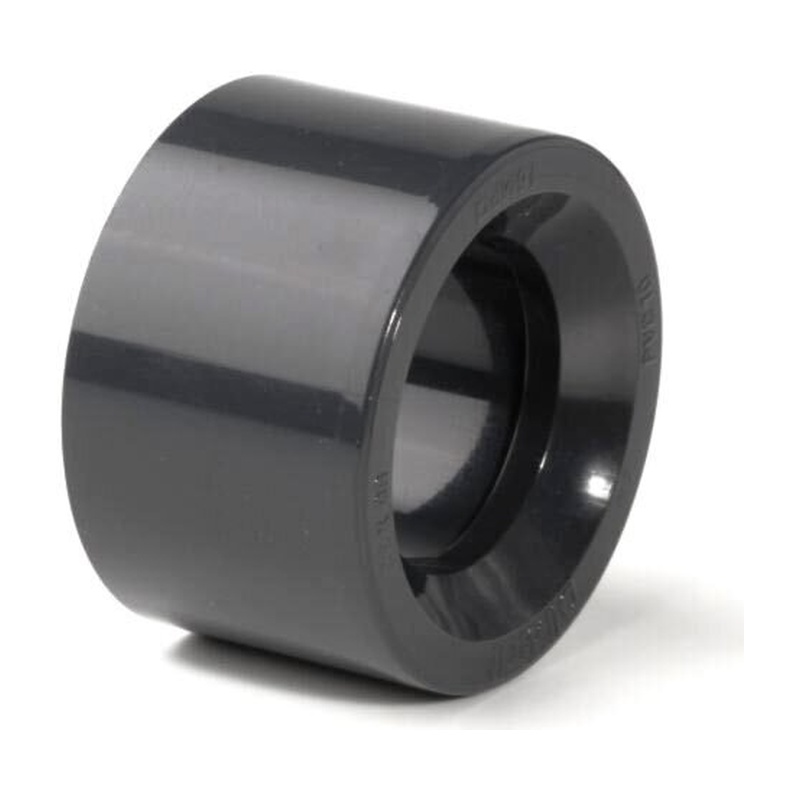

UPVC bush (reducer bushing) for solvent cement socket size reduction at connections. Manufactured from virgin PVC-U compound per GB/T 10002.2 and ISO 1452, this UPVC bush reduces a larger pipe socket to accept a smaller pipe, providing a compact concentric size transition. Available in DN 15 - 200 mm with PN6 - PN16 ratings.
Quick Information
- Type: Bush (Reducer)
- Material: PVC-U / PVC-C
- Size: DN 15 - 200 mm
- Pressure Rating: PN6 - PN16
- Connection: Solvent Cement Socket
- Standard: GB/T 10002.2 / ISO 1452
- Stock: In stock
Specification Table
| Size DN(De) | Dimensions (mm) | |||||
|---|---|---|---|---|---|---|
| D0 | d1 | d2 | d | T | L | |
| 20X15(25*20) | 25.00 | 20.30 | 19.95 | 16.00 | 17.00 | 19.20 |
| 25X15(32*20) | 32.00 | 20.30 | 19.95 | 16.00 | 17.00 | 22.20 |
| 25X20(32*25) | 32.00 | 25.30 | 24.95 | 21.00 | 19.50 | 22.20 |
| 32X15(40*20) | 40.00 | 20.30 | 19.95 | 16.00 | 17.00 | 26.30 |
| 32X20(40*25) | 40.00 | 25.30 | 24.95 | 21.00 | 19.50 | 26.30 |
| 32X25(40*32) | 40.00 | 32.30 | 31.90 | 27.50 | 23.00 | 26.30 |
| 40X15(50*20) | 50.00 | 20.30 | 19.95 | 16.00 | 17.00 | 31.20 |
| 40X20(50*25) | 50.00 | 25.30 | 24.95 | 21.00 | 19.50 | 31.20 |
| 40X25(50*32) | 50.00 | 32.30 | 31.90 | 27.50 | 23.00 | 31.20 |
| 40X32(50*40) | 50.00 | 40.35 | 39.90 | 35.00 | 27.00 | 31.20 |
| 50X15(63*20) | 63.00 | 20.30 | 19.95 | 16.00 | 17.00 | 38.10 |
| 50X20(63*25) | 63.00 | 25.30 | 24.95 | 21.00 | 19.50 | 38.10 |
| 50X25(63*32) | 63.00 | 32.30 | 31.90 | 27.50 | 23.00 | 38.10 |
| 50X32(63*40) | 63.00 | 40.35 | 39.90 | 35.00 | 27.00 | 38.10 |
| 50X40(63*50) | 63.00 | 50.35 | 49.90 | 45.00 | 32.00 | 38.10 |
| 65X20(75*25) | 75.00 | 25.30 | 24.95 | 21.00 | 19.50 | 44.10 |
| 65X25(75*32) | 75.00 | 32.30 | 31.90 | 27.50 | 23.00 | 44.10 |
| 65X32(75*40) | 75.00 | 40.35 | 39.90 | 35.00 | 27.00 | 44.10 |
| 65X40(75*50) | 75.00 | 50.35 | 49.90 | 45.00 | 32.00 | 44.10 |
| 65X50(75*63) | 75.00 | 63.40 | 62.90 | 56.00 | 38.50 | 44.10 |
| 80X25(90*32) | 90.00 | 32.30 | 31.90 | 27.50 | 23.00 | 51.00 |
| 80X32(90*40) | 90.00 | 40.35 | 39.90 | 35.00 | 27.00 | 51.00 |
| 80X40(90*50) | 90.00 | 50.35 | 49.90 | 45.00 | 32.00 | 51.00 |
| 80X50(90*63) | 90.00 | 63.40 | 62.90 | 56.00 | 38.50 | 51.00 |
| 80X65(90*75) | 90.00 | 75.40 | 74.90 | 67.00 | 44.50 | 51.00 |
| 100X40(110*50) | 110.00 | 50.35 | 49.90 | 45.00 | 32.00 | 61.00 |
| 100X50(110*63) | 110.00 | 63.40 | 62.90 | 56.00 | 38.50 | 61.00 |
| 100X65(110*75) | 110.00 | 75.40 | 74.90 | 67.00 | 44.50 | 61.00 |
| 100X80(110*90) | 110.00 | 90.50 | 89.90 | 80.50 | 52.00 | 61.00 |
| De125*110 | 125.00 | 110.40 | 109.90 | 102.00 | 63.00 | 68.70 |
| 125X50(140*63) | 140.00 | 63.40 | 62.90 | 102.00 | 68.70 | 77.00 |
| 125X65(140*75) | 140.00 | 75.40 | 74.90 | 117.00 | 68.70 | 76.20 |
| 125X80(140*90) | 140.00 | 90.50 | 89.90 | 56.00 | 38.50 | 76.20 |
| 125X100(140*110) | 140.00 | 110.60 | 109.90 | 67.00 | 44.50 | 76.20 |
| De140*125 | 140.00 | 125.70 | 124.90 | 80.50 | 52.00 | 76.20 |
| 150X50(160*63) | 160.00 | 63.40 | 62.90 | 96.00 | 68.00 | 86.00 |
| 150X65(160*75) | 160.00 | 75.40 | 74.90 | 130.00 | 77.00 | 86.00 |
| 150X80(160*90) | 160.00 | 90.50 | 89.90 | 56.00 | 38.50 | 86.00 |
| 150X100(160*110) | 160.00 | 110.60 | 109.90 | 67.00 | 44.50 | 86.00 |
| 150X125(160*140) | 160.00 | 125.70 | 139.90 | 80.50 | 52.00 | 86.00 |
| De180*160 | 180.00 | 160.80 | 159.90 | 150.90 | 86.20 | 96.00 |
| De200*160 | 200.00 | 160.80 | 159.90 | 151.50 | 85.50 | 106.50 |
