Product Overview

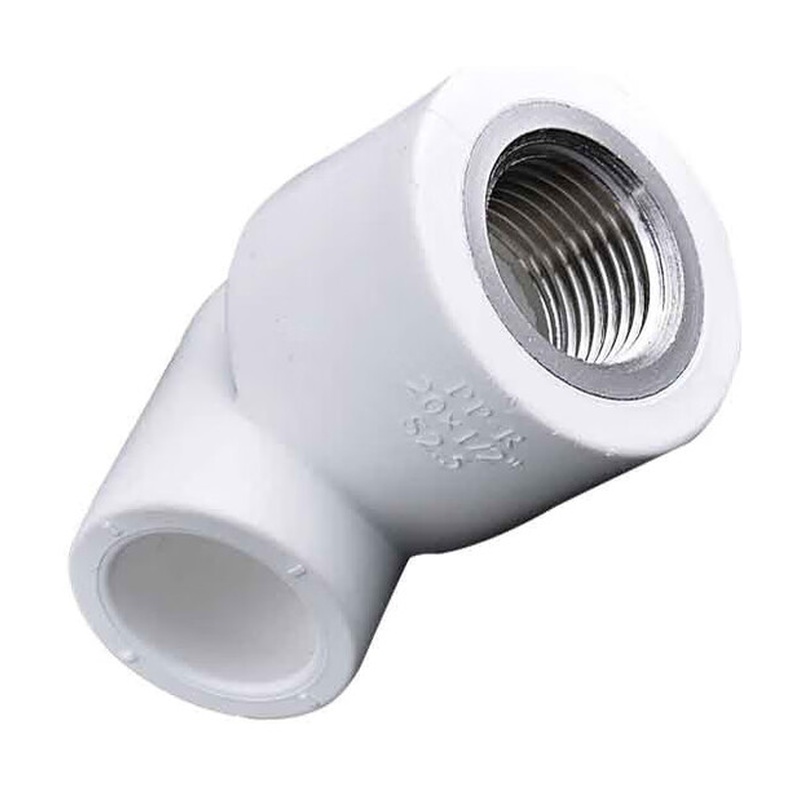

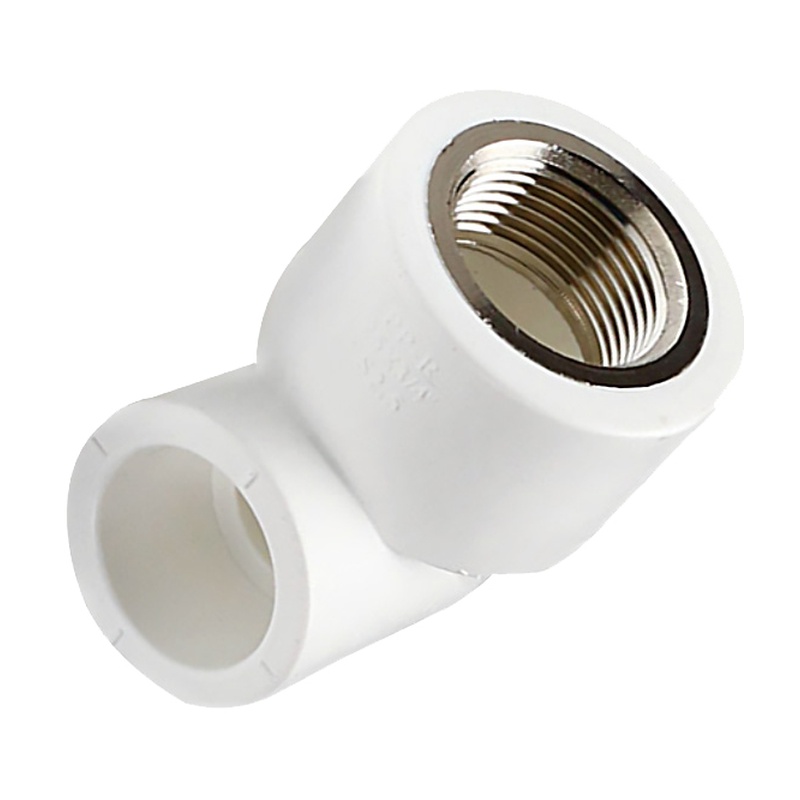

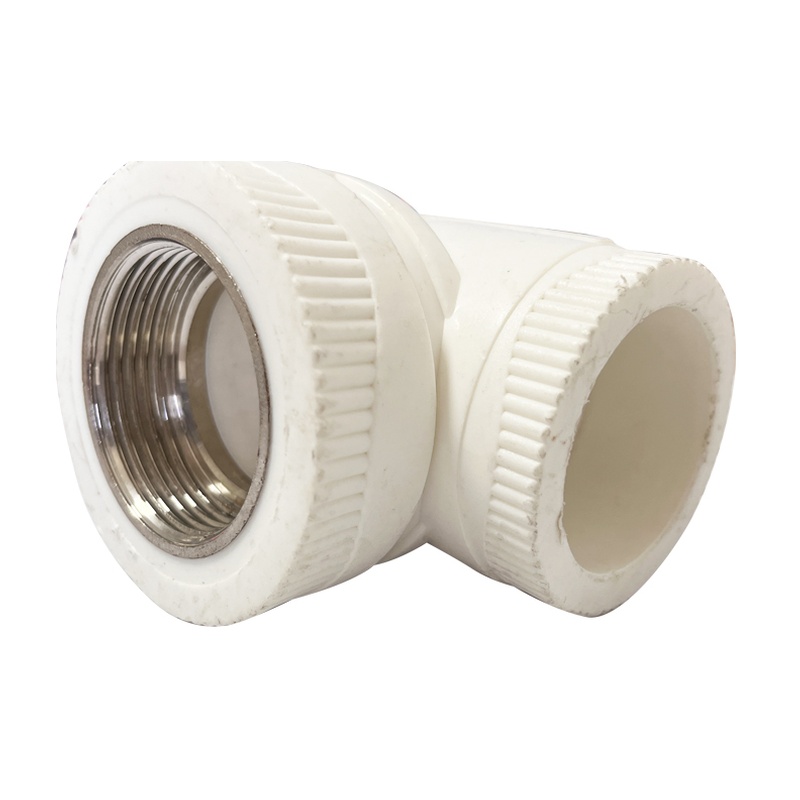

PPR female threaded elbow provides a 90 degree direction change between a heat fused PPR pipe and a female threaded fixture. One end is a PPR socket for heat fusion, the other carries a BSP female thread on a brass insert.
Quick Information
- Material: Virgin PP-R body, Brass insert
- Connection: 90° Elbow, Heat Fusion + Female BSP Thread
- Size Range: L20×1/2F to L63×2F
- Standards: GB/T 18742
Specification Table
| Size Code | PPR DN (mm) | Thread | Connection |
|---|---|---|---|
| L20×1/2F | 20 | 1/2" F BSP | Heat Fusion + Threaded |
| L20×3/4F | 20 | 3/4" F BSP | Heat Fusion + Threaded |
| L25×1/2F | 25 | 1/2" F BSP | Heat Fusion + Threaded |
| L25×3/4F | 25 | 3/4" F BSP | Heat Fusion + Threaded |
| L32×1/2F | 32 | 1/2" F BSP | Heat Fusion + Threaded |
| L32×3/4F | 32 | 3/4" F BSP | Heat Fusion + Threaded |
| L32×1F | 32 | 1" F BSP | Heat Fusion + Threaded |
| L40×1¼F | 40 | 1 1/4" F BSP | Heat Fusion + Threaded |
| L50×1½F | 50 | 1 1/2" F BSP | Heat Fusion + Threaded |
| L63×2F | 63 | 2" F BSP | Heat Fusion + Threaded |
