Product Overview

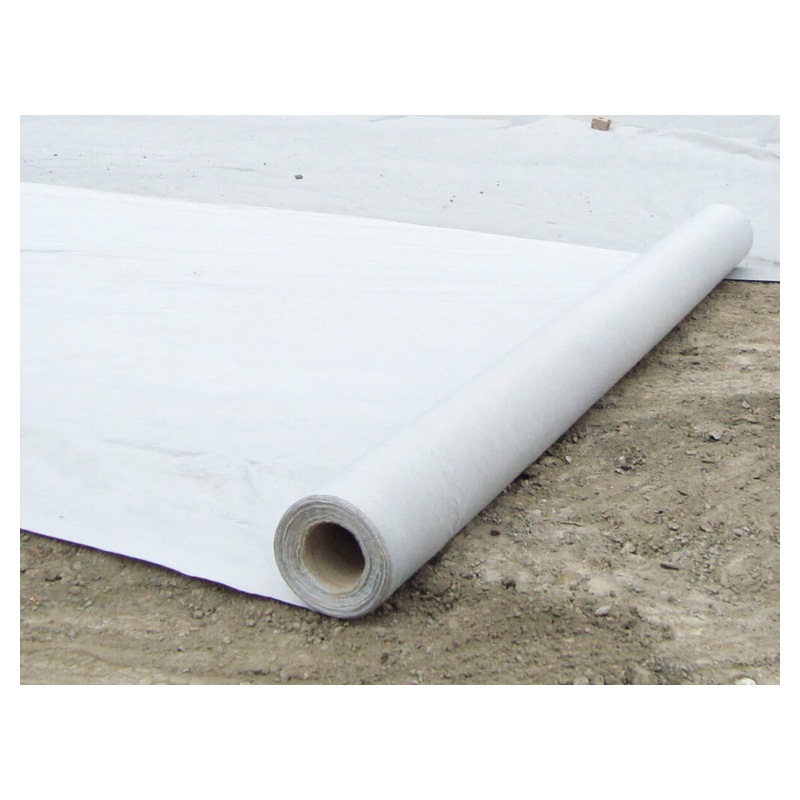

The polyester filament geotextile from Bingo Pipeline is a spunbond needle-punched nonwoven made from 100% polyester filament. Its three-dimensional fibre structure delivers high tensile strength, excellent puncture resistance and reliable filtration performance, which is why the polyester filament geotextile is widely specified for roads, railways, embankments, landfills and water conservancy projects.
Supplied in rolls from 1 m to 6 m wide and from 100 g/m² to 800 g/m², the polyester filament geotextile covers everything from light separation layers to heavy-duty reinforcement and protection layers. Every roll is produced under an ISO 9001 quality system and tested for mass deviation, thickness, breaking strength and CBR puncture.
Quick Information
- Material: 100% polyester filament, nonwoven needle punched
- Mass per unit area: 100 - 800 g/m²
- Roll width: 1 - 6 m
- Thickness: 0.8 - 5.5 mm
- Breaking strength: 4.5 - 40 kN/m
- CBR puncture: 0.8 - 7 kN
- Elongation at break: 40 - 80 %

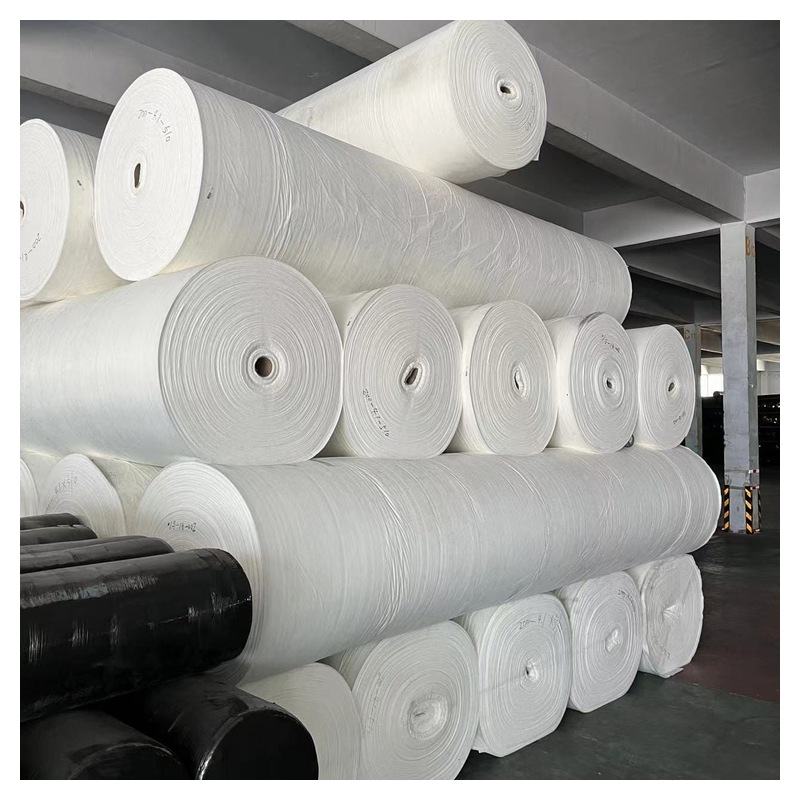

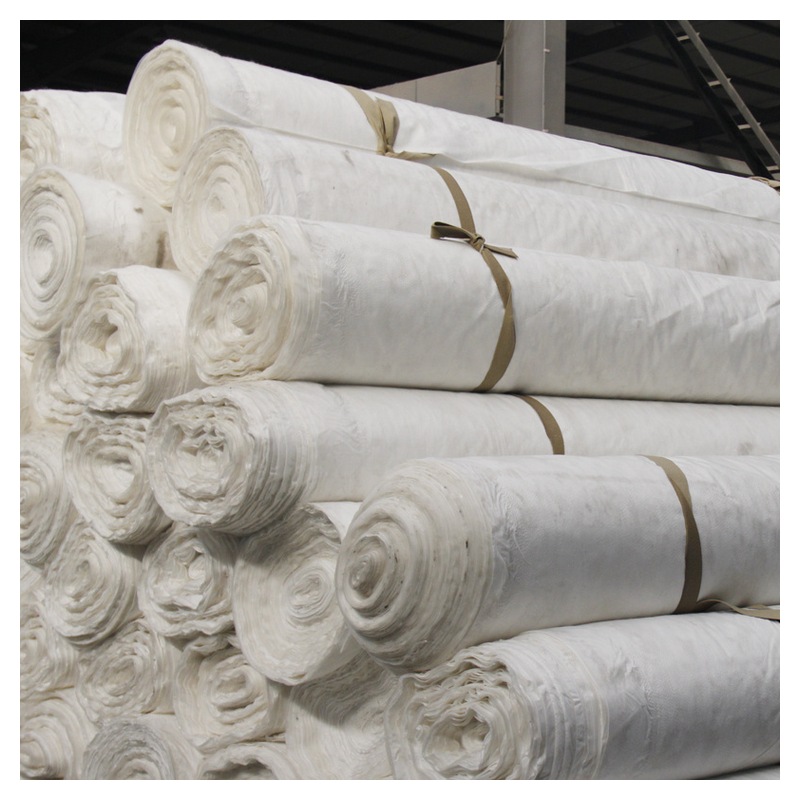

- Packing: rolls, standard 50 - 200 m per roll
Specification Table
| Item | F100 | F150 | F200 | F250 | F300 | F350 | F400 | F450 | F500 | F600 | F800 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mass per unit area (g/m²) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
| Thickness (mm, ≥) | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 |
| Breaking strength (kN/m, ≥) | 4.5 | 7.5 | 10 | 12.5 | 15 | 17.5 | 20.5 | 22.5 | 25 | 30 | 40 |
| CBR puncture (kN, ≥) | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3 | 3.5 | 4 | 4.7 | 5.5 | 7 |
| Trapezoid tear (kN, ≥) | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.7 | 0.82 | 1.1 |
| Elongation at break | 40 - 80 % (MD / CD) | ||||||||||
| Equivalent aperture O99 | 0.07 - 0.2 mm | ||||||||||
| Vertical permeability | K x (10-1 - 10-3) cm/s | ||||||||||
| Raw material | 100% polyester filament, nonwoven needle punched | ||||||||||
| Standard roll width | 1 - 6 m | ||||||||||
