Product Overview

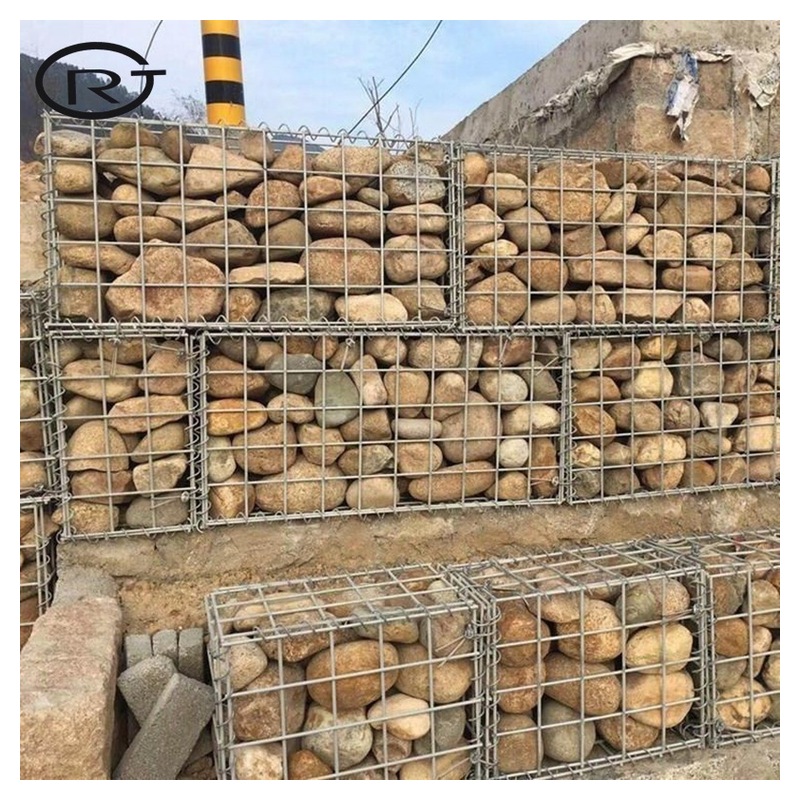

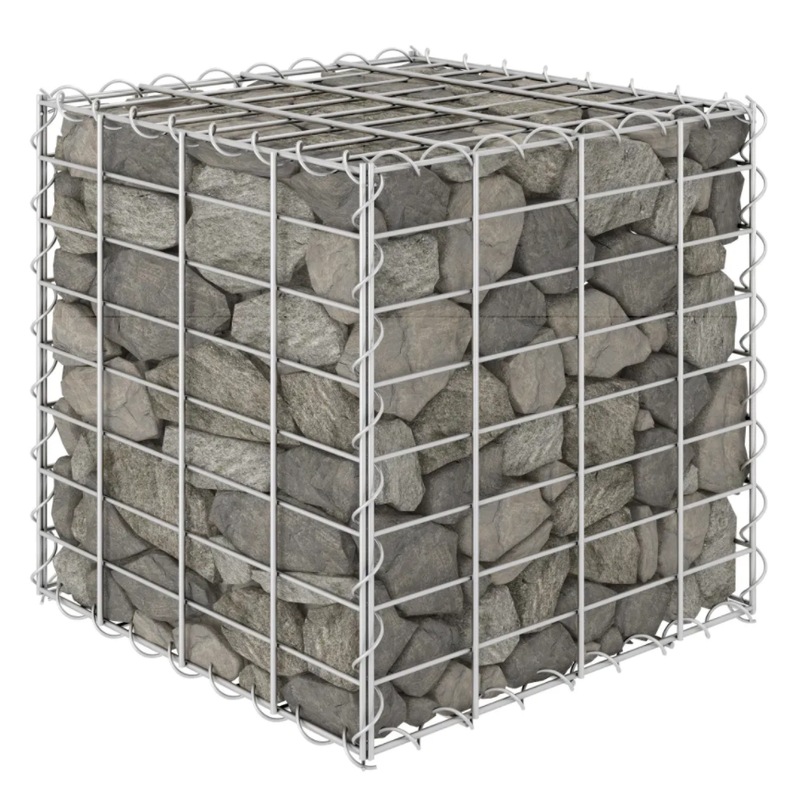

The gabion box from Bingo Pipeline is a double-twisted hexagonal wire mesh container filled on site with stone. Made from hot-dip galvanized, Galfan or PVC coated low carbon steel wire, the gabion box keeps its shape under load and allows water to drain through, making it a durable solution for retaining walls, river training and slope protection.
Standard mesh is 8 x 10 cm or 6 x 8 cm with 2.7 - 3.0 mm wire, and boxes are supplied from 2 x 1 x 1 m up to 6 x 2 x 0.3 m. Every gabion box is compressed and bundled for transport, then laced together on site to form a continuous flexible structure.
Quick Information
- Material: hot-dip galvanized / Galfan / PVC coated low carbon steel wire
- Mesh size: 8 x 10 cm, 6 x 8 cm
- Wire diameter: 2.7 mm, 3.0 mm
- Binding wire: 2.0 mm, 2.2 mm
- Zinc coating: ≥240 g/m²
- Box sizes: 2x1x1 m to 6x2x0.3 m
- Size tolerance: ±5 %
Specification Table
| Item | Specification |
|---|---|
| Material | Hot-dip galvanized low carbon steel wire / Galfan wire / PVC coated wire |
| Mesh size | 8 x 10 cm, 6 x 8 cm |
| Wire diameter (mesh) | 2.7 mm, 3.0 mm |
| Binding wire diameter | 2.0 mm, 2.2 mm |
| Zinc coating | ≥240 g/m² (heavy galvanized) |
| Box size (L x W x H) | 2x1x1 m, 3x1x1 m, 4x1x1 m, 2x1x0.5 m, 6x2x0.3 m |
| Size tolerance | ±5 % |
| Packing | Bundled and compressed, laced on site |
