HDPE Custom Mud Tee

HDPE Custom Mud Tee, to ISO 4427, for customised HDPE pipe systems.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: Customized Fittings

Customized Fittings

Product Overview

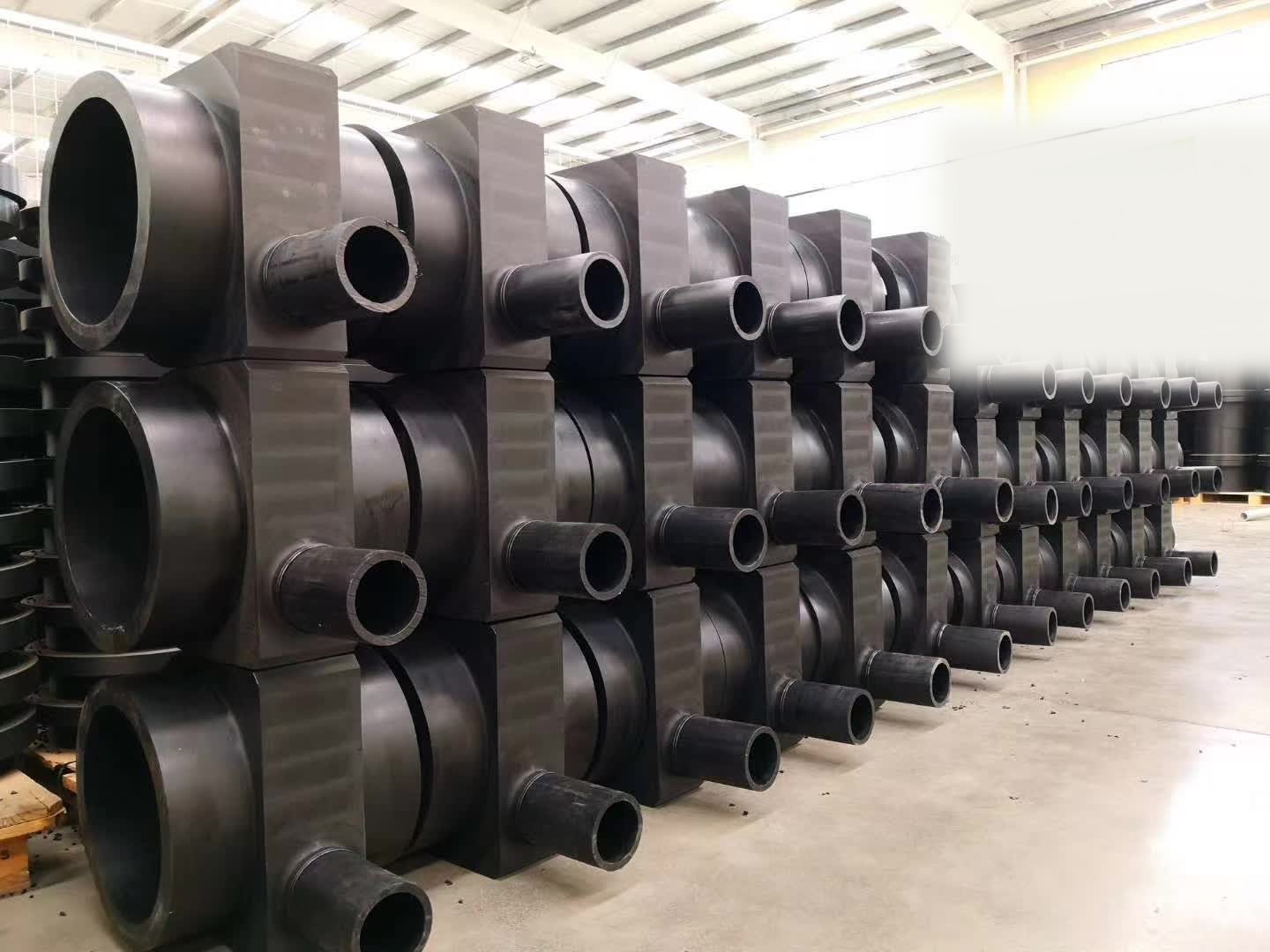

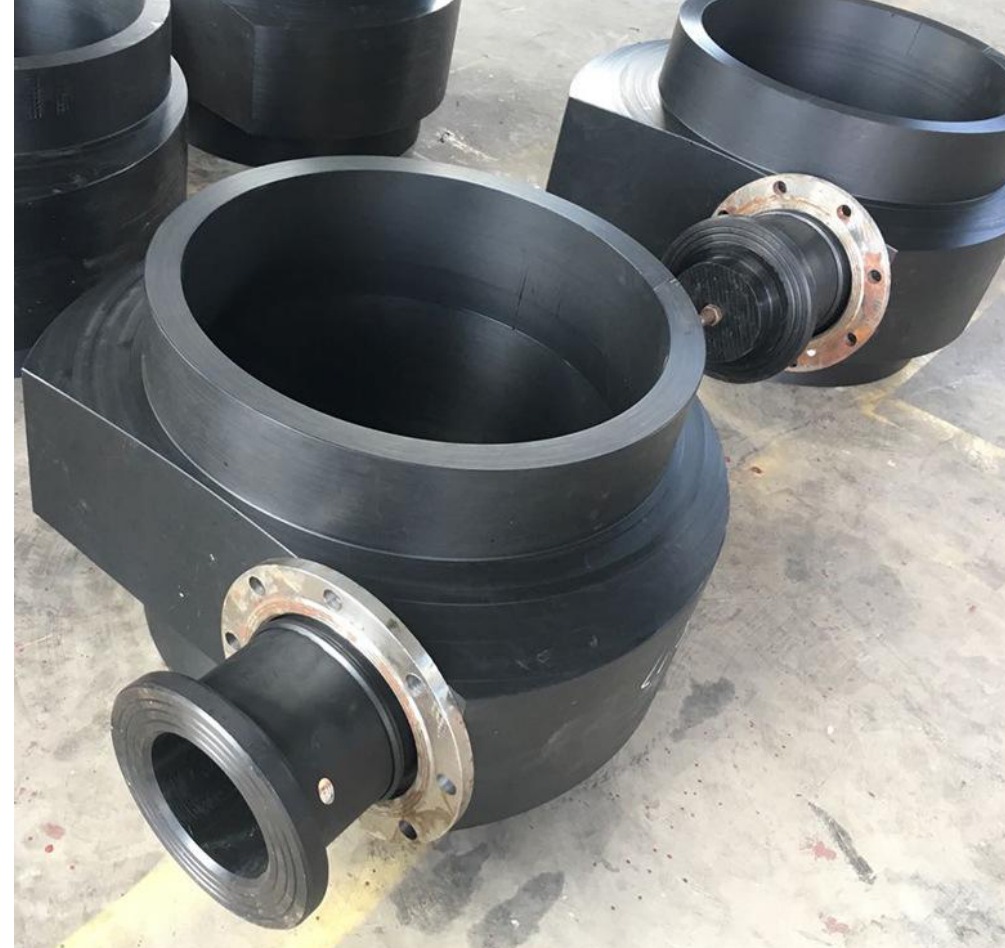

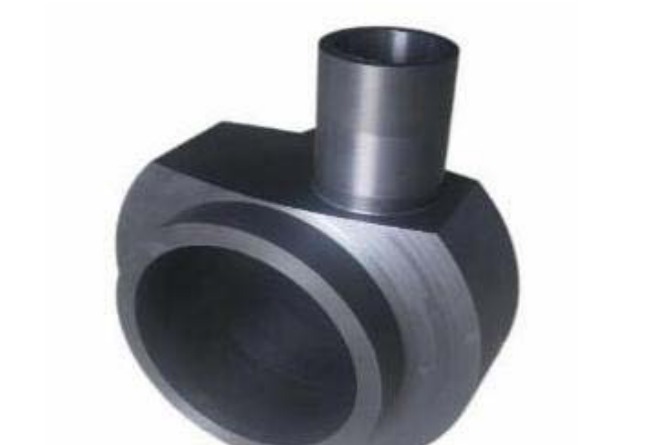

The HDPE Custom Mud Tee is a heavy-wall, one-piece machined tee fitting designed for mud, slurry and high-pressure pipeline service. Unlike injection-molded tees, every HDPE Custom Mud Tee from Bingo Pipeline is CNC lathe machined from a solid PE100 HDPE rod or thick-wall pipe blank, so the body carries no weld line and can safely reach pressure classes that molded fittings cannot achieve.

The enlarged barrel body gives the mud tee a larger flow chamber than a standard equal tee, which is why this fitting is widely used on dredging discharge lines, mining slurry systems and other services where media carries sand, silt or solids. The HDPE Custom Mud Tee is produced to order in three pressure series - SDR6 / PN32, SDR7.4 / PN25 and SDR11 / PN16 - covering main line diameters from 225 mm up to 900 mm with branch outlets from 63 mm to 400 mm.

Quick Information

Product Name: HDPE Custom Mud Tee
Material: PE100 HDPE, machined from solid rod / thick-wall pipe
Manufacturing: CNC lathe machining, one-piece body
Main Size (d1): 225 mm - 900 mm
Branch Size (d2): 63 mm - 400 mm
Pressure Rating: PN16 / PN25 / PN32 (SDR11 / SDR7.4 / SDR6)
Standard: ISO 4427
Connection: Butt fusion to HDPE pipe

Specification Table

Size d1×d2 (mm)	h (mm)	L1 (mm)	L (mm)	PN	SDR
225×63	200	120	363	32	6
315×160	200	120	460	32	6
450×280	200	120	580	32	6
630×315	200	120	615	32	6
800×355	200	120	655	32	6
900×400	200	120	700	32	6
630×125	200	120	425	25	7.4
710×200	200	120	500	25	7.4
800×280	200	120	580	25	7.4
900×400	200	120	700	25	7.4
225×63	200	120	363	16	11
315×160	200	120	460	16	11
450×280	200	120	580	16	11
630×315	200	120	615	16	11
800×355	200	120	655	16	11
900×400	200	120	700	16	11

Note: The table lists representative sizes of the HDPE Custom Mud Tee. The full range covers d1 225-900 mm with branch d2 63-400 mm in SDR6 / SDR7.4 / SDR11. Other diameters, branch sizes and overall lengths can be machined to your drawing.

Key Features

One-piece CNC machined body: Each HDPE Custom Mud Tee is machined from a single solid PE100 rod or thick-wall pipe blank - there is no weld seam in the body, so it withstands higher pressure than ordinary injection-molded fittings.
High pressure capability: Available in PN32 (SDR6), PN25 (SDR7.4) and PN16 (SDR11), covering pressure classes that are difficult to source in the market and suitable for replacing steel fittings.
Enlarged flow chamber: The fat barrel body of the HDPE Custom Mud Tee provides a larger passage for media carrying sand, silt or solids, reducing blockage risk on mud and slurry lines.
Large size coverage: Main pipe diameters 225-900 mm with branch outlets 63-400 mm, all with h = 200 mm and L1 = 120 mm branch geometry.
No mould limitation: Because the fitting is machined, not molded, small quantities and non-standard dimensions are cost-effective - no tooling investment is required.
Standards compliance: Produced in line with ISO 4427 requirements for PE piping systems, with PE100 raw material.

Production

Raw Material

Every HDPE Custom Mud Tee starts from a new PE100 solid HDPE rod or thick-wall HDPE pipe blank. Using virgin PE100 stock - instead of regrind - keeps the mechanical strength and slow crack growth resistance of the finished fitting consistent with the connected pipe.

Molding Process

The blank is machined on a CNC lathe according to the approved drawing: the enlarged barrel, the branch outlet and the fusion faces are all turned from one piece. This CNC lathe machining technology, derived from the United States, produces precise dimensions without moulds and gives the HDPE Custom Mud Tee a one-piece high-pressure body that molded fittings cannot match.

Quality Control

Each fitting is checked for outside diameter, wall thickness, branch position and overall length against the drawing before dispatch. Dimensional and pressure performance follow ISO 4427 requirements, and machining records are kept for traceability.

Applications

Dredging pipelines: The HDPE Custom Mud Tee is used on cutter-suction dredger discharge lines where the media is a mixture of water, sand and silt.
Mining slurry systems: Branch connections on slurry and tailings lines benefit from the enlarged flow chamber and abrasion-resistant PE100 body.
High-pressure water supply: PN25 and PN32 series serve water transmission mains where molded tees cannot reach the required pressure class.
Fire protection pipelines: High-pressure fire water networks use the PN32 series as a reliable replacement for steel tees.
Industrial and chemical plants: Corrosion-resistant HDPE body handles process water and a wide range of chemicals where steel would corrode.
