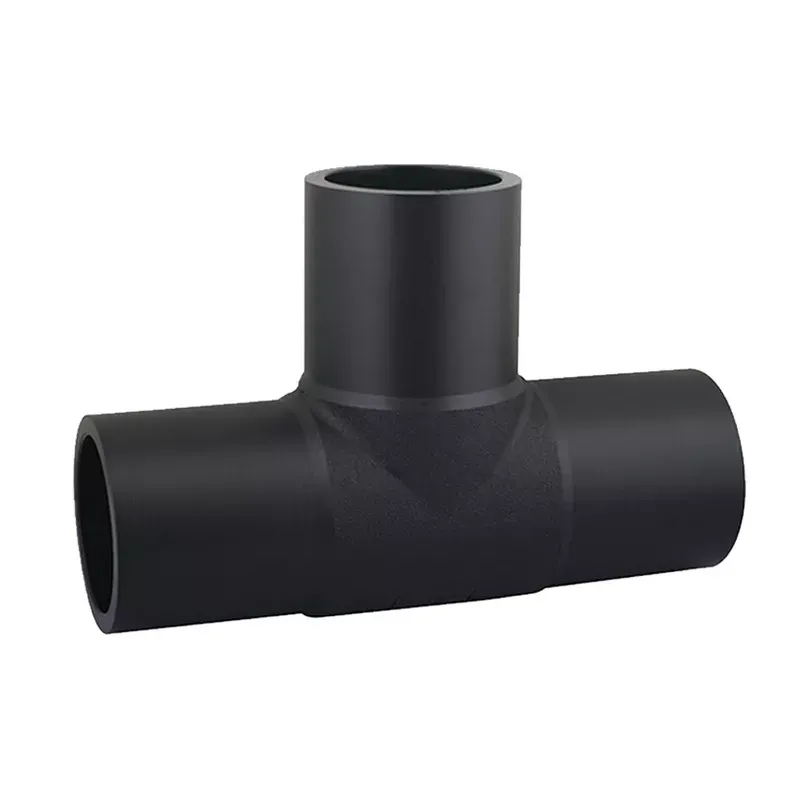

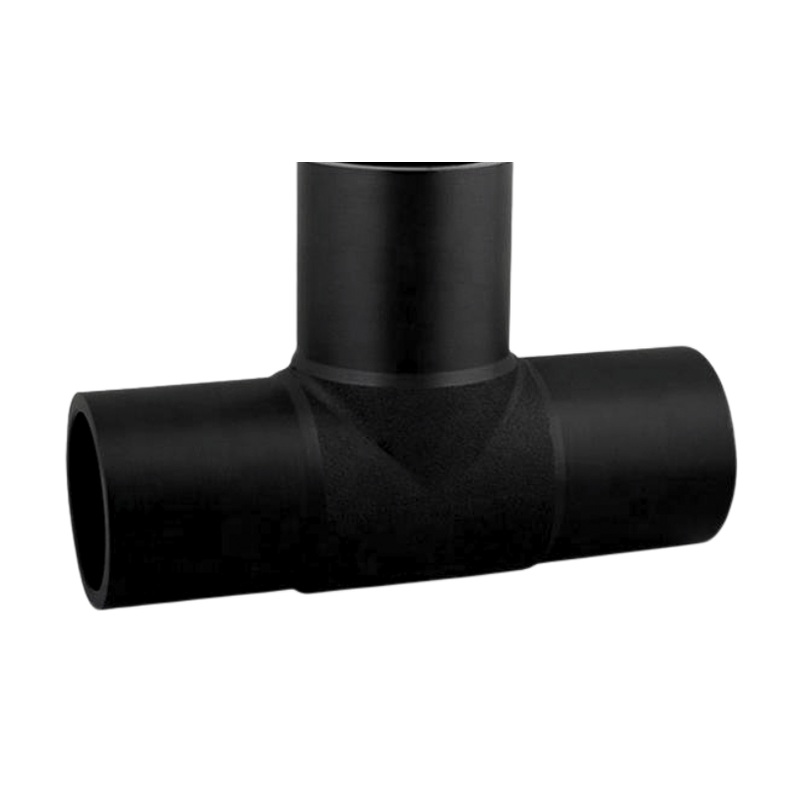

HDPE Butt Fusion Equal Tee for Water

HDPE equal tee manufactured from PE100 for three-way pipe connections in water supply systems.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: HDPE Butt Fusion Fittings

HDPE Butt Fusion Fittings

Product Overview

HDPE equal tee manufactured from PE100 for three-way pipe connections in water supply systems. All three outlets share the same diameter, so this HDPE butt fusion equal tee splits or combines flow without changing line size. Molded in OD 63 - 630 mm with ratings up to PN25, the HDPE butt fusion equal tee is the standard junction fitting for PE100 water networks.

Quick Information

Type: Equal Tee
Material: HDPE PE100
Size: OD 63 - 630 mm
Pressure: PN25 / PN20 / PN16 / PN12.5 / PN10
Standard: ISO 4427 / EN 12201
Stock: In stock

Specification Table

SPECIFICATION (dn-dn1)	Size (mm)				Thickness
	L1	L2	L	H	SDR17	SDR13.6	SDR11
T75X32	65	45	230	93		✓	✓
T75X40	65	48	230	96		✓	✓
T75X50	64	59	228	107.5		✓	✓
T75X63	63	60	228	108.5		✓	✓
T90X40	65	63	222	105.5		✓	✓
T90X50	63	63	222	117		✓	✓
T90X63	63	62	222	116		✓	✓
T90X75	65	64	235	118		✓	✓
T110X32	75	45	220	110		✓	✓
T110X40	73	64	210	130		✓	✓
T110X50	72	63	220	128		✓	✓
T110X50s	64	60	205	121		✓	✓
T110X63	73	69	230	132		✓	✓
T110X63s	64	60	205	122		✓	✓
T110X75	78	70	260	137		✓	✓
T110X75s	65	61	230	122		✓	✓
T110X90	73	68	255	131		✓	✓
T110X90s	63	62	230	124		✓	✓
T125X50	68	58	226	135		✓	✓
T125X63	68	61	227	129.5		✓	✓
T125X75	74	64	242	137.5		✓	✓
T125X90	69	63	265	133.5		✓	✓

Key Features

Equal Three-Way Flow: The HDPE butt fusion equal tee splits flow into two same-size branches or combines two lines into one without restriction.
One-Piece Molded Strength: The HDPE butt fusion equal tee body has no seams or welds, so the branch junction resists full line pressure.
PE100 High-Strength Material: Every HDPE butt fusion equal tee is molded from virgin PE100 compound rated for a 50-year service life.
Rated PN10 - PN25: The HDPE butt fusion equal tee matches the pressure class of the adjoining PE100 pipe across the full OD 63 - 630 mm range.
Leak-Free Fusion: All three ends of the HDPE butt fusion equal tee weld with standard butt fusion machines, forming a monolithic junction.
Corrosion-Free Service: The HDPE butt fusion equal tee never rusts or scales, keeping full bore capacity at the junction for decades.

Production

Raw Material

The HDPE butt fusion equal tee is produced from certified PE100 black compound with uniform carbon black dispersion, compliant with ISO 4427 and EN 12201.

Molding Process

Injection molding forms the HDPE butt fusion equal tee in one cycle with precision cores that guarantee identical bore diameter on all three outlets.

Quality Control

Every HDPE butt fusion equal tee batch is gauged for end diameter, branch squareness and wall thickness, then sampled for hydrostatic strength per ISO 1167.

Applications

Distribution network junctions use the HDPE butt fusion equal tee to split flow into parallel streets.
Manifold headers rely on the HDPE butt fusion equal tee for equal-size take-offs to each zone.
Pump station piping installs the HDPE butt fusion equal tee to combine suction or discharge lines.
Irrigation networks choose the HDPE butt fusion equal tee where main lines divide into equal sub-mains.
