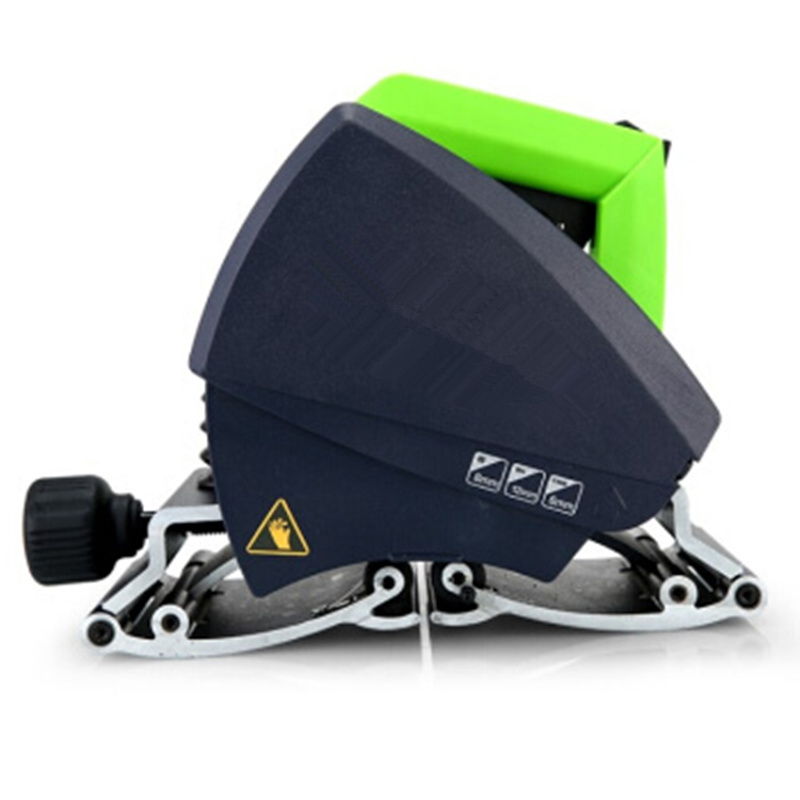

Portable Electric Pipe Cutting Machine

Portable electric pipe cutting machine BG-220 15-220 mm and BG-400 75-400 mm, 1000 W / 1750 W, TCT blade, burr-free cold cutting of PE, PVC, steel and stainless pipe.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: Welding Machine

Welding Machine

Product Overview

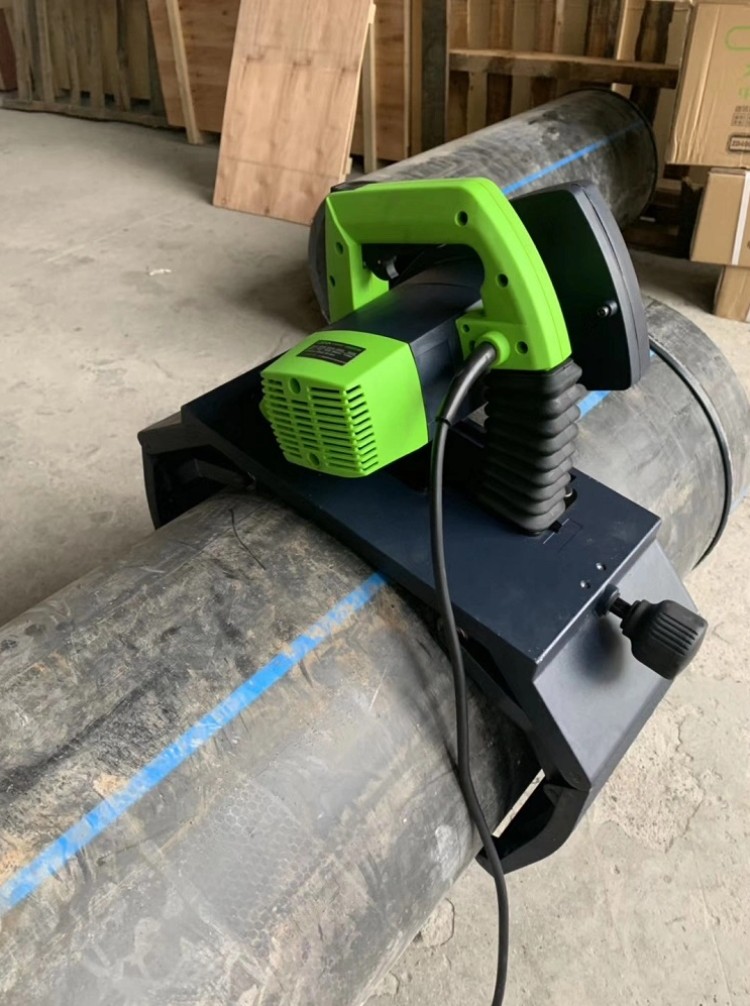

The Portable Electric Pipe Cutting Machine is a motorized cutting tool designed for cleanly severing HDPE, PE, and other thermoplastic pipes on job sites. This Portable Electric Pipe Cutting Machine features a metal cutting frame with adjustable pipe support rollers, enabling straight, burr-free cuts that are essential for proper butt fusion and electrofusion welding preparation.

Certified to CE and GS safety standards, the Portable Electric Pipe Cutting Machine provides a fast and reliable alternative to hand saws and chain cutters, especially valuable when working with medium and large-diameter pipes where manual cutting is impractical or produces uneven pipe ends that compromise weld quality.

Quick Information

Models: BG-220 / BG-400
Cutting range: 15-220 mm / 75-400 mm
Voltage: 220 V 50 Hz
Power: 1000 W / 1750 W
No-load speed: 3200 / 2900 r/min
Max steel pipe thickness: 8 / 10 mm
Max stainless pipe thickness: 6 / 8 mm
Max plastic pipe thickness: 12 / 35 mm
Blade size: 140 x 1.8 x 62 x 46T TCT
Packing size: 53x25x28 cm / 73x28x30 cm
Packing weight: 13 kg / 17 kg

Specification Table

Parameter	BG-220	BG-400
Cutting range (mm)	15-220	75-400
Voltage / frequency	220 V 50 Hz	220 V 50 Hz
Power (W)	1000	1750
No-load speed (r/min)	3200	2900
Max steel pipe thickness (mm)	8	10
Max stainless pipe thickness (mm)	6	8
Max plastic pipe thickness (mm)	12	35
Blade size	140 x 1.8 x 62 x 46T TCT	140 x 1.8 x 62 x 46T TCT
Packing size (cm)	53 x 25 x 28	73 x 28 x 30
Packing weight (kg)	13	17

Key Features

Clean Square Cuts – The Portable Electric Pipe Cutting Machine produces straight, burr-free square cuts that are essential for proper fusion welding preparation, eliminating the pipe end preparation work required after rough hand cutting.
CE/GS Safety Certified – Meets European CE and German GS safety standards, confirming the Portable Electric Pipe Cutting Machine meets electrical safety and operator protection requirements for professional use.

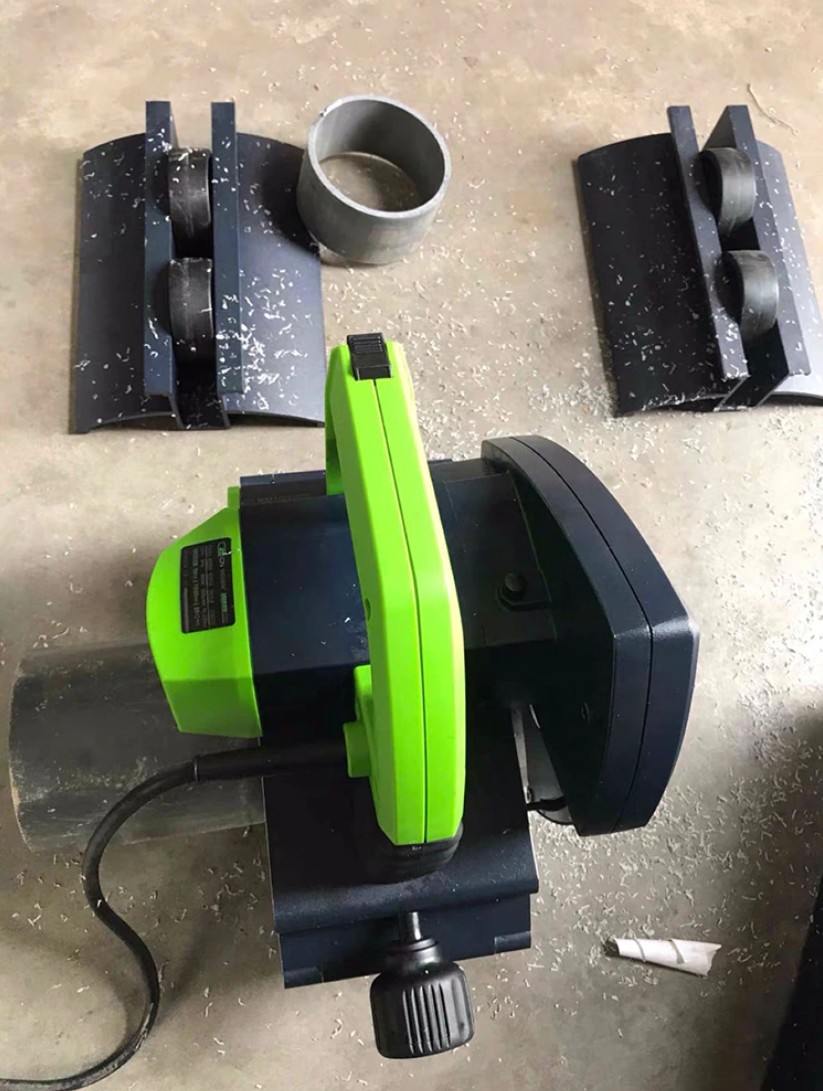

Adjustable Pipe Support – Roller-based pipe support system adjusts to different pipe diameters, holding the pipe securely during cutting to prevent binding and ensure a straight cut.
Lightweight Metal Frame – Aluminum and steel construction provides rigidity for precise cutting while keeping the Portable Electric Pipe Cutting Machine light enough for one-person field operation.
Electric Motor Power – Electric motor delivers consistent cutting force without the physical effort required by manual pipe cutters, especially valuable when cutting thick-walled or large-diameter pipes.
Fusion Welding Ready – The clean, square cuts produced by the Portable Electric Pipe Cutting Machine minimize or eliminate the need for additional pipe end planning before butt fusion welding, saving time on pipeline installation projects.

Production

Raw Material

The Portable Electric Pipe Cutting Machine frame is manufactured from extruded 6063-T5 aluminum alloy for lightweight strength. The cutting blade is manufactured from Cr40 high-carbon steel, heat-treated to HRC 55-60 for edge retention. Drive gears use 40Cr alloy steel with quenching and tempering treatment for durability.

Molding Process

Aluminum frame components are CNC-machined from extruded profiles with precise roller mount and blade guide slots. The cutting blade is precision-ground to a 20° cutting angle and individually hardness-tested. The electric motor housing is die-cast from aluminum alloy for heat dissipation during continuous cutting operations.

Quality Control

Each Portable Electric Pipe Cutting Machine undergoes cutting testing on PE100 pipe samples to verify straight, burr-free cuts across the full diameter range. Blade sharpness and alignment are checked with precision measurement. The electric motor is tested for insulation resistance and grounding continuity per CE/GS requirements. Final inspection includes a 10-cut endurance test without performance degradation.

Applications

Butt Fusion Welding Preparation – The Portable Electric Pipe Cutting Machine produces the square, clean pipe ends required for butt fusion welding, ensuring proper fusion joint quality in HDPE pipeline installation.
Electrofusion Pipe Cutting – Preparing pipe ends for electrofusion fitting installation, where clean cuts and proper end squareness are essential for EF coupler alignment and fusion quality.
Pipeline Repair and Maintenance – Cutting damaged pipe sections for removal and replacement during pipeline maintenance operations, where field portability is essential.
Construction Site Pipe Installation – Cutting HDPE water supply and drainage pipes to length during building construction, where the Portable Electric Pipe Cutting Machine provides rapid, accurate cuts without power saws.
Industrial Plant Piping – Sizing PE chemical and process fluid pipes during plant construction and modification, where clean cuts prevent pipe end contamination that could affect fusion welds.
