HDPE Electro Fusion Double Sealing Stub End

HDPE Electro Fusion Double Sealing Stub End DN 50 – 315 mm, PN10 – PN25, PE100, to ISO 4427-3 / EN 12201-3, for PE water and gas networks.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: HDPE Electro Fusion Fittings

HDPE Electro Fusion Fittings

Product Overview

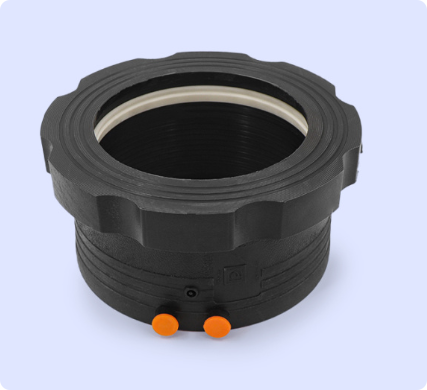

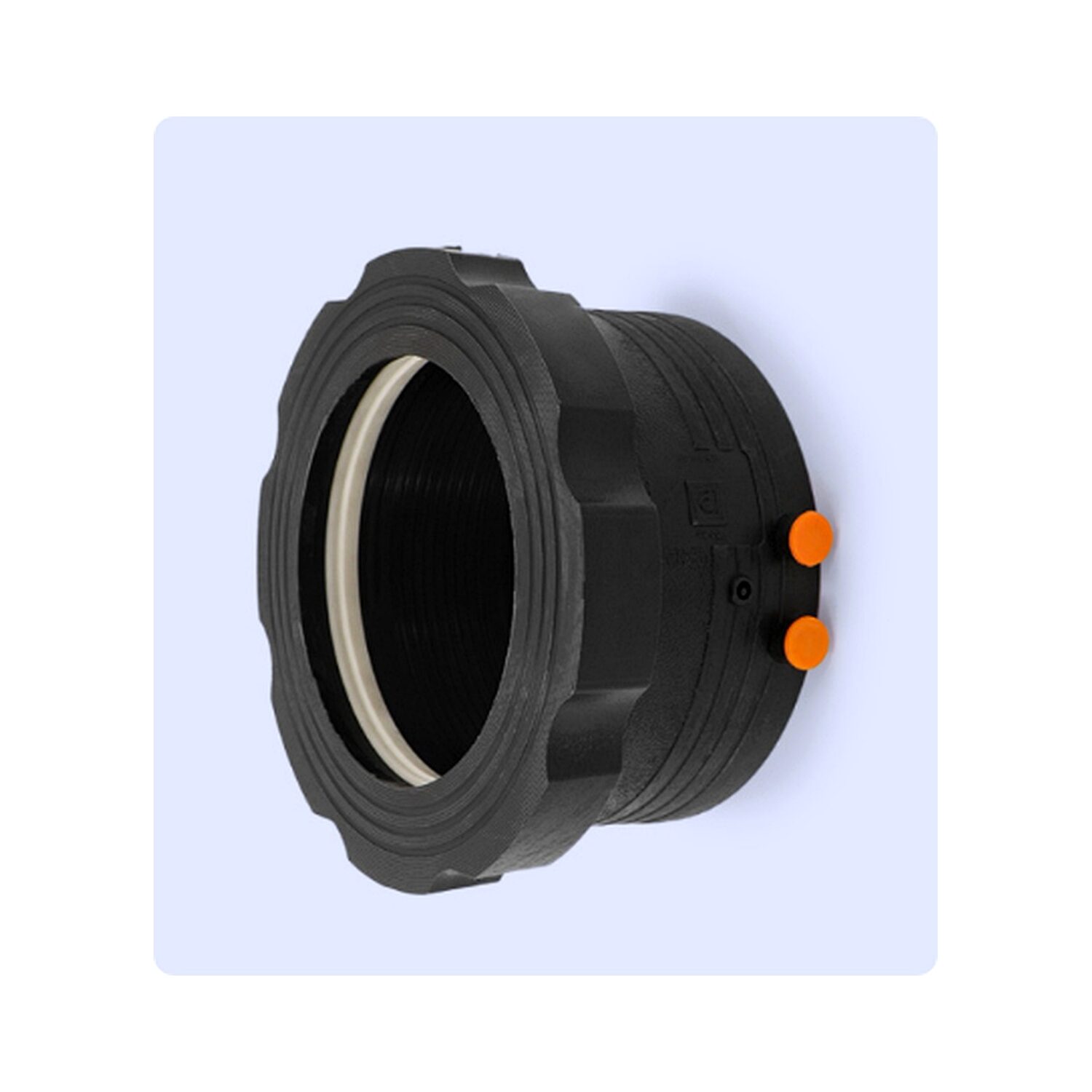

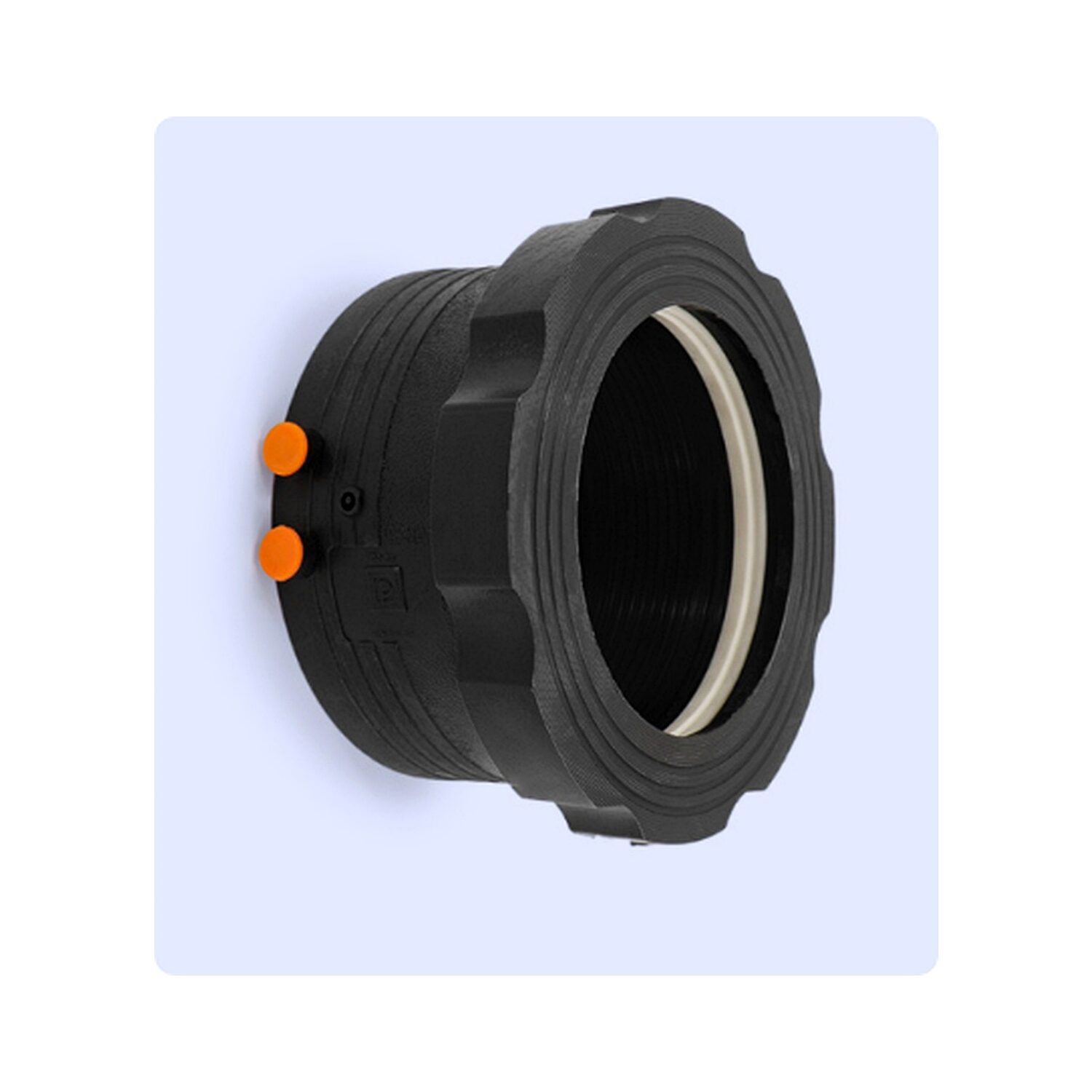

The HDPE electro fusion double sealing stub end terminates a PE100 pipeline with a flanged connection. One end is fused to the pipe through a double sealed electro fusion socket, while the plain stub face is ready for a backing ring and gasket so the HDPE line can be bolted to pumps, valves or steel pipework without giving up the flexibility of the polyethylene run. Available from DN 50 to DN 315 mm with PN10 to PN25 ratings, the HDPE electro fusion stub end is the standard choice for pump rooms and valve chambers where a buried HDPE main has to meet metallic equipment.

Quick Information

Material: PE100 (HDPE)
Joint: Electro fusion, double sealing
End: Plain stub face for backing ring
Pressure Rating: PN10 - PN25
Size Range: DN 50 - 315 mm
Standard: ISO 4427-3 / EN 12201-3
Colour: Black

Specification Table

规格 Φdn	L (mm)	A (mm)	Φd (mm)	PN16	PN10	PN20	PN25
50	78	71	4.7/4.0	√
63	77	71	4.7/4.0	√
75	77	70	4.7/4.0	√
90	85	77	4.7/4.0	√
110	104	95	4.7/4.0	√
125	105	95	4.7/4.0	√
140	107	94	4.7/4.0	√
160	125	113	4.7/4.0	√
200	123	110	4.7/4.0	√
225（8孔）	122	109	4.7/4.0	√
225（12孔）	122	109	4.7/4.0	√
250	150	140	4.7/4.0	√
280	150	145	4.7/4.0	√
315	155	145	4.7/4.0	√
355	155	135	4.7/4.0	√
400	155	133	4.7/4.0	√
450	155	140	4.7/4.0	√
500	190	170	4.7/4.0	√
560	205	180	4.7/4.0	√
630	205	190	4.7/4.0	√
法兰355	150	132	4.7/4.0		√
法兰400	150	135	4.7/4.0		√
法兰500	190	170	4.7/4.0		√
法兰560	205	180	4.7/4.0		√
法兰630	205	190	4.7/4.0		√
法兰710	270	245	4.7/4.0		√
法兰800	273	250	4.7/4.0		√
法兰900	300	285	4.7/4.0		√
法兰1000	342	325	4.7/4.0		√
110	105	95	4.7/4.0			√
160	125	112	4.7/4.0			√
200	125	105	4.7/4.0			√
250	150	137	4.7/4.0			√
315（12孔）	173	160	4.7/4.0			√
315（16孔）	173	160	4.7/4.0			√
法兰50	75	29	4.7/4.0				√
法兰63	76	32	4.7/4.0				√
法兰75	82.5	37	4.7/4.0				√
法兰90	83.5	40	4.7/4.0				√
法兰110	110	71	4.7/4.0				√
法兰160	114.5	80	4.7/4.0				√
法兰200	120	67	4.7/4.0				√
法兰250	150	133	4.7/4.0				√

Key Features

Double Sealed Socket: The HDPE electro fusion stub end uses a double seal design in the socket, so even if one seal is scratched during installation the joint remains leak tight.
Machined Stub Face: The plain face is machined after moulding to stay square to the pipe axis, so gasket compression is even and the flanged joint seals first time.
No Metal Insert: The electro fusion stub end keeps polyethylene in the water path, so there is no corrosion or galvanic risk at the transition point.
Backing Ring Matched: The stub face is dimensioned to standard backing rings, so the HDPE electro fusion stub end bolts straight to steel or ductile iron flanges.
Full PE100 Flexibility: After fusion the line stays flexible, so the buried HDPE main can absorb settlement without stressing the flanged connection.
Dismountable: The flanged joint can be opened for maintenance, so the HDPE electro fusion stub end is used at pump rooms and valve chambers where access matters.

Production

Raw Material

The HDPE electro fusion stub end is moulded from virgin PE100 compound rated MRS 10.0 per ISO 4427-3, with the resin lot documented for traceability.

Molding Process

Each electro fusion stub end is injection moulded in one shot with the resistance wire pre positioned in the socket wall; the plain stub face is machined after moulding so the sealing surface stays flat and parallel to the flange, and the backing ring register is held to the mating flange standard.

Quality Control

Every batch of HDPE electro fusion stub ends is gauged for socket diameter, ovality and coil resistance, then sample welded and pressure tested before release; each fitting carries a batch code traceable to the raw resin lot.

Applications

Pump suction and discharge connections use the HDPE electro fusion stub end to bolt a buried HDPE main to a centrifugal pump without a separate flange adapter.
Connection to steel or ductile iron mains relies on the electro fusion stub end, because the flanged joint can be opened for line pigging or valve replacement.
Filter and strainer inlets choose the HDPE electro fusion stub end, because the plain face mates with standard backing rings and the PE100 body resists corrosion.
Water treatment plant headers install the electro fusion stub end at every branch take off, where the double sealed socket keeps the joint leak tight under pressure cycling.
