Product Overview

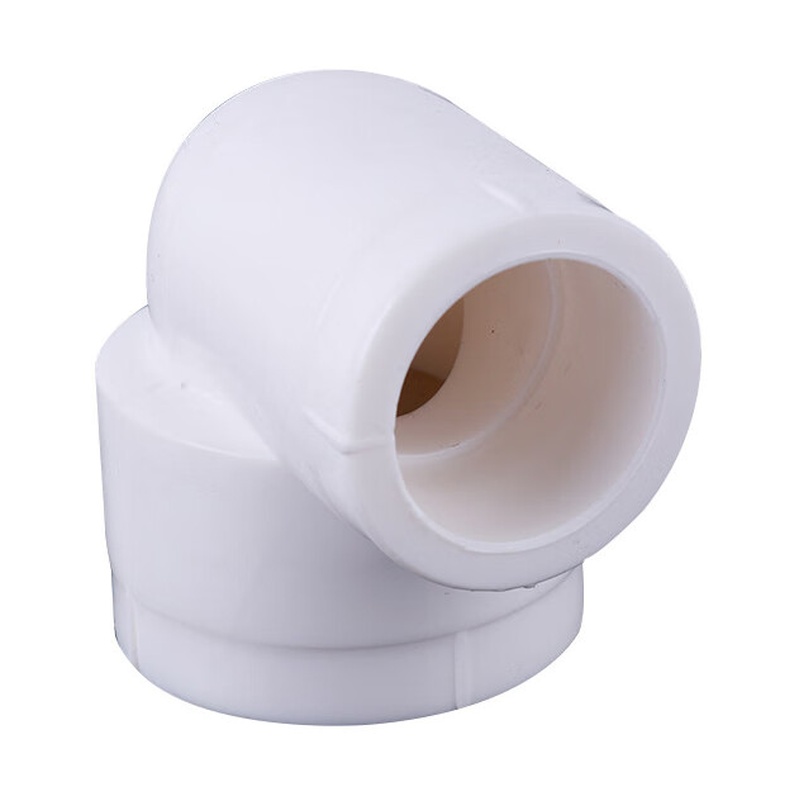

PPR reducer elbow performs two jobs in a single injection molded fitting: it turns the line 90 degrees and reduces the pipe size at the same time. Fusing a PPR reducer elbow removes one joint from the run compared with using a separate elbow and reducer, which lowers pressure loss and reduces potential leak points in hot and cold water installations. Standard sizes run from DN 25 x 20 mm to DN 63 x 50 mm.
Quick Information
- Material: Virgin PP-R
- Fitting Type: Reducer Elbow 90 Degree
- Size Range: DN 25x20 - DN 63x50 mm
- Connection: Heat Fusion (both ends)
- Rated Pressure: PN 1.25 to PN 2.5 MPa
- Standards: GB/T 18742, ISO 15874
Specification Table
| Size Code | Reducing Size (mm) | Connection |
|---|---|---|
| L25x20 | 25 x 20 | Heat Fusion |
| L32x25 | 32 x 25 | Heat Fusion |
| L40x32 | 40 x 32 | Heat Fusion |
| L50x40 | 50 x 40 | Heat Fusion |
| L63x50 | 63 x 50 | Heat Fusion |
