Product Overview

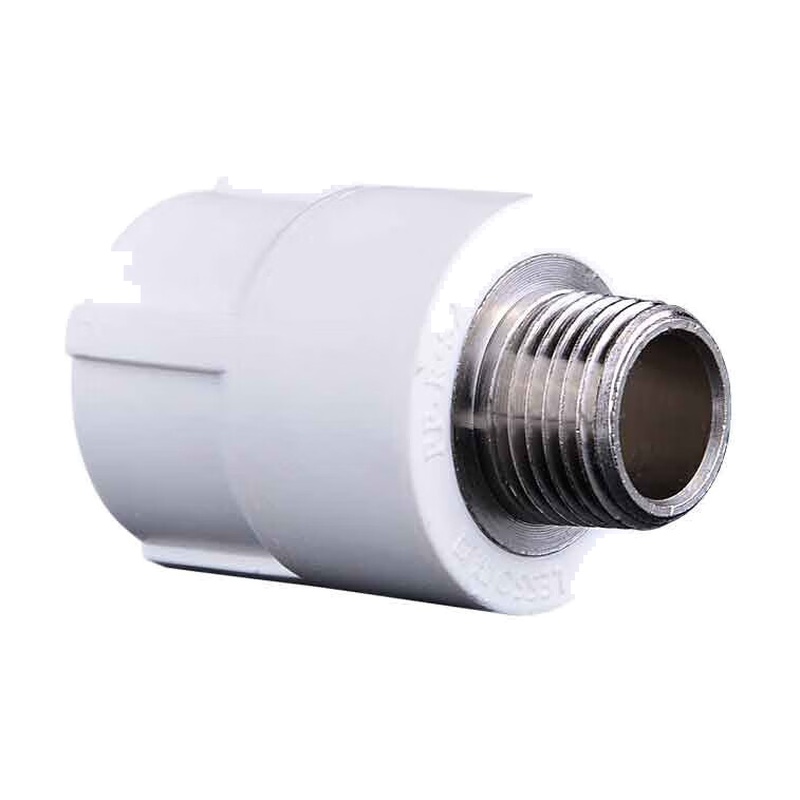

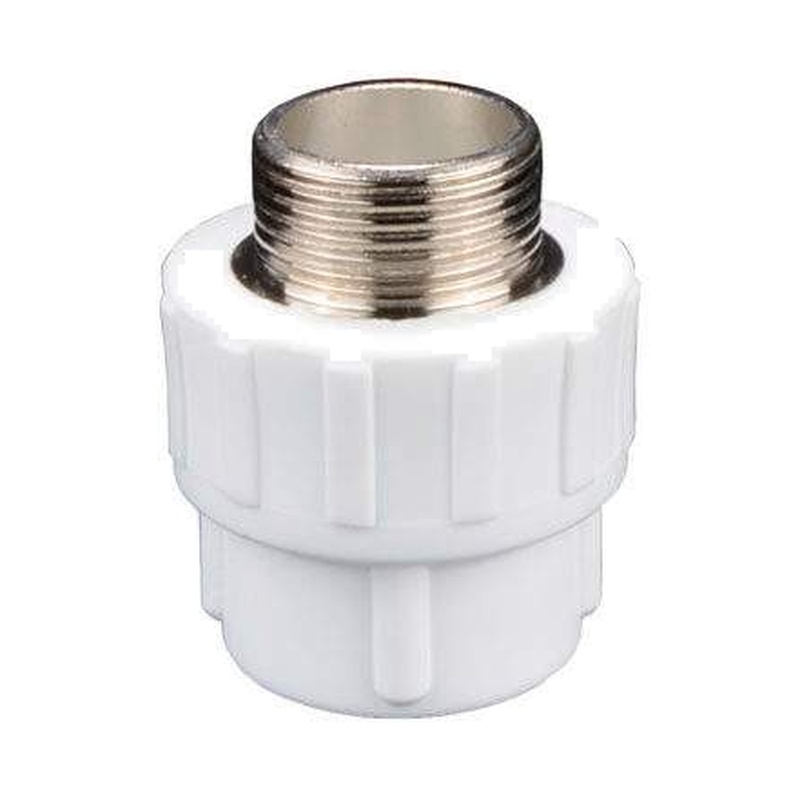

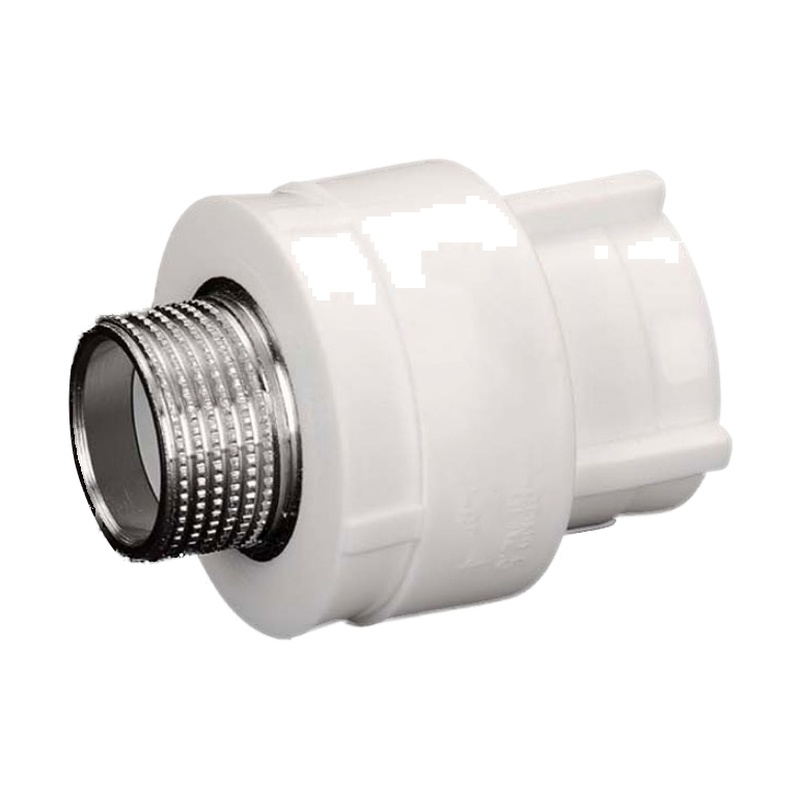

PPR male threaded coupler connects a heat fused PPR line to a female threaded fixture or pipe. One end is a standard PPR socket for heat fusion, the other end carries a precision BSP male thread on a brass insert for reliable connection.
Quick Information
- Material: Virgin PP-R body, Brass threaded insert
- Connection: Heat Fusion + Male BSP Thread
- Size Range: S20×1/2M to S63×2M
- Standards: GB/T 18742, ISO 15874
Specification Table
| Size Code | PPR DN (mm) | Thread Size | Connection |
|---|---|---|---|
| S20×1/2M | 20 | 1/2" M BSP | Heat Fusion + Threaded |
| S20×3/4M | 20 | 3/4" M BSP | Heat Fusion + Threaded |
| S25×1/2M | 25 | 1/2" M BSP | Heat Fusion + Threaded |
| S25×3/4M | 25 | 3/4" M BSP | Heat Fusion + Threaded |
| S32×1/2M | 32 | 1/2" M BSP | Heat Fusion + Threaded |
| S32×3/4M | 32 | 3/4" M BSP | Heat Fusion + Threaded |
| S32×1M | 32 | 1" M BSP | Heat Fusion + Threaded |
| S40×1¼M | 40 | 1 1/4" M BSP | Heat Fusion + Threaded |
| S50×1½M | 50 | 1 1/2" M BSP | Heat Fusion + Threaded |
| S63×2M | 63 | 2" M BSP | Heat Fusion + Threaded |
