Product Overview

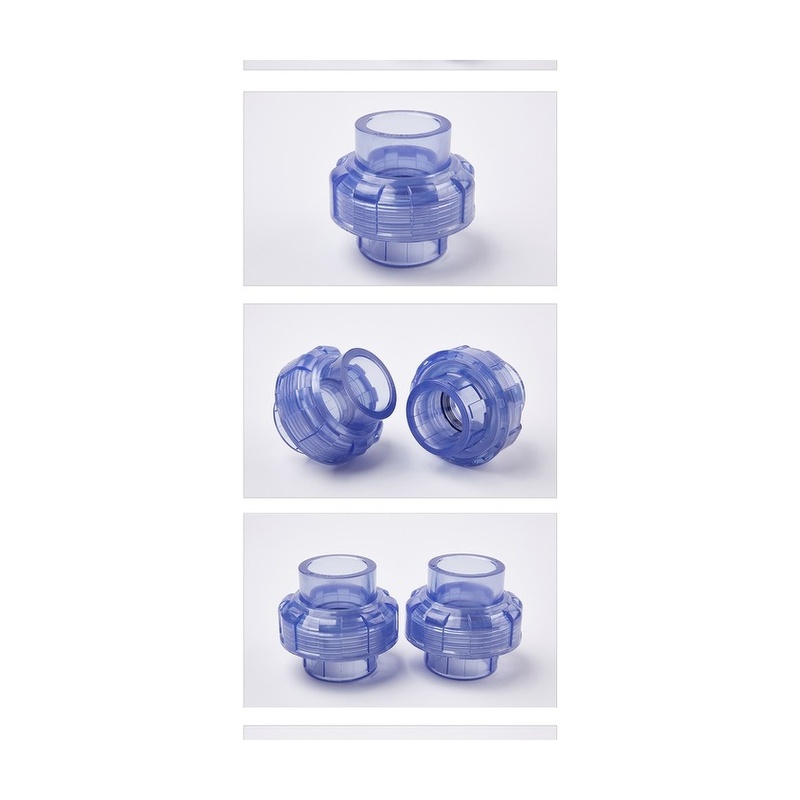

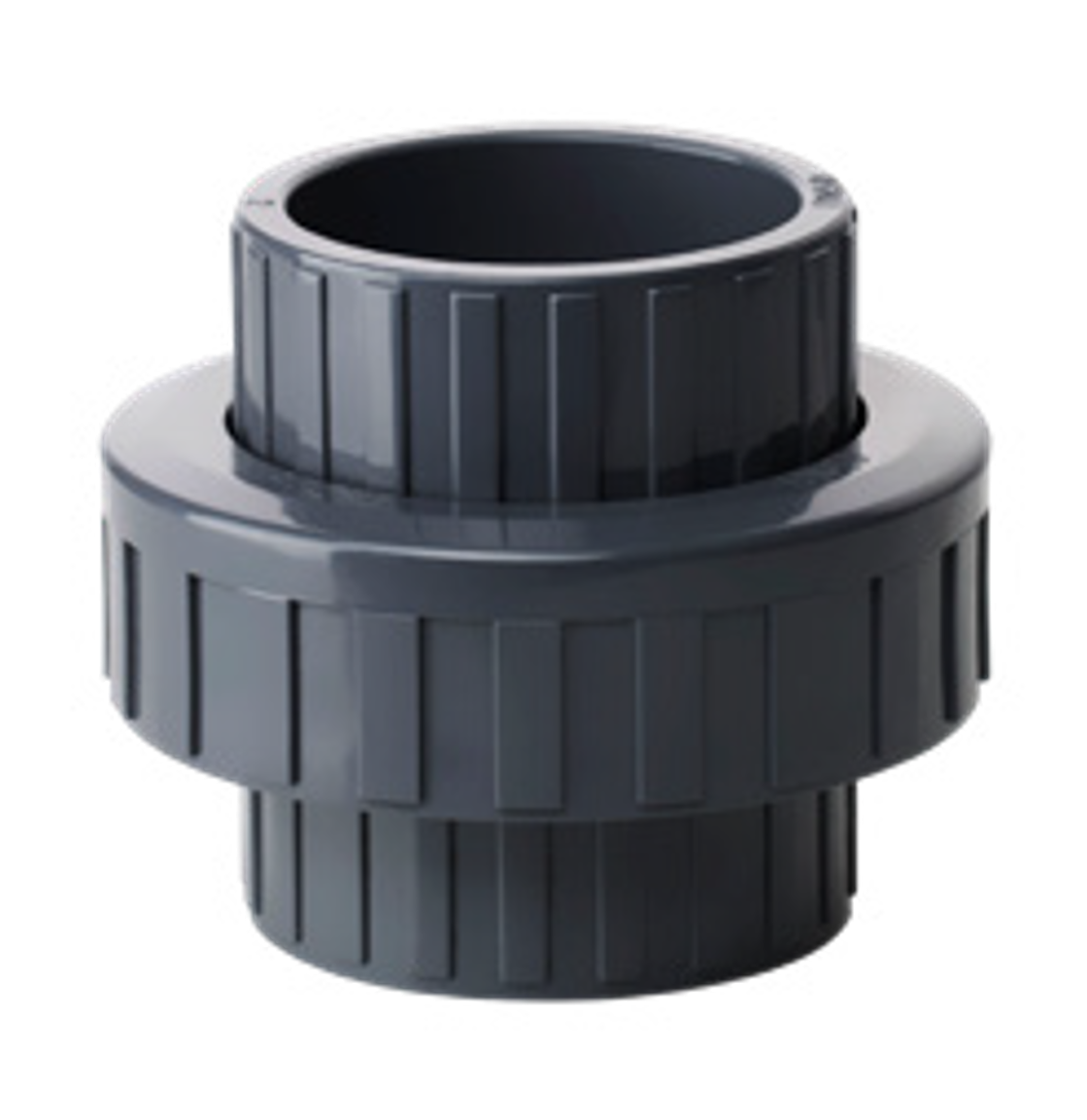

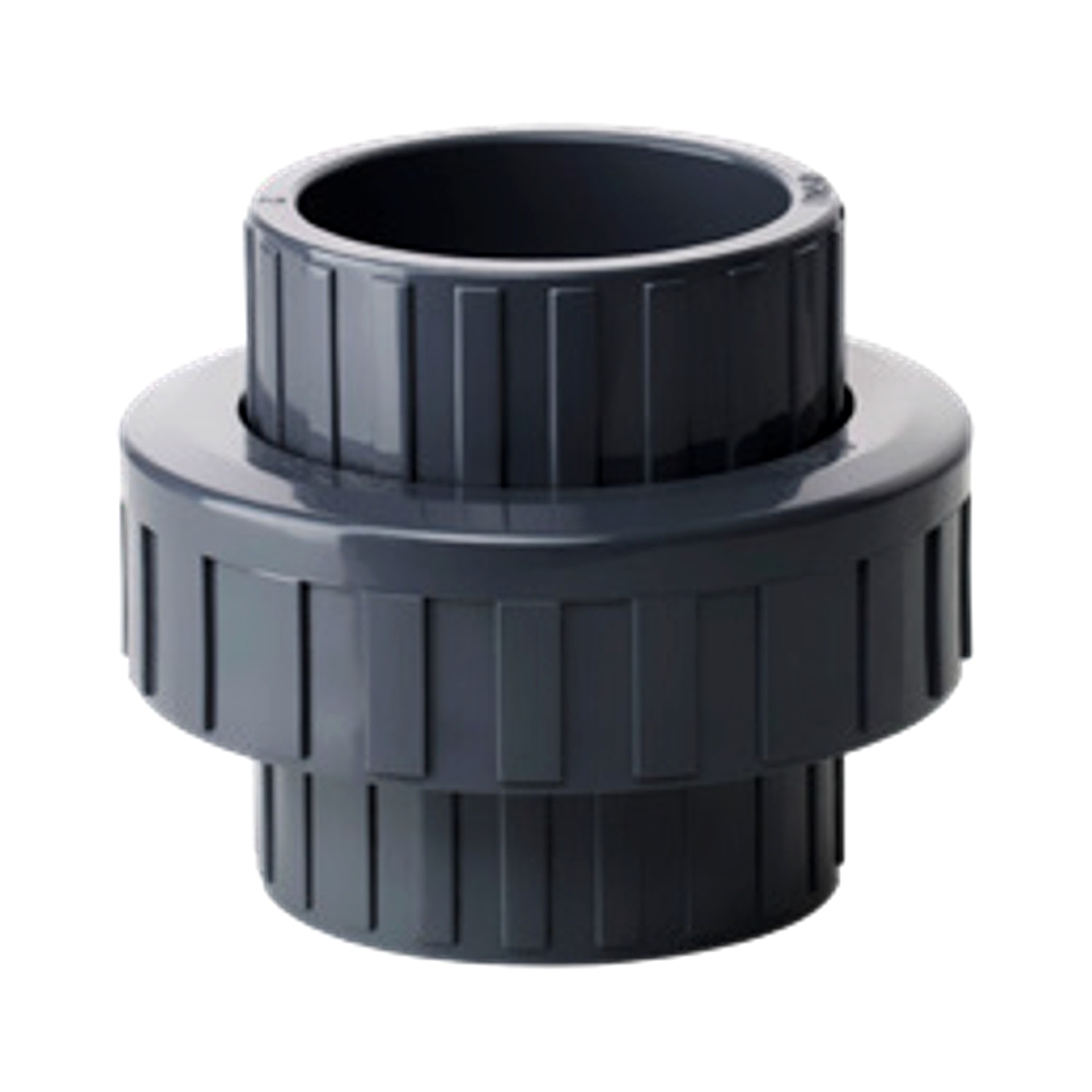

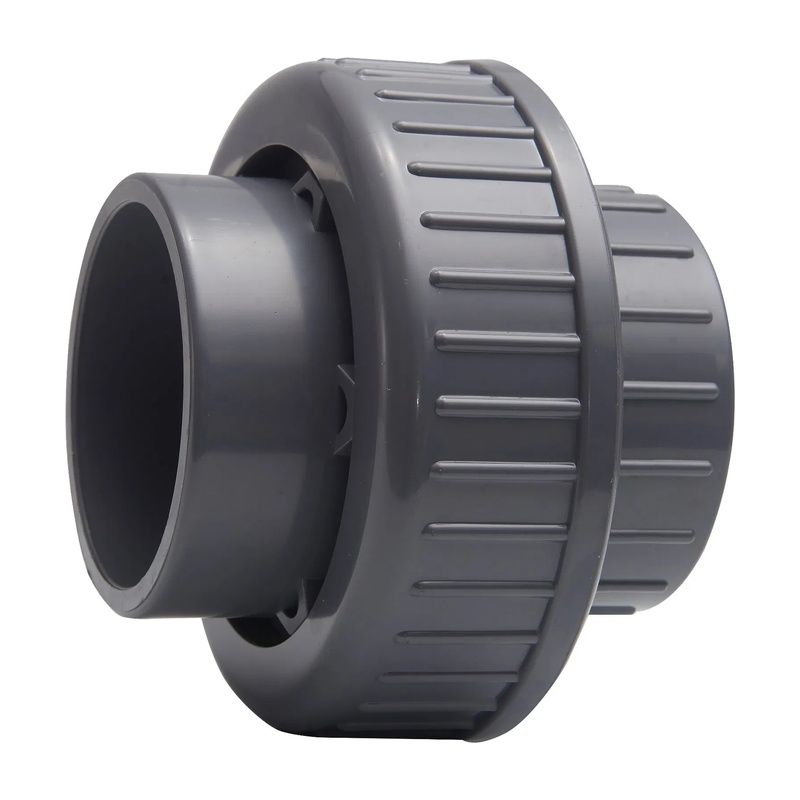

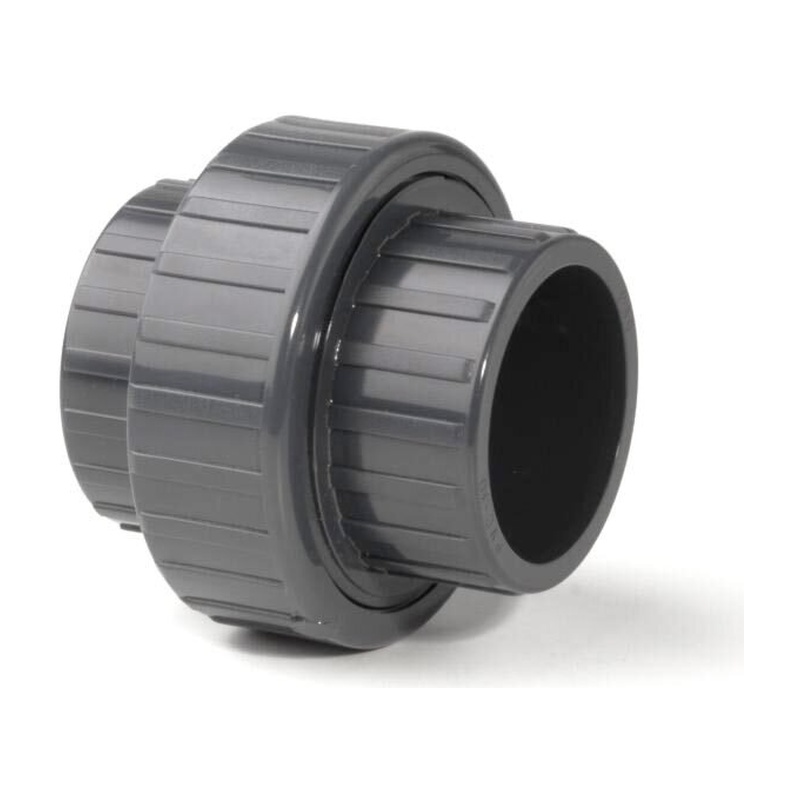

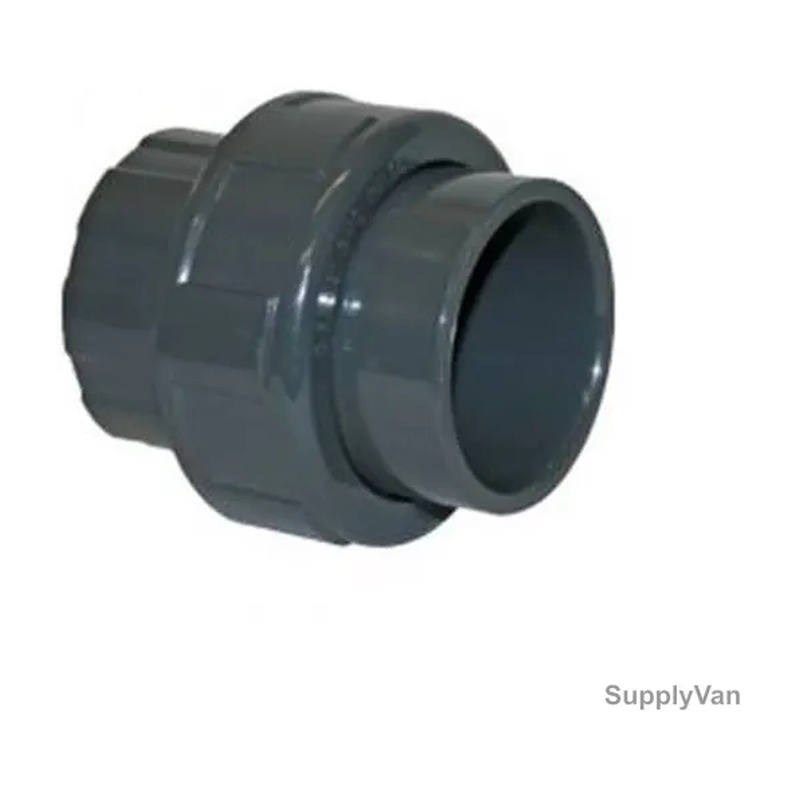

UPVC union fitting for quick assembly and disassembly of PVC-U piping systems. Manufactured from virgin PVC-U compound per GB/T 10002.2 and ISO 1452, this UPVC union allows sections of pipe to be connected and disconnected without cutting, making it ideal for equipment connections and maintenance points. Available in DN 15 - 200 mm with PN6 - PN16 ratings.
Quick Information
- Type: Union
- Material: PVC-U / PVC-C
- Size: DN 15 - 200 mm
- Pressure Rating: PN6 - PN16
- Connection: Union (Threaded)
- Standard: GB/T 10002.2 / ISO 1452
- Stock: In stock
Specification Table
| Size DN | Dimensions (mm) |
Nominal Pressure
PN(kg/cm²) |
||||||
|---|---|---|---|---|---|---|---|---|
| D0 | d0 | d1 | d2 | d | T | L | ||
| 15 | 47.00 | 26.80 | 20.30 | 19.95 | 15.50 | 16.50 | 41.50 | PN10 |
| 20 | 53.90 | 32.00 | 25.30 | 24.95 | 20.00 | 19.00 | 48.00 | PN10 |
| 25 | 67.00 | 40.30 | 32.30 | 31.90 | 26.00 | 22.50 | 55.00 | PN10 |
| 32 | 78.50 | 49.10 | 40.35 | 39.90 | 34.00 | 26.50 | 63.50 | PN10 |
| 40 | 93.00 | 61.60 | 50.35 | 49.90 | 43.00 | 31.50 | 75.50 | PN10 |
| 50 | 110.60 | 76.00 | 63.40 | 62.90 | 56.00 | 38.00 | 89.50 | PN10 |
| 65 | 130.00 | 89.60 | 75.40 | 74.90 | 67.00 | 44.00 | 102.00 | PN10 |
| 80 | 147.50 | 105.50 | 90.50 | 89.90 | 82.00 | 51.50 | 120.00 | PN10 |
| 100 | 173.00 | 126.50 | 110.60 | 109.90 | 102.00 | 61.50 | 140.00 | PN10 |
