HDPE Electrofusion Welding Machine

Fully automatic electrofusion welding machine BG350 to BG12000, 3500-12000 W output, 20-1600 mm range, barcode scanning and data logging.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: Welding Machine

Welding Machine

Product Overview

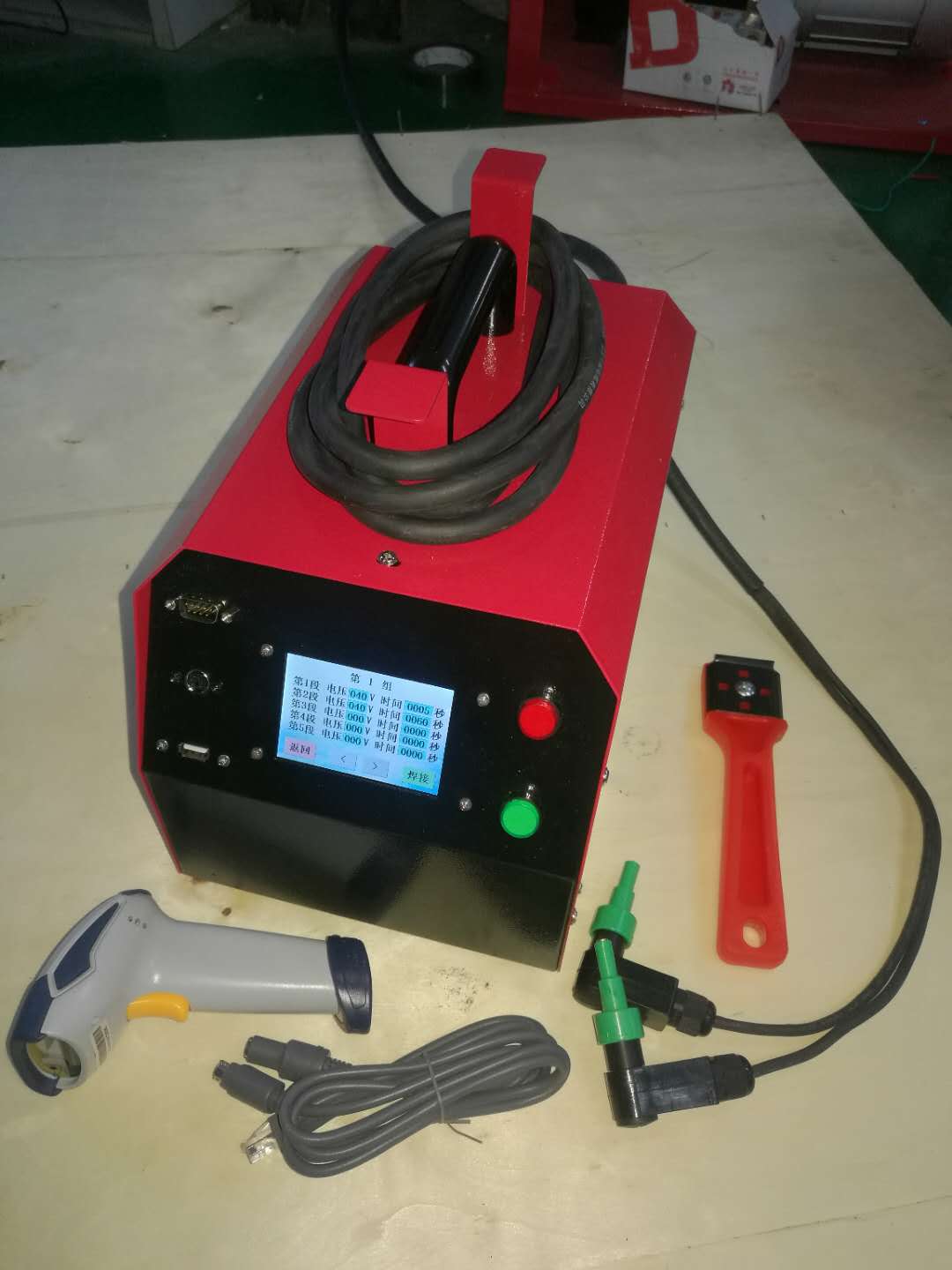

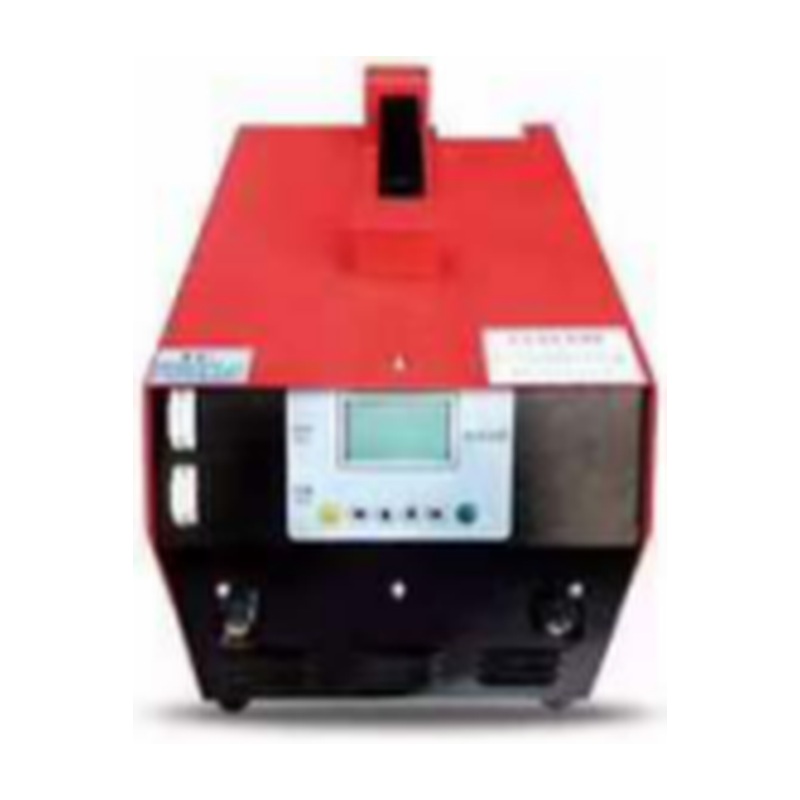

The HDPE Electrofusion Welding Machine is a fully automatic thermal welding tool designed for joining HDPE and PE pipes using electrofusion (EF) fittings. This HDPE Electrofusion Welding Machine operates on AC220V input power, delivering up to 50A output current through AC3-60V for melting the resistance wires embedded in EF couplers, tees, and elbows.

Featuring barcode scanning technology, the HDPE Electrofusion Welding Machine automatically reads fusion parameters from EF fitting labels, eliminating manual data entry errors. The machine operates reliably in ambient temperatures from -20°C to 45°C, making it suitable for year-round field installation in diverse climate conditions.

Quick Information

Model: LS-3H
Input Power: AC220V ±15% 50/60Hz
Power Consumption: 3.5KW
Max Output Current: 50A
Output Voltage: AC 3-60V
Operating Temperature: -20°C to 45°C
Dimensions: 360×240×220mm
Weight: 20KG

Specification Table

Model	LS-3H
Input Power	AC220V ±15% 50/60Hz
Power Consumption	3.5KW
Max Output Current	50A
Output Voltage	AC 3-60V
Operating Temperature	-20°C to 45°C
Dimensions	360×240×220mm
Weight	20KG

Key Features

Barcode Parameter Scanning – The HDPE Electrofusion Welding Machine automatically reads welding voltage and time from EF fitting barcode labels, ensuring correct fusion parameters without manual input errors.
Wide Output Range – Adjustable AC output from 3V to 60V accommodates all standard EF fitting sizes from 50mm to 315mm couplers, tees, elbows, and reducers.
Cold Climate Operation – Rated for operation in temperatures as low as -20°C, enabling winter pipeline installation in northern climate zones.
Automatic Fusion Control – Microprocessor-controlled fusion cycle manages voltage ramp-up, hold time, and cooling period automatically after barcode parameter input.

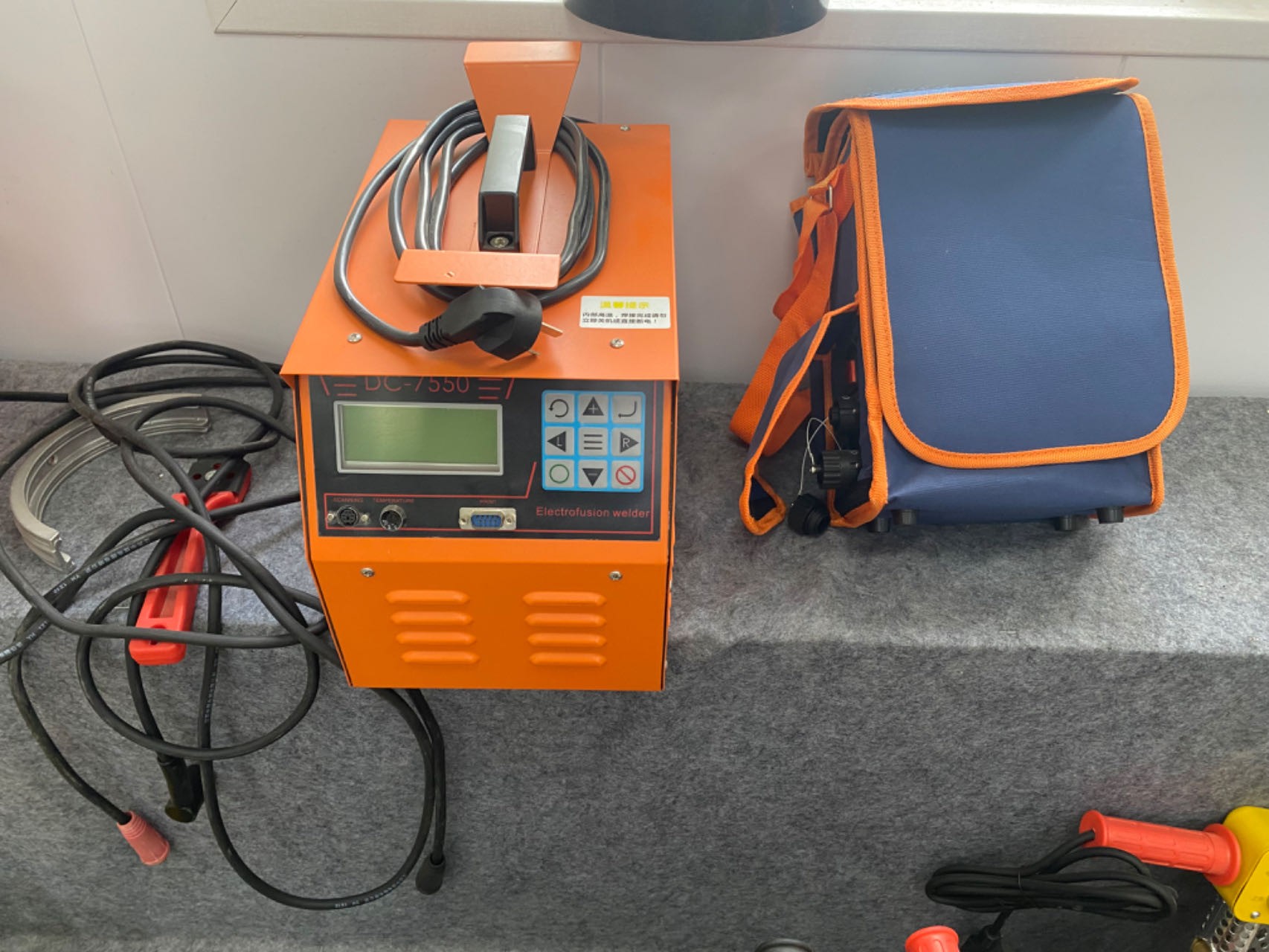

Compact and Portable – At 20kg with a 360×240×220mm case, the HDPE Electrofusion Welding Machine is easily carried to trench-side welding locations for in-place pipe joining.
Data Recording – Built-in memory stores up to 1000 weld records including fitting barcode, fusion parameters, date/time, and operator ID for quality traceability.

Production

Raw Material

The HDPE Electrofusion Welding Machine enclosure is manufactured from ABS engineering plastic with impact resistance rated for 1.5m drop onto concrete. Internal power electronics use IGBT module technology for efficient AC power conversion. The output cables use 6mm² copper conductors with silicone insulation rated for 90°C continuous operation.

Molding Process

The ABS enclosure is injection-molded with wall thickness reinforcement at handle and connector points. The internal PCB assemblies undergo conformal coating application for moisture and dust protection. Each IGBT power module is individually tested under load at maximum 50A output before assembly into the unit.

Quality Control

Every HDPE Electrofusion Welding Machine undergoes 100% output voltage and current calibration testing across the full 3-60V range. Barcode scanning accuracy is verified with reference fitting labels. The unit is tested at -20°C in an environmental chamber to confirm cold-start reliability. Final QC includes a full electrofusion weld test on SDR11 PE100 EF couplers.

Applications

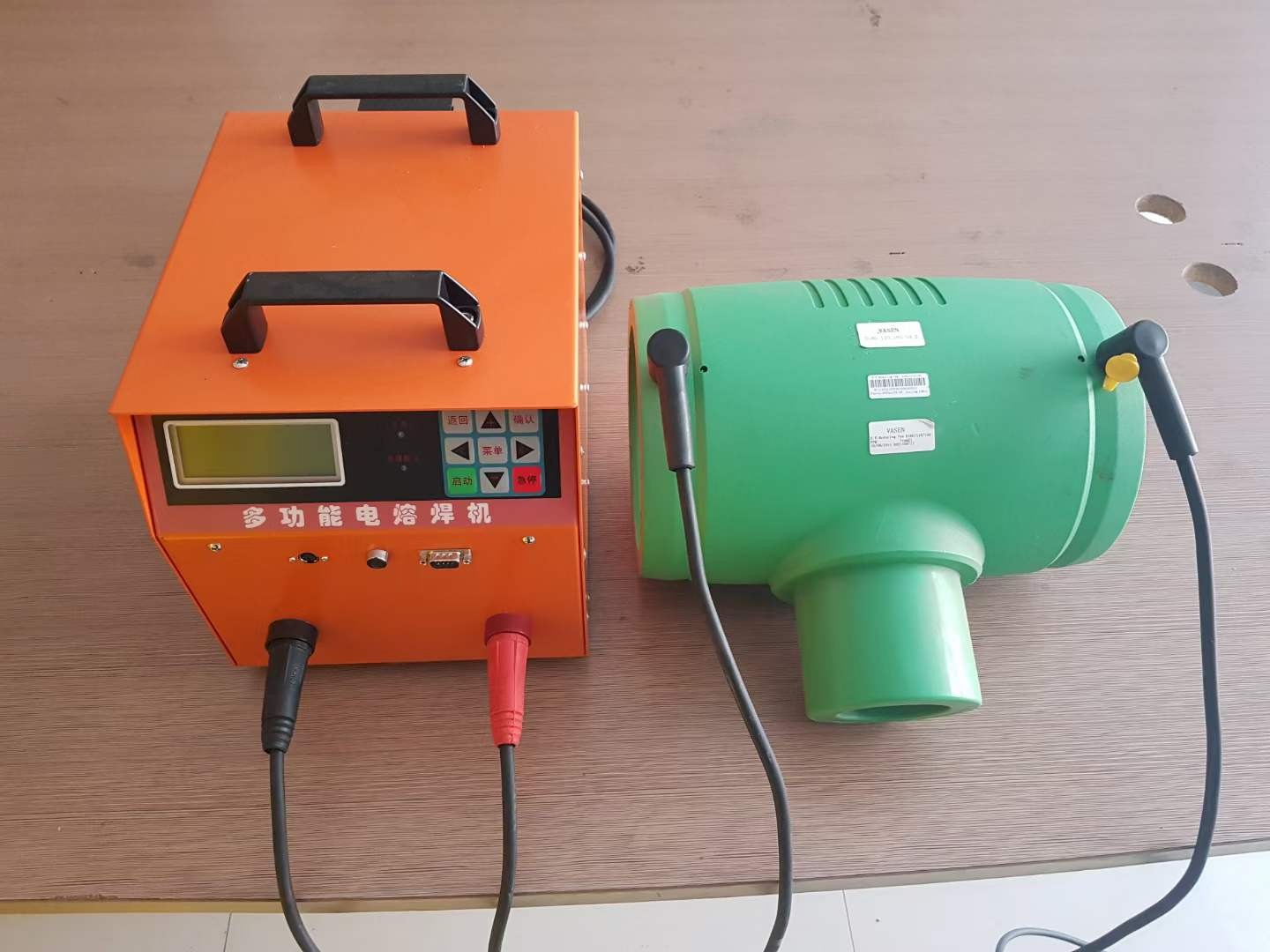

Water Supply Pipelines – Joining HDPE water distribution mains and service lines using EF couplers and tees, where the HDPE Electrofusion Welding Machine provides reliable, leak-free connections.
Natural Gas Distribution – Welding PE100 gas distribution pipes in residential and commercial areas, using barcode-controlled fusion for safety-critical joint integrity.
Mining and Industrial – Joining HDPE slurry, chemical, and process pipes where embedded-wire EF fittings provide consistent weld quality in challenging environments.
Repair and Cut-in – Live pipeline repairs and branch connections using EF saddle clamps and tapping tees welded with the HDPE Electrofusion Welding Machine without interrupting flow.
Restricted-Access Installation – Trench and tunnel pipe joining where traditional butt fusion machines cannot fit, using compact EF fittings and the portable welding unit.
