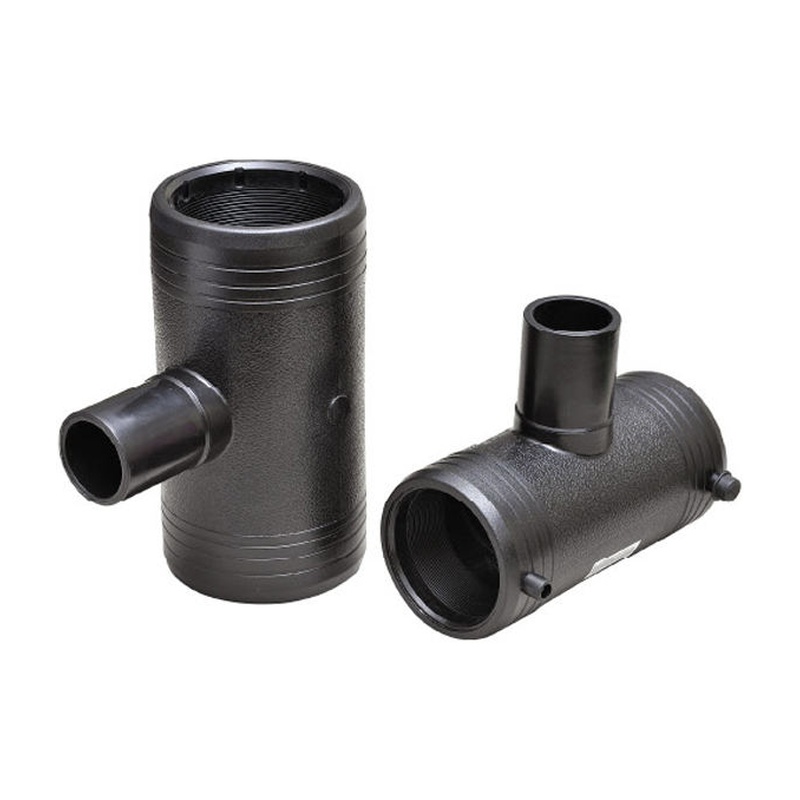

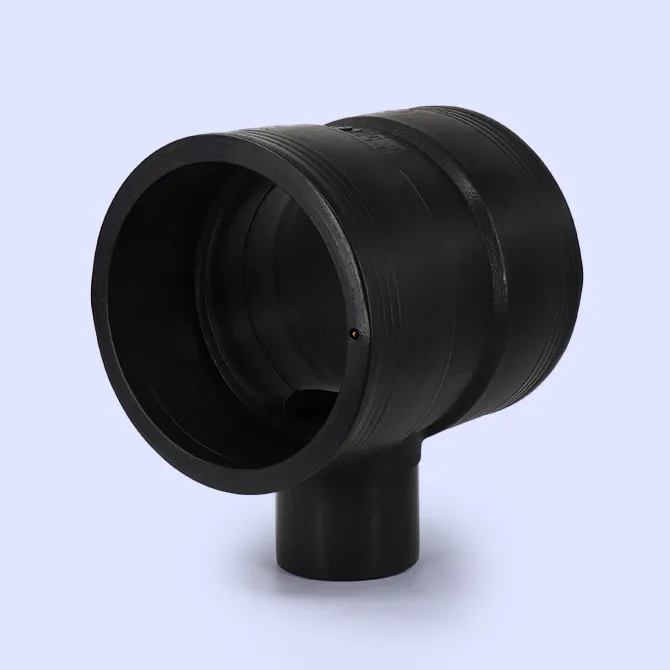

HDPE Electro Fusion Reducer Tee

HDPE Electro Fusion Reducer Tee, PN10 / PN16, PE100, to ISO 4427 / EN 12201, for PE water and gas networks.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: HDPE Electro Fusion Fittings

HDPE Electro Fusion Fittings

Product Overview

The HDPE electro fusion reducer tee branches a PE100 water main into a smaller diameter line through three electro fusion sockets. Two sockets match the main diameter and one socket is reduced for the branch, so the fitting performs a tee branch and a size reduction in one piece. Available from DN 50 to DN 315 mm with PN10 to PN16 ratings, the HDPE electro fusion reducer tee is the standard choice for buried potable water networks where a smaller branch takeoff is required.

Quick Information

Material: PE100 (HDPE)
Joint: Electro fusion
Configuration: Reducing tee
Pressure rating: PN10 / PN16
Standard: ISO 4427 / EN 12201
Colour: Black

Specification Table

Specification Φdn	L	A	H	Φd	PN16	PN10	PN20	PN25

32*25	107	54	42	4.7/4.0	√
40*32	123	40	67	4.7/4.0	√
110*50	214	75	95.5	4.7/4.0	√
110*63	214	75	98.5	4.7/4.0	√
110*75	214	75	101.5	4.7/4.0	√
110*90	214	75	108.8	4.7/4.0	√
125*75	260	80	118.25	4.7/4.0	√
125*90	260	80	114.5	4.7/4.0	√
125*110	260	80	118.5	4.7/4.0	√
140*90	281	85	123	4.7/4.0	√
140*110	281	85	126.75	4.7/4.0	√
160*50	263	93	123	4.7/4.0	√
160*63	263	93	125.5	4.7/4.0	√
160*75	263	93	130	4.7/4.0	√
160*90	315	93	134.5	4.7/4.0	√
160*110	315	93	137.5	4.7/4.0	√
160*125	315	93	142.5	4.7/4.0	√
160*140	315	93	140.9	4.7/4.0	√
200*50	295	104	147.5	4.7/4.0	√
200*63	295	104	150	4.7/4.0	√
200*75	295	104	154	4.7/4.0	√
200*90	295	104	158	4.7/4.0	√
200*110	295	104	161.5	4.7/4.0	√
200*125	360	104	167.5	4.7/4.0	√
200*160	360	104	168.5	4.7/4.0	√
225*90	395	120	173	4.7/4.0	√
225*110	395	120	176	4.7/4.0	√
225*160	395	120	186	4.7/4.0	√
225*200	395	120	187.5	4.7/4.0	√
250*75	354	125	183.5	4.7/4.0	√
250*90	354	125	189.25	4.7/4.0	√
250*110	354	125	191	4.7/4.0	√
250*125	354	125	195.5	4.7/4.0	√
250*160	437	125	205.4	4.7/4.0	√
250*200	437	125	205	4.7/4.0	√
280*110	480	125	223	4.7/4.0	√
280*160	480	125	217	4.7/4.0	√
280*200	480	125	221.5	4.7/4.0	√
280*250	480	125		4.7/4.0	√
315*90	398	133	229.5	4.7/4.0	√
315*110	398	133	231.5	4.7/4.0	√
315*160	398	133	240.85	4.7/4.0	√
315*200	518	133	243.5	4.7/4.0	√
315*250	518	133	250.5	4.7/4.0	√
355*110	577	140	257.5	4.7/4.0	√
355*160	577	140	267	4.7/4.0	√
355*200	577	140	267.5	4.7/4.0	√
355*250	577	140	279.5	4.7/4.0	√
355*315	577	140	276.5	4.7/4.0	√
400*110	338	143	285	4.7/4.0	√
400*160	338	143	294.25	4.7/4.0	√
400*200	338	143	294	4.7/4.0	√
400*250	623	143	303.75	4.7/4.0	√
400*315	623	143	304.3	4.7/4.0	√
450*110	703	156	310.75	4.7/4.0	√
450*160	703	156	321	4.7/4.0	√
450*200	703	156	320	4.7/4.0	√
450*250	703	156	330	4.7/4.0	√
450*315	703	156	331	4.7/4.0	√
450*400	703	156	338.5	4.7/4.0	√
500*110	495	151	342	4.7/4.0	√
500*160	495	151	351.5	4.7/4.0	√
500*200	495	151	351.75	4.7/4.0	√
500*250	495	151	361	4.7/4.0	√
500*315	720	151	359.5	4.7/4.0	√
500*400	720	151	369	4.7/4.0	√
560*200	803	168	381.5	4.7/4.0	√
560*250	803	168	390.5	4.7/4.0	√
560*400	803	168	401	4.7/4.0	√
630*110	705	185	421	4.7/4.0	√
630*160	705	185	431	4.7/4.0	√
630*200	705	185	431	4.7/4.0	√
630*250	705	185	438	4.7/4.0	√
630*315	705	185	438.5	4.7/4.0	√
630*400	705	185	447.5	4.7/4.0	√
630*500	930	84.5	453.5	4.7/4.0	√





Tee 315*90	398	135	218.5	4.7/4.0		√
Tee 315*110	398	135	221.5	4.7/4.0		√
Tee 315*160	398	135	233.5	4.7/4.0		√
Tee 315*200	518	135	235	4.7/4.0		√
Tee 315*250	518	135	243.5	4.7/4.0		√
Tee 355*110	585	140	249.5	4.7/4.0		√
Tee 355*160	585	140	259	4.7/4.0		√
Tee 355*200	585	140	257.5	4.7/4.0		√
Tee 355*250	585	140	269.25	4.7/4.0		√
Tee 355*315	585	140	268.5	4.7/4.0		√
Tee 400*110	447	143	275.5	4.7/4.0		√
Tee 400*160	447	143	284.85	4.7/4.0		√
Tee 400*200	447	143	290	4.7/4.0		√
Tee 400*250	620	143	293.5	4.7/4.0		√
Tee 400*315	620	143	292	4.7/4.0		√
Tee 500*110	500	150	341	4.7/4.0		√
Tee 500*160	500	150	338	4.7/4.0		√
Tee 500*200	500	150	338	4.7/4.0		√
Tee 500*250	500	150	347	4.7/4.0		√
Tee 500*315	737	150	347	4.7/4.0		√
Tee 500*400	737	150	356.25	4.7/4.0		√
Tee 630*110	710	184	401	4.7/4.0		√
Tee 630*160	710	184	408.5	4.7/4.0		√
Tee 630*200	710	184	409.5	4.7/4.0		√
Tee 630*250	710	184	419.25	4.7/4.0		√
Tee 630*315	710	184	419	4.7/4.0		√
Tee 630*400	710	184	427.5	4.7/4.0		√
Tee 630*500	932	187	433	4.7/4.0		√
Tee 710*200	792	214	455.5	4.7/4.0		√
Tee 710*315	792	214	465	4.7/4.0		√
Tee 710*400	792	214	472.25	4.7/4.0		√
Tee 710*500	792	214	478	4.7/4.0		√
Tee 800*160	816	227	500	4.7/4.0		√
Tee 800*200	816	227	503.25	4.7/4.0		√
Tee 800*315	816	227	515	4.7/4.0		√
Tee 800*400	816	227	521	4.7/4.0		√
Tee 800*500	816	227	527	4.7/4.0		√




50*40	148	54.7	63.5	4.7/4.0			√
63*50	164	55	71.2	4.7/4.0			√
75*63	183	54.4	81.4	4.7/4.0			√
90*50	214	64.4	86.7	4.7/4.0			√
90*63	214	64.4	89.2	4.7/4.0			√
90*75	214	64.4	94.2	4.7/4.0			√
110*90	240	75	109.5	4.7/4.0			√
160*110	313	93	145.5	4.7/4.0			√
200*110	360	105	167.5	4.7/4.0			√
200*160	360	105	182.5	4.7/4.0			√
250*200	438	125	219.5	4.7/4.0			√
250*110	441	126	197.5	4.7/4.0			√
250*160	441	126	211.5	4.7/4.0			√
315*110	511	134	246.5	4.7/4.0			√
315*160	511	134	246.5	4.7/4.0			√
315*200	511	134	249	4.7/4.0			√
315*250	511	134	260.5	4.7/4.0			√
50*50	148	54.7	63.75	4.7/4.0			√
63*63	164	54.9	74.1	4.7/4.0			√
75*75	183	54.4	86.4	4.7/4.0			√
90*90	213	70	99.4	4.7/4.0			√
110*110	240	75	112	4.7/4.0			√
160*160	313	93	158	4.7/4.0			√
200*200	360	105	182.75	4.7/4.0			√
250*250	438	125	219	4.7/4.0			√
315*315	511	134	261	4.7/4.0			√




Tee 160*110	318	92	143.5	4.7/4.0				√
Tee 200*160	373	93	170	4.7/4.0				√

Key Features

Branch Size Reduction: The branch socket is smaller than the run, so the HDPE electro fusion reducer tee combines a branch and a size reduction in one fitting.
One Piece Moulded: The reducer tee is injection moulded as a single body, so there is no welded seam at the branch junction.
Three Electro Fusion Sockets: All three connections use fused joints, so the branch and the run are permanently leak tight.
No Metal Insert: The electro fusion reducer tee keeps polyethylene throughout, so there is no corrosion at the branch junction.
Full PE100 Pressure: The reducer tee carries the same PN rating as the main pipe, so the branch does not reduce system pressure capacity.
Maintenance Free: All three fused joints are permanent, so the HDPE electro fusion reducer tee needs no bolts or gaskets at the branch.

Production

Raw Material

The HDPE electro fusion reducer tee is moulded from virgin PE100 compound rated MRS 10.0 per ISO 4427-3, with the resin lot recorded for full traceability from pellet to fitting.

Molding Process

Each electro fusion reducer tee is injection moulded in one shot with three resistance coils pre positioned in the socket walls; the branch socket bore is reduced concentrically and the branch angle is held to 90 degrees per ISO 4427-3 dimensions.

Quality Control

Every batch of HDPE electro fusion reducer tees is gauged for all three socket diameters, ovality, coil resistance and branch angle, then sample welded and pressure tested to 1.5 times rated pressure before release; each fitting carries a batch code traceable to the raw resin lot.

Applications

Service line takeoffs use the HDPE electro fusion reducer tee to branch a smaller distribution line from the trunk main without a separate reducer.
Distribution branches install the electro fusion reducer tee where a lateral is smaller than the main, because the one piece body carries full pressure at the branch.
Water treatment plant branches use the HDPE electro fusion reducer tee to feed a smaller line to a treatment unit off the main header.
Flow splits to secondary lines use the electro fusion reducer tee, where the smaller branch directs part of the flow to a secondary system.
