Product Overview

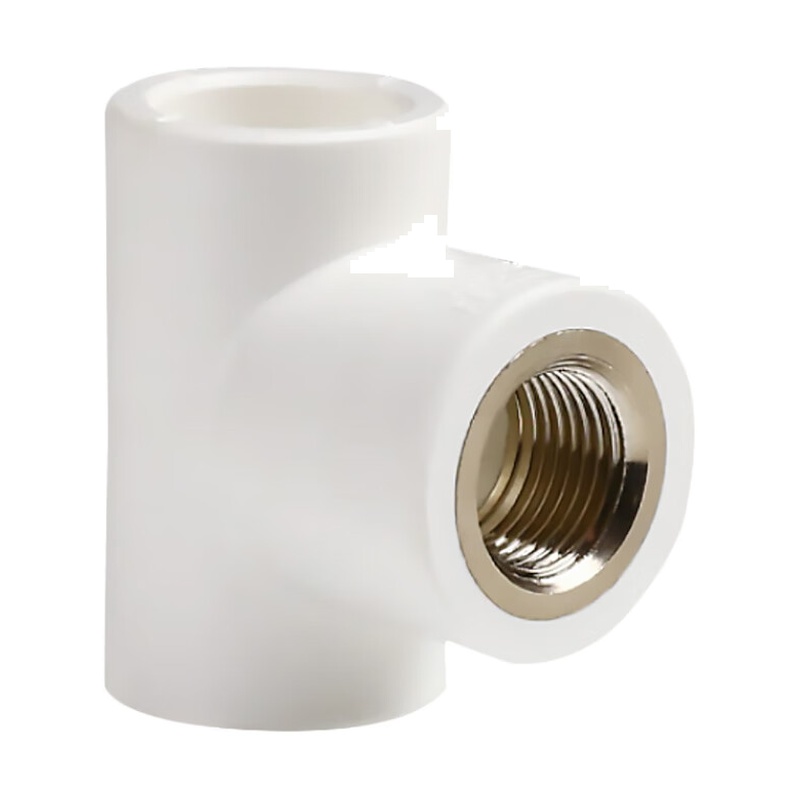

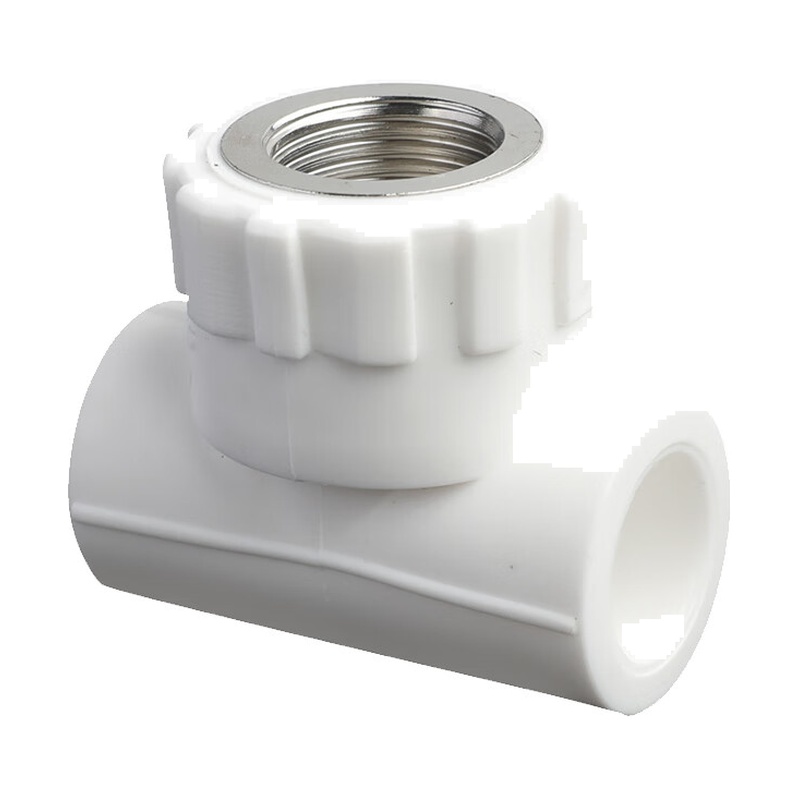

PPR female threaded tee branches a PPR line with two PPR socket ends for straight run fusion and one female BSP threaded port for fixture connection. Ideal where the branch needs to be threaded rather than fused.
Quick Information
- Material: Virgin PP-R body, Brass threaded insert
- Connection: 2× Heat Fusion + 1× Female BSP Thread
- Size Range: DN 20 - DN 32 mm
- Standards: GB/T 18742
Specification Table
| PPR Side | Thread Port | Connection |
|---|---|---|
| DN 20 PPR | 1/2" F BSP | 2× Fusion + Threaded |
| DN 25 PPR | 1/2" F BSP | 2× Fusion + Threaded |
| DN 32 PPR | 1/2" F BSP | 2× Fusion + Threaded |
| DN 32 PPR | 3/4" F BSP | 2× Fusion + Threaded |
