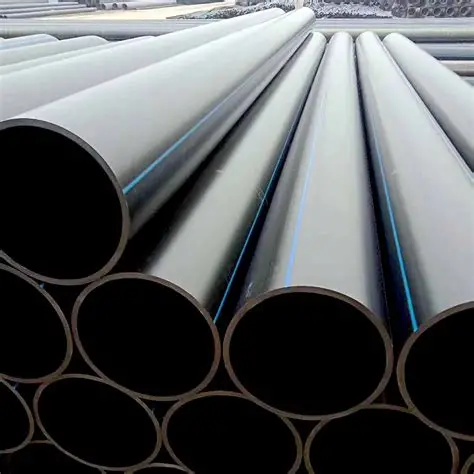

HDPE Solid Wall Pipe

HDPE solid wall pipe in PE100 from DN20 to DN1000 mm, PN8 to PN16 in SDR21, SDR17 and SDR11, to ISO 4427 and EN 12201, for water supply, drainage and industrial lines.

Extra Valuable Service
✧High Quality: ISO Certified Quality ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5-Year Guarantee

Category: HDPE Pipes

HDPE Pipes

Product Overview

HDPE solid wall pipe manufactured from PE100 for water supply and drainage. High strength, uniform wall construction and long service life deliver dependable performance in buried and above-ground systems. The uniform solid wall of this HDPE solid wall pipe gives consistent ring stiffness and pressure rating across the full DN20 to DN1000 range, making it the workhorse of municipal water and drainage networks.

Quick Information

Type: Solid Wall Pipe
Material: HDPE PE100
Standard: ISO 4427 / EN 12201
Size: DN20 – DN1000 mm
Pressure Rating: PN8 – PN16 (SDR21 / SDR17 / SDR11)
Application: Water supply, drainage, industrial lines
Stock: Made to order

Specification Table

DN (mm)	OD (mm)	SDR11 (PN16) Wall (mm)	SDR17 (PN10) Wall (mm)	SDR21 (PN8) Wall (mm)
20	20	2.0	1.2	–
25	25	2.3	1.5	1.2
32	32	3.0	1.9	1.6
40	40	3.7	2.4	1.9
50	50	4.6	3.0	2.4
63	63	5.8	3.8	3.0
75	75	6.8	4.5	3.6
90	90	8.2	5.4	4.3
110	110	10.0	6.6	5.3
160	160	14.6	9.5	7.7
200	200	18.2	11.9	9.6
250	250	22.7	14.8	11.9
315	315	28.6	18.7	15.0
400	400	36.3	23.7	19.1
500	500	45.4	29.7	23.9
630	630	57.2	37.4	30.0
800	800	72.6	47.4	38.1
1000	1000	90.9	59.3	47.7

Key Features

Solid Wall Construction: Uniform wall thickness of the HDPE solid wall pipe provides consistent strength and stiffness.
High Ring Stiffness: PE100 material delivers excellent ring stiffness for buried HDPE solid wall pipe service.
Leak-Free Joints: Butt fusion joints give a homogeneous, watertight HDPE solid wall pipe line.
Long Service Life: The HDPE solid wall pipe is corrosion-free and resistant to soil chemicals for 50-plus years.
DN20 – DN1000 Range: The HDPE solid wall pipe covers building services through large municipal mains.
PN8 – PN16 Ratings: The HDPE solid wall pipe is available in SDR21, SDR17 and SDR11 to match pressure class.

Production

Raw Material

The HDPE solid wall pipe is extruded from certified PE100 black compound compliant with ISO 4427.

Extrusion Process

The HDPE solid wall pipe is produced by continuous extrusion with online wall-thickness and diameter control.

Quality Control

Each HDPE solid wall pipe passes wall uniformity, SDR accuracy and hydrostatic testing before release.

Applications

Buried municipal water mains use the HDPE solid wall pipe for reliable pressure-rated distribution.
Sewer outfalls and storm drainage install the HDPE solid wall pipe for corrosion-free gravity flow.
Agricultural and industrial water networks rely on the HDPE solid wall pipe for long life and low maintenance.
Above-ground and buried general-purpose lines choose the HDPE solid wall pipe for a versatile, proven solution.
